MINEX 4.610 is a metal detector specially designed for searching very small metallic objects located close to the ground surface, such as minimum metal mines or plastic mines. The device ensures high sensitivity to the smallest metal particles, accurately determining their location.

The detector has two key functions for demining: elimination of the negative influence of soil mineralization and a special military mode that allows safe operation at night by turning off LED indicators.

MINEX 4.610 is ideally suited for operation in all conditions, even in complex soils or on wet surfaces. Its design includes dual-frequency technology and two integrated search coils, allowing for precise determination of explosive device location and working near large metallic structures, such as railway tracks and fences.

The delivery set includes a soft case for comfortable transport, as well as the possibility of configuring the device for various usage conditions.

Features

  • High Sensitivity
    Dual-frequency technology ensures consistently high sensitivity to all metals.
  • Two Search Coils Integrated into One Housing (Double D)
    The detector operates with 2 different signals, which not only allows for accurate determination of explosive device location but also enables working alongside large metallic structures, such as railway tracks, fences, and vehicles.
  • Variety of Methods for Alerting the Operator of Findings
    Audible and visual indication of findings along with vibration indication simplify searching and minimize the chances of missing important targets.
  • Simple to Operate

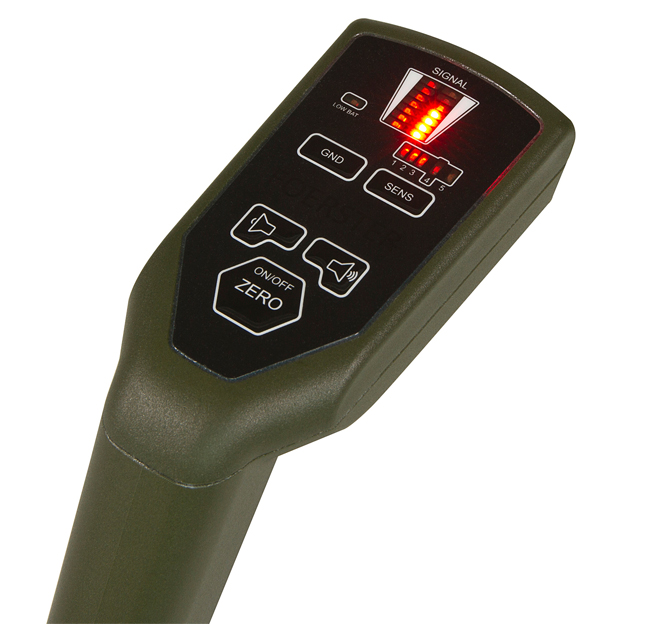

    Five sensitivity levels. All controls and the display are integrated into the device handle. The display contains 14 LED indicators. If you need to work covertly, these indicators can be turned off in Military operation mode.
  • Automatic Interference Elimination
    Operates without interference near power lines, in moist soil, or in salt water.
  • Adaptation to All Usage Conditions
    Quick adjustment for complex soils for effective operation.
  • Safe to Use
    In case of device malfunction or low battery charge, the MINEX 4.610 will alert you with audible and visual signals.
  • Convenient Transportation
    A backpack for storage and transport is included in the set.

Technical Specifications

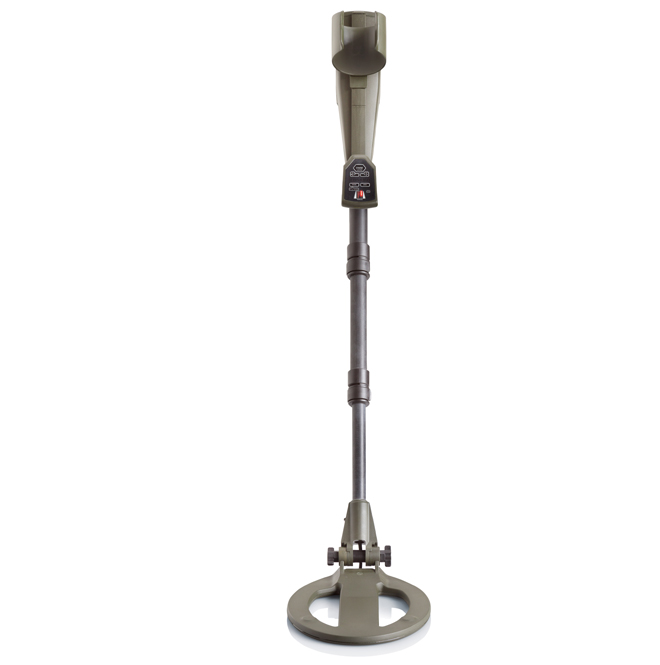

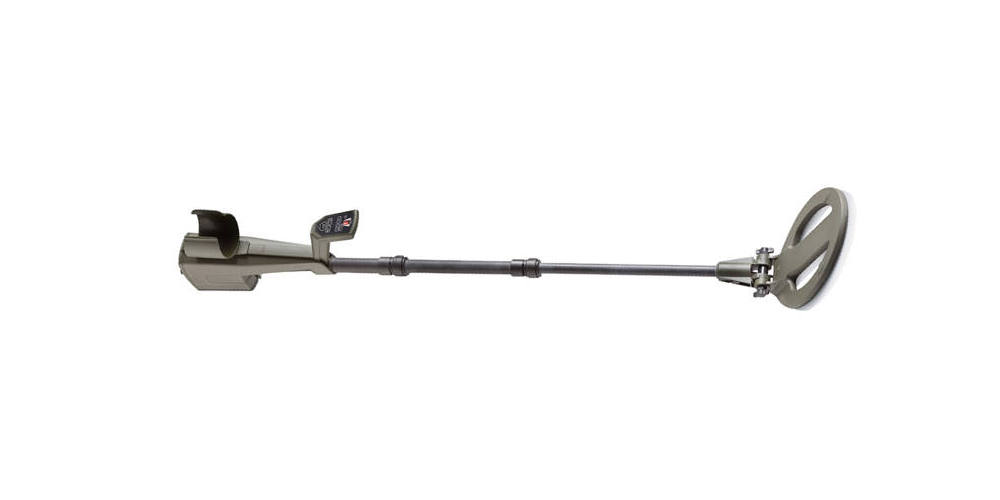

Detector Size
  • folded state – 65.7 cm
  • length – 168 cm
  • width – 9.7 cm
  • height – 25.3 cm
Search Coil Size 21 x 28,5 cm
Dimensions in Case 72 x 34 x 15 cm
Weight
  • without batteries – 2.2 kg
  • with batteries – 2.6 kg
  • in case – 2.5 kg
Waterproof Rating Submersion up to 2 meters for 30 minutes, IP68 standard
Storage Temperature from – 57 C to +71 C
Operating Temperature from – 37 C to +71 C
Power Supply
  • 3 pcs x 1.5 V alkaline batteries
  • 3 pcs x 1.2 NiMH batteries
Battery Size “D” size batteries
Battery Life
  • with alkaline batteries up to 40 hours at +20 C
  • with NiMH rechargeable batteries up to 30 hours at +20 C
EMV/CE Certificates
  • ETSI EN 303 454 V1.1.1:2018-01
  • DIN EN 50364:2019-05
  • ETSI EN 301 489-1 V2.2.3
  • DIN EN 55032:2016-02
  • DIN EN 61000-4-2:2009-12
  • DIN EN 61000-4-3:2011-04
  • DIN EN 62368-1:2021-05
MIL-Standard Certificates
  • MIL-STD 810H Method 501.7, Procedure I – High Temperatures, Storage
  • MIL-STD 810H Method 501.7, Procedure II – High Temperatures, Operation
  • MIL-STD 810H Method 502.7, Procedure I – Low Temperatures, Storage
  • MIL-STD 810H Method 502.7, Procedure II – Low Temperatures, Operation
  • MIL-STD 810H Method 503.7, Procedure I-C – Thermal Shock
  • MIL-STD-810H Method 506.6, Procedure I – Rain
  • MIL-STD-810H Method 512.6, Procedure I – Submersion
  • MIL-STD-810H Method 514.8, – Oscillation Broadband Noise
  • MIL-STD-810H Method 516.8, – Drop Test
  • MIL-STD-810G Method 505.5, Procedure II – Solar Radiation
IMAS Certificates CWA 14747-1:2003-06-01
Additional Certificates
  • IEC 60068-2-11:2020
  • IEC 60068-2-78:2012
  • IEC 60529 – Protection type test IP68
  • DIN EN 60068-2-27:2010-02
  • DIN EN 60068-2-1:2008-01/ -2-2:2008-05



Supplied set

Mine detector with coil 11x8″ DD
Headphones
Backpack
Battery and charger
