price 18 480 uah

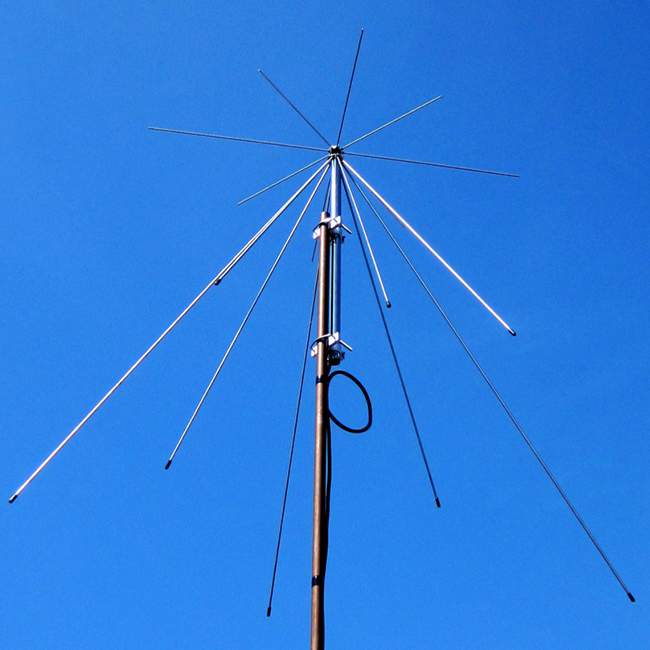

DA3200 is a wideband 16-element discone antenna, ideal for professionals. ROHS compliant. Structurally, the antenna is made in the form of a mast, to which sixteen whip elements are screwed. The horizontal whip elements form a disk, and the inclined ones form a cone. When transported, all product elements are compactly folded. The AOR DA3200 antenna operates in the 25-3000 MHz range, with a maximum gain of 3 dB (100-3000 MHz).
Attention! The DA3200 antenna is not designed for transmission!
Technical Specifications
| Frequency Range | 25-3000 MHz |
| Impedance | 50 Ohms |
| Maximum Gain | 3 dB (100-3000 MHz) |
| Connector | N-type |
| Mass | about 1 kg with cable |
| Dimensions | height 1.12 m, diameter 0.84 m |
| Wind Resistance | 50 m/s |
| Permissible Mast Diameter | 20-50 mm |
| Supplied Accessories |
|
