Delta S STANDARD – Countersurveillance sweeping system

Detects all types of clandestine devices, including GSM, 3G, 4G / LTE, 5G, Wi-Fi, Bluetooth, ZigBee, etc. in the range 60-6000 MHz. Has a sensitivity 10-20 times higher than near-field detectors/receivers. Tablet or laptop are not included in the delivery set.

Capabilities

• Easy to learn and simultaneously powerful search system.
• Quickly and reliably detects all types of radio frequency covert information gathering devices in the range up to 6 GHz, including analog, digital, continuously and periodically operating, transmitting audio or video, with or without encryption.
• Locates and identifies clandestine devices using digital standards GSM, 3G, 4G/LTE, 5G, Bluetooth, Wi-Fi, DECT, and other standards in the range up to 6 GHz (12 GHz).
• Analyzes Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Bluetooth, Bluetooth LE, and Bluetooth LE Advertising channels.
• Detects radio frequency jammers (blockers) on all bands, including mobile communication uplink and downlink bands, Global Navigation Satellite System (GPS, GLONASS, GALILEO, etc.) bands, Wi-Fi/Bluetooth, etc.
• Spectral analysis provides high sensitivity and long detection distance, exceeding the performance of typical RF detectors and near-field receivers by 10-20 times.
• Background masking function allows filtering out safe signals, such as television, radio broadcasting, communication base stations, radio communication, etc., and focusing on searching for local signals that pose a threat.
• Quick configuration to the frequency allocation of the country of use.
• High spectrum refresh rate and wide real-time bandwidth ensure the possibility of recording transient signals.
• Search modes “All Signals,” “Mobile/GPS Trackers,” “Wireless/ISM,” “Downlink/Navigation,” and “User,” as well as two additional modes for range and signal investigation for localization.
• Multiple antenna inputs and a built-in antenna switch ensure maximum sensitivity across the entire range.

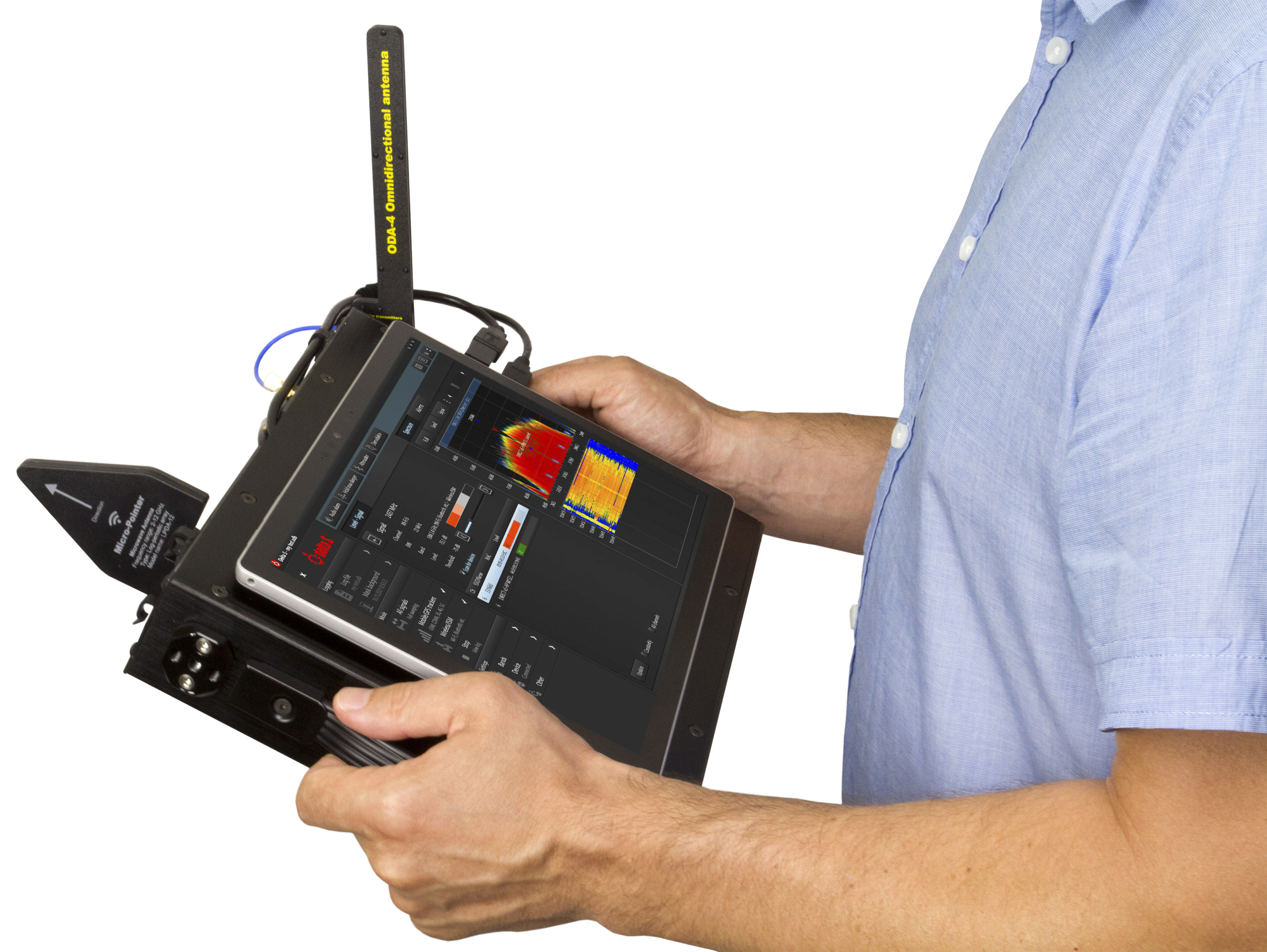

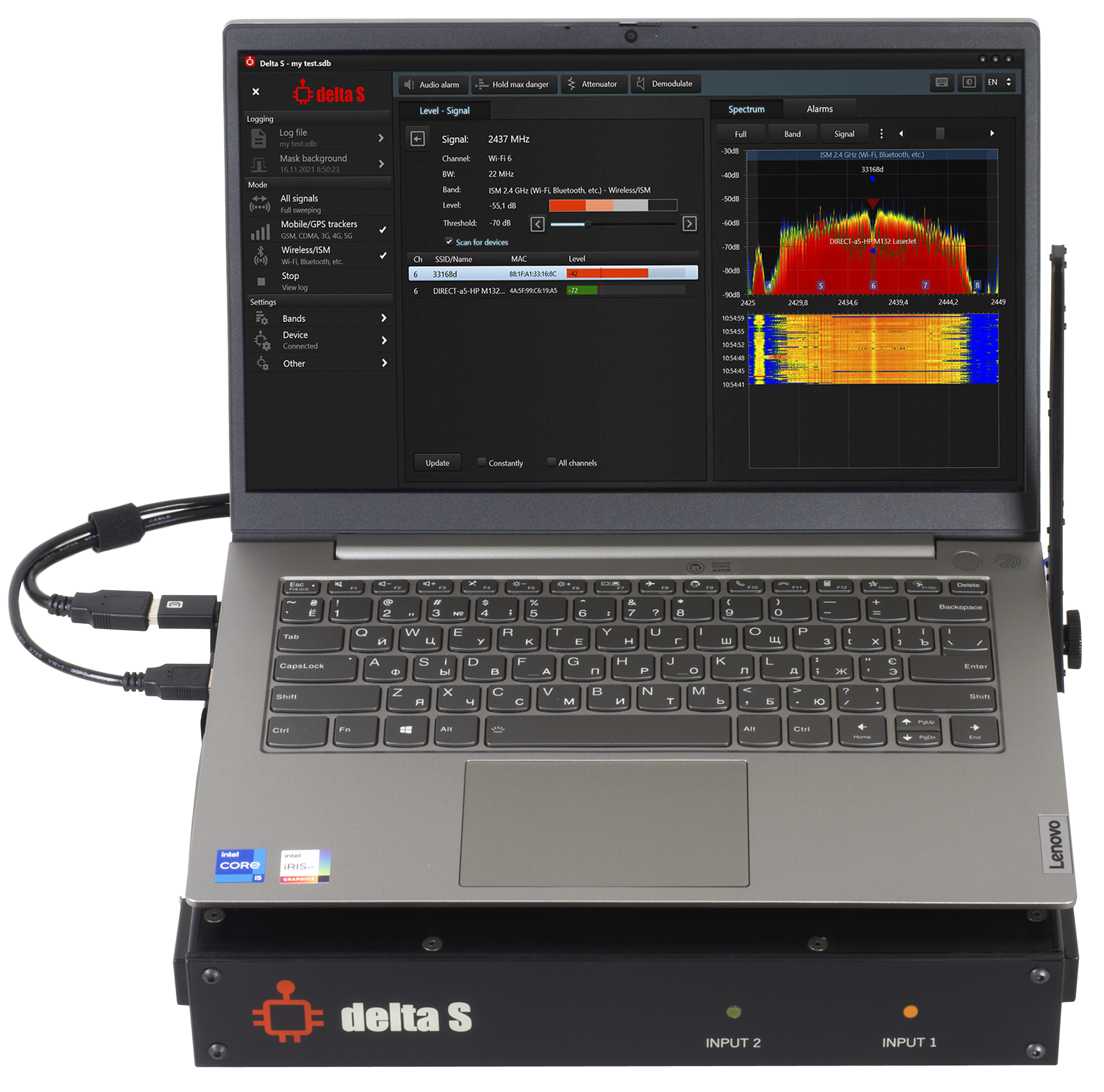

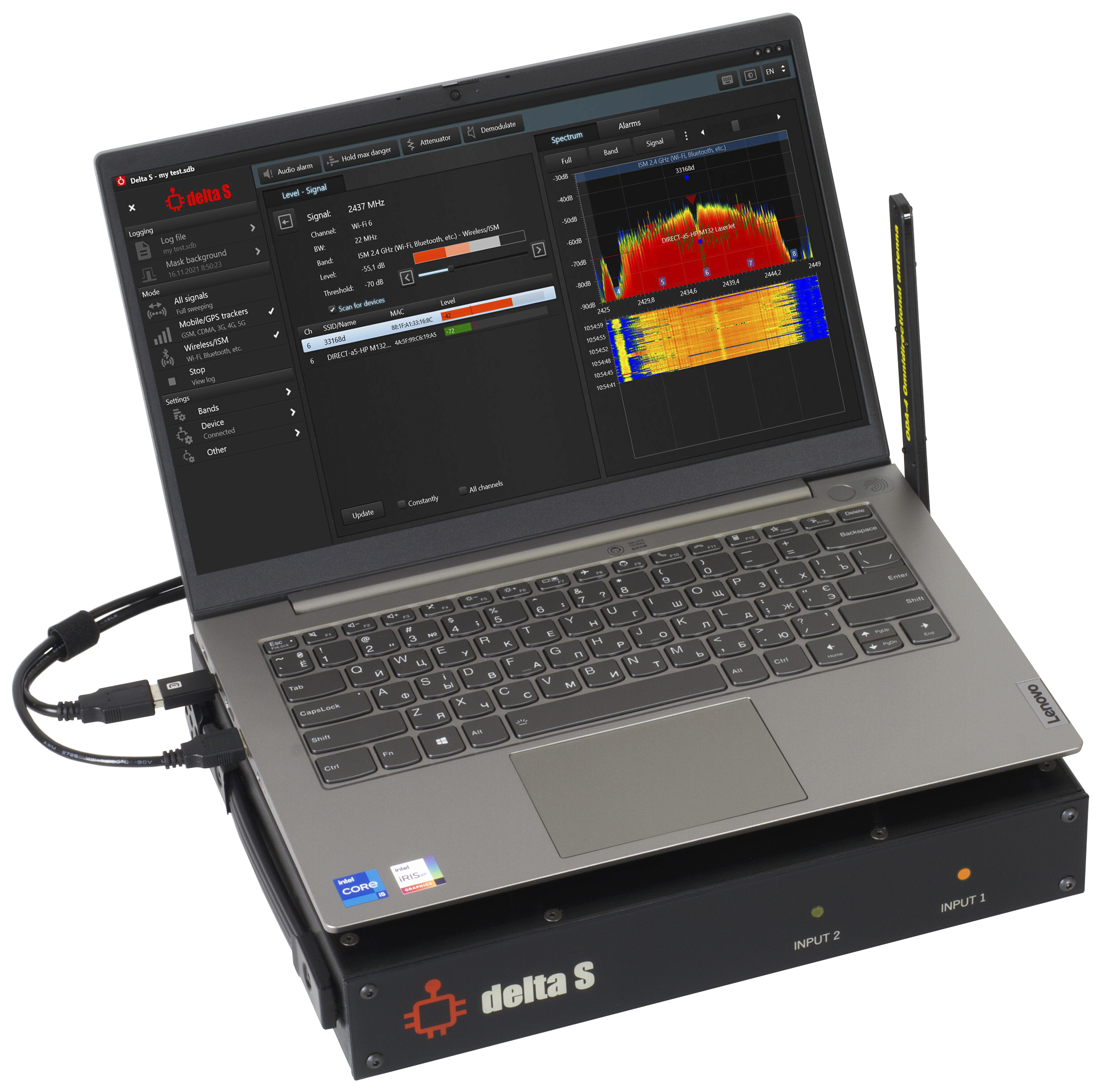

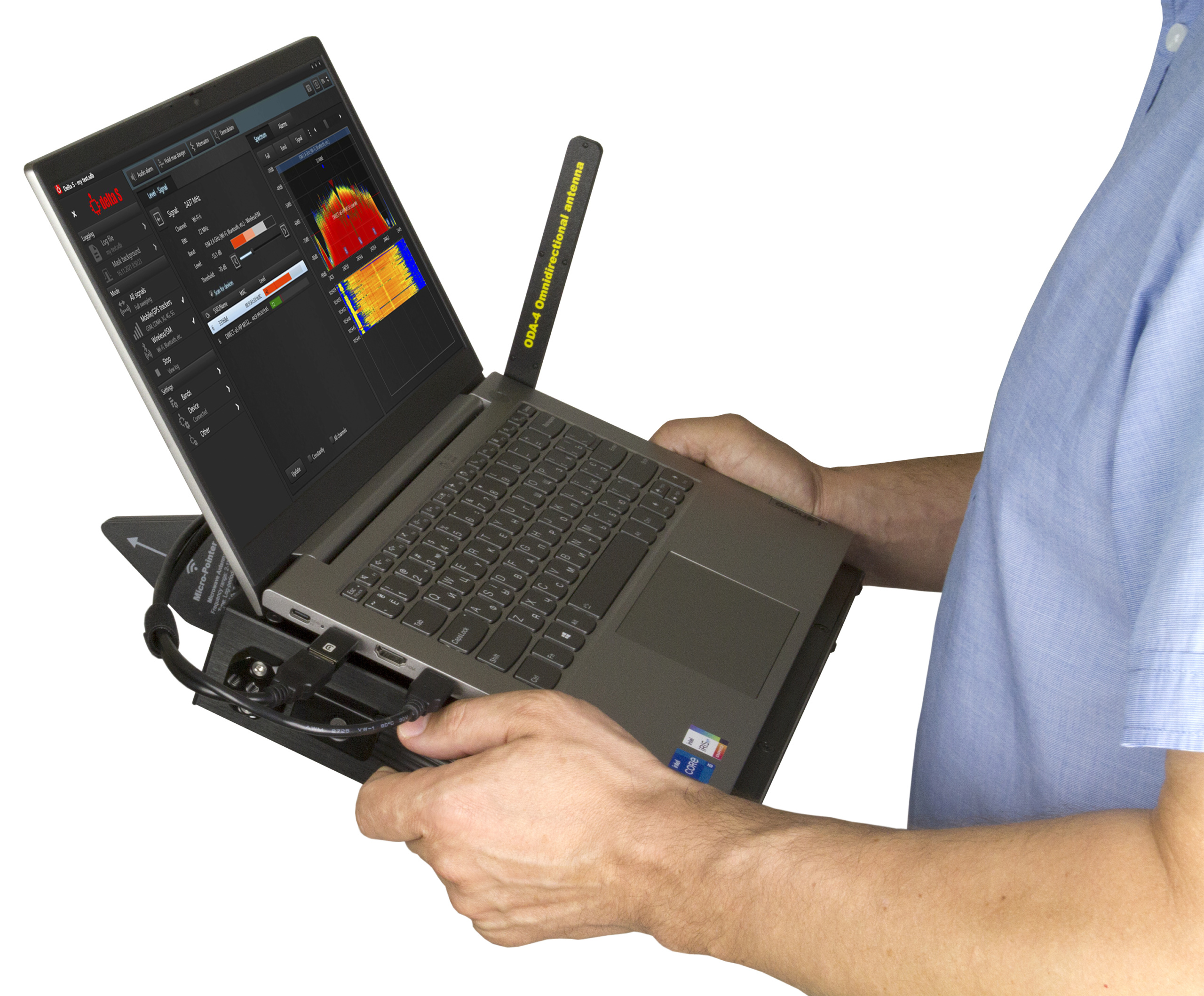

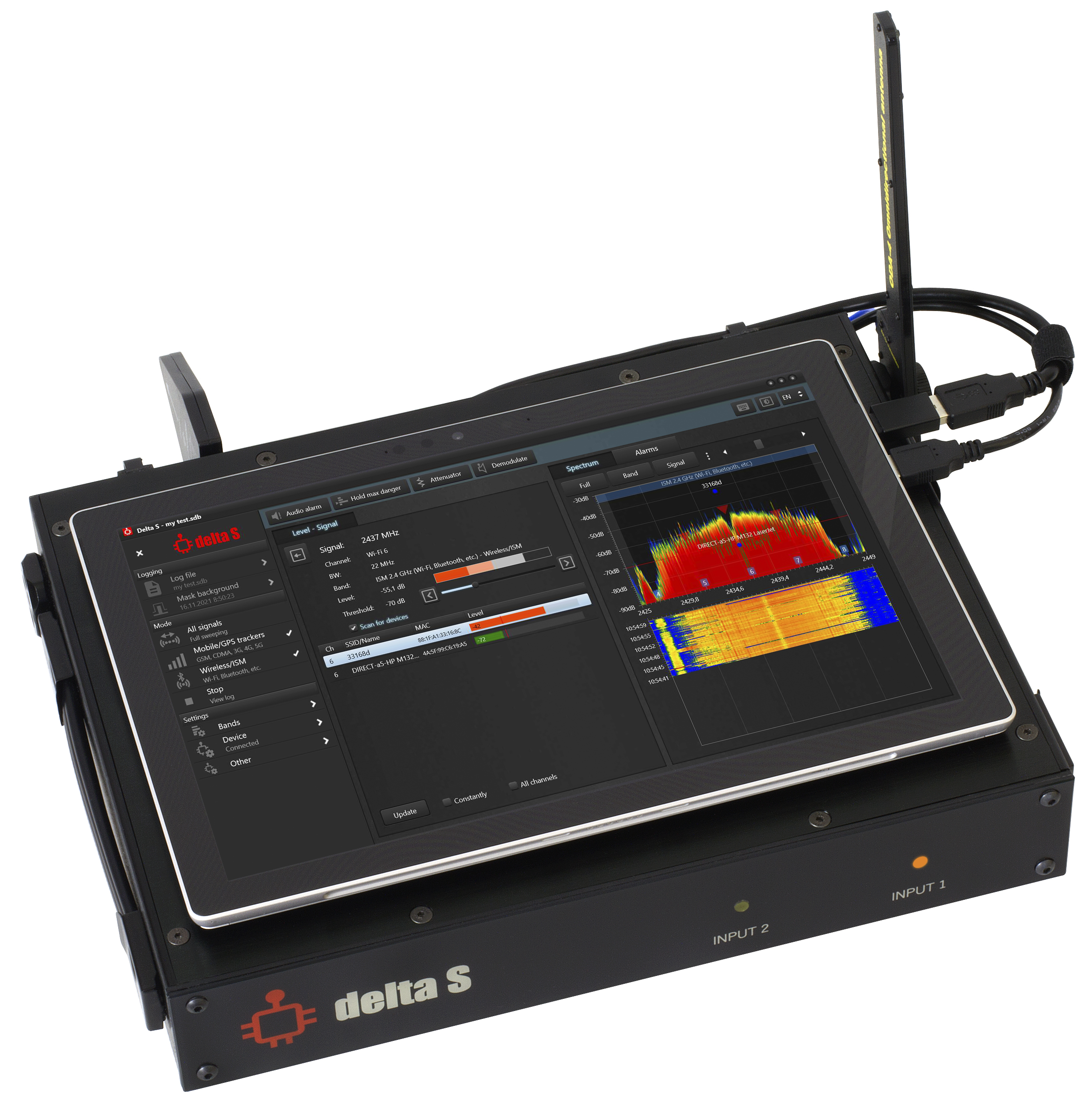

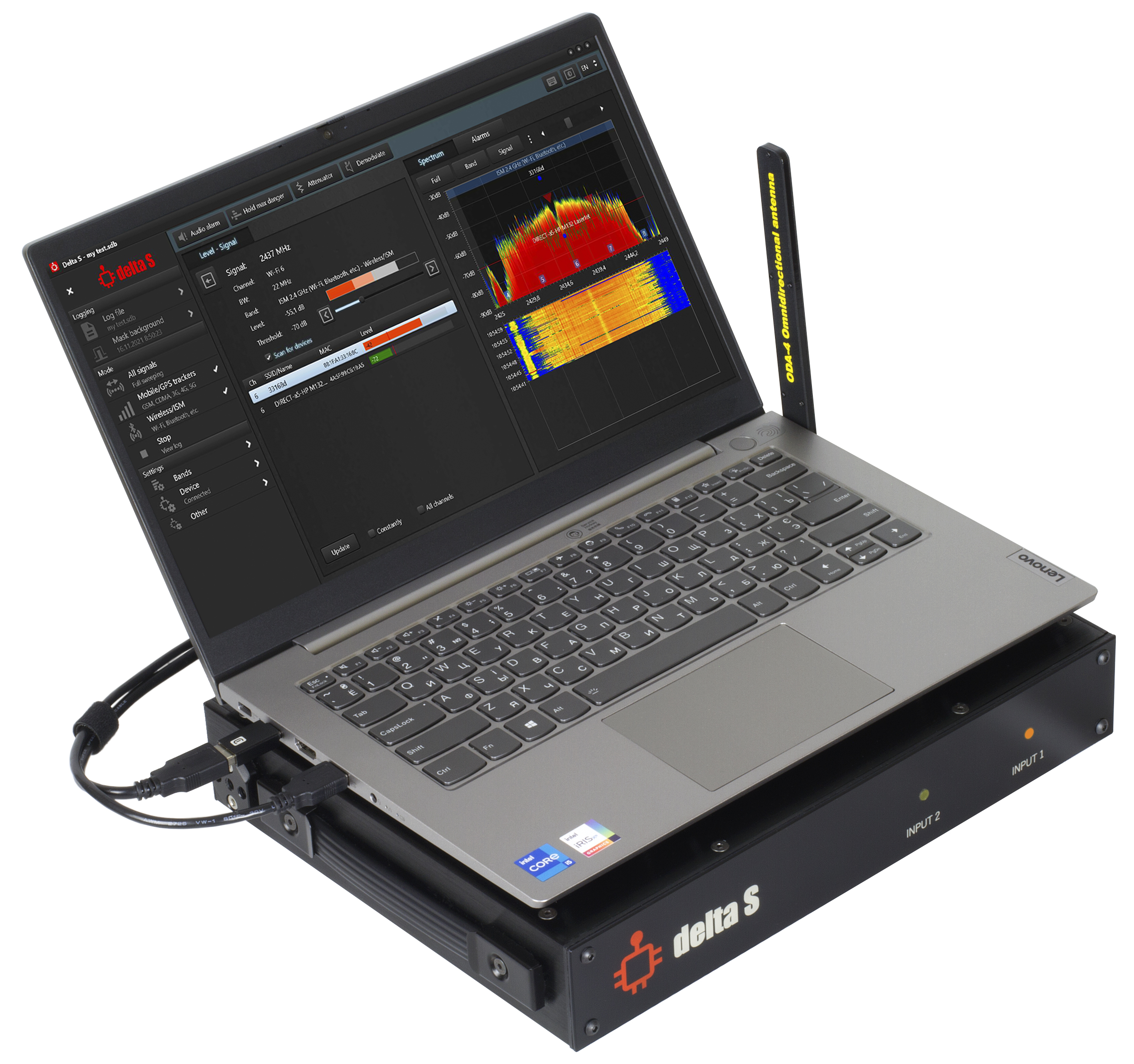

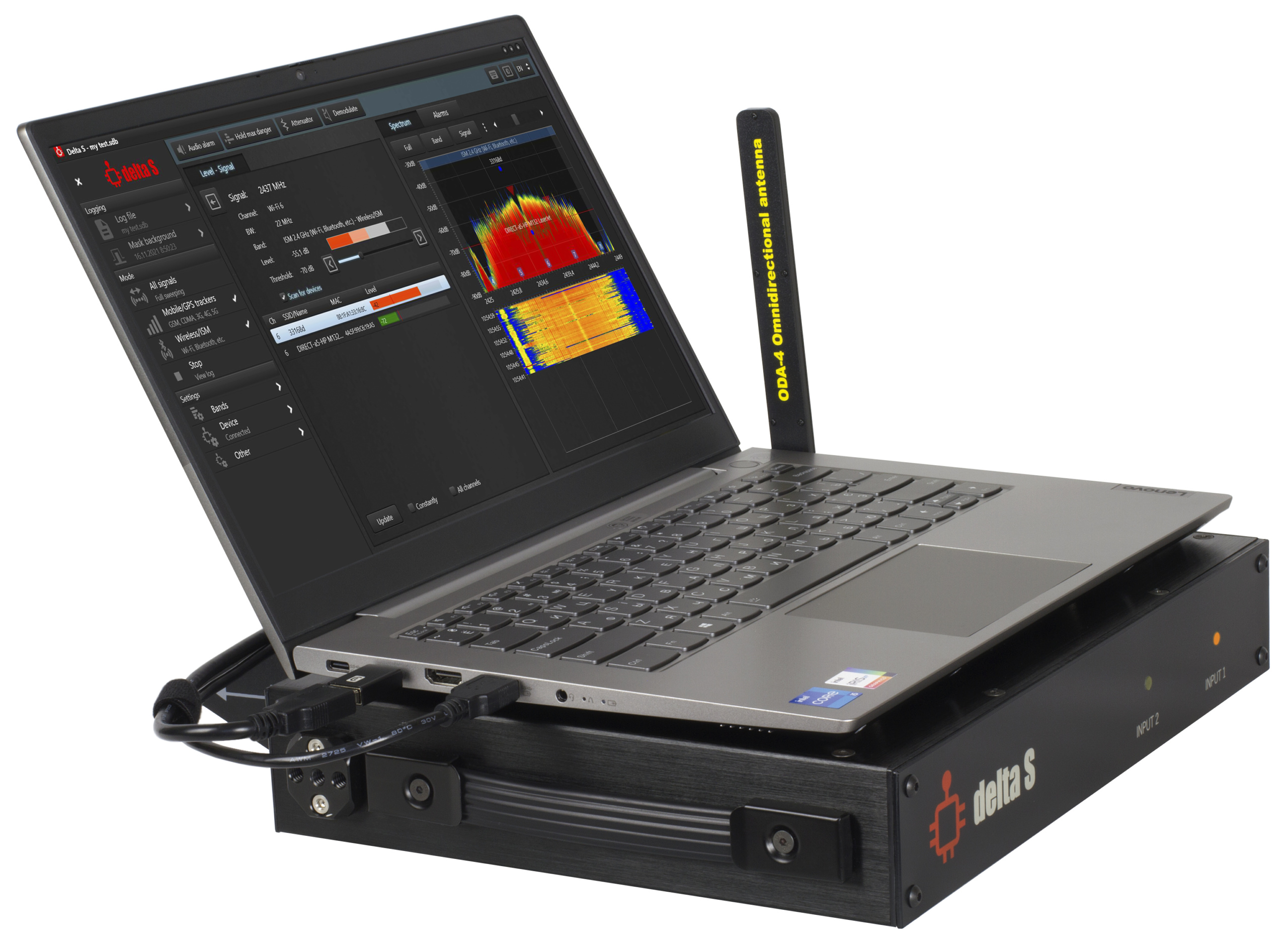

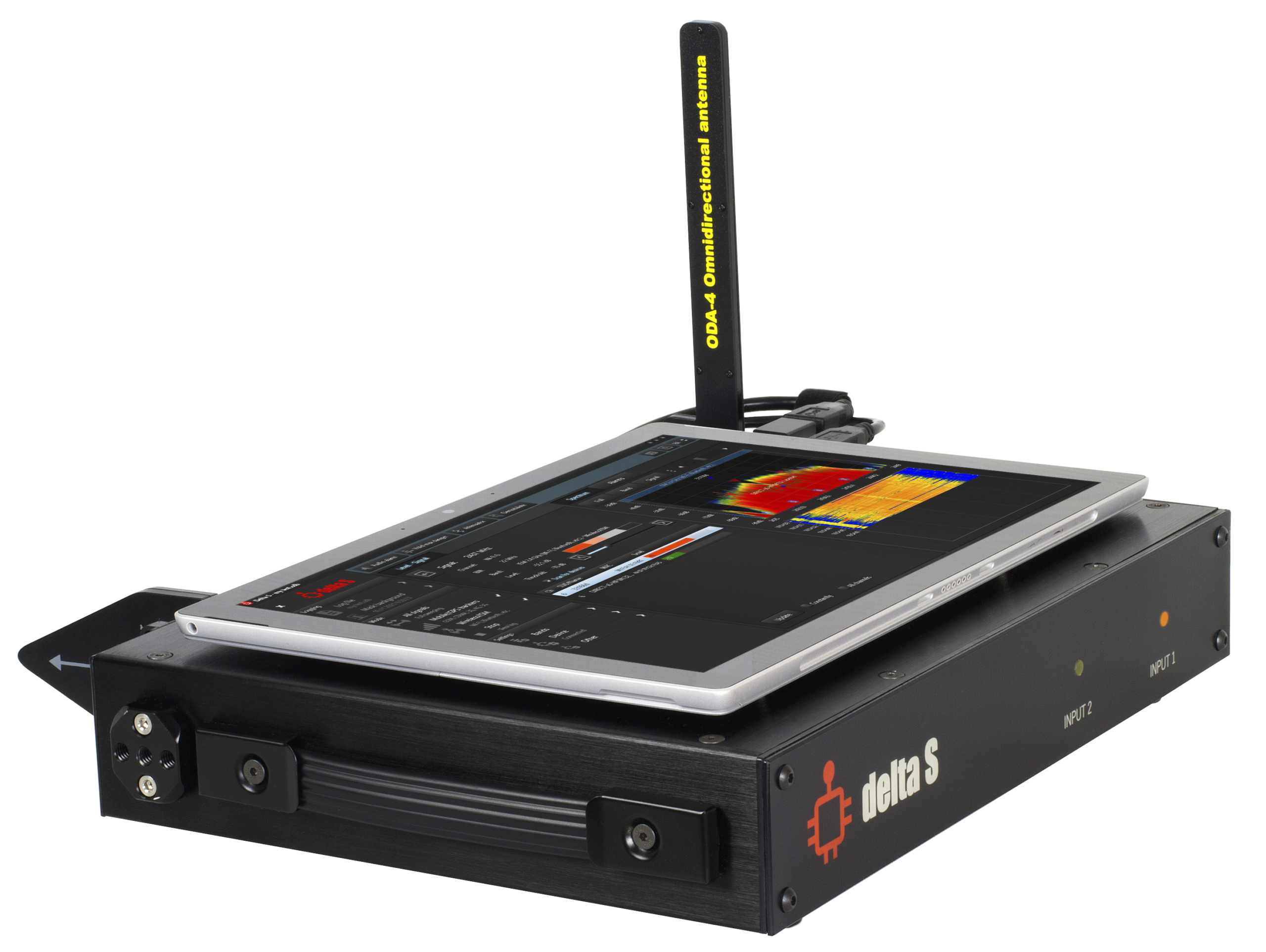

• The system operates with a laptop or tablet and is powered by it. Reliably connects to the laptop or tablet to move during search and localization. Features a convenient magnetic system for mounting the laptop / tablet to the main unit.
• Side handles are used for carrying, and all antennas are attached to the unit.
• Transport case included in the delivery set.

Features of Delta S

• Frequency range 60 MHz – 6 GHz.
• An affordable, light, and easy-to-use detection system.

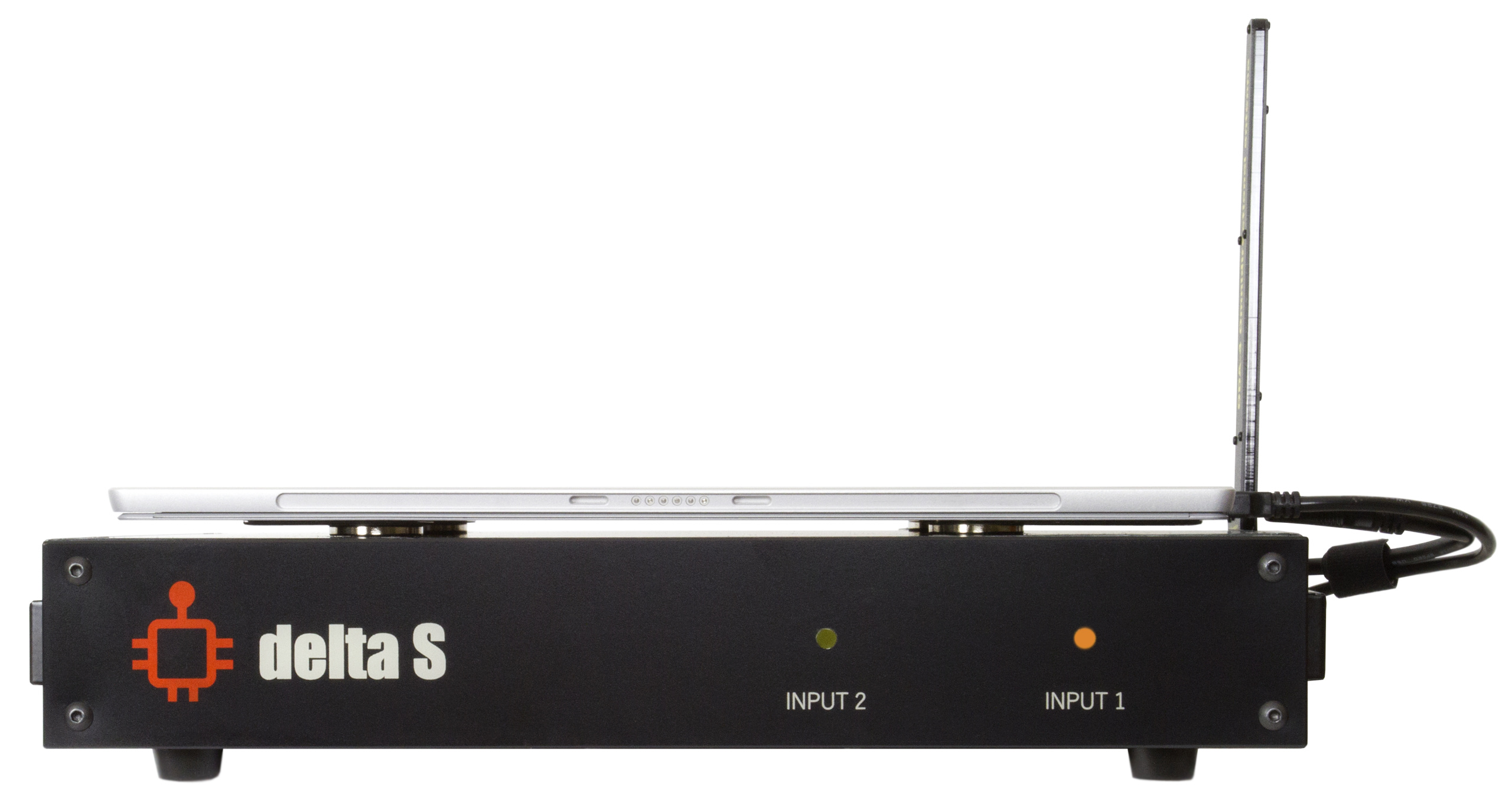

• Fixed frequency distribution between antenna inputs (INPUT 1: 60 – 2000 MHz, INPUT 2: 2000-6000 MHz).
• High sensitivity and high scanning speed ensure the detection of all types of threats.

Advantages

Wide Set of Search Modes

• In “All Signals” mode, the system analyzes the spectrum across the entire frequency range and detects signals of all types.
• In “Mobile/GPS Trackers” mode, the system detects mobile devices of all standards, including GPS beacons installed on transport and broadcasting coordinates via mobile networks GSM, 3G, 4G/LTE, and 5G (up to 6 GHz).
• In “Wireless/ISM” mode, Delta S quickly detects Wi-Fi, Bluetooth, ZigBee, DECT, LoRa, and other radio frequency means.
• In “Downlink/Navigation” mode, the system scans mobile communication downlink bands and Global Navigation Satellite System (GNSS) bands.

Unique Band System

• By default, the frequency span is divided into several base bands, in addition to which a number of mobile and wireless bands are added according to the local frequency allocation.
• The band table can be quickly configured to the frequency allocation of the country of use and can be edited in case of changes in the frequency allocation of GSM, 3G, 4G/LTE, and 5G.
• Each band has a separate level scale and an individual threshold for sensitivity adjustment. The level scale changes color to red if the threshold is exceeded.
• Alarm history for each of the bands is stored in the log and can be displayed on a graph.

Automatic Signal Recognition

• Signals are automatically recognized in the spectrum, added to the list, and then automatically updated.
• The list of signals is available in the band investigation mode.
• Alarm history for each of the signals is stored in the log and can be displayed on a graph.
• The user can easily switch to investigating a specific signal to perform its localization.

Background Masking

• The “Mask Background” command allows accumulating and masking external signals, such as television signals, radio broadcasting, mobile communication repeaters, etc., and thus focusing on detecting only those transmitters located in the search area.
• Background masking can be performed at several points.
• The shift of the spectral mask (sensitivity) is set by the threshold.

Wi-Fi and Bluetooth Analysis

• A separate level scale is displayed for each Wi-Fi 2.4 GHz and 5 GHz channel.
• Separate level scales are displayed for “Bluetooth,” “Bluetooth LE,” and separately for “Bluetooth LE Advertising” protocols.
• Investigation and localization of each individual Wi-Fi channel or separate “Bluetooth,” “Bluetooth LE,” and “Bluetooth LE Advertising” protocols is possible.
• Display of Wi-Fi, Bluetooth, or Bluetooth LE channel grids on the spectrum graph.
• Scanning of Wi-Fi access points or unconnected Bluetooth LE devices.
• Display of Wi-Fi access points or unconnected Bluetooth LE devices on the spectrum graph or in the list.

Threshold and Alarm Indication

• Each band has an individual sensitivity threshold set by the user.
• The scale color changes to red when the threshold level is exceeded.
• Signals exceeding the threshold are automatically recognized and stored.
• The “Audible Alarm” function warns the operator when the threshold is exceeded. The intensity of the audible alarm increases as the level rises, which facilitates localization.
• Alarm history is stored and graphically displayed for each band and signal.

RF Jammer Detection

• The bands that radio frequency mobile downlink communication channels and Global Navigation Satellite System (GNSS) jammers may operate on are scanned.
• The “Detect RF Jammers” function activates noise level measurement on the bands and a special audible alarm.
• When interference is detected, the operator can find the signal source using the “Noise Level” scale and audible alarm.
• In addition to mobile downlink communication channels and satellite bands, any other bands can be scanned for interference.

Specification

Files for download

---

PDF, 3 MB

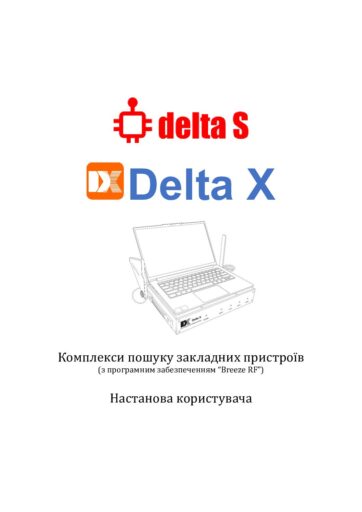

Breeze RF User Manual UK
