Delta X 2000/6 Real-Time Advanced – Countersurveillance sweeping system

High measurement speed, 2000-3000 MHz per second. Frequency range 9 kHz – 6000 MHz. Signal existence time detected: 2-3 seconds. Instantly detects pulsed digital signals. Can simultaneously detect and localize a transmitter. Supplied with a mobile control terminal (laptop).

Distinctive Features

• Quickly and reliably detects all types of radio frequency covert information gathering devices, including analog, digital, continuously and periodically operating, transmitting audio or video, with or without encryption.
• Locates eavesdropping devices using digital standards GSM, 3G, 4G/LTE, 5G (<6 GHz), Bluetooth, Wi-Fi, DECT, etc.
• Detects covert information transmission in AC mains, through phone wires, in Ethernet wires, alarm, and other cables, and also checks the infrared range using the multifunction probe supplied in the set.
• Can operate in instant search, 24-hour guard, localization, and GPS beacon detection modes.
• Has 20-50 times higher sensitivity compared to RF detectors and near-field receivers.
• Can monitor the radio frequency environment 24 hours a day with data logging.
• Ability to detect covert eavesdropping devices with accumulation function and transmitters hidden in the spectra of other signals.
• Supports storage of an unlimited number of signals. All information is stored in a database with the ability to review upon detection or later. The number of supported databases is unlimited. Audio demodulation in FM, AM, USB, LSB, CW (adjustable bandwidth 3 … 240 kHz).

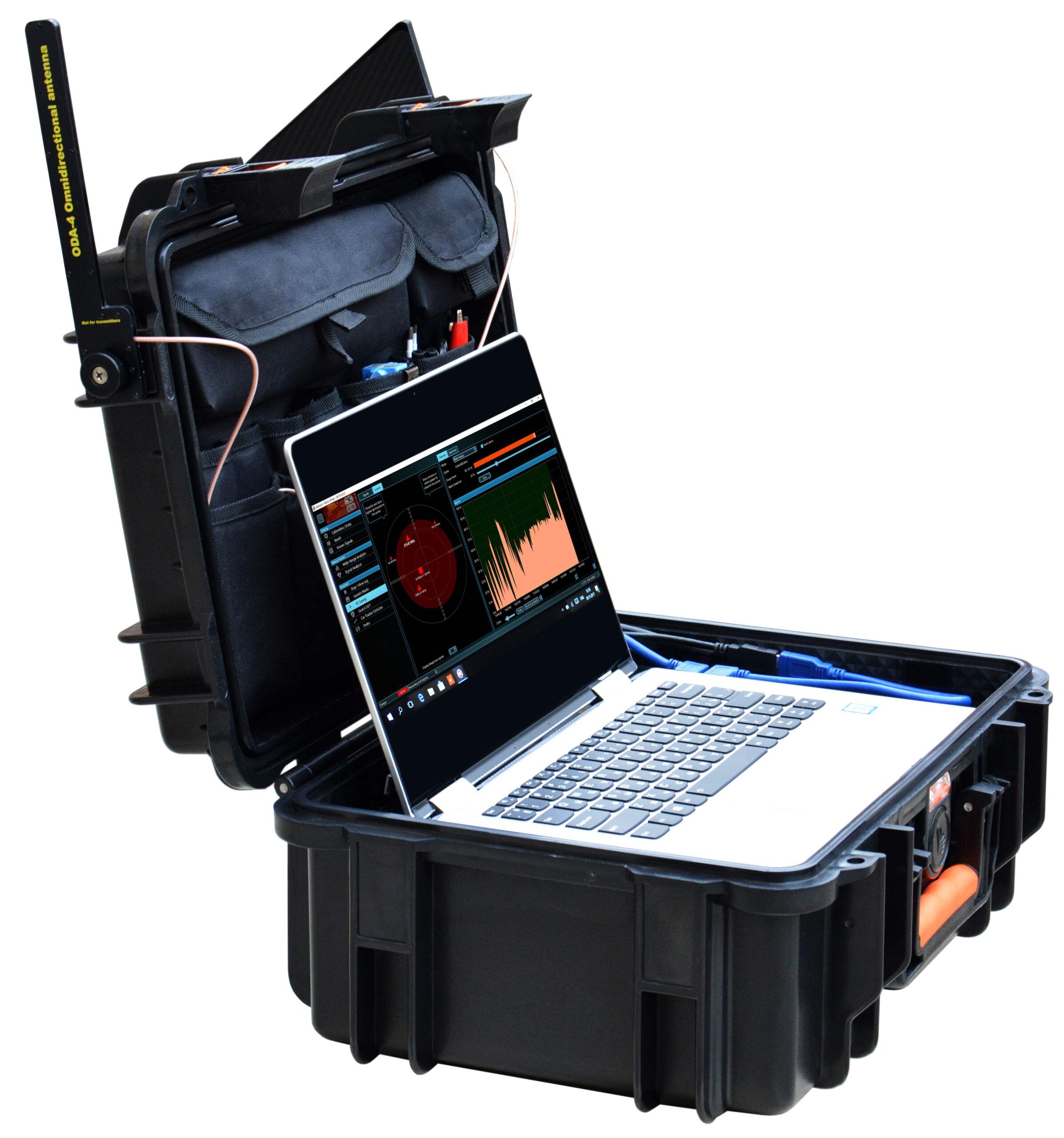

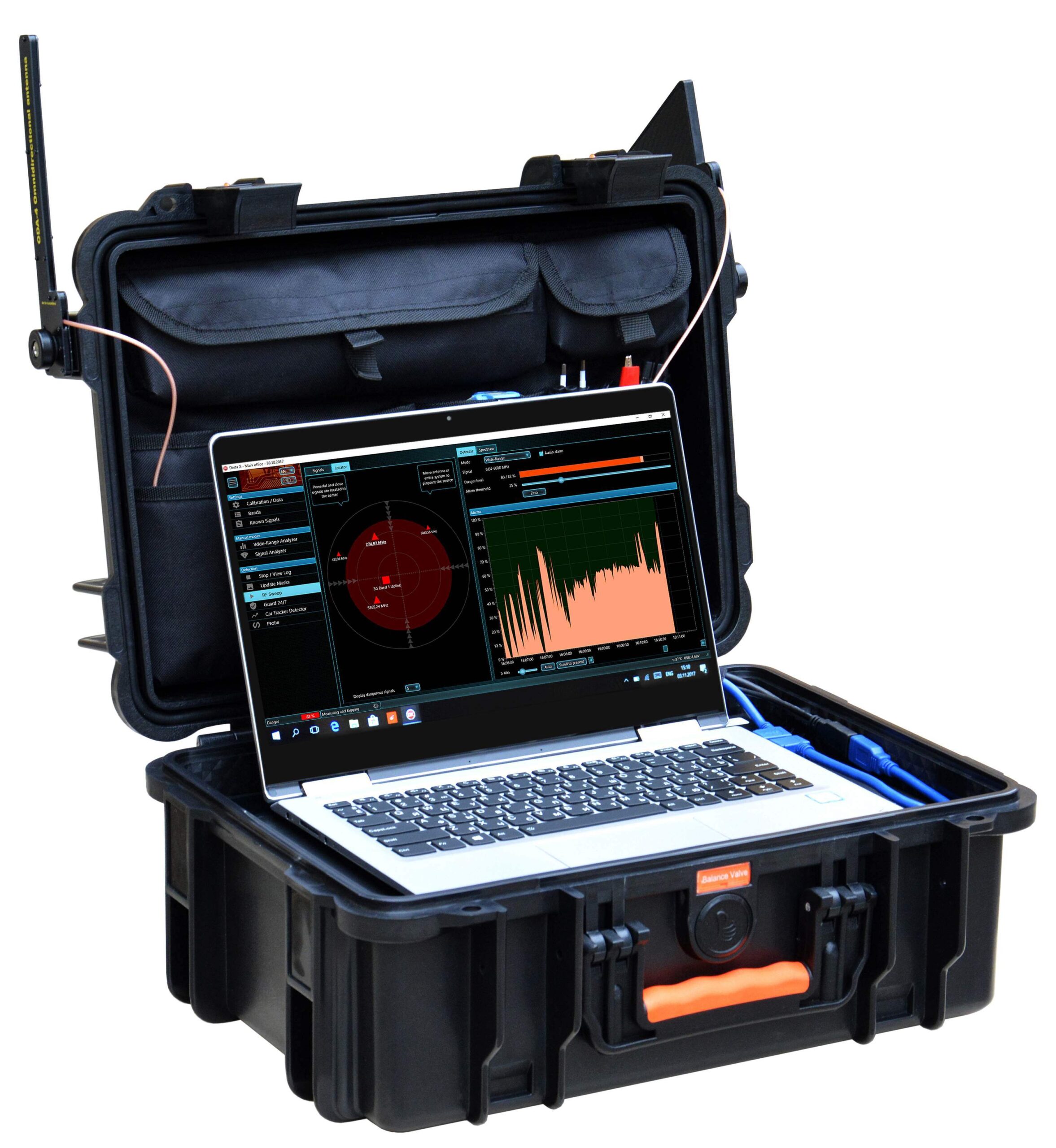

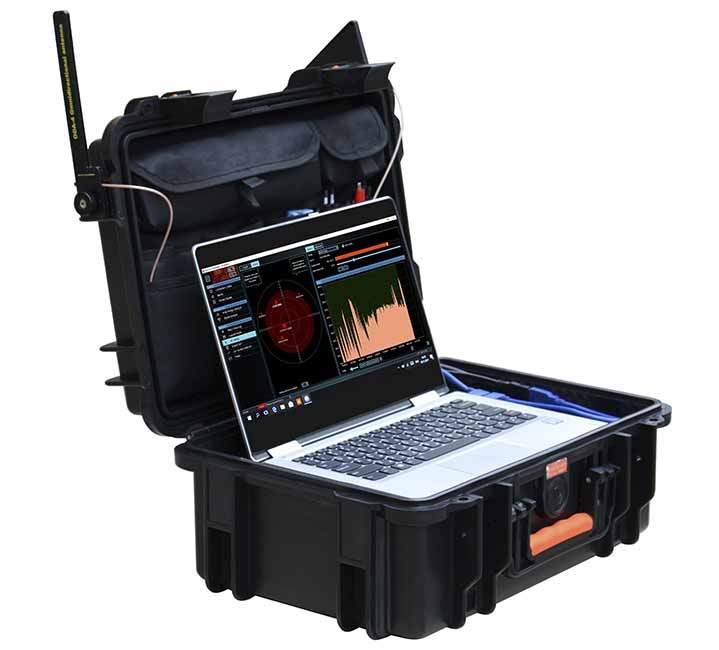

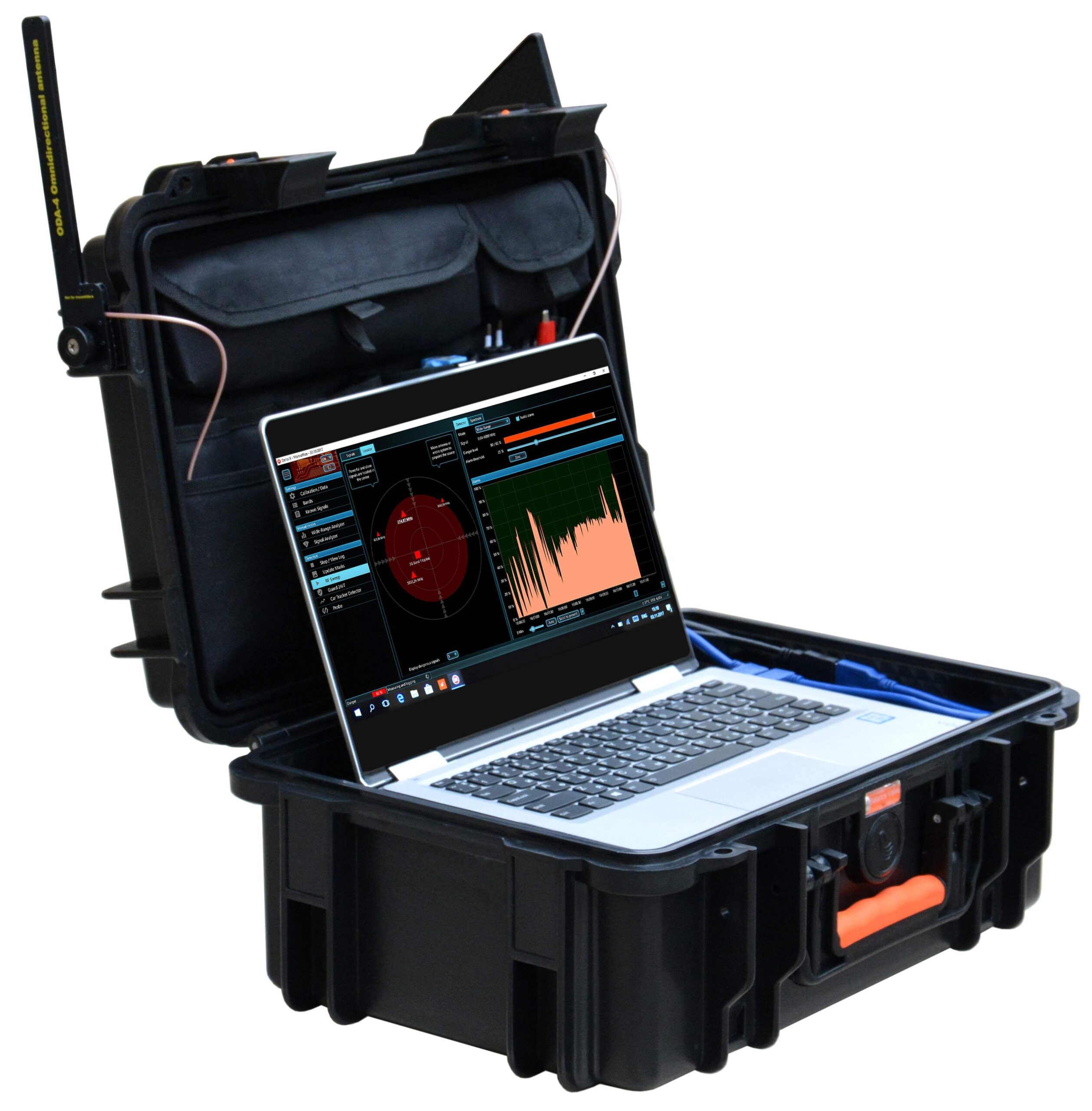

• The system is made in a protective case that accommodates a laptop with a screen diagonal up to 14″ (laptop is not included in the delivery set).
• Powered by the laptop’s USB port.

New Functions Available in Latest Updates

• The updated “Alarms” graph can now simultaneously display the overall danger level and the danger level of the selected signal.
• The “Generate Report” function allows exporting search results to a .pdf file. The report fully describes the radio frequency environment in the monitoring zone by outputting a table of dangerous and safe signals, as well as including “Alarms,” “Spectrogram,” “Waterfall,” and “Persistence” graphs for each signal in the report. Example report.
• Sending notifications via email. The operator can now receive automatic notifications upon detection of a dangerous signal in the monitoring zone. A .pdf file with the report is attached to the email.
• Checking for updates. The operator can check for updates and start their download directly from Delta X.
• Remote access. Tested method for remote connection to Delta X from iOS, Android, and Windows devices.

SW Update for Delta X 1.215 – 1.221

A software update for Delta X search systems has been released! Among the innovations: RF search with two antennas (wideband and MW), signal analyzer – “refreshable band” now has 3 options, and more, detailed in the News section!

New Functions:

• RF search with two antennas (wideband and MW). The use of an additional MW antenna allowed increasing sensitivity at higher frequencies. During the search, Delta X selects antennas alternately. The distribution of bands across antennas is adjustable and defaults to 3-6 GHz for the MW antenna.
• Signal Analyzer – “Input” now has the “Auto” option. When selected, the antenna is automatically chosen depending on the signal frequency and the band distribution across the antennas.
• Signal Analyzer – “Refreshable Band” now has 3 options:
  1. “Displayed” (default) – the entire range displayed on the spectrum graph is refreshed.
  2. “Selected” – the selected section of the spectrum is refreshed. Reducing the selection may be necessary when analyzing or localizing individual channels within a mobile or wireless band, such as a Wi-Fi or Bluetooth channel.
  3. “Real-Time 27 MHz” – investigation of a fixed 27 MHz band with the highest probability of event registration (for transient signals).
• The calibration procedure was changed (the new update will prompt you to perform calibration again).
• The Probe mode was changed:
  1. Now functionality does not depend on the sequence of actions “connecting the probe” and “starting the mode”.
• The maximum working range was extended from 10 to 100 MHz.
• 3 new buttons “0-2MHz”, “0-10MHz” and “0-100 MHz” were added for quick selection of the range of interest to the user.

Advantages

Form Factor: portable system controlled by a computer.

• High capacity of the computer’s hard drive allows for registration of the radio frequency environment throughout the search or 24 hours a day in guard mode.
• A large screen diagonal is convenient for analysis.
• Compatibility with touch screens.
• The manual use option of the antenna is more convenient for localization in hard-to-reach places.

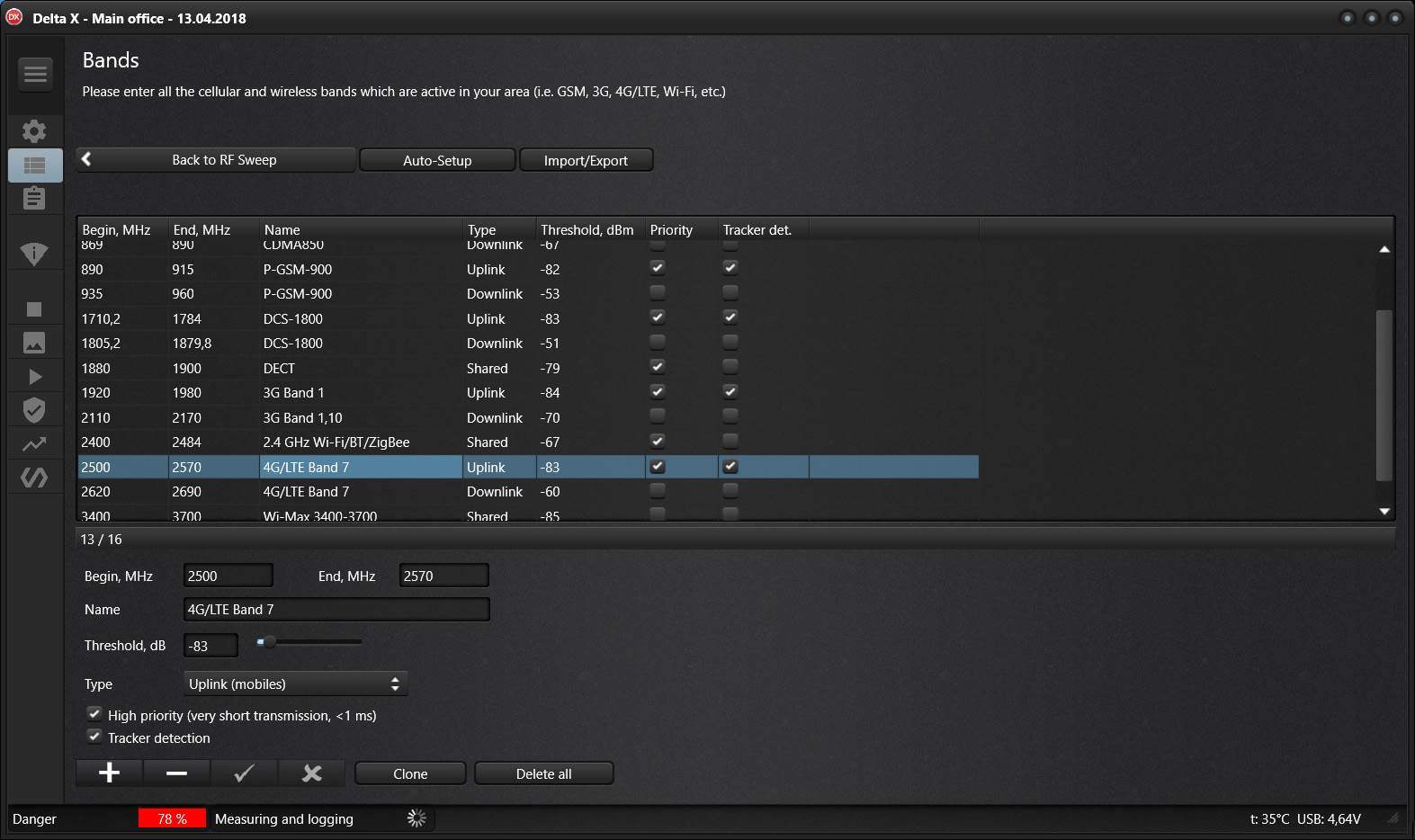

Processing of mobile and wireless bands GSM, CDMA, 3G, 4G / LTE, DECT, 5G (<6GHz), Wi-Fi, Bluetooth, etc.

• Mobile and wireless signals are detected using an individual threshold for each band and are displayed separately from other signals.
• Activities within each band are stored as a single signal with a specific danger level to reduce the number of unnecessary entries in the table and allow localization of frequency-hopping sources.
• In each cycle, additional spectrum acquisition is automatically performed on bands with particularly short bursts, which increases the probability of measuring signals such as GSM, 3G, 4G, 5G (<6GHz), DECT, Wi-Fi, Bluetooth, etc.
• Bands are surveyed simultaneously with the search for conventional signals.
• Interference from mobile phones and nearby Wi-Fi access points can be easily eliminated using thresholds.
• Data files are supplied in the set, allowing the operator to easily reconfigure the system to the standards existing in the country of use.

Sensitivity and Detection Range

• The built-in spectrum analyzer has 20-50 times higher sensitivity compared to RF detectors and near-field receivers.
• Interference immunity – sensitivity remains high regardless of proximity to wireless access points, routers, mobile phones, base station towers, TV, and radio broadcasting.

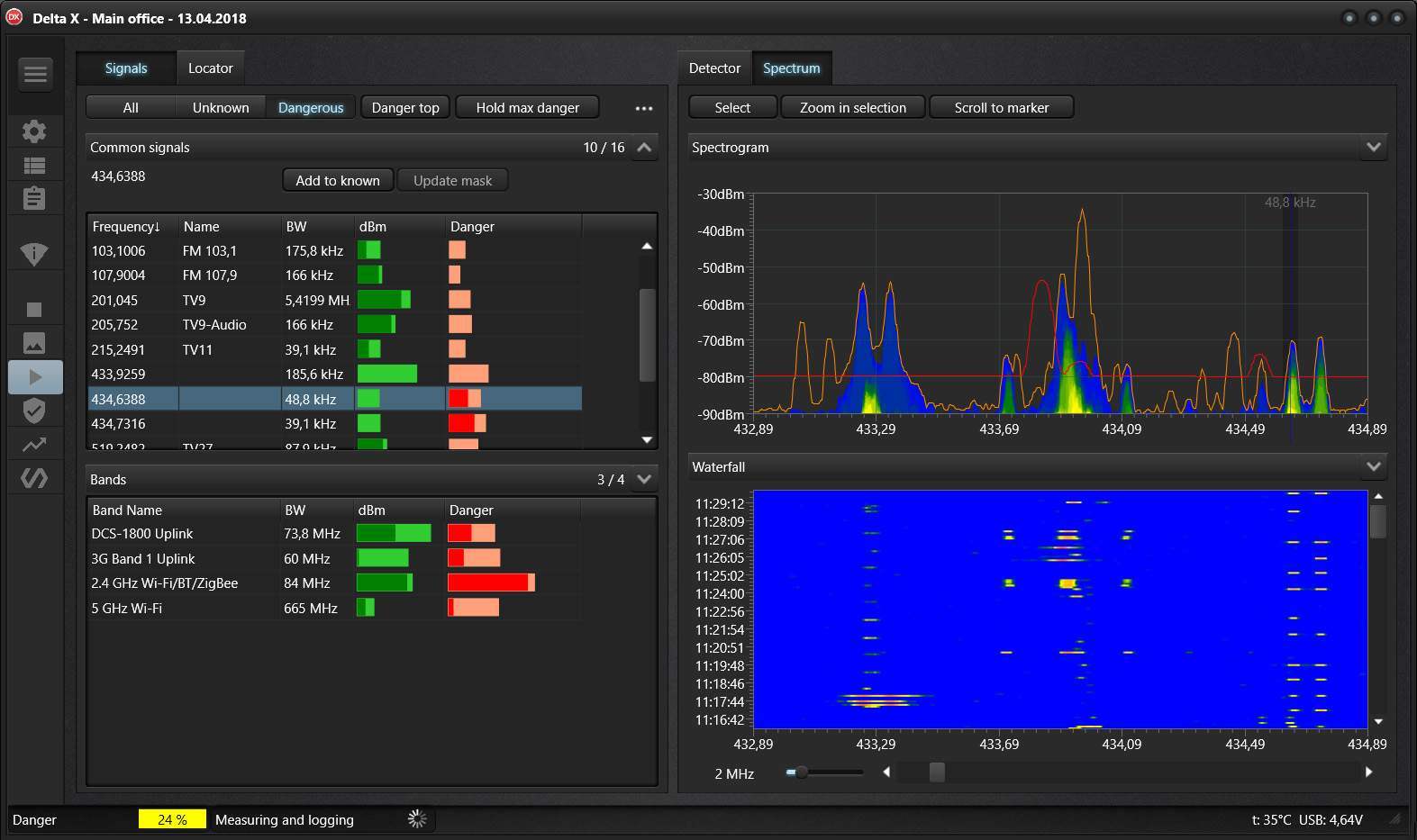

Table of Known Signals

• The operator can easily distinguish safe signals from dangerous ones.
• TV frequencies used in the country of operation can be quickly imported from the data files supplied in the set.
• FM frequencies, as well as police and municipal VHF/UHF communication channels, can be collected locally and saved for later use.

Advanced Signal Recognition Method

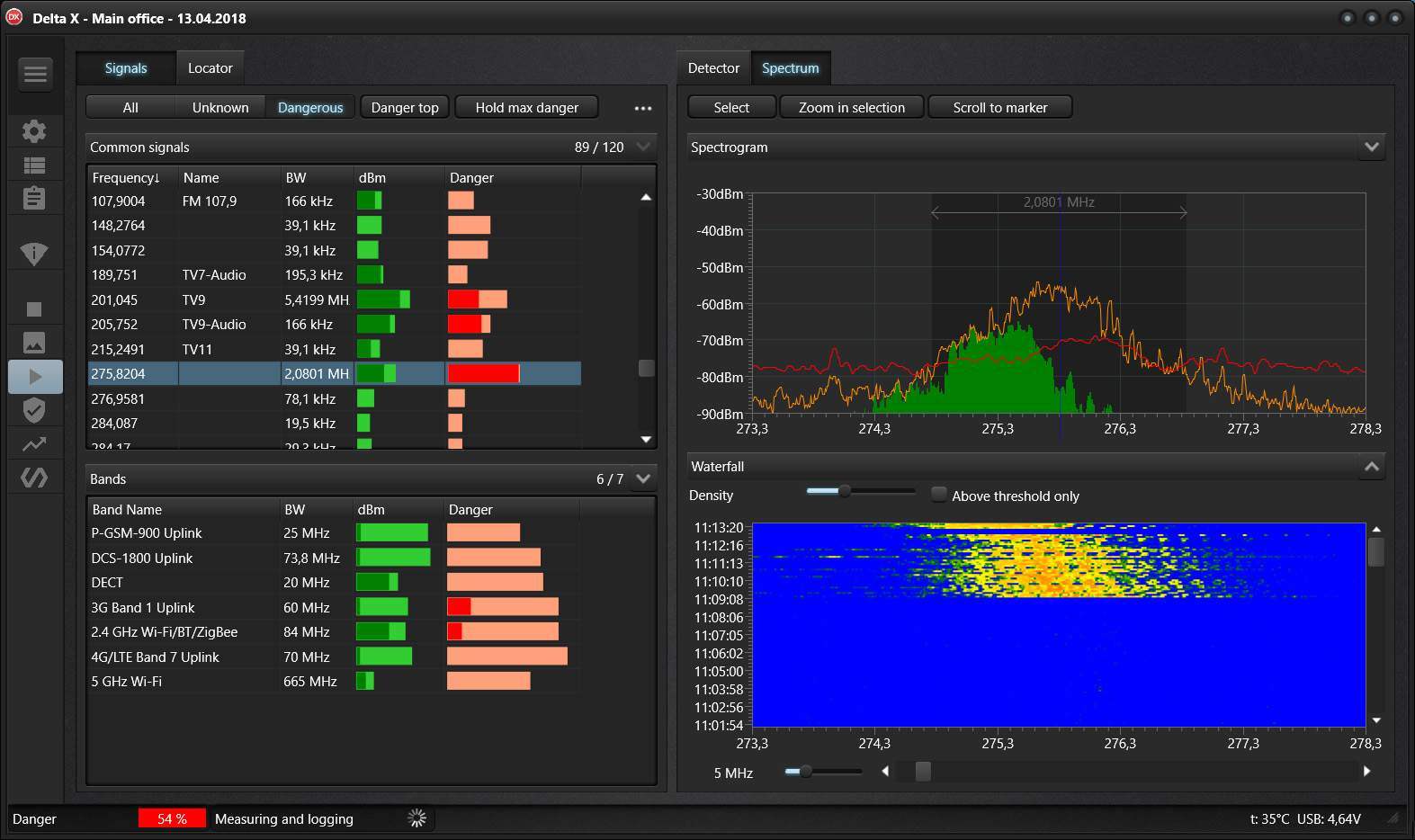

• Signals are automatically recognized in the spectrum and inserted or updated in the “Signals” table.
• Both analog and digital signals are captured with the assignment of a corresponding danger level.

Unique Algorithm for Measuring Signal Danger Level

• A combination of a reference spectrum and individual thresholds for mobile/wireless bands is used.
• Both the signal level and its bandwidth are taken into account.
• Works for both analog and digital signals, including signals with variable frequency.

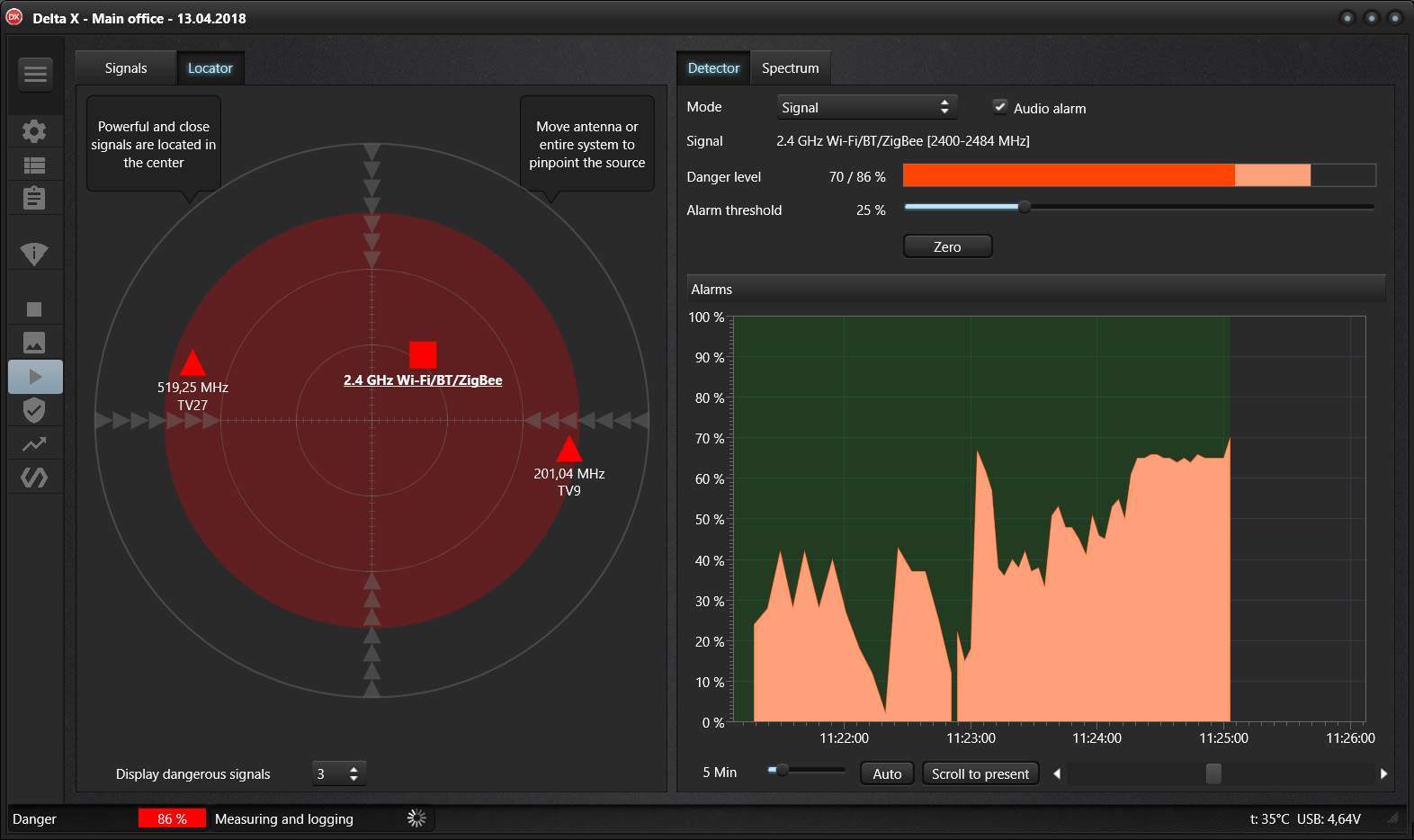

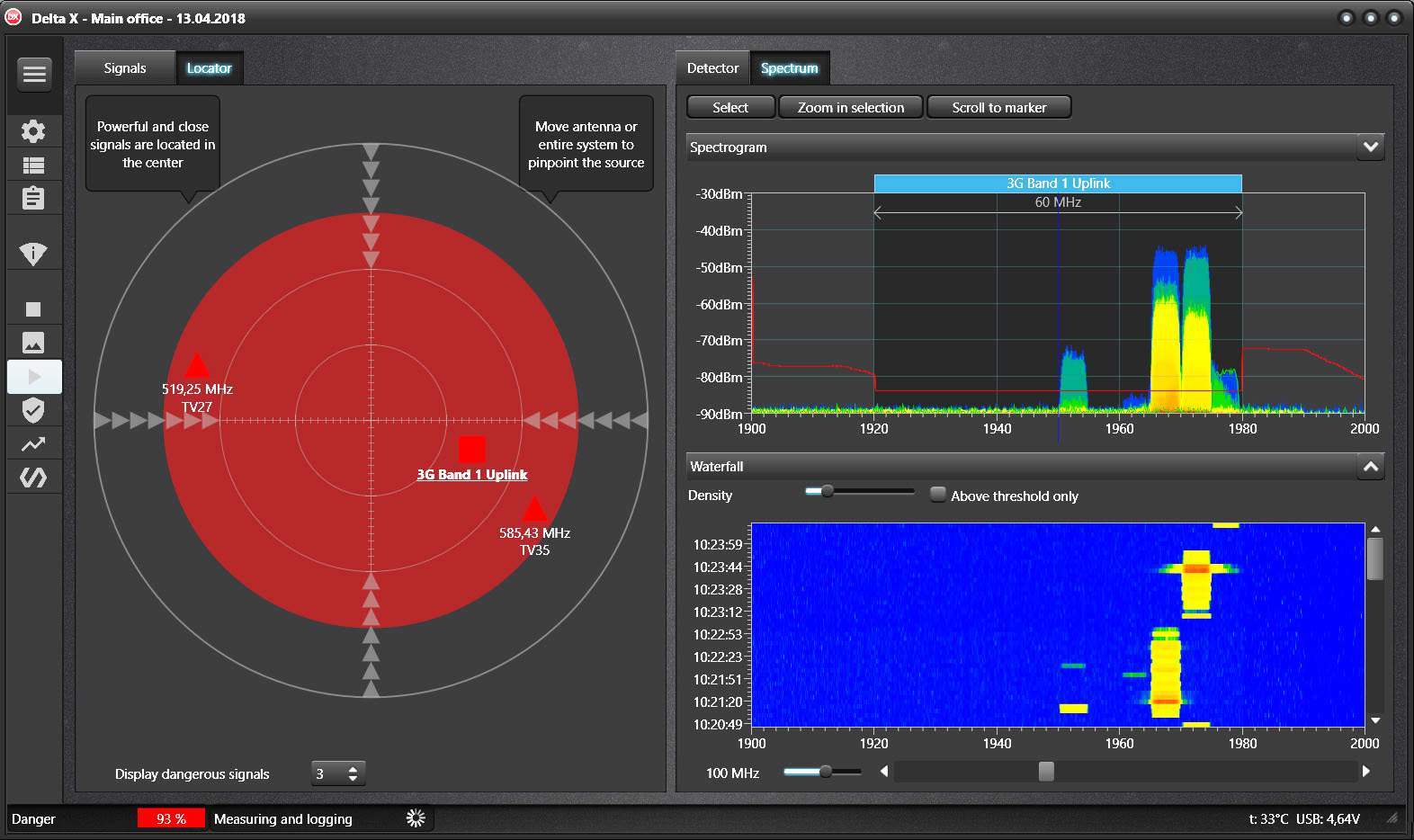

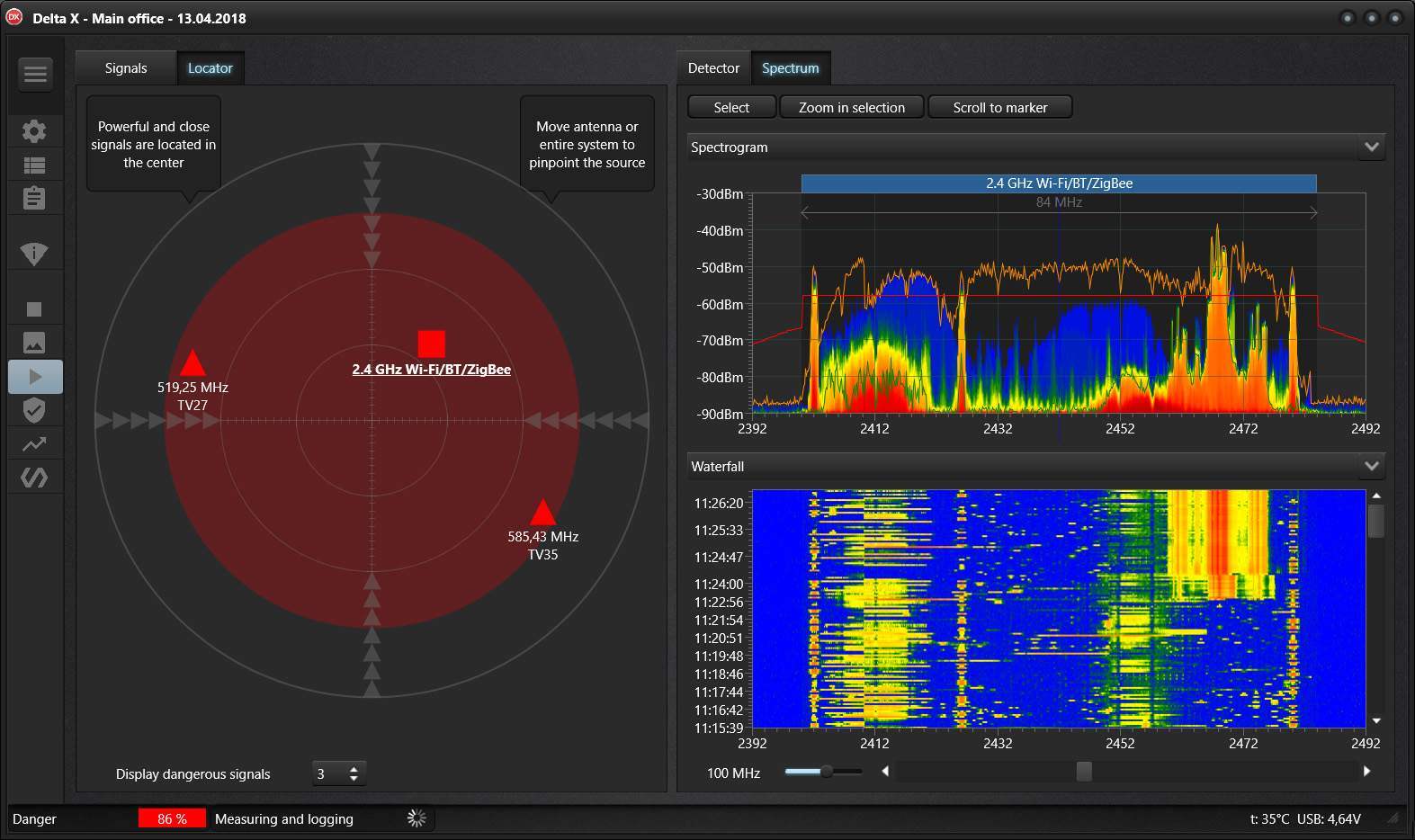

• Used for source localization and gives more reliable results compared to traditional level-based localization methods.

Low Operator Knowledge Requirements

• The system can be prepared for searching using the “Update Masks” procedure in a few minutes.
• Manual work with spectra is not required.
• Everything is done automatically after detection starts.
• Upon detection of a dangerous signal, the system warns the operator with an audible signal.

Data Saving

• All spectral measurements and alarms are saved during detection.
• The radio frequency environment can be reviewed and studied at any point in time.
• Ability to detect a remotely controlled clandestine device in 24-hour monitoring mode.

Tracking Signal Activity Over Time

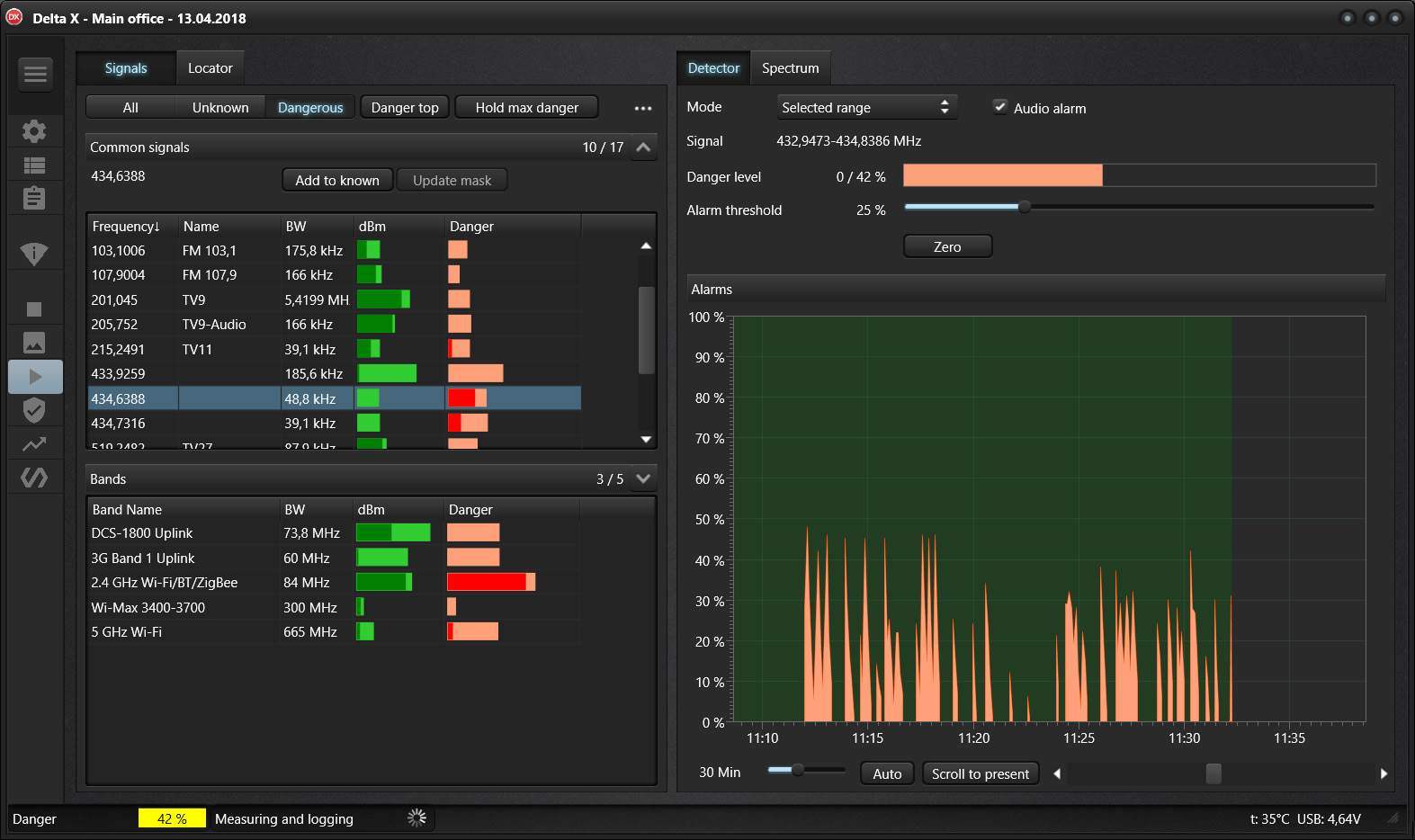

• The “Alarms” graph displays the full history of each individual signal or all signals simultaneously.
• Events can be viewed at any point in time with a simple click on the graph.
• The ability to view the signal existence duration allows distinguishing real threats from interference.

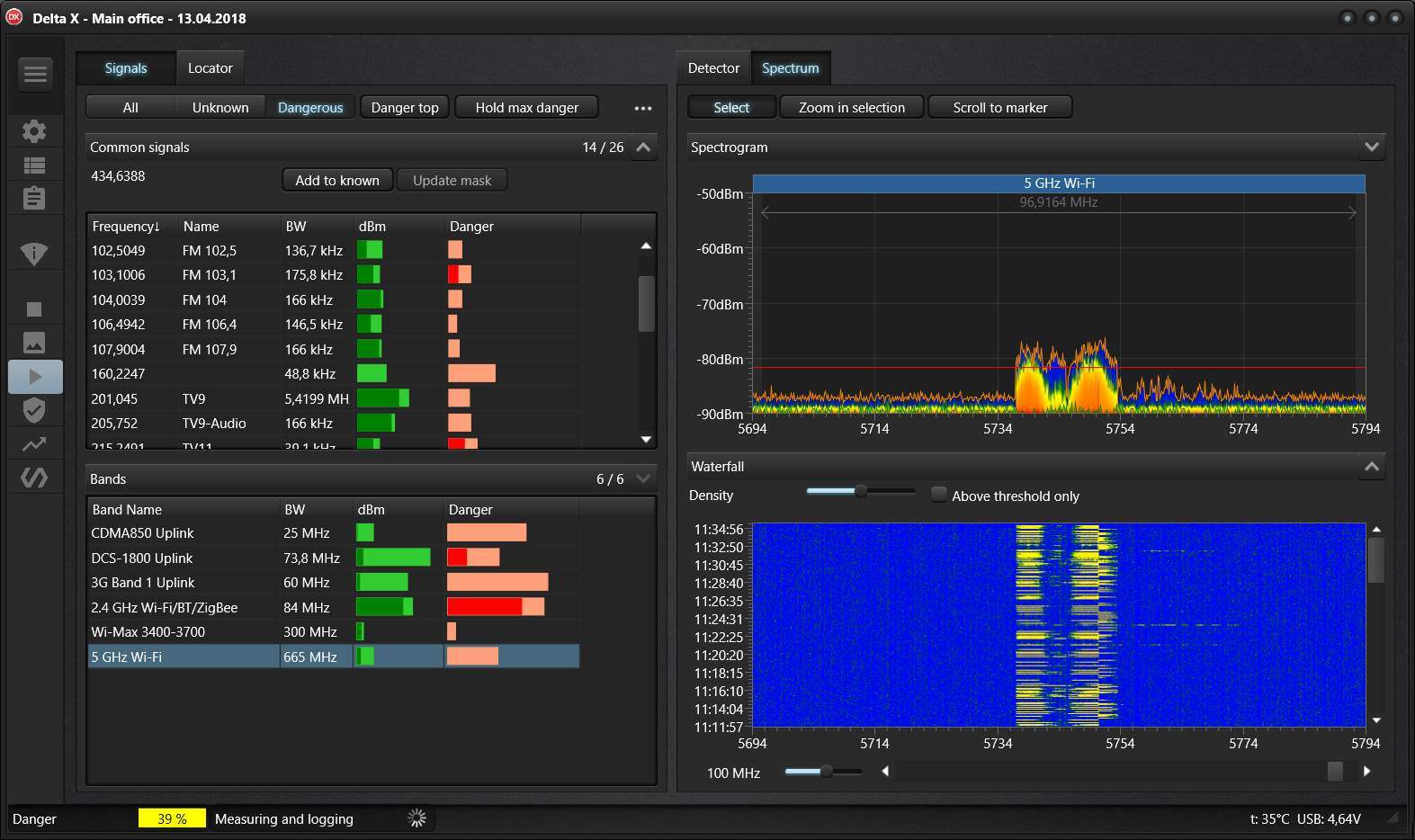

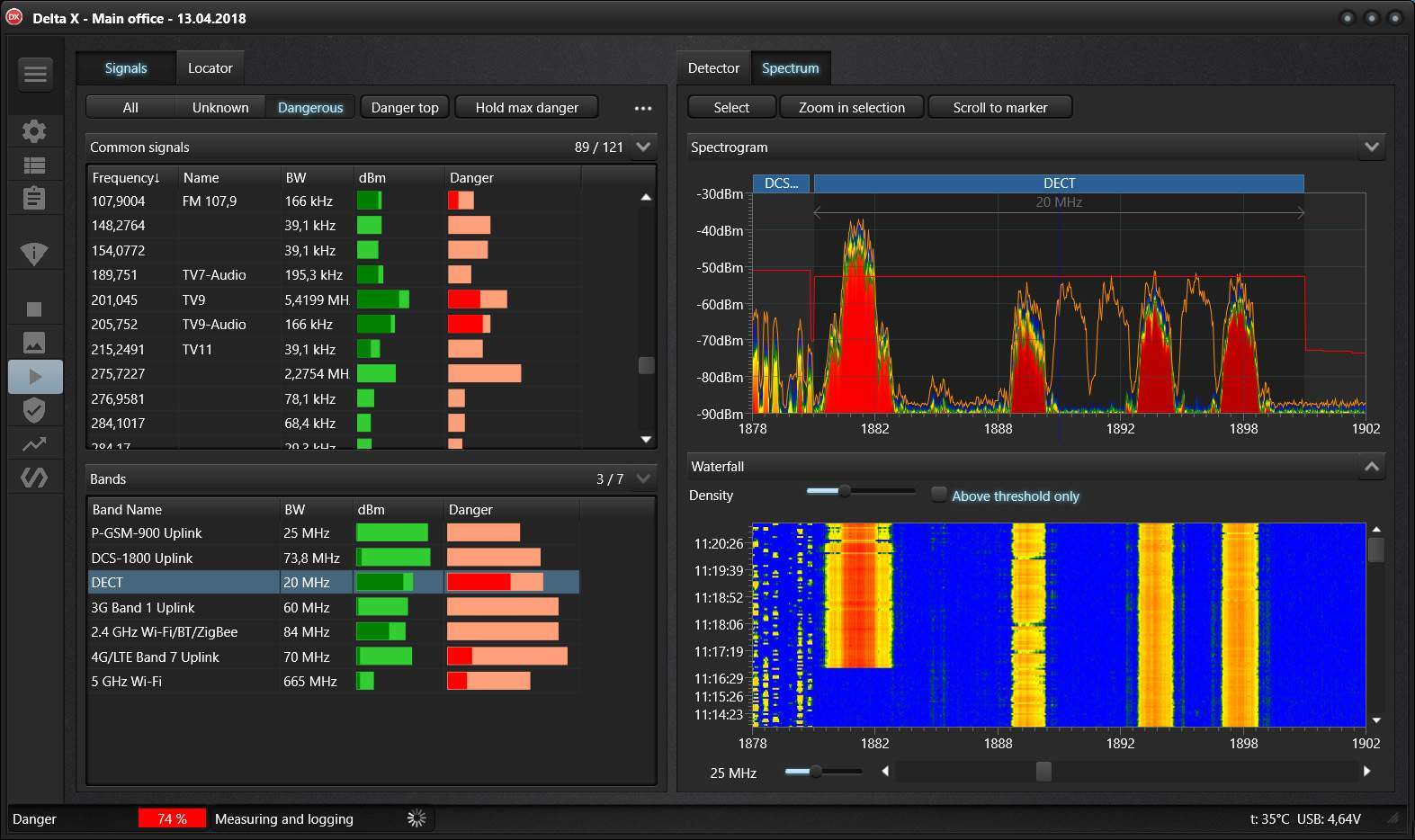

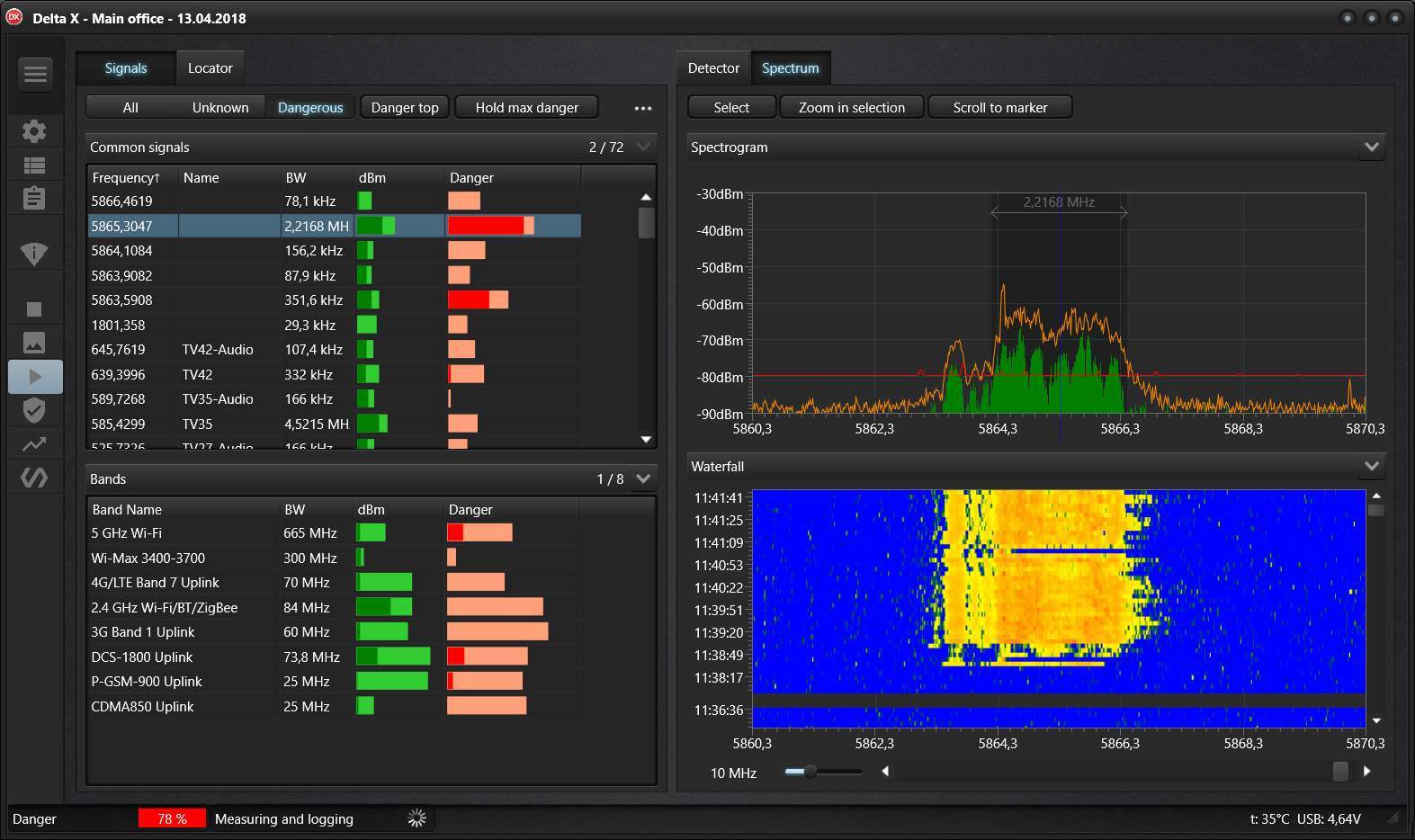

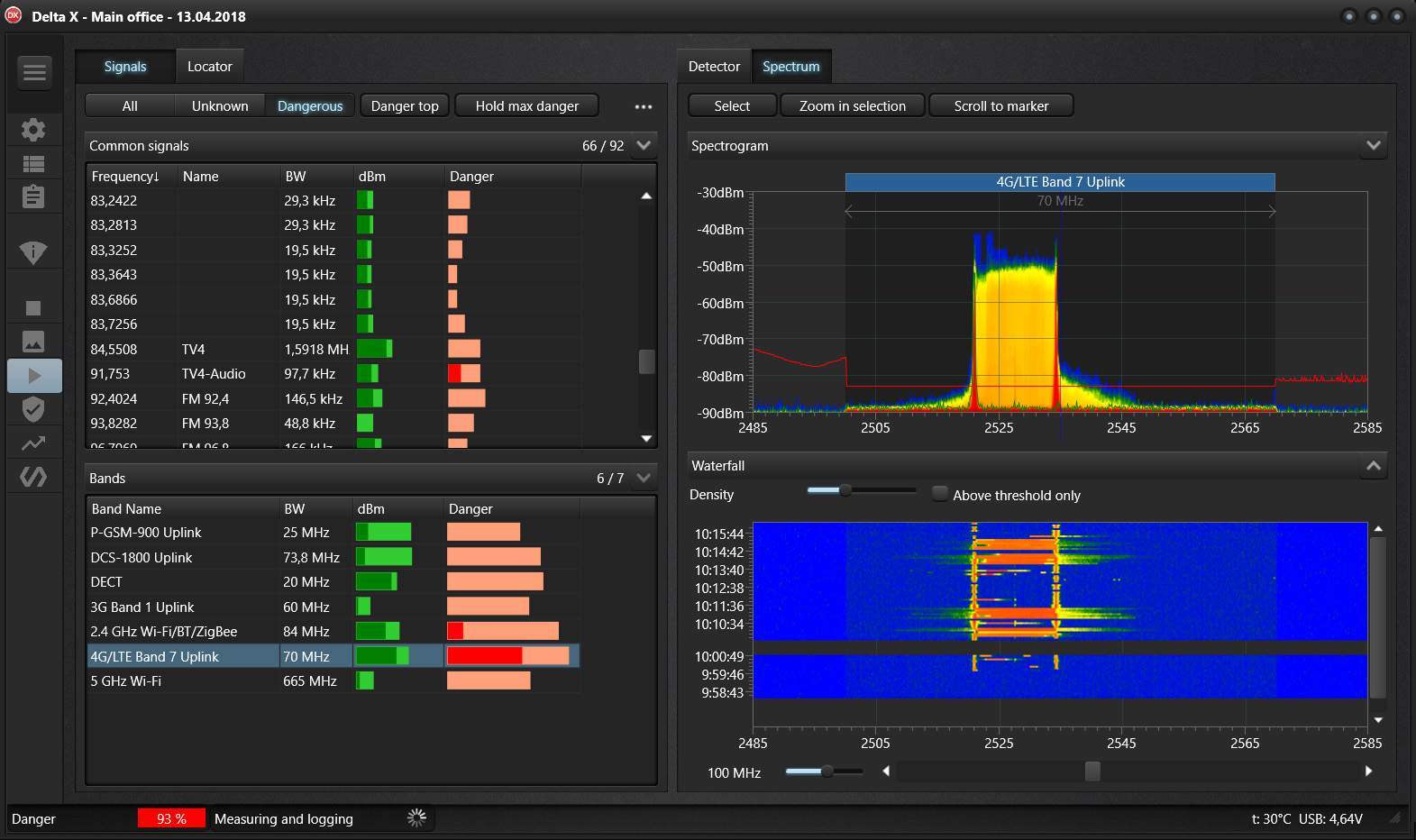

“Waterfall” and “Persistence” Graphs

• Displays both current and past measurements at any point in time.
• The displayed time interval (density) is selected in the range from 2 minutes to 6 hours.

“GPS Beacon Detection” Mode

• Monitoring mobile bands allows detecting beacons covertly installed in vehicles.

Technical Specifications

Files for download

---

PDF, 869 KB

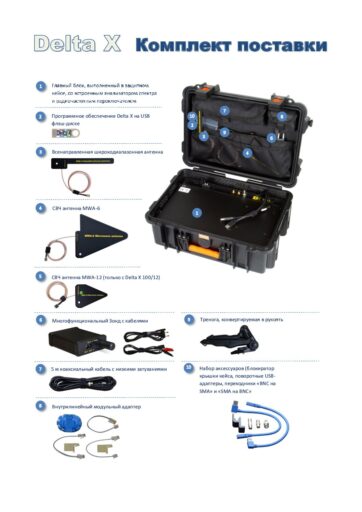

Package contents and quick start

PDF, 7 MB

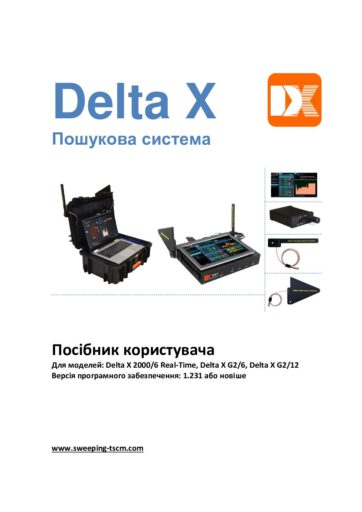

Delta X 1.231 User Manual UK

PDF, 5 MB

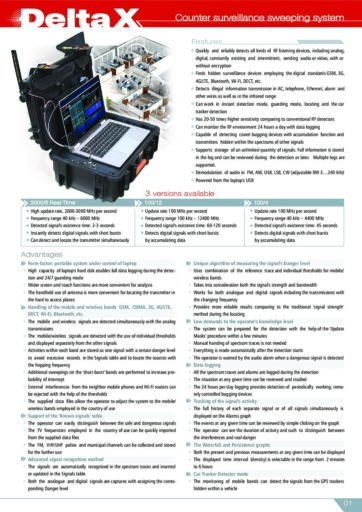

Specification

PDF, 252 KB

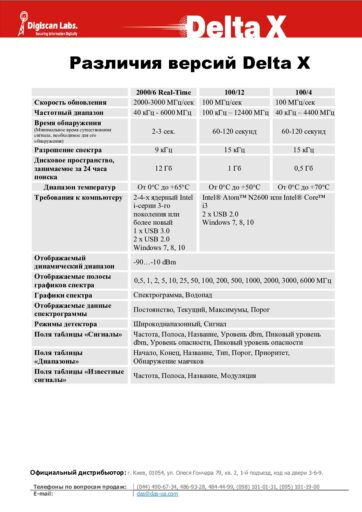

Version Comparison UK
