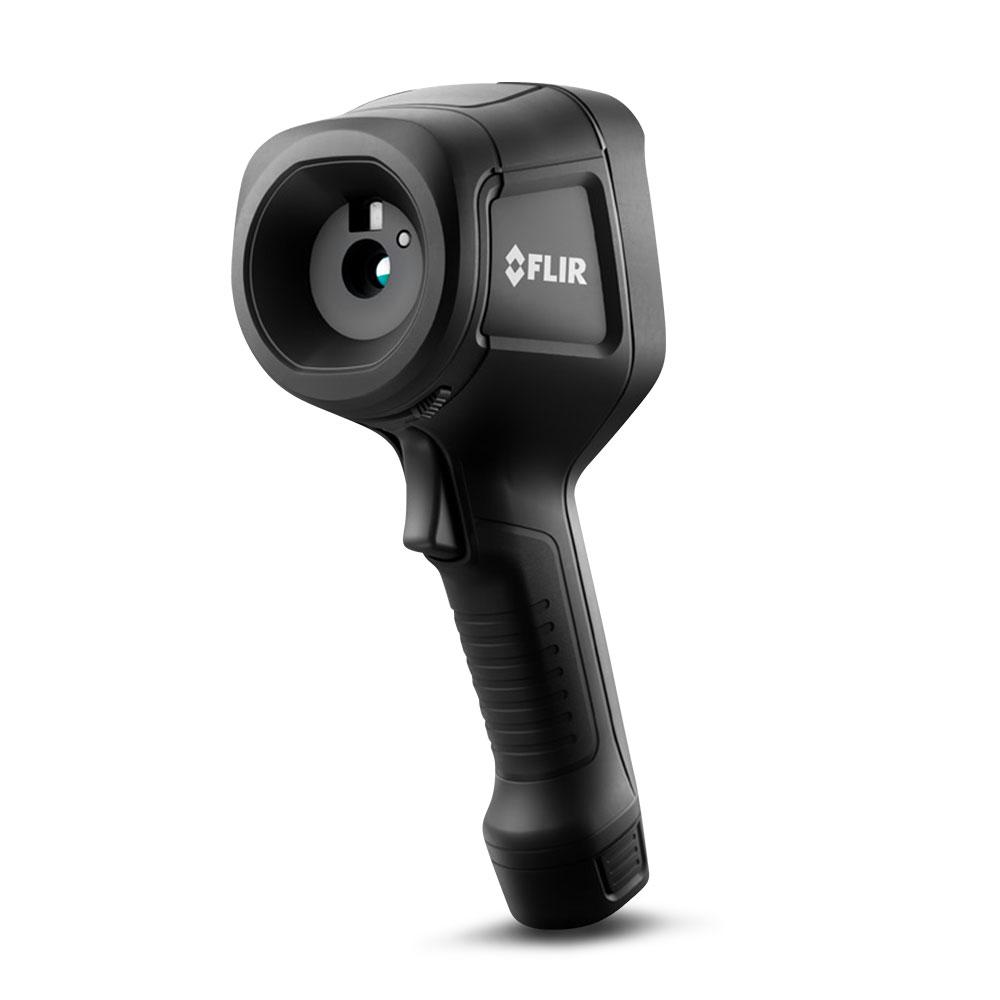

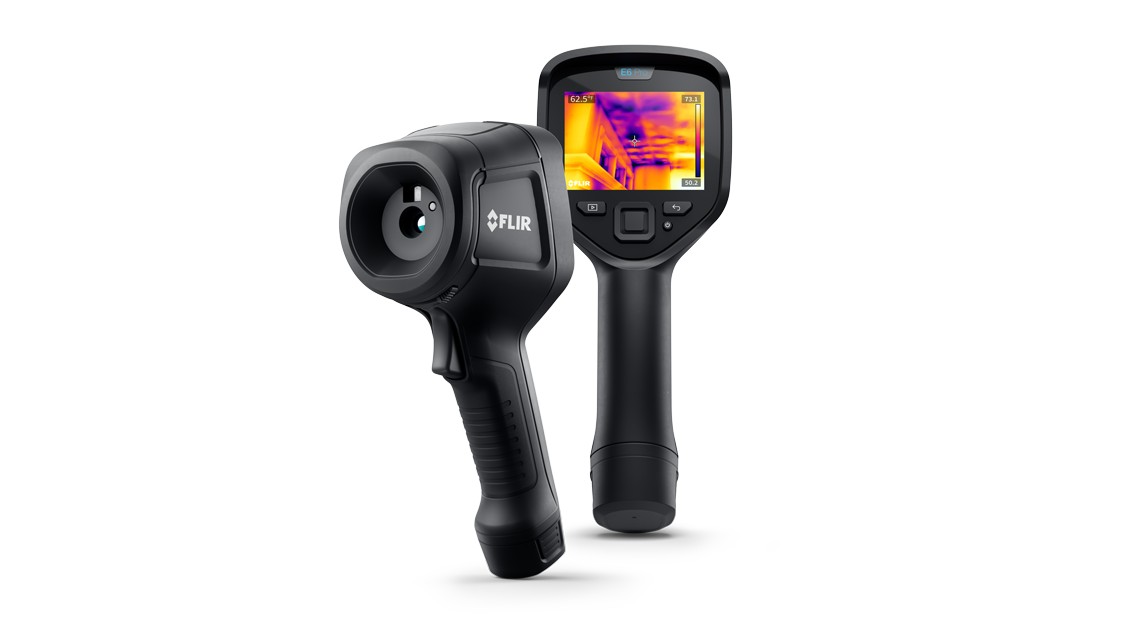

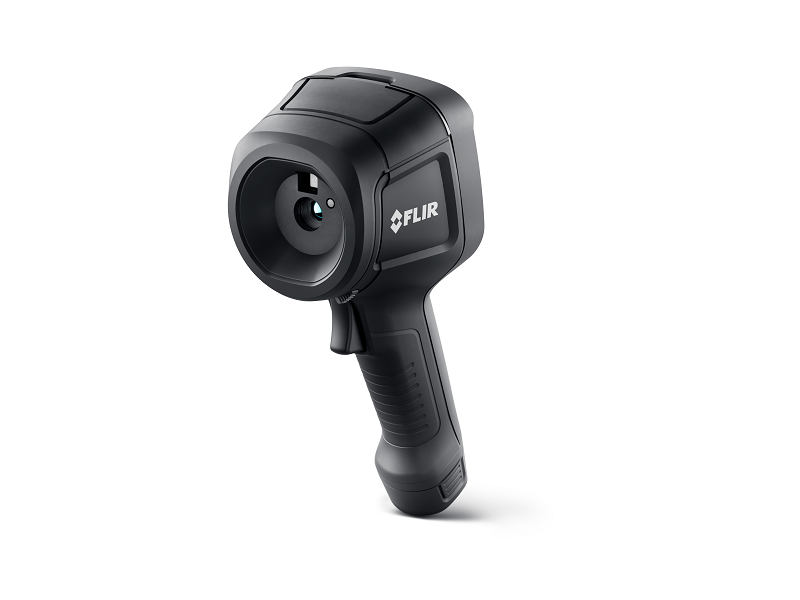

FLIR E6 Pro – Thermal imager

The FLIR E6 Pro thermal imager allows obtaining an accurate and detailed thermal map of any surface. Every pixel of the captured image contains temperature data

The FLIR E6 Pro is a powerful point-and-shoot thermal imaging camera that will help you conduct inspections more efficiently than ever before. Quickly locate and diagnose problems with 240 x 180 thermal resolution (43,200 pixels) and vibrant thermal images enhanced with patented FLIR MSX® (Multi-Spectral Dynamic Imaging) technology. With a 3.5-inch 640 x 480 touch screen, the E6 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud service for easy access from any device. Share images with clients and create quick reports directly in FLIR Ignite or generate advanced reports in FLIR Thermal Studio.

• Effortless Inspection
  Edit your photos, add detailed notes, and upload files from the camera to the FLIR Ignite cloud service for easy access from any device.
• Quickly Identify Problems
  Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) technology provides highly detailed thermal images, helping to quickly pinpoint the location of the problem.
• Easy Sharing and Reporting
  Instantly share images and create quick reports in FLIR Ignite, or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

Features of the FLIR Ex Pro-Series

• MSX® Image Enhancement
  All Ex-Series thermal imaging cameras feature the unique FLIR Multi-Spectral Dynamic Imaging (MSX) technology, which adds key details from the built-in visible light camera to the entire infrared image in real time. The result: a comprehensive thermal image with visible light details, allowing for instant recognition of problematic thermal patterns. MSX works in real time, so you can immediately see the results on the camera’s LCD screen.
• Save Time with 1-Touch Level/Span
  The 1-Touch Level/Span function allows you to select a small area of focus on the thermal image with a single touch of the screen, and the camera automatically adjusts the level and span based on the thermal contrast at that point in the image. The result: time saved on manual adjustments.
• NFPA 70B Compliant – Delta T Measurement Tools
  With the Delta T measurement tools built into the Ex-Series cameras that comply with NFPA 70B (Box1 Max – Spot1 Max and Box1 Max – Ambient Temperature), you can save a lot of time by calculating ∆T directly on the camera without extra steps.
• Efficient Inspections at Your Fingertips
  Add notes from the touch screen. Thanks to the 3.5-inch touch screen, FLIR Ex-Series cameras allow you to add detailed annotations to images and save them to the cloud, simplifying report creation.
• Easy Data Transfer and Sharing with FLIR Ignite
  Desktop Sync eliminates problems associated with damaged or missing SD cards and USB cables. Securely share data with a trusted team for easy collaboration and reporting. The Edit Anywhere feature allows you or your colleagues to create reports on mobile devices, in a browser, or on the desktop.
• Professional Reports that Help Your Clients and Business
  The right image analysis and reporting software can significantly improve your business by making it easier for your clients to understand the problem and feel confident in its solution.
• FLIR Ignite Cloud Service
  Allows backing up images directly to the cloud, organizing and editing files, and creating simple reports. For advanced editing and reporting, there is the FLIR Thermal Studio Suite: desktop software offering batch processing, multifunctional measurement tools, and custom reports.
• Over-the-Air Updates Keep Your Camera Current
  With Over-the-Air (OTA) updates, your FLIR camera will always have the latest firmware, bug fixes, and new features. By connecting the camera to the Internet, it automatically checks for firmware updates.

Specification

Thermal Resolution	240 x 180 pixels (43,200 pixels)
Thermal Sensitivity/NETD	<0.06 °C (<0.11 °F) / <50 mK at 30 °C (86 °F)
Accuracy	±2 °C (±3.6 °F) or ±2% of reading for ambient temperature from 10 °C to 35 °C (50 °F to 95 °F) and object temperature above 0 °C (32 °F)
Field of View, in degrees	33 x 25
Digital Camera	5 MP
Image Mode	Thermal MSX, Thermal Image, Picture-in-Picture, Digital Camera
Screen	3.5 inches, color LCD with 640 x 480 resolution
Data Storage	Internal memory and connection to FLIR Ignite cloud (via Wi-Fi)
IMAGING AND OPTICS
Color Palettes	Iron, White Hot, Black Hot, Rainbow, Arctic, Lava, Rainbow HC
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Field of View, in degrees	33 x 25
Aperture Number	1.4
Focusing	Focus free
Gallery	Thumbnails and custom folder structure
Image Frequency	9 Hz
Image Modes	Thermal MSX, Thermal Image, Picture-in-Picture, Digital Camera
Thermal Resolution	240 x 180 pixels (43,200 pixels)
Minimum Focus Distance	0.36 m (1.18 ft)
Picture-in-Picture	Infrared area on visible image
Spatial Resolution	2.5 mrad
Spectral Range	7.5 to 13 µm
Thermal Sensitivity/NETD	<0.06 °C (<0.11 °F) / <50 mK at 30 °C (86 °F)
MEASUREMENT AND ANALYSIS
Accuracy	±2 °C (±3.6 °F) or ±2% of reading for ambient temperature from 10 °C to 35 °C (50 °F to 95 °F) and object temperature above 0 °C (32 °F)
Size	244 x 95 x 140 mm (9.6 x 3.7 x 5.5 inches)
Weight with Battery	0.590 kg (1.30 lbs)
Delta T	Yes, NFPA 70B compliant
Isotherm	Higher threshold alarm, lower threshold alarm
Measurement Correction	Emissivity; matte / semi-matte / semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
Object Temperature Range	from -20 °C to 550 °C (-4 °F to 1022 °F) in two ranges
Spot Meter	Center spot; area with min./max.
USER INTERFACE
Screen	3.5 inches, color LCD with 640 x 480 resolution
Text	Text annotation to image using on-screen keyboard
Touch Screen	Capacitive touch sensor
POWER
Battery Operating Time	4 hours
Battery Type	Rechargeable lithium-ion battery
Charging System	Battery is charged inside the camera or in a dedicated charger.
Charging Time	2 hours
Power Management	Automatic shutdown
EXTERNAL ENVIRONMENT AND CERTIFICATION
Certification	UL, CSA, CE, PSE and CCC, WEEE 2012 / 19 / EC, RoHs 2011 / 65 / EC
Drop Test Durability	2 m.
Electromagnetic Compatibility	EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Encapsulation (environmental protection)	IP54 (IEC 60529)
Humidity (operating and storage temperature)	IEC 60068-2-30/24 h. 95% relative humidity
Operating Temperature Range	from -15 °C to 50 °C (5 °F to 122 °F)
Shock Resistance	25 g. (IEC 60068-2-27)
Storage Temperature Range	from -40 °C to 70 °C (-40 °F to 158 °F)
Vibration	2 g. (IEC 60068-2-6)
GENERAL SPECIFICATIONS
Flashlight	Bright, LED
Delivery Content	Infrared camera, transport case, battery (inside the camera), power supply, FLIR Thermal Studio Starter and documentation
Package Dimensions	385 x 165 x 315 mm.
