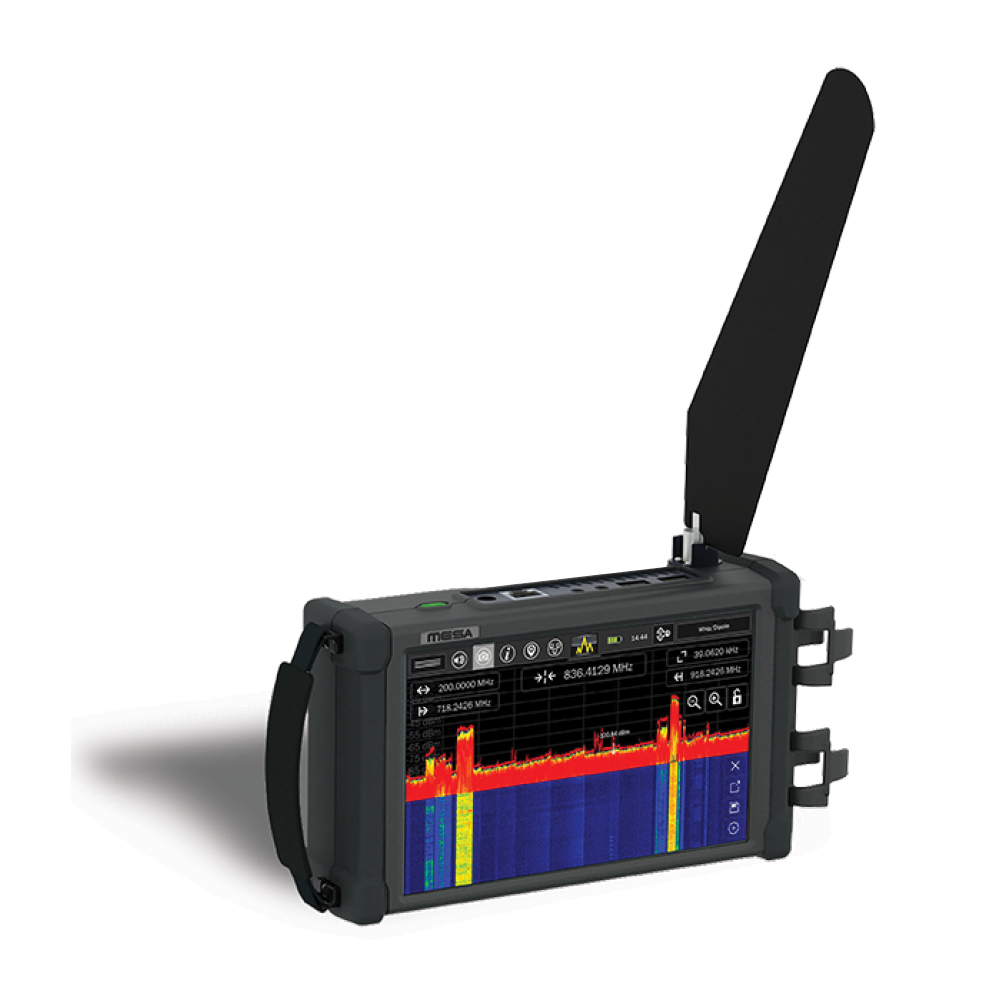

MESA 2.0 DELUXE – Portable spectrum analyzer

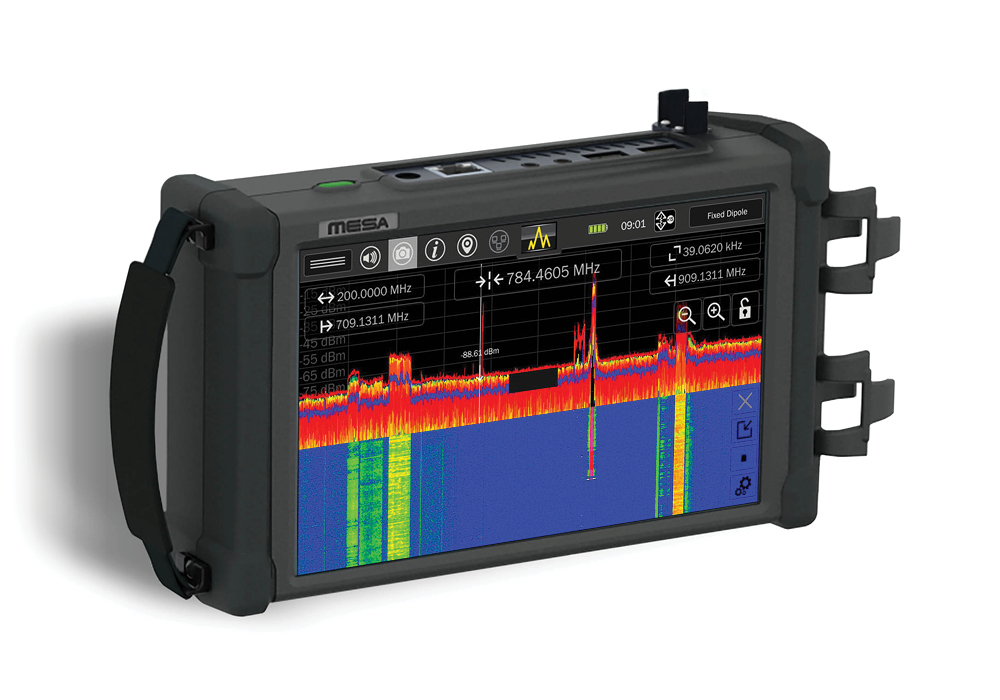

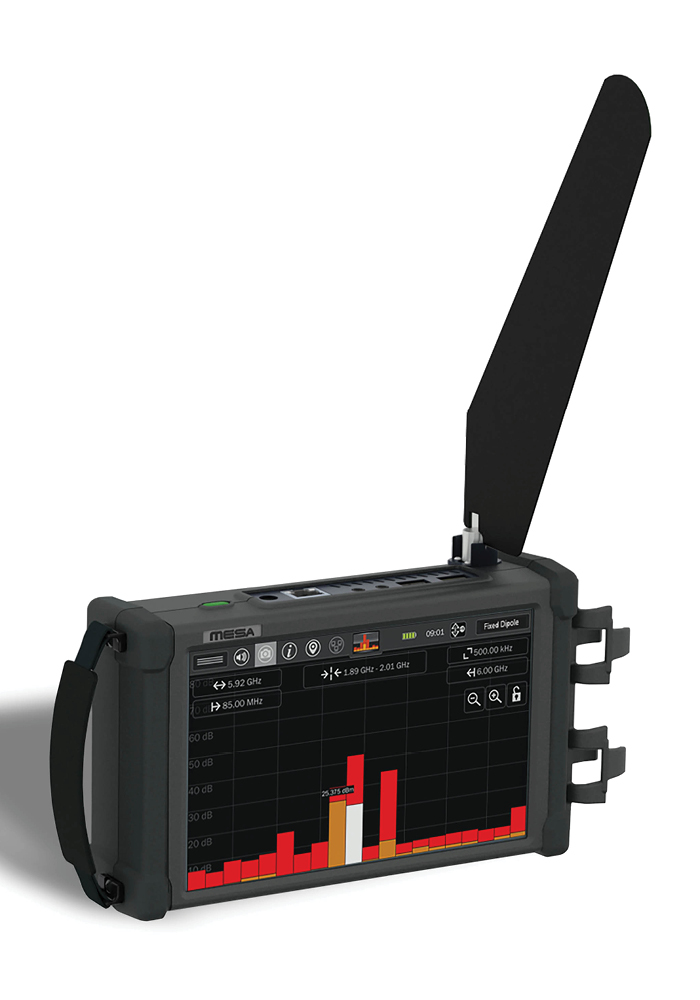

MESA™ 2.0 DELUXE is a portable radio frequency spectrum analyzer that combines the functions of a multifunction search device, for conducting radio monitoring to detect sources of unknown radio signals, as well as conducting research and development in the field of radio engineering, maintenance of telecommunication sites, development of wireless technologies, searching for interference sources, repair of TV and radio equipment, educational purposes, investigation of cases of unauthorized use of the radio frequency spectrum.

MESA™ 2.0 DELUXE has compact dimensions and the best technical specifications in the industry, making it unreachable for other spectrum analyzers. The device is equipped with specialized patented search modes SmartBars™ and Cached Peak™, a scanning speed of over 200 GHz per second for localizing unknown signals in a wide frequency range with an upper limit of up to 12 GHz, which none of the competitors have.

Features

• Efficiency
  Preparation for operation takes mere seconds, and you immediately see the radio frequency spectrum with convenient menu navigation and control using your fingers. MESA™ 2.0 DELUXE automatically detects connected antennas and probes and adjusts to their range.
• Ease of Use
  The 7″ capacitive touch display allows easily zooming the spectrum image and controlling the device like a regular tablet PC. Quick menu access to Spectrum Analyzer, WiFi & Bluetooth®, Mobile Bands, and SmartBars™ modes speeds up work.
• Portability

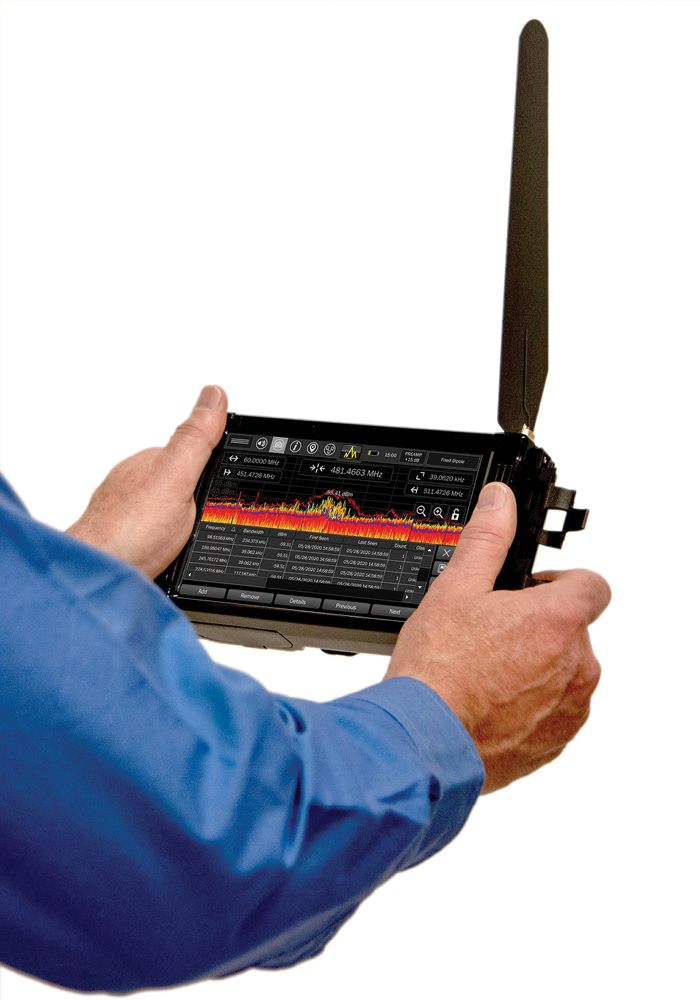

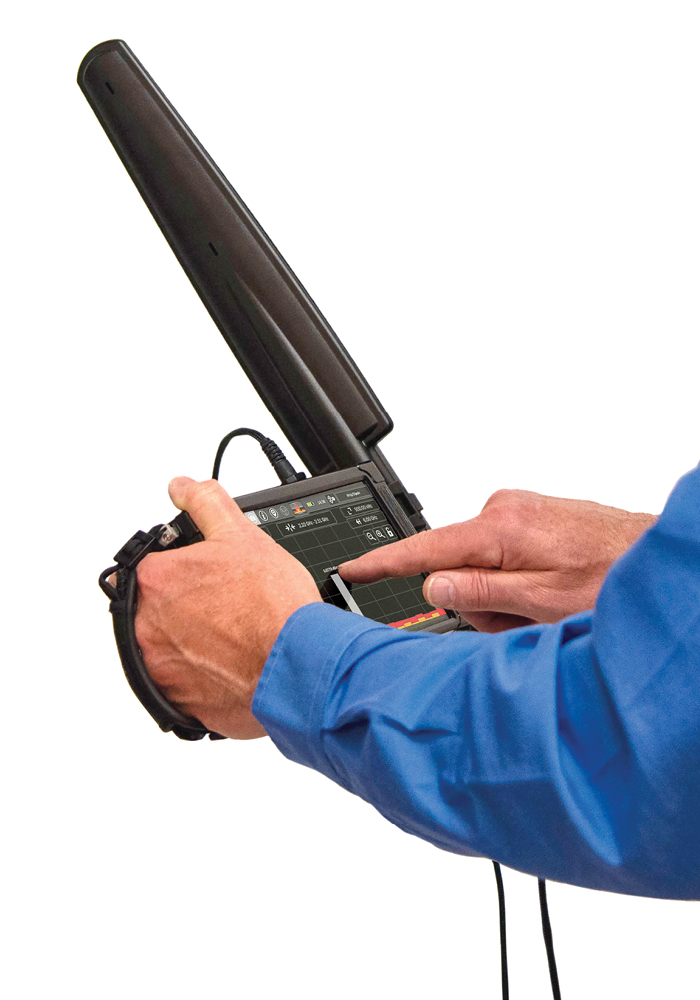

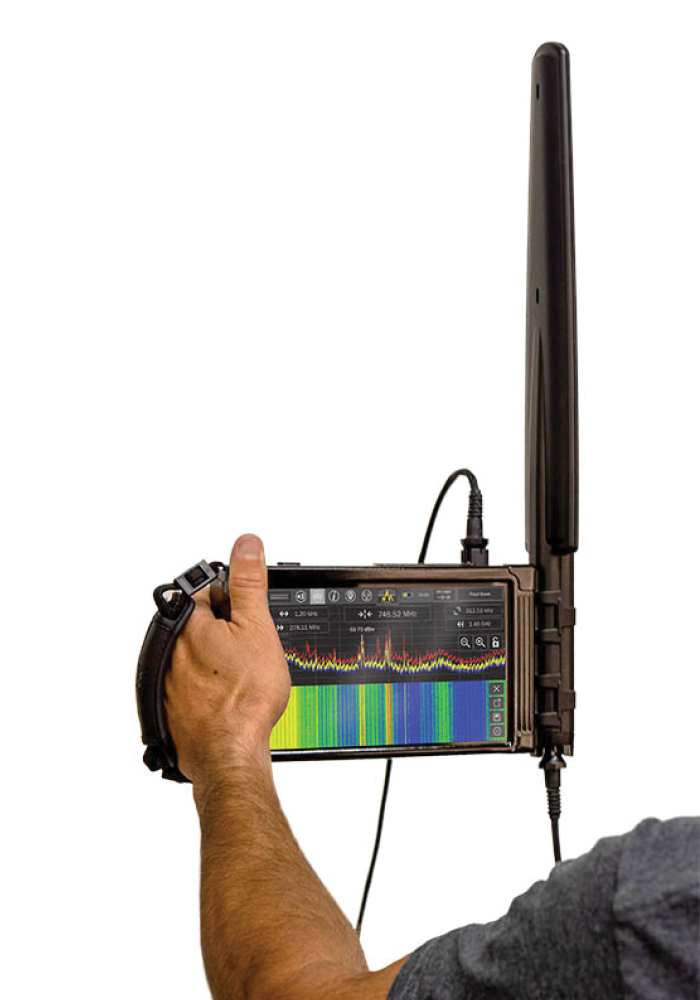

  The compact size of MESA™ 2.0 DELUXE allows the user to easily hold the device in one hand when conducting the search. The MESA™ 2.0 DELUXE has a large set of necessary antennas and probes for searching.

Capabilities

MESA™ 2.0 DELUXE scans the frequency range with an upper limit of 12 GHz

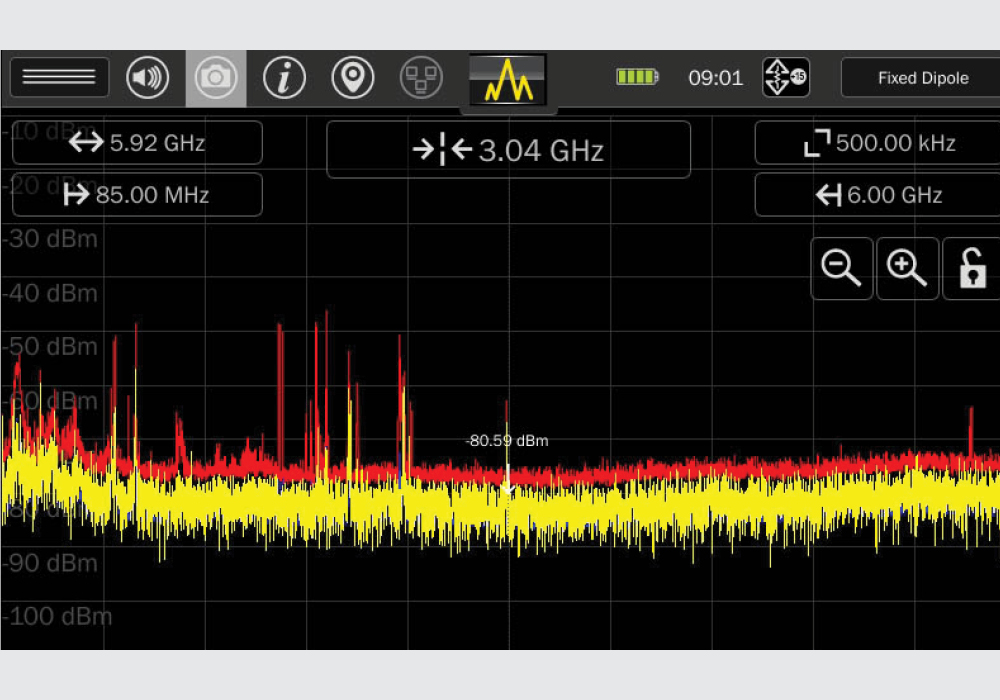

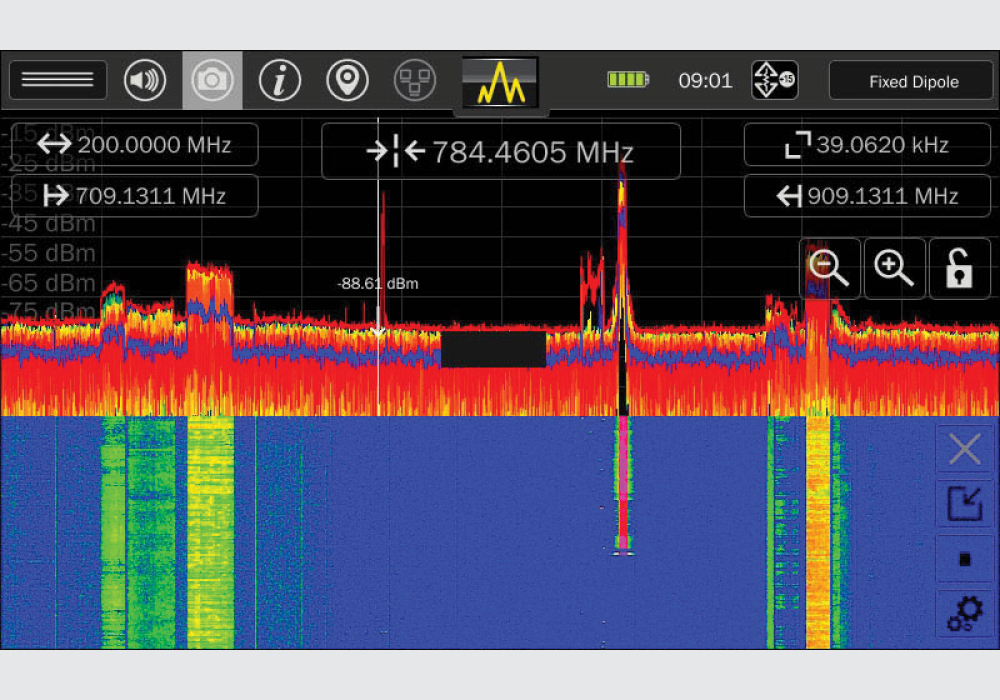

• Spectrum Analyzer – spectral analysis displays the entire frequency range, start and end frequency, signal level in dB, resolution bandwidth, and center frequency on the screen. Available for work: threshold level, oscillogram, zooming, and much more.

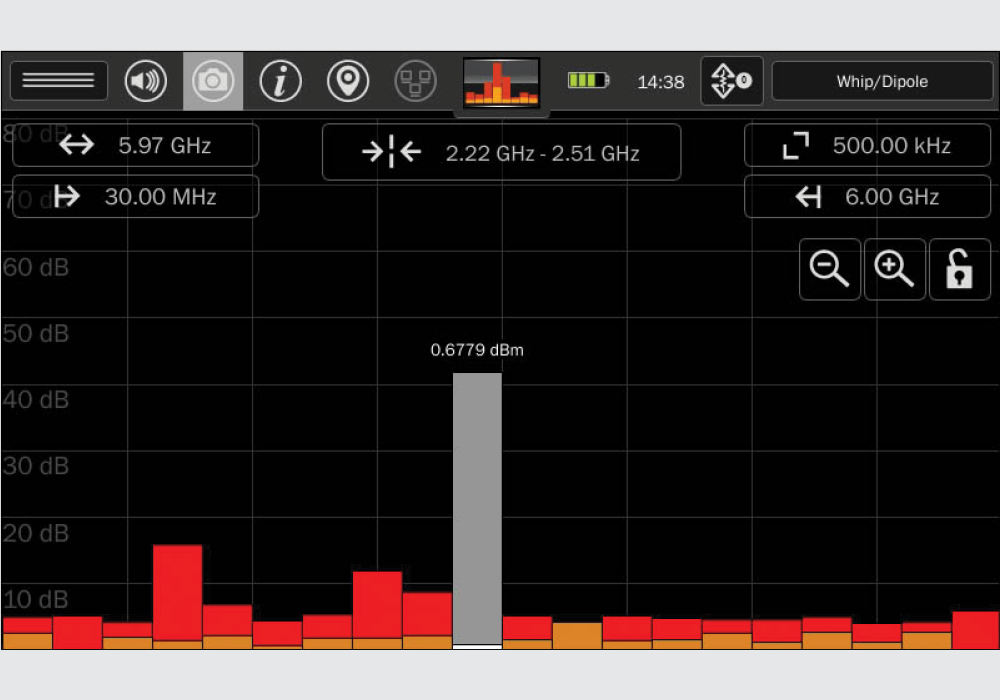

• SmartBars™ – an effective method in a convenient graphic format to quickly and easily detect and localize radio frequency signals by comparing the change in their power relative to a reference spectrogram created outside the search location. New signals with stronger energy are displayed with enlarged scales.

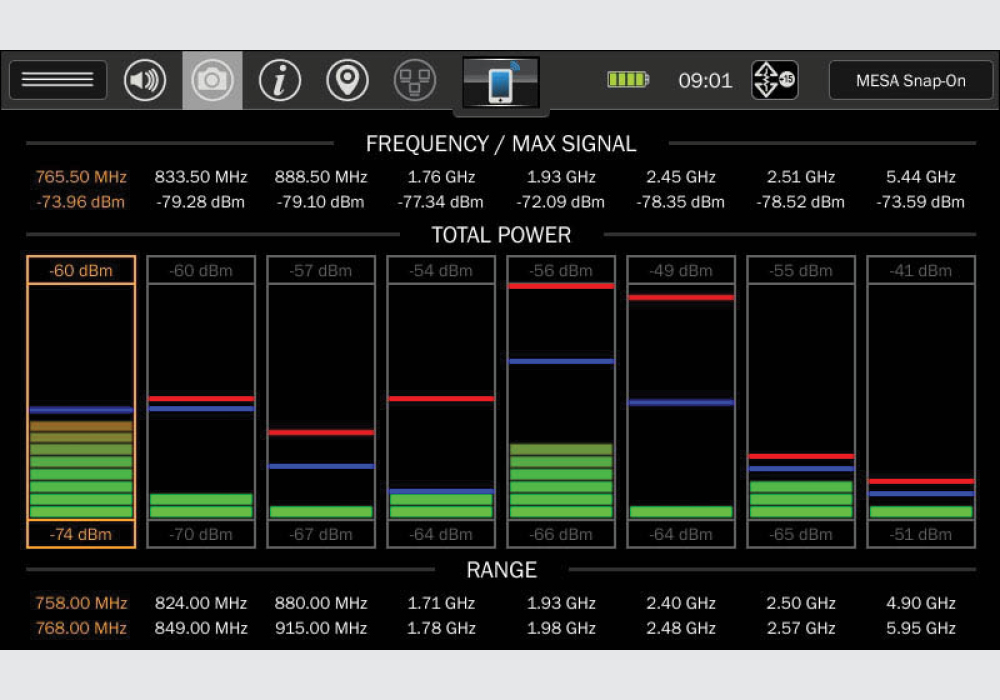

• Mobile Bands – analysis of mobile communication bands allows quickly and easily controlling the power level changes of radio frequency signals in standard communication bands on one screen (e.g., Wi-Fi, GSM, 3G, 4G, etc.).
• Wi-Fi – modes for detection and identification of Wi-Fi devices, including access points and their clients, provided there is sufficient accumulation time. Displays device identifier (SSID), MAC address, signal level, and other information. If necessary, you can quickly switch to spectrum analysis mode on the detected channel.
• Bluetooth – mode for detection and identification of Bluetooth devices that are in an unconnected state and announcing their presence.

Technical Specifications

Scanning Speed	> 200 GHz/s
Frequency Range	from 10 kHz to 12 GHz
Reception Bandwidths	from 0.038 kHz to 312.5 kHz depending on the selected bandwidth
Instantaneous Bandwidth	25 MHz
Displayed Average Noise Level (DANL)	Bandwidth (RBW) 500 kHz with amplifier: -102 dBm
Attenuator	0 dB, 10 dB, 20 dB, Auto
Amplifier	+15 dB.
Signal Types Detected by the Device	RF, Signals on 110/220V Power Lines, Acoustic Leakage, Signals in IR and visible range, Ultrasound
Spurious-Free Dynamic Range (SFDR)	81.6 dB
Receiver Type	Swept-tuned Superheterodyne
Demodulators	AM/FM with Bandwidth: Auto, 200 kHz, 20 kHz, 5 kHz
Input Connector	QMA (RF-input)
FUNCTIONALITY
Operating Modes	RF Spectrum Analysis, “SmartBars ™” Mode, Mobile Communication Band Detection, Wi-Fi & Bluetooth Mode
Alert Type	Visual, Audible, Tactile
Display/Control	7 inch (18 cm) screen, capacitive, touch, with adjustable brightness
Screen Functions	Zoom, screen lock, frequency range, start / end frequency, resolution bandwidth, center frequency, automatic antenna / probe recognition. Screen menu displays modes: RF Spectrum Analysis, “SmartBars ™”, “Cached Peak ™”, Wi-Fi & Bluetooth, “Waterfall”, “Persistence”, RSSI, Averaged Spectrogram
Remote Access	Ethernet port for remote access via VNC

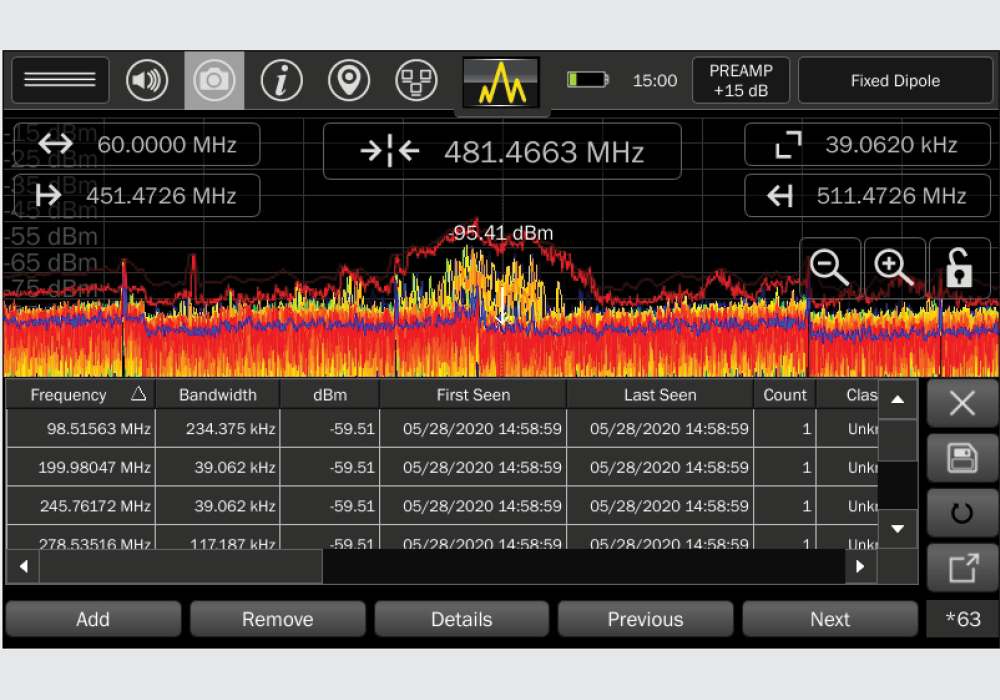

Signal List Generation	Automatically or manually, depending on the mode
Location	Removable GPS receiver, receives and stores GPS data
Audio	Built-in speaker and external headphones with volume control. Microphone input for Acoustic Leakage and Audio Transformer probes
Data Transfer Ports	2 USB 2.0 Type A ports, used for: SW update, file saving and transfer, GPS probe. Gigabit Ethernet port
POWER SUPPLY
AC Power	100-240 V, 50-60 Hz, powered by Lithium-ion battery (+ 1 pc. Reserve)
Operating Time per Battery	~ 3 hours (typical)
Charging Time per Battery	~ 2.5 hours (typical), external charger included in Deluxe kit
DEVICE DIMENSIONS
Device Dimensions:	13 x 20 x 5 cm.
Device Weight with Battery:	1.1 kg

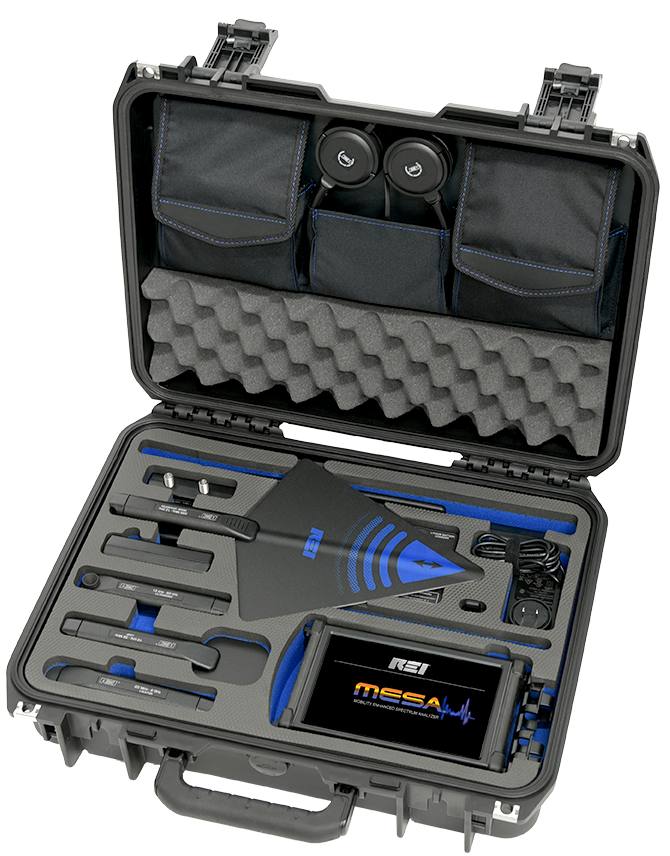

Case Dimensions:	16 x 38 x 47 cm.
Case Weight with Device and Accessories	6.8 kg
OPERATING CONDITIONS
Operating Temperature, °C	from -10 to 53
Battery Charging Temperature, °C	from 5 to 37
Storage Temperature, °C	from -20 to 60
