price 7 260 uah
The MWA-12 device is a log-periodic directional antenna that can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors (field detectors), etc. For indoor use. The antenna is installed using a tripod, which converts into a handle for localization (for manual near-field measurements). The product is characterized by small dimensions – without the tripod, the antenna dimensions are 8 x 6 x 0.7 cm.
- Can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors (field detectors), etc.
- Particularly well suited for detecting and localizing digital signals above 2 GHz: 4G / LTE (2-12 GHz), 5G (2-12 GHz), Wi-Fi 2.4 GHz, Bluetooth, Wi-Fi 5 GHz, as well as for tracking MW bugs
- Frequency range 2000-12000 MHz
- Type: directional, log-periodic
- Gain: 8 dBi

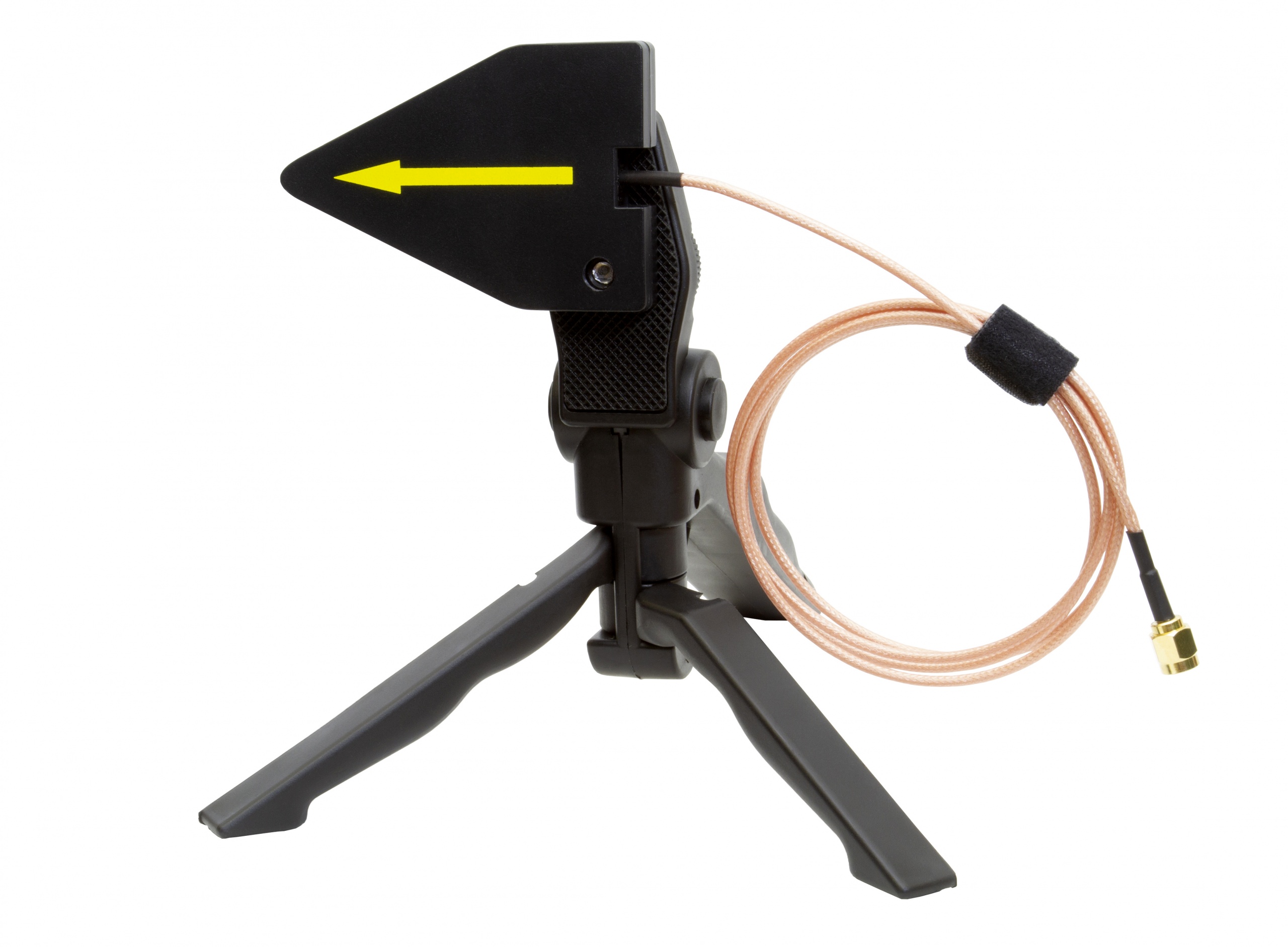

- Can be installed on a tripod (included in the set)

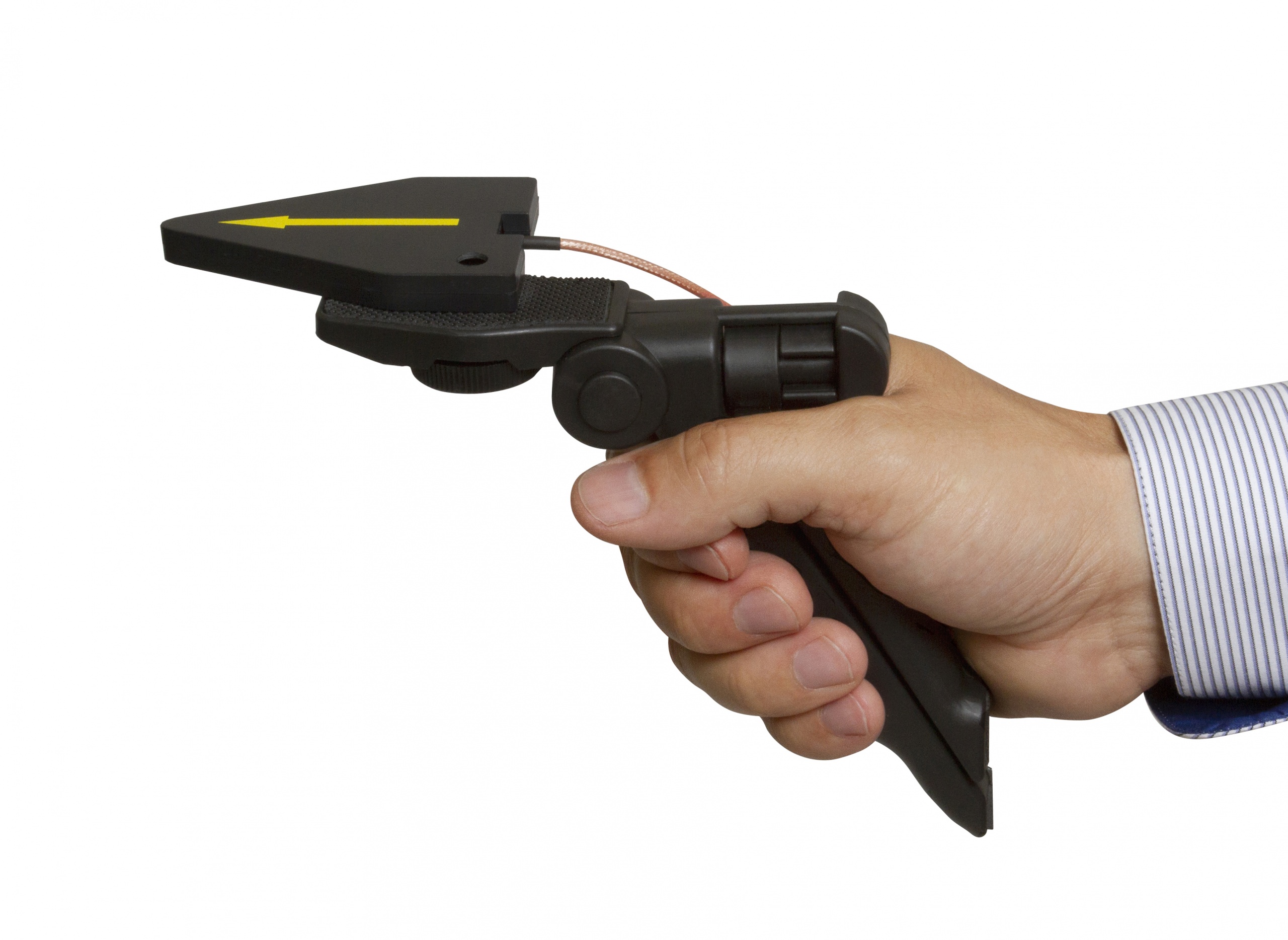

- The tripod converts into a handle for manual near-field measurements (localization)
- Connector: SMA
- Cable 80 cm
- Dimensions without tripod 8 x 6 x 0.7 cm
- Operating mode: reception
- Used only indoors
