price 6 820 uah

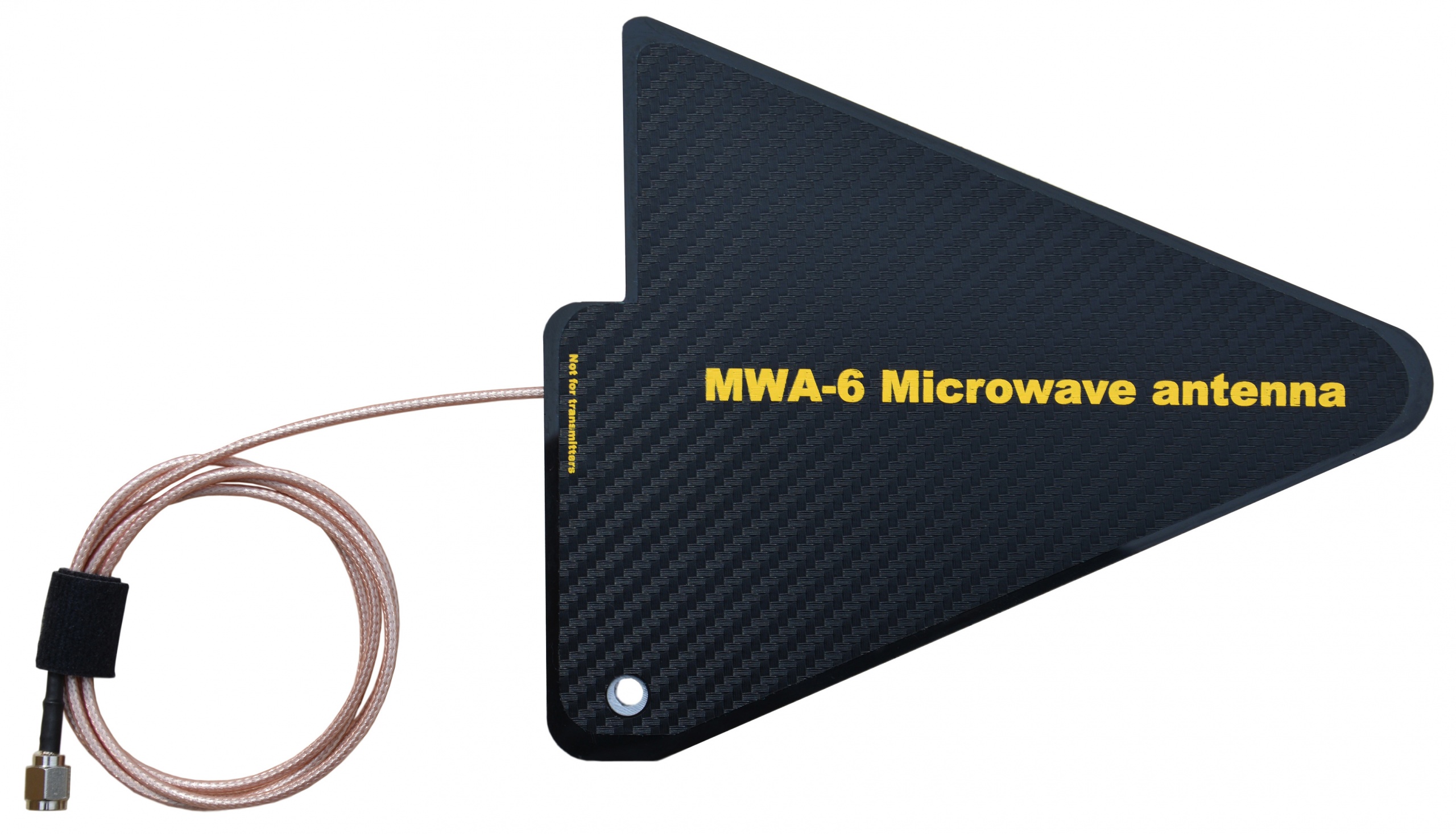

The MWA-6 device is a log-periodic directional antenna that can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors (field detectors), etc. For indoor use. The antenna is installed using a tripod, which converts into a handle for localization (for manual near-field measurements). The product is characterized by small dimensions – without the tripod, the antenna dimensions are 18 x 14.5 x 0.7 cm.
- Can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors (field detectors), etc.
- Particularly well suited for detecting and localizing GSM, CDMA, 3G, 4G (LTE, Wi-Max), 5G (<6 GHz), Wi-Fi 2.4 GHz, Bluetooth, Wi-Fi 5 GHz, DECT signals, and other digital sources
- Frequency range 800-6500 MHz
- Type: directional, log-periodic
- Gain: 6 dBi

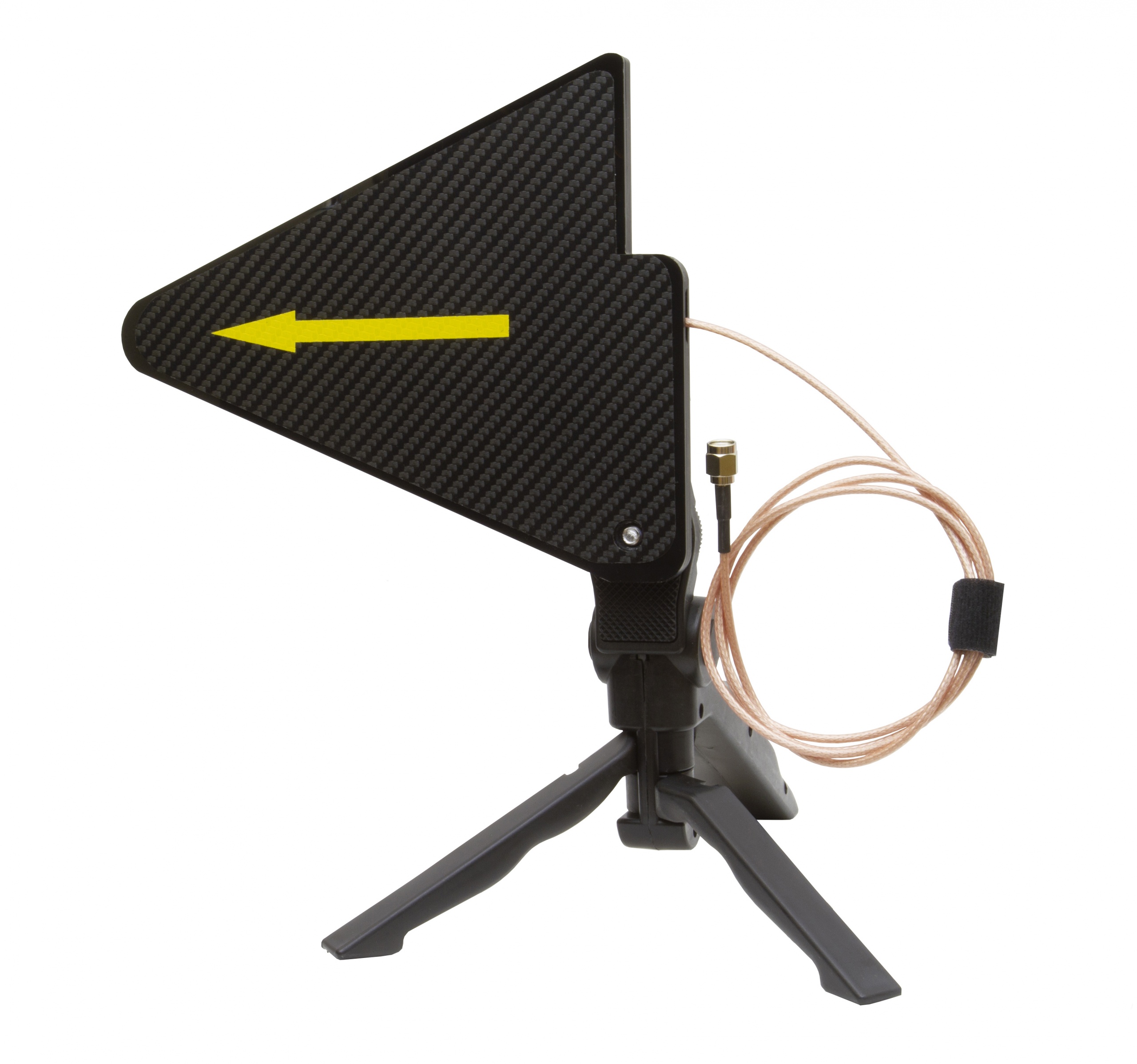

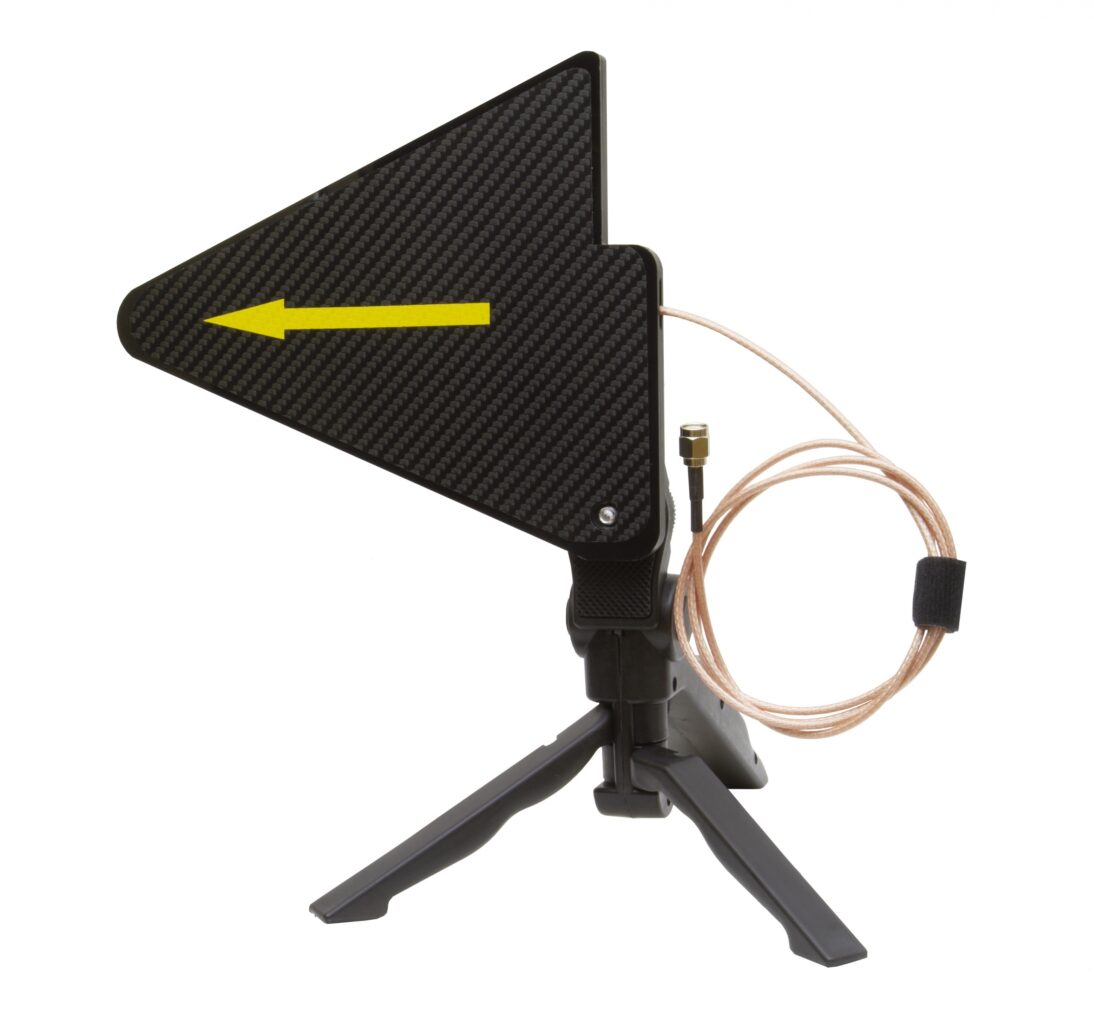

- Can be installed on a tripod (included in the set)

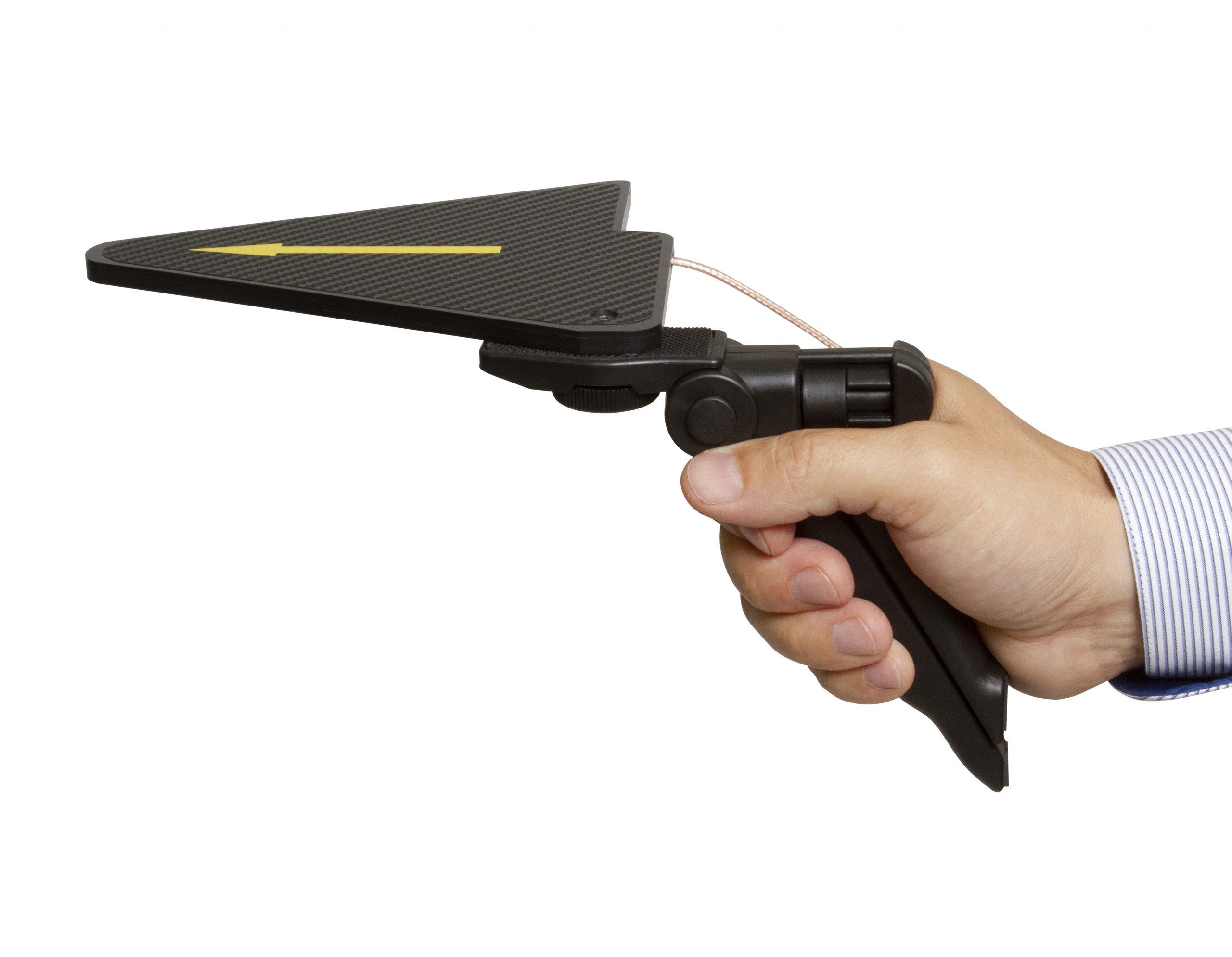

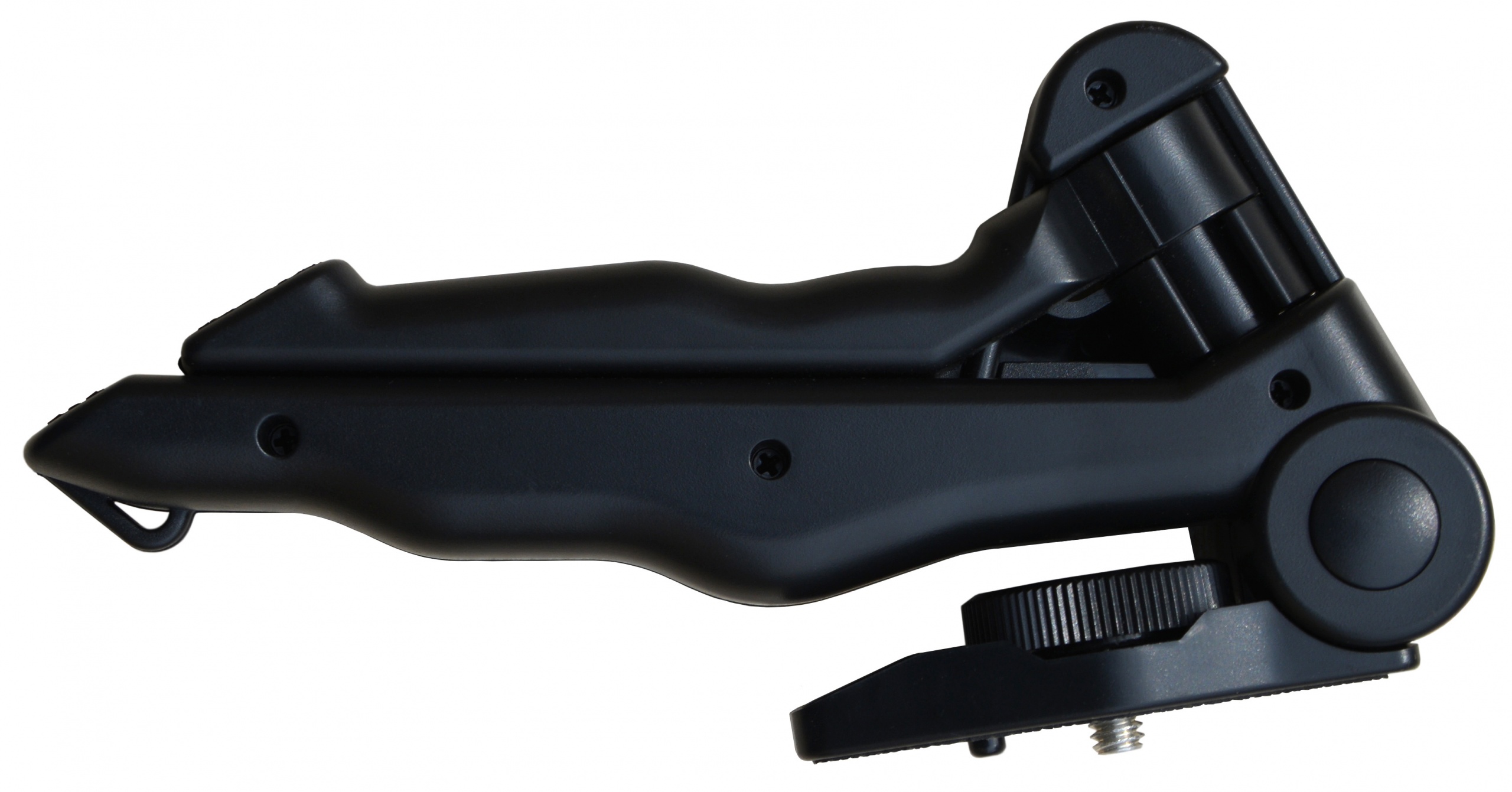

- The tripod converts into a handle for manual near-field measurements (localization)
- Connector: SMA
- Cable 80 cm
- Dimensions without tripod 18 x 14.5 x 0.7 cm
- Operating mode: reception
- Used only indoors
