price 5 940 uah

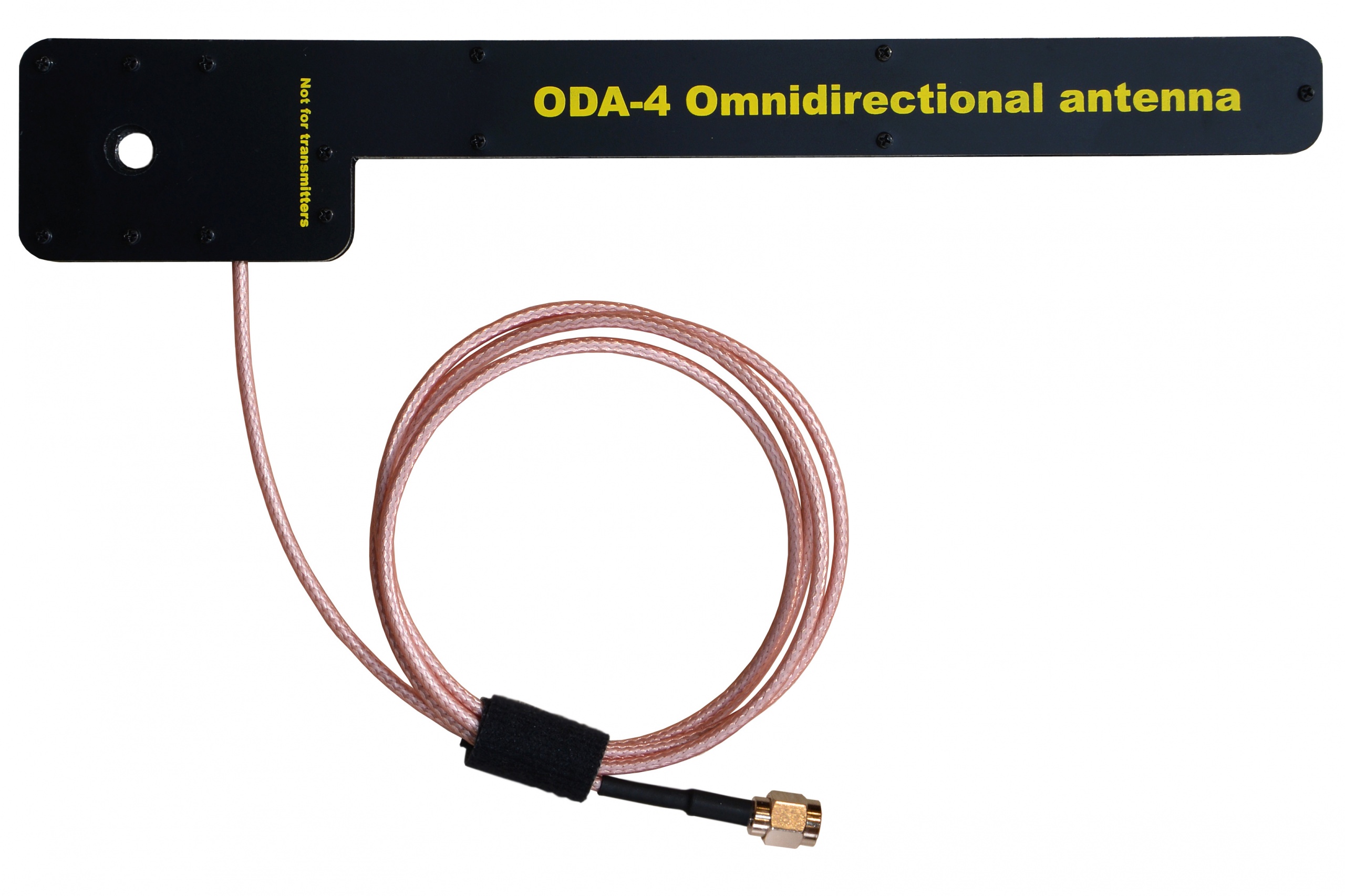

The ODA-4 is an omnidirectional antenna that can be used with any RF device, including receivers, spectrum analyzers, RF detectors, etc. It is intended for indoor use. It is mounted using a tripod, which converts into a handle for localization (for manual measurements in the near field). Without the tripod, the antenna dimensions are: 20 x 3.5 x 0.6 cm. Frequency range 80-4000 MHz.
- Can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors (field detectors), etc.
- Frequency range 9 kHz-6000 MHz with increased sensitivity in the range up to 80 MHz – 4000 MHz

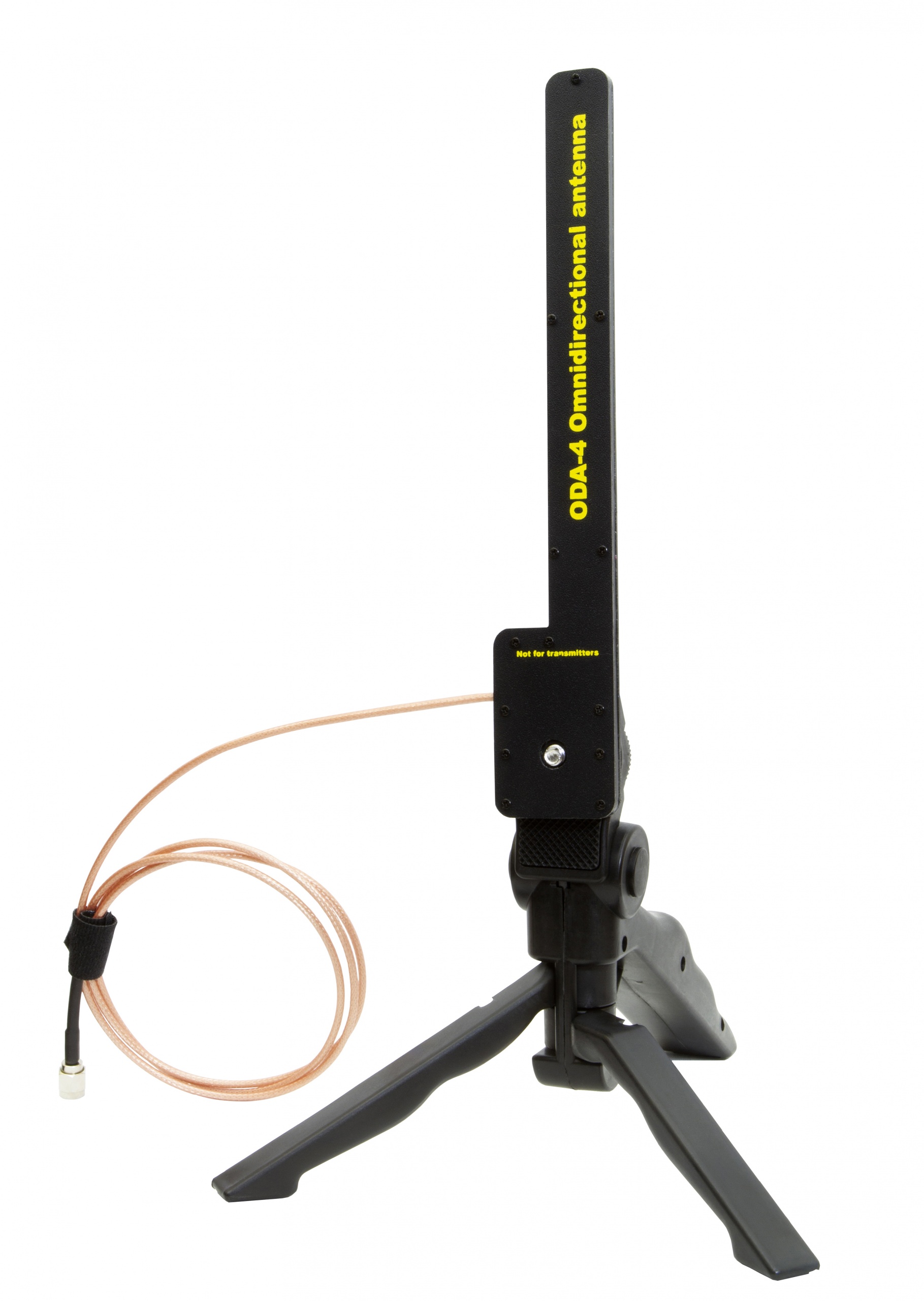

- Can be installed on a tripod (included in the set)

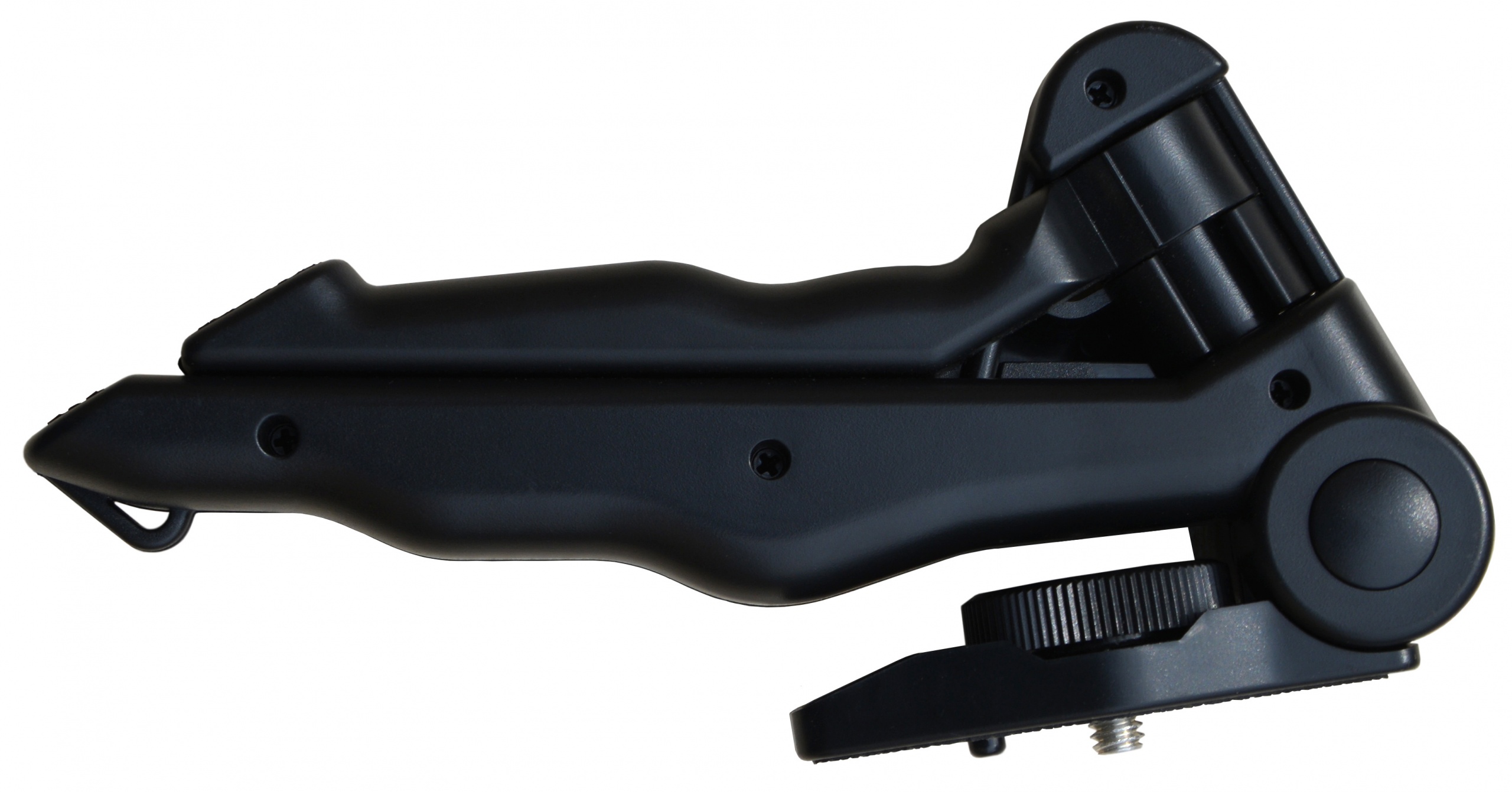

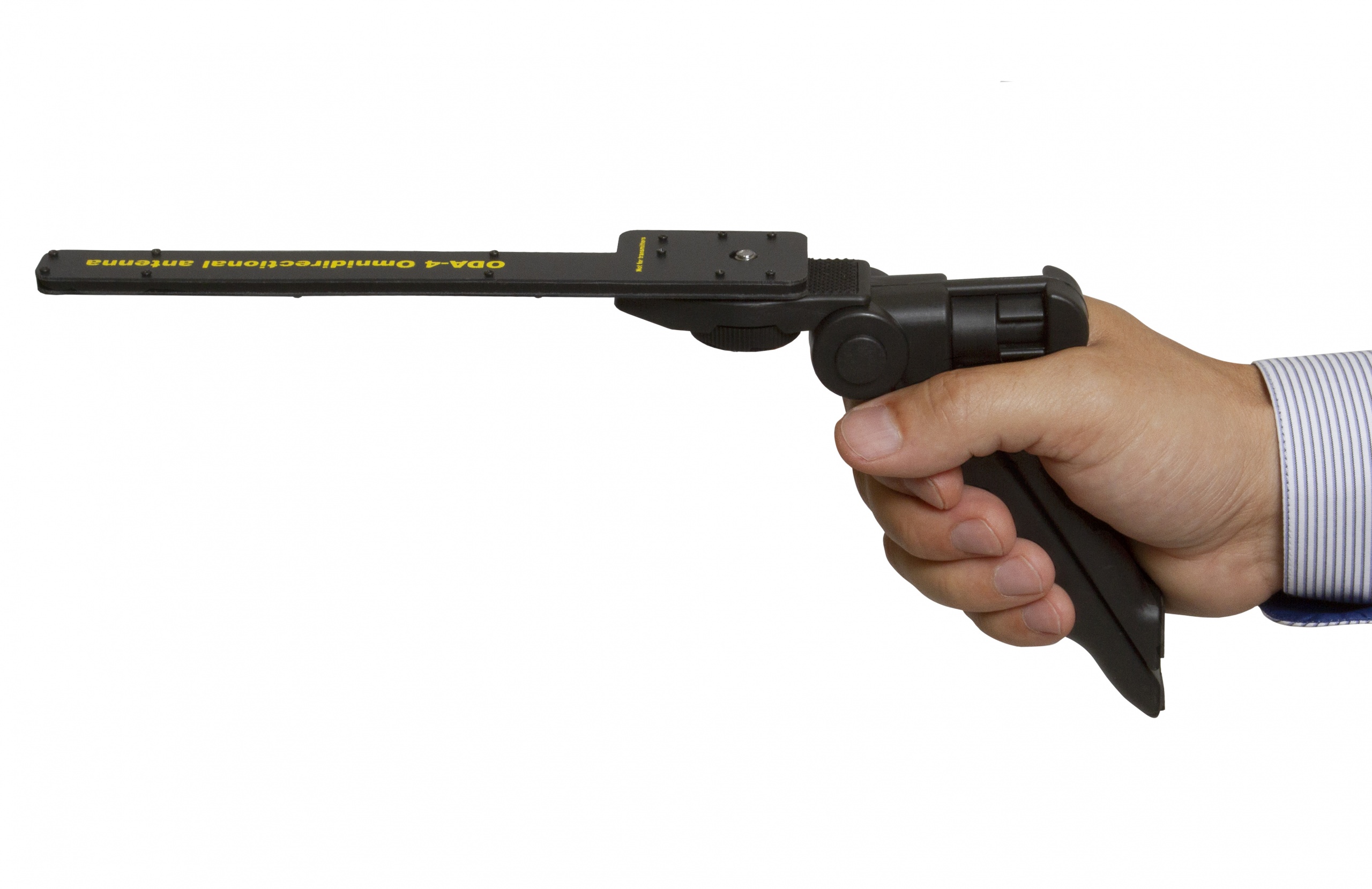

- The tripod converts into a handle for manual near-field measurements (localization)
- Connector: SMA
- Cable 80 cm
- Dimensions without tripod 20 x 3.5 x 0.6 cm
- Operating mode: reception
- Used only indoors
