price 1 727 880 uah
Orion™ HX Deluxe – a portable device for detecting any devices containing semiconductor components, regardless of whether they are in the on or off state. It allows effectively detecting both large and miniature electronic components, including camouflaged voice recorders, radio microphones, Flash cards, micro SIM cards.

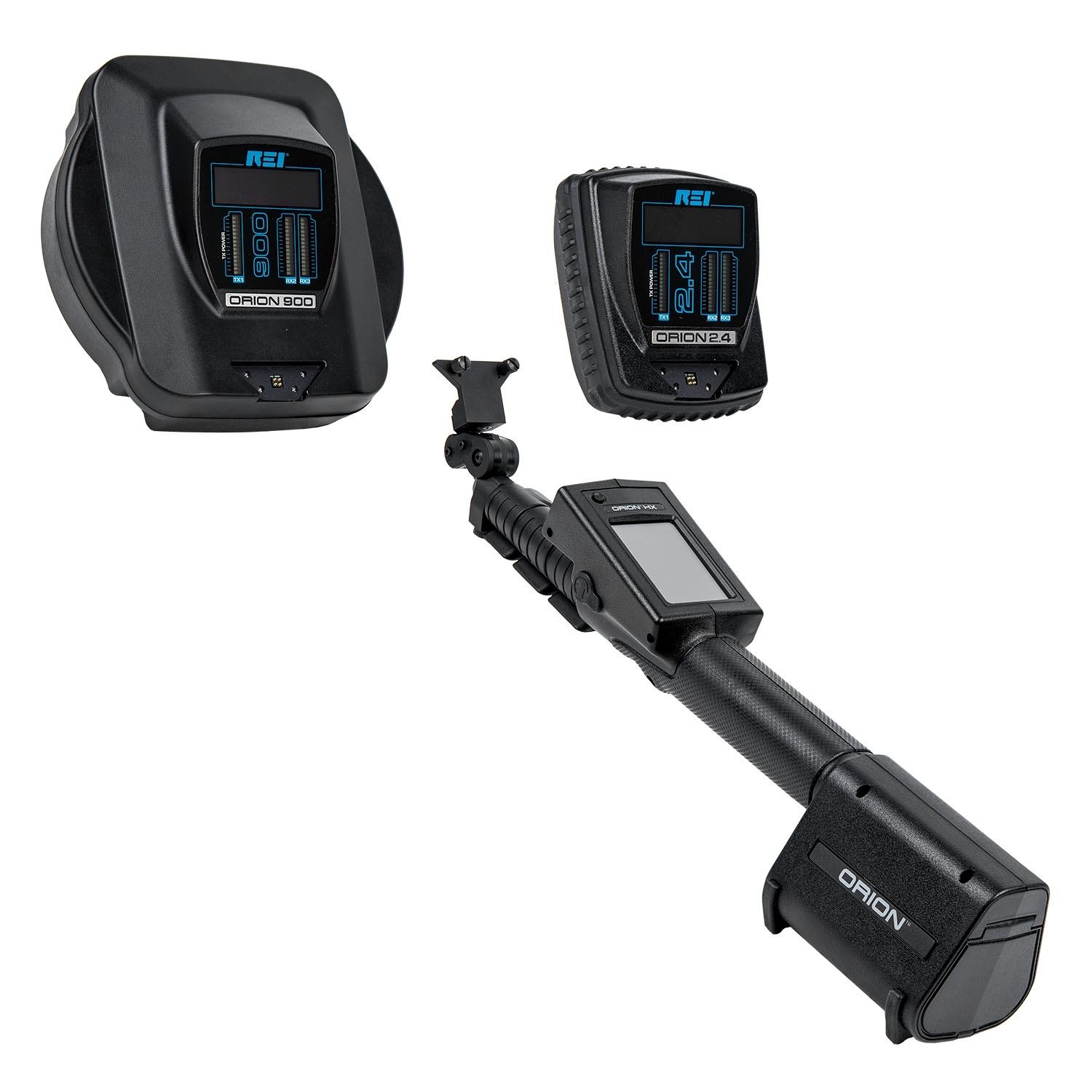

Small, modern electronic components in office environments can be effectively detected with the 2.4 GHz antenna, and older electronic components located under dense materials using the 900 MHz antenna.
Locator Features
- Digital modulation with expanded spectrum (OFDM) increases anti-jamming capability and target detection range.
- The extended bandwidth of the emitted signal – 1.25 MHz increases the detection capability.

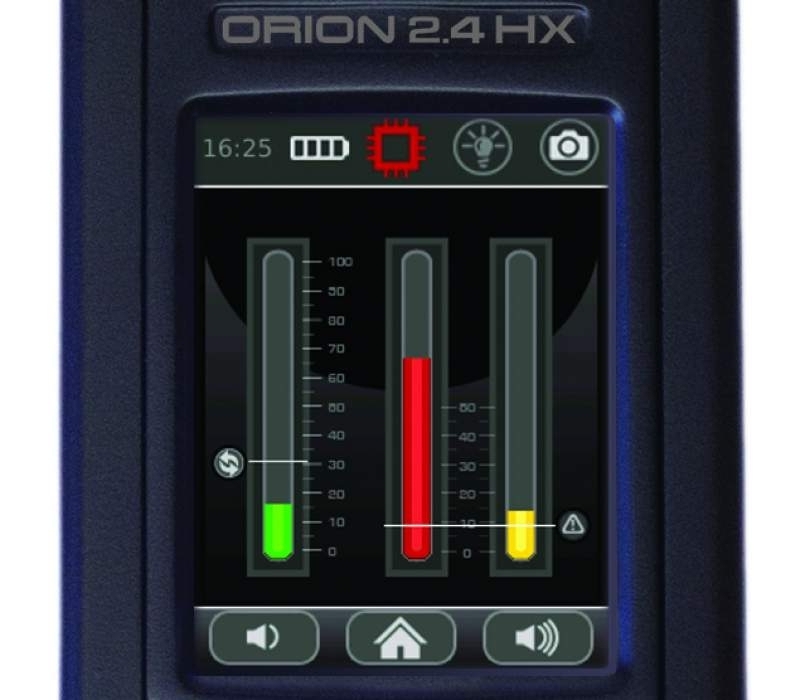

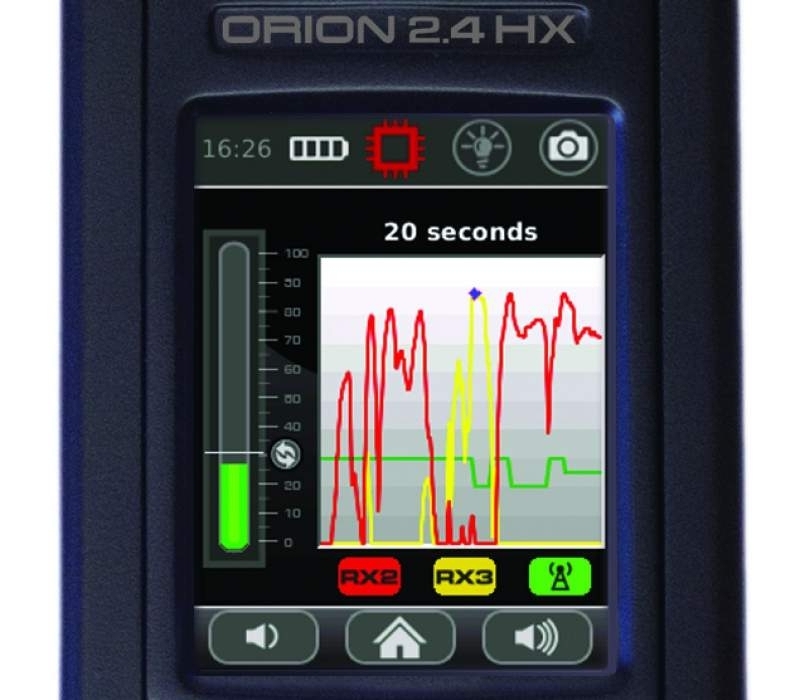

- Display of the dependence (histogram) of harmonic responses (2nd, 3rd harmonics) on the level of the emitted signal.
- Manual and automatic regulation of the emitted signal power (3.3W)
- Signal processing by a digital signal processor and gain control ensure increased detection range at constant power.
- Compact, due to its lightweight design, the device weighs 1.4 kg (1.6 kg depending on the selected antenna). All units are integrated into a single structure.
- Long battery life – up to 4 hours in standard mode.
- Fast battery charging via the built-in or external charger ensures quick preparation of the locator for operation. Batteries are compatible with Talan and Oscor.
- Circular polarization of the transmitting and receiving antennas reduces the likelihood of missing a target due to improper antenna orientation.
- The patented correlation algorithm of the high-sensitivity 2nd and 3rd harmonic receiver with the transmitter improves target detection and false alarm rejection.

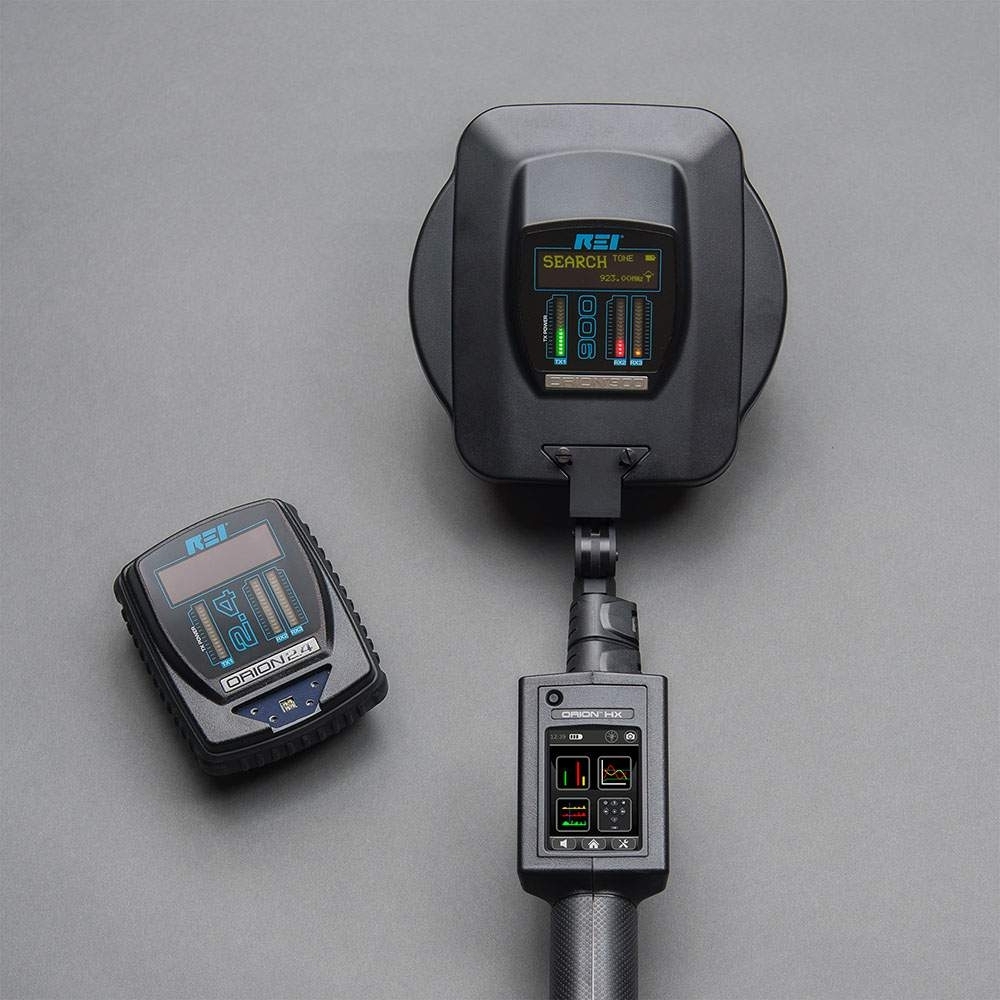

- The display mounted on the antenna makes searching and analyzing parameters convenient.

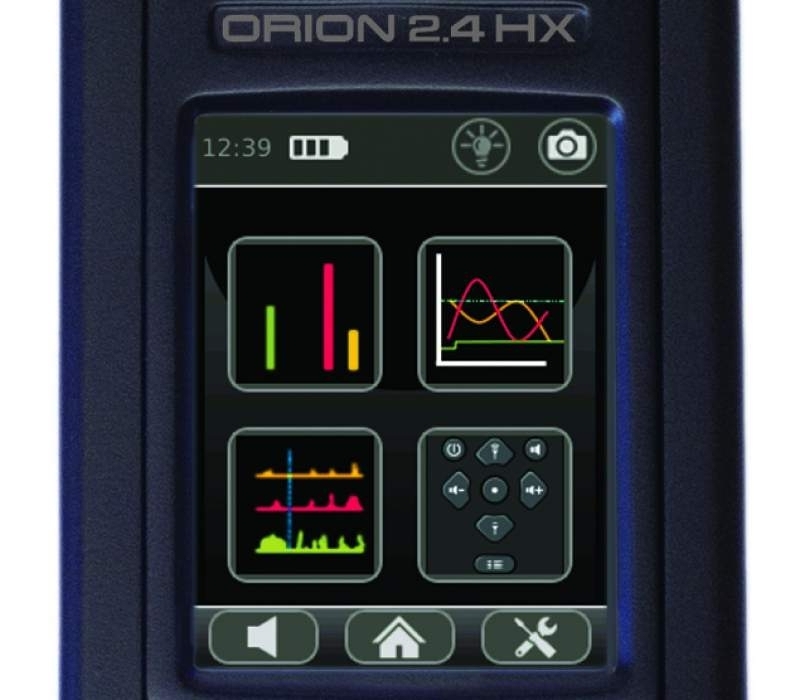

- The 2.7″ OLED touch display for control and indication is mounted on the device’s handle.
- LED illumination of the working area.
- Presence of several modes for selecting a free frequency channel (60 channels): manual frequency selection, automatic frequency selection, continuous frequency tuning within the range (Sweep), random frequency hopping within the range (Hop).
- Five listening modes: Tones, Listen (2ndAM, 2ndFM, 3rdAM, 3rdFM)
- Receiver demodulators – AM and FM for each of the harmonics
- Alarm indication – visual, audible, and vibration upon detection of a dangerous target.
Technical Specifications
| Transmitter Frequency Range 2.4 GHz | 2.404-2.472 GHz |
| Transmitter Frequency Range 900 MHz | 905-925 MHz |
| Number of Frequency Channels | more than 60 (manual and automatic tuning) |
| Maximum Transmitter Power 2.4 GHz (Manual and automatic power control. Compliance with FCC, CE, and IC standards.) |
3.3 W (Equivalent Isotropically Radiated Power) |
| Maximum Transmitter Power 900 MHz (Manual and automatic power control. Compliance with FCC, CE, and IC standards.) |
1.4 W (Equivalent Isotropically Radiated Power) |
| Emitted Signal Modulation | digital spread spectrum modulation 1.25 MHz |
| Receiver Frequency Range 2.4 GHz | |
|---|---|
| 2nd Harmonic | 4.808-4.944 GHz |
| 3rd Harmonic | 7.212-7.416 GHz |
| Sensitivity | -140 dBm for both harmonics |
| Receiver Frequency Range 900 MHz | |
| 2nd Harmonic | 1.810-1.85 MHz |
| 3rd Harmonic | 2.715-2.775 GHz |
| Sensitivity | -130 dBm for both harmonics |
Dimensions
| Telescopic Boom Length | 40.6-129.5 cm |
| Total Length | 147 cm |
| Size of Impact-Resistant Case | 15.9×37.8×47 cm |
| Weight of Orion™ HX Deluxe with Battery (2.4 GHz) | 1.4 kg |
| Weight of Orion™ HX Deluxe with Battery (900 MHz) | 1.6 kg |
| Weight of Orion™ HX Deluxe with Accessories in Case | ~5.4 kg |
Power Supply
| Battery | Lithium-ion with charge indicator |
| Operating Time | at least 4 hours |
| Charging Time | 2.5 hours |
| Power Adapter | 100-240 V, 50-60 Hz |
