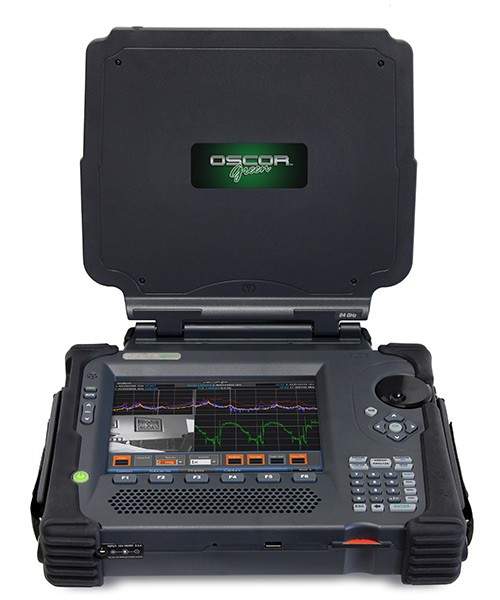

OSCOR Green (OGR-8) – Spectrum analyzer

OSCOR Green OGR-8 – a portable spectrum analyzer with high spectrum sweep speed and special functions for detecting and localizing unknown signals, testing radio transmitting systems in a wide range of frequencies. Frequency range: 10 kHz – 8 GHz.

OSCOR Green OGR-8 can be successfully used for:

• Detection of unauthorized signals in a very crowded radio frequency spectrum
• Analysis of radio frequency signal distribution
• Evaluation of communication channel utilization
• Determination of communication system coverage area (cell towers, radio relay systems)
• Installation and maintenance of wireless data transmission systems

The application of communication systems in various sectors is rapidly developing worldwide, especially mobile and satellite systems, which use wideband communication channels. OSCOR Green is a serious tool for the evaluation and integration of these systems in the radio frequency range.

Analysis and distribution of the radio frequency spectrum is of great importance for many organizations, such as wireless operators, airports, ports, laboratories, and during design and exploration work. OSCOR Green is an excellent tool for detecting “complex” radio frequency signals in adverse environments.

Range/Operating Speed

OSCOR Green scans the 8 GHz range in 0.5 seconds with a step of 12.2 kHz. High scanning speed, built-in antennas, embedded software, and quick readiness for operation allow for significant time saving when working with OSCOR Green.

Automatic Multi-Antenna System Switch

• The use of the built-in automatic antenna system switch allows obtaining a real-time image in the range from 10 kHz to 8 GHz without “stitching” and “dead zones”
• The built-in 10 dB preamplifier increases receiver sensitivity.
• The built-in attenuator from 0 to -30 dB allows operation near powerful transmitters.
• Capturing and detecting all active signals. There are no losses due to limited antenna range or the need to switch external antennas.

Compactness

Light weight (up to 4 kg) and small dimensions allow the OSCOR Green to be used mobilely for data collection and signal analysis in the field. Built-in antennas and software allow the device to be easily deployed to capture and compare the signal spectrum in various locations.

Patented Trace Analysis for Fast Signal Detection

In addition to its compact size, high speed, and mobility, the trace analysis function developed by REI adds the ability for a complete analysis of the signal spectrum on the device screen without the need for an additional computer. The functionalities of the trace analysis software and the user-friendly menu navigation of the OSCOR Green allow for high productivity.

Creating a Signal List

Based on the trace analysis, a signal list is created according to peak values. Furthermore, signal lists can be created for different locations with subsequent comparison of these lists.

• Creation of a signal list from trace analysis according to the corresponding algorithm.
• Multiple creation of a signal list, at one pass per second.
• Analysis of unstable signals (with packet transmission, with changing frequency).

Sonogram

Viewing a raster spectrogram (sonogram) obtained from trace analysis over a period of time.

Dynamic Display of Persistent Signal Spectrogram NEW!

Dynamic display of the persistent signal spectrogram allows detection of the active signal spectrum in a complex radio frequency environment, using dynamic color change to visually separate the signal from ambient noise or numerous transient signals.

Transient (non-repeating) signals are displayed in darker colors (blue and green) and fade quickly, while persistent signals are displayed in bright colors (red and yellow). This allows for easy identification of persistent signals in the presence of interference.

Detailed “Waterfall” Spectrogram Recording NEW!

Allows recording detailed information about signal spectra over a long period of time, exceeding 30 hours, and then analyzing it in detail.

Recording and viewing the spectrogram allows detecting the activity of transmitters with frequency hopping (FHSS), pulsed, and many others. OSCOR Green allows recording a “Waterfall” spectrogram with a minimum resolution of 24.4 kHz (every 10 seconds minimum).

Demodulators

• FM wideband
• FM narrowband
• AM wideband
• AM narrowband
• With subcarrier
• With single sideband frequency

IF Demodulator Bandwidths

• Audio: 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
• Video: 12.75 MHz, 6.375 MHz

Video Mode

• NTSC, PAL, SECAM
• FM or AM wideband demodulator
• Viewing the demodulated video signal on the screen
• Analysis of the demodulated signal oscillogram without interrupting spectrum scanning.

Signal Analysis and Localization

The detected signal can be easily localized by changing the relative RSSI level and using localization functions in the near reception zone.

Oscilloscope

The demodulated signal is displayed as an oscillogram

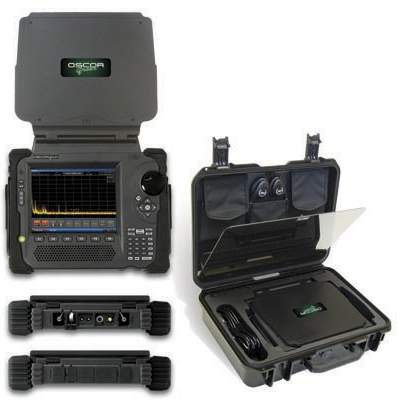

Controls and Connectors

1. External antenna connection connector
2. Antenna panel with automatic switching (uses 5 different antennas)
3. Headphone jack
4. Active high-resolution screen 21.3 cm
5. Carrying handles
6. Keys for controlling screen menu functions
7. Power key
8. Built-in speaker
9. Power connector (battery charging)
10. USB port for connecting external devices (storage drive, mouse, keyboard)
11. Compact Flash card slot for data storage
12. Rubber coating
13. Digital keypad
14. Menu control keys
15. Rotation tuner

Antenna Panel Inputs

1. Antenna panel inputs: absent
2. Antenna panel control
3. Antenna input: 10 kHz – 8 GHz
4. Carrier output
5. IF output
6. Auxiliary port for universal probe control
7. Auxiliary RF input: 0 – 8 GHz

MPP – Universal Probe (supplied in the set)

The universal probe connects to the auxiliary port for detection of:

• Carrier signals in wired lines
• CATV for direct connection to cable television lines
• Coaxial (F connector) for direct connection and general measurements (75 Ohm, cable terminal included)
• VLF – for analysis of low-frequency radio band signals from 20 kHz to 20 MHz.
• Infrared sensor for detecting signals in the 700-1100 nm range.
• Optical sensor for detecting visible range transmitters 450-1100 nm.

Technical Specifications:

Radio Frequency System

• Frequency Range: 10 kHz – 8 GHz
• Displayed Average Noise Level (with 25 kHz resolution):
• Without preamplifier -100 dBm
• With preamplifier -110 dBm
• Scanning Speed: 16 GHz per second
• Preamplifier: up to 8 GHz = 10 dB
• Attenuator: up to 8 GHz = 0 dB, -10 dB, -20 dB, -30 dB
• Dynamic Range: 90 dB, by intermodulation interference (SFDR): 80 dB

Audio System

• Demodulator Types: AM (amplitude), FM (frequency)
• Bandpass Filters: 800 kHz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
• Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz
• Headphone Output (headphones included)
• Built-in Speaker

Video System

• Format: NTSC, PAL, SECAM
• Demodulators: AM, FM
• Filters: 12.75 MHz, 6.375 MHz
• Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz

Antenna System

• Built-in antenna system with automatic switching:
• Frequency Range: 10 kHz – 8 GHz
• Directional Antenna DA-8000:
• Frequency Range: 1.5 GHz – 8 GHz

Inputs/Outputs

• Aux RF Input: from 10 kHz to 8 GHz
• IF Output: 75 MHz / 25 MHz (bandwidth)
• LF Output: 6 MHz
• Resolution: Aux – port for connecting universal probe

User Interface

• Built-in 8.4″ touchscreen display
• Soft keys and rotating optical switch
• USB Port (Type A): for connecting peripherals (keyboard, mouse)

Power Source

• Universal power supply (included): 100-240 V, 50-60 Hz
• Removable battery: lithium-ion accumulator, autonomous operation time 2-3 hours

External Memory

• Slot for connecting flash card (CF)
• USB-A Port

Mechanical Data

• Device Dimensions: 29.2 x 33.5 x 7.6 cm
• Device Weight with Battery: 4.4 kg
• Transport Case Dimensions: 14 x 37.8 x 49.5 cm
• Case Weight with Device and Accessories: approximately 9.5 kg
• Operating Temperature, °C: from 0 to +50

Specification

RF System
Frequency Range	50 kHz – 24 GHz
Displayed Average Noise Level (with 25 kHz resolution)	Without amplifier −100 dBm With amplifier −110 dBm
Scanning Speed	24 GHz per second
Amplifier	DC-8 GHz = 10 dB
Attenuator	DC-24 GHz = 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range	Min/Max Range: 90 dB SFDR: 80 dB
Audio System
Demodulator Types	AM, FM
Bandpass Filters	800 Hz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier Filters	6.25 kHz, 12.5 kHz, 200 kHz
Headphone Output	Yes, headphones included
Built-in Speaker	Yes
Video System
Format	NTSC, PAL, SECAM
Demodulators	AM, FM
Filters	12.75 MHz, 6.375 MHz
Subcarrier Filters	200 kHz, 12.5 kHz, 6.25 kHz
Antenna System
Built-in Automatic Antenna Switch	Yes
Frequency Range	50 kHz – 8 GHz
Input and Output
Auxiliary RF Input	50 kHz – 8 GHz
Intermediate Frequency Output	25 MHz bandwidth centered at 75 MHz
DC Output	6 MHz
Extension	Auxiliary multifunction device control port
Interface
Integrated Active Screen	8.4″
Control Keys and Optical Rotation Tuner	Yes
USB Port (Type A) for External Devices (Mouse, Keyboard)	Yes
Power Supply
Universal Power Source	100-240 V, 50-60 Hz
Removable Battery	Li-Ion, operating time 2-3 hours
External Data Storage Capability	Yes
Slot for CompactFlash Card	Yes
USB Port (Type A)	Yes
Dimensions and Weight
Dimensions	29,2×33,5×7,6 cm
Mass with Battery	4.4 kg
Case Dimensions	14×37,8×49,5 cm
Kit Mass	9.5 kg
Operating Temperature Range, °C	from 0 to +50
