iProtect TSCM KIT – Professional Portable Detection Kit

General Features

• Professionally Selected Toolset: Includes all necessary components for detecting a wide range of covert surveillance eavesdropping devices.

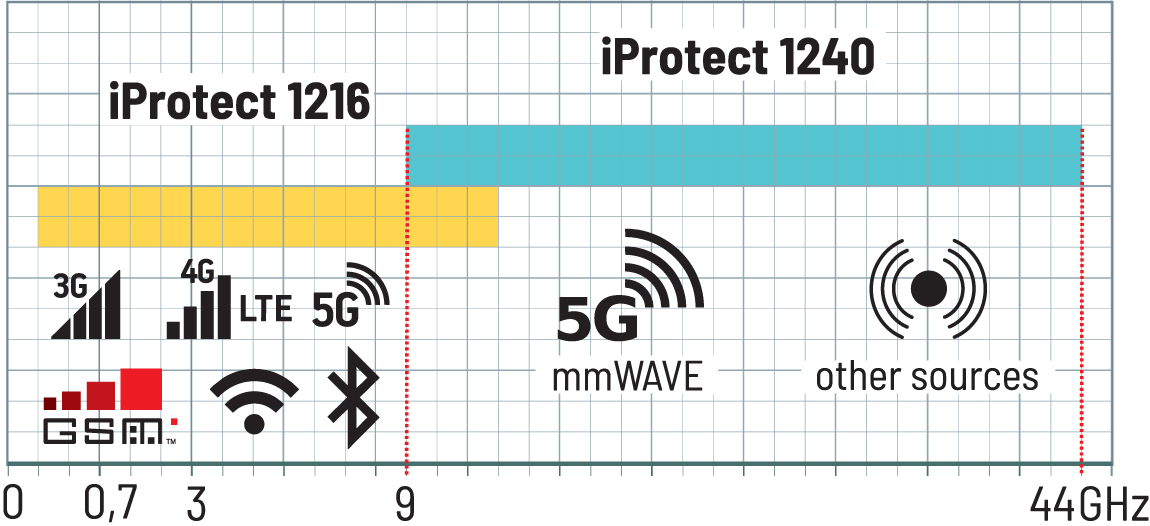

• Full Frequency Coverage (50 MHz – 44 GHz): The combination of the iProtect 1216 detector (50 MHz – 12 GHz) and the iProtect 1240 microwave detector (9 GHz – 44 GHz) provides continuous monitoring across the entire spectrum, allowing for the detection of all types of RF threats (wireless microphones, video cameras, etc.).
• Enhanced Sensitivity to BLE Tags: A bandpass filter (2.4–2.5 GHz) and directional antenna eliminate interference and significantly increase sensitivity to low-power BLE and Bluetooth signals, including BLE tags (AirTag, etc.)
• Optical Detection of Hidden Cameras: Using the retroreflective effect, the WEGA-i device detects any optical lenses regardless of their operational status (powered on or off).

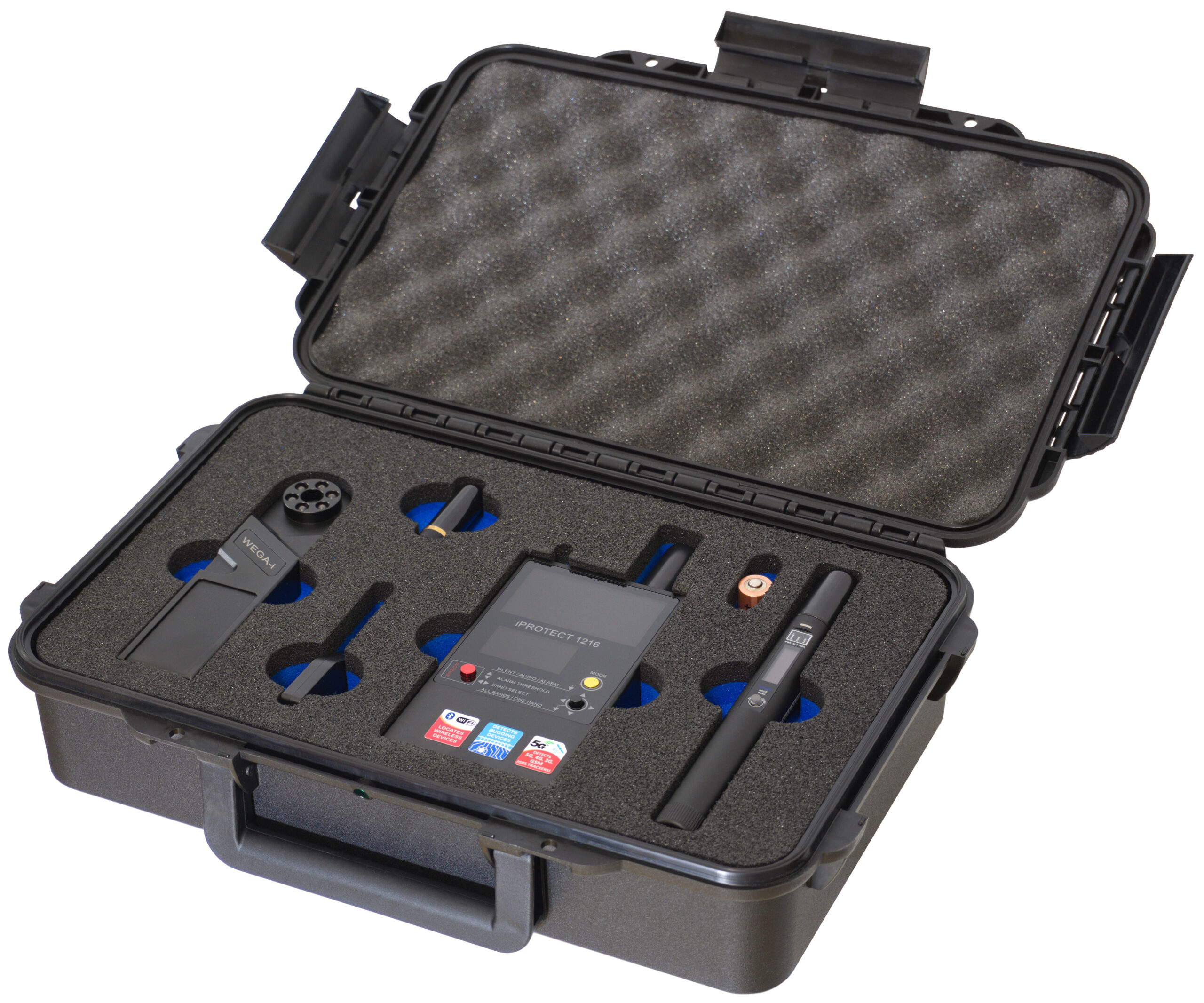

• Mobility and Ergonomics: The entire kit comes in an impact-resistant transport case with custom foam cutouts for immediate operational readiness.

Kit Components

iProtect 1216 — Countersurveillance 3-Band RF Detector

• Purpose: Detection of analog and digital transmitters (GSM, 3G, 4G, Wi-Fi, DECT, Bluetooth/BLE, etc.).
• 3 Independent Graphical Scales:
  • Band 1: 50 – 700 MHz (VHF / UHF)
  • Band 2: 700 MHz – 3 GHz (Mobile and wireless standards)
  • Band 3: 3 – 12 GHz (SHF / Microwave, 5 GHz Wi-Fi)
• Advantage of Frequency Division: In the presence of a strong interference source, sensitivity drops only in the affected band, preserving maximum sensitivity in the remaining two.
• Alarm Mode & Histogram: 48-step threshold adjustment and a graphical display of signal history over the last 5 seconds to track periodic pulsed devices.

iProtect 1240 — Millimeter-Wave Microwave Detector

• Purpose: Detection of high-frequency data transmission devices, including 5G mmWave devices and specialized protocols.
• Frequency Range (9 GHz – 44 GHz): Covers 5G mmWave bands (n257, n258, n260, n261).
• Specialized Filtering: Rejects frequencies below 9 GHz, allowing operation in complex environments without false triggers from standard mobile phones.
• Dual Detection Scale:
  • Modulation level: High sensitivity for long-range detection.
  • RF level: Pinpoint physical localization of the source.
• Directional Antenna: Built-in antenna with a 30° beamwidth for precise directional tracking.

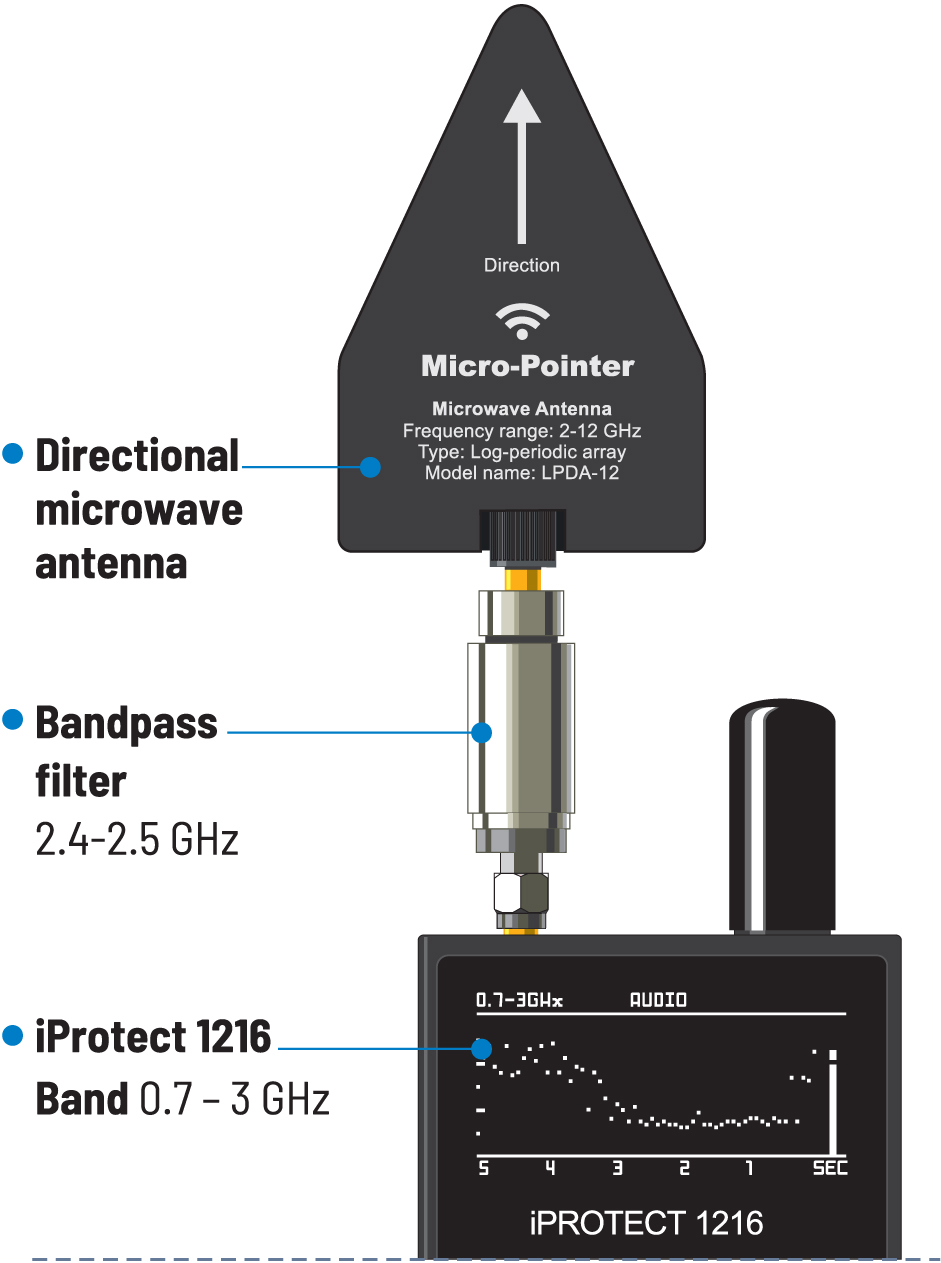

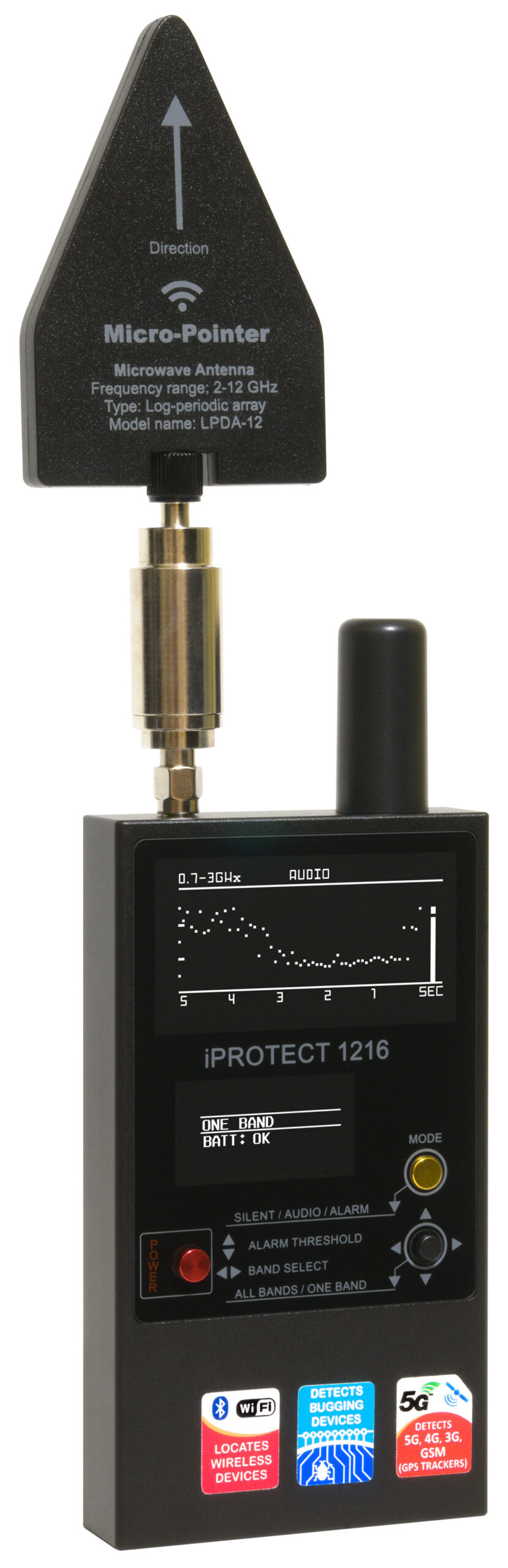

Bandpass Filter (2.4 – 2.5 GHz) & LPDA-12 Microwave Directional Antenna

• Hardware Selectivity: Filters out noise and background signals outside the 2.4–2.5 GHz range (specifically cellular communications below 2 GHz).
• Sensitivity Enhancement: Suppressing background noise allows for a lower trigger threshold and extends the detection range for Bluetooth / BLE devices (including BLE tags).

WEGA-i — Optical Hidden Camera Detector

• Operating Principle: Laser/optical retroreflection probing (pinhole lenses).
• State-Independent: Detects cameras regardless of power status, recording mode, or video transmission method.
• Detection Distance: 2 to 10 meters.
• False Reflection Protection: Light filter system and strobing mode distinguish true optical reflections from camera sensors from glares on interior surfaces, glass, or mirrors.

Detected Threats

Combined Specifications Table

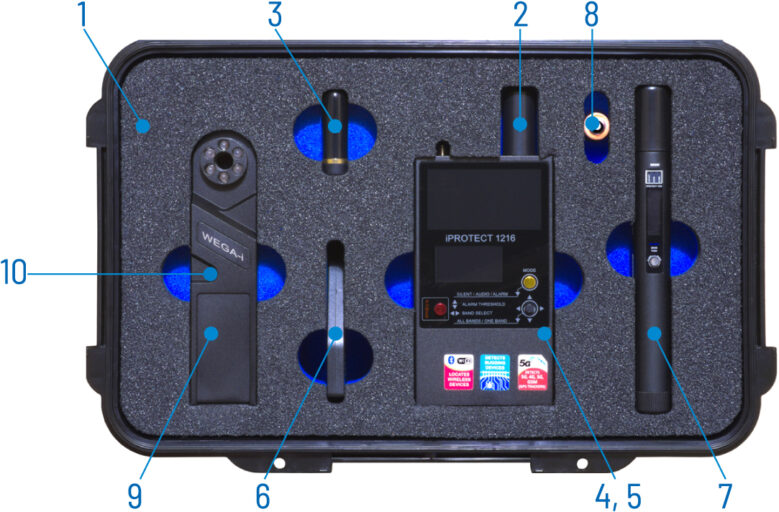

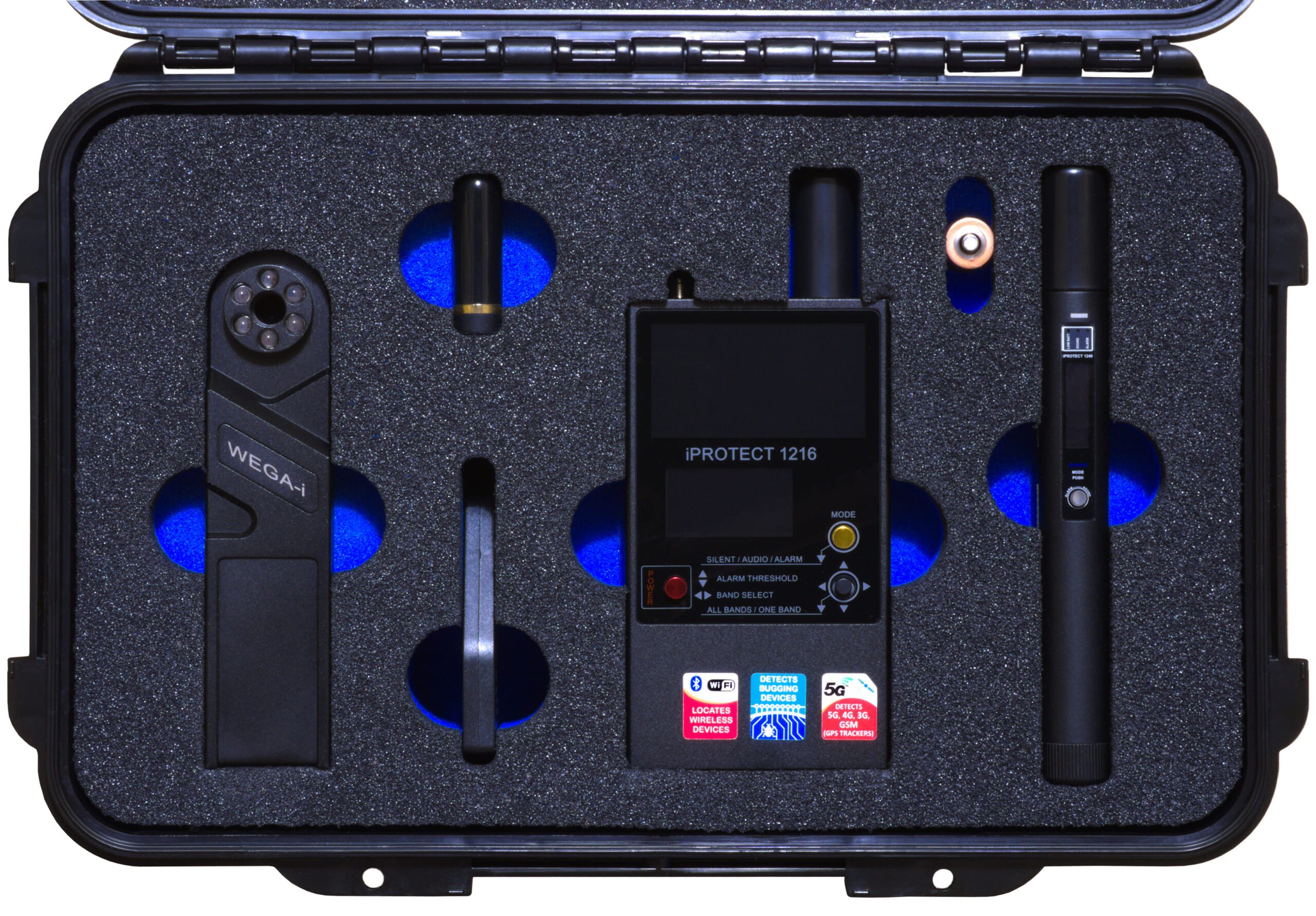

Package Contents

1. Transport case with custom foam insert — 1 pc.
2. Countersurveillance 3-Band RF Detector iProtect 1216 — 1 pc.
3. Rod antenna for iProtect 1216 — 1 pc.
4. USB charging cable for iProtect 1216 — 1 pc.
5. Bandpass filter (2.4 – 2.5 GHz) — 1 pc.
6. LPDA-12 microwave directional antenna — 1 pc.
7. Microwave detector iProtect 1240 — 1 pc.
8. AA battery (LR6) for iProtect 1240 — 1 pc.
9. Optical hidden camera detector WEGA-i — 1 pc.
10. AAA battery (LR03) for WEGA-i — 2 pcs.

Files for download

---

PDF, 6 MB

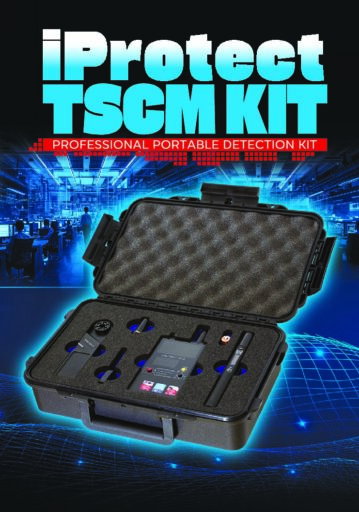

iProtect TSCM KIT User Manual ENG
