TALAN – Wireline Analyzer

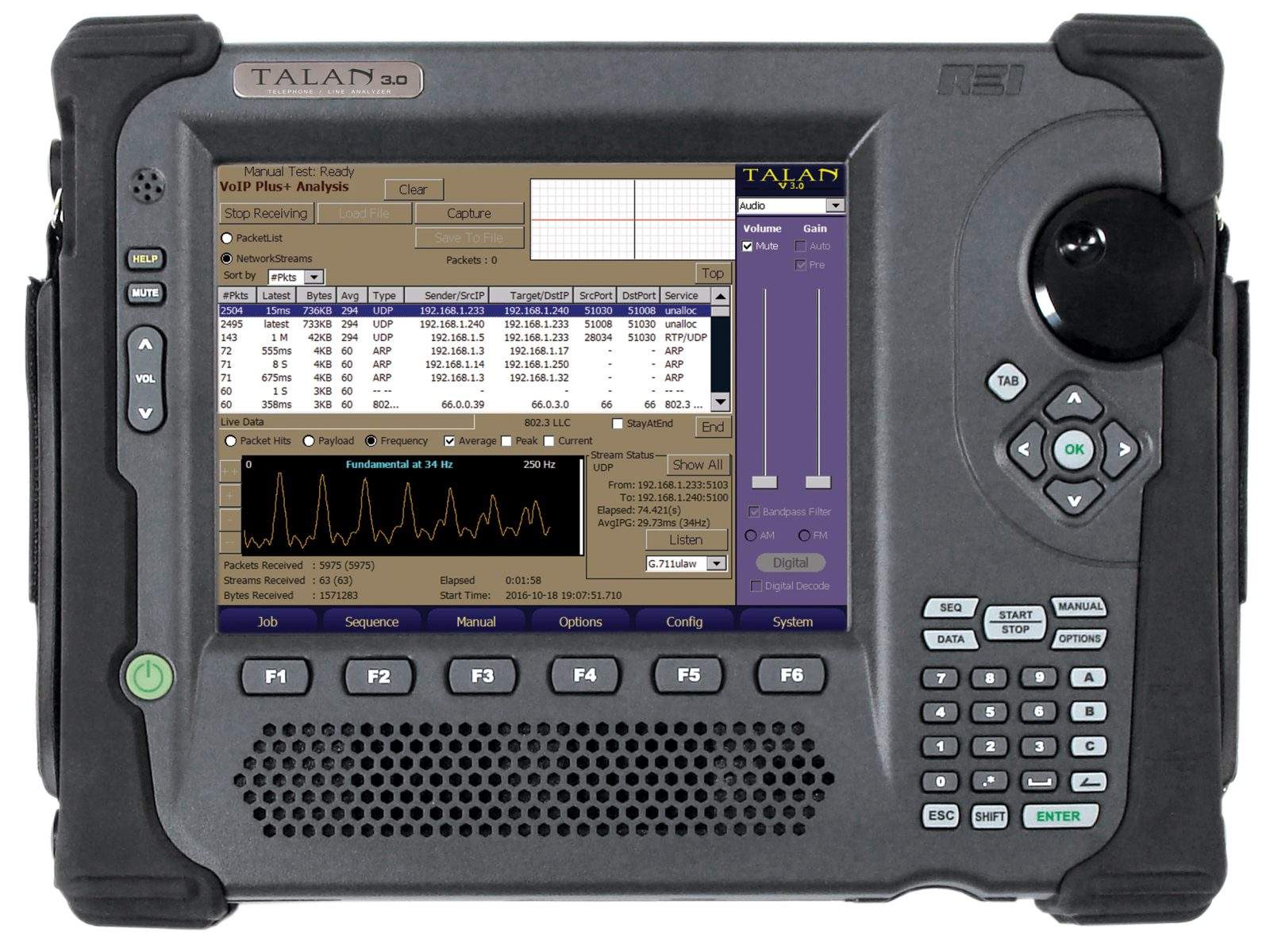

The digital wired and telephone line analyzer TALAN version 3.0 is a professional device that allows inspecting wired lines for the presence of covert information gathering devices and information leakage. The Talan combines modern technical methods for checking wired and telephone lines and provides extended capabilities for analyzing analog, digital, and VoIP telephone systems.

Capabilities and Features

• Digital Demodulator
  The TALAN wired line analyzer has a digital decoder for checking telephone lines for the presence of unauthorized audio signal (allows demodulating 80% of PBX/ACD PBXs used worldwide). This mode allows detecting covert information gathering in digital telephone systems (“police mode”) on digital PBX lines.
• Reflectometer
  The Frequency-Time Domain Reflectometer, unlike the traditional Time Domain Reflectometer, has no “blind” zones and features high resolution and excellent technical capabilities. It allows detecting line inhomogeneities (splices, taps, breaks, insulation condition) with distance determination.

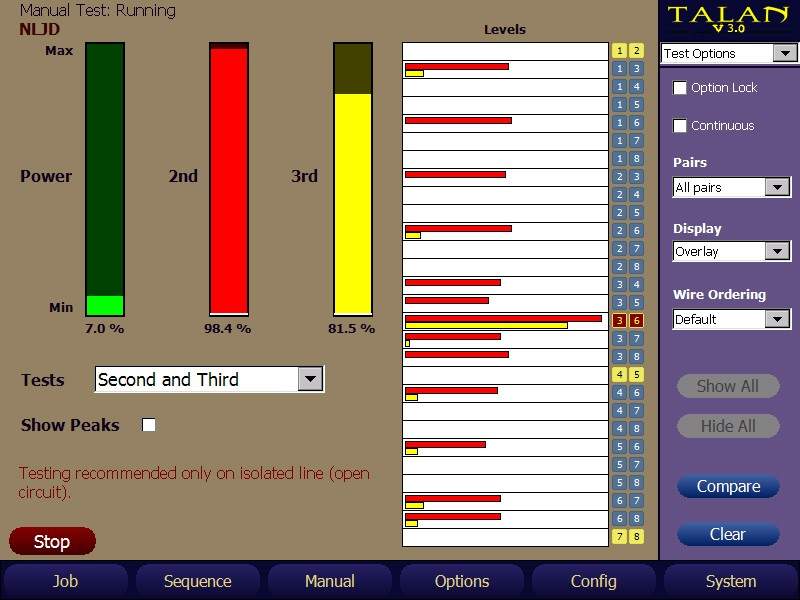

• Non-Linear Junction Locator with Handheld Probe
  Allows detecting the presence of semiconductor (electronic) devices on the line and tracing the line path. For example: parallel pairs 4 and 5 show an excess in the second and third harmonics.
• Automatic Switch
  For identifying and testing all pair combinations when connecting a multi-wire line.
• Digital Multimeter
  Designed for measuring and analyzing electrical line parameters (DC/AC voltage, current, resistance, capacitance). Automatic switch for identifying and testing all pair combinations with multi-channel connection.
• Audio Signal Amplifier with Oscilloscope
  The built-in high-sensitivity audio amplifier (20 Hz – 20 kHz) for analog lines allows detecting extraneous signals in the lines. Oscilloscope with active input (20 Hz – 20 kHz)
• Bias Voltage Generator
  The digitally controlled bias voltage generator (+-80V) is used to activate possible current-consuming listening devices.

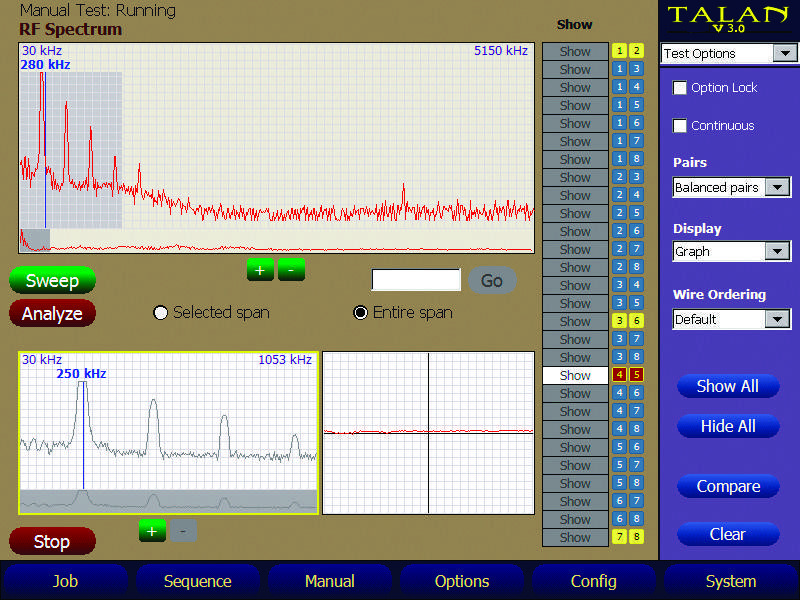

• Wideband Radio Frequency Signal Detector
  The spectrum analyzer function allows displaying carrier radio frequency signals in the line (in the range up to 85 MHz) and demodulating them using AM/FM demodulators. The built-in wideband radio frequency detector allows detecting and localizing signals in the range up to 8 GHz.
• Multi-Test System with Database for sequential execution of tests with all line pair combinations, saving results in a database for later comparison. Any test results can be recorded on external media, such as USB drives or Compact Flash cards.
• Handheld Search Probe
  Allows tracing the line, and also receiving the second harmonic response, when using the non-linear locator mode, for localizing eavesdropping devices.

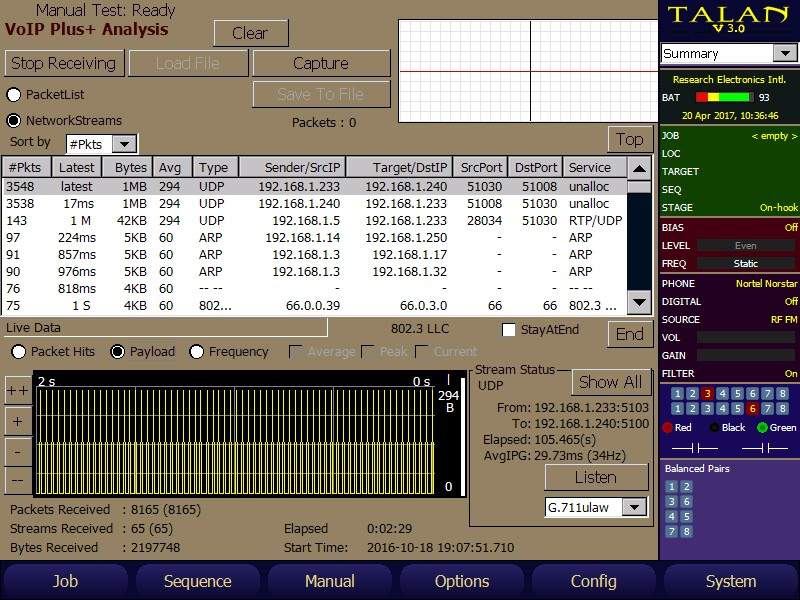

• VOIP Traffic Analyzer

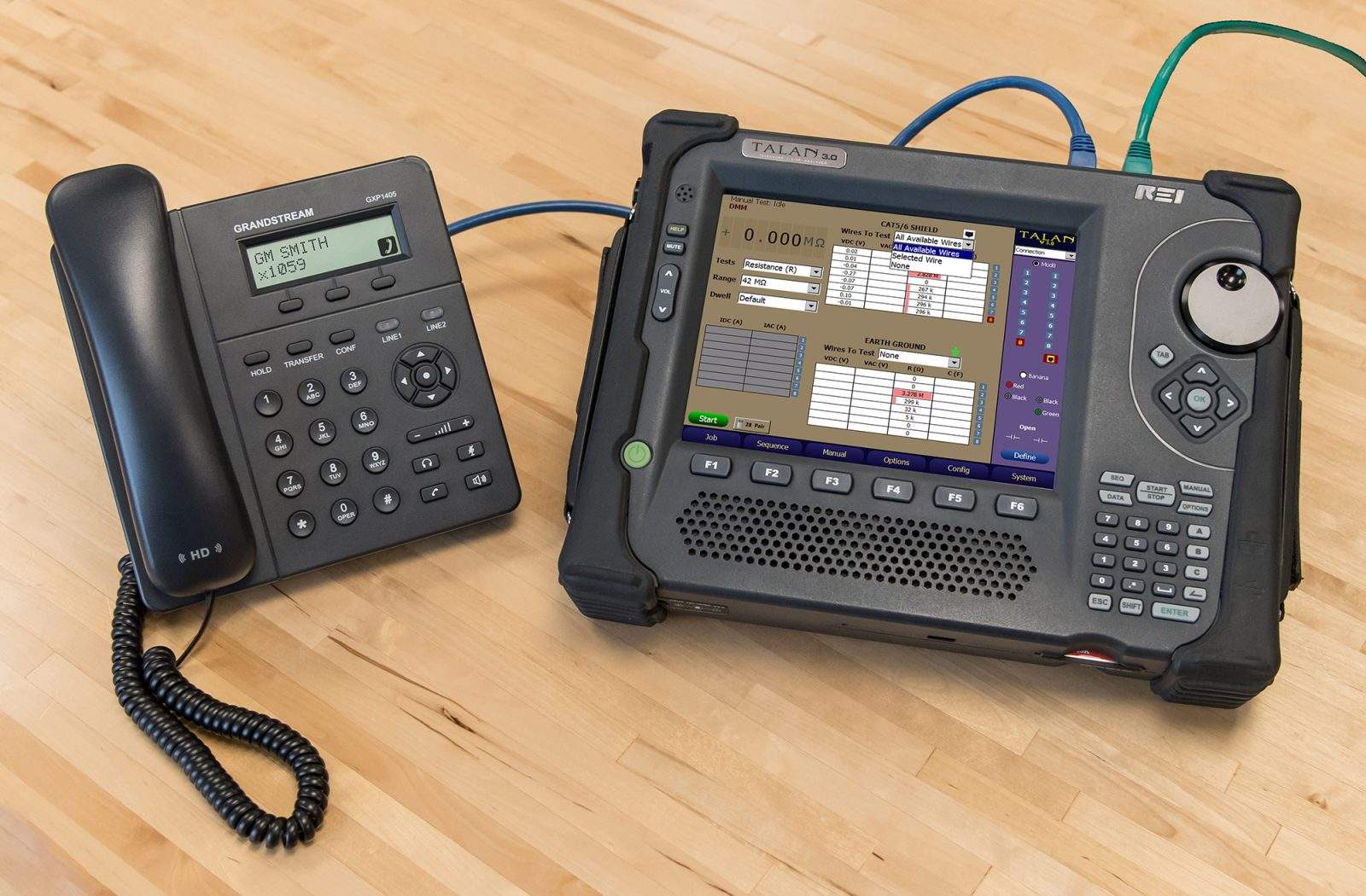

  Voice over IP (VoIP) technology is used to transmit voice information over Ethernet/Internet networks. TALAN has the capability to track, accumulate, analyze, and decode VoIP traffic packets using a built-in network card and software. Packet decoding allows assessing the threat of illegal intrusion into the telephone system using acoustic coupling.

TALAN Features

• Conducting work on detecting eavesdropping devices on wired lines.
• Searching for cable breaks, short circuits.
• Cable tracing.
• Checking the operation of telephone lines, apparatuses, PBXs (including digital and VoIP).
• Installation and maintenance of LANs, telephone networks, data transmission networks.
• Analysis of LAN traffic.
• Evaluation of communication channel usage.

Technical Specifications

CONTROL SYSTEM
Processor	32bit RISC processor, 520 MHz
Built-in Memory	64 MB SDRAM (OS), 64 MB Flash
External Memory	Compact Flash up to 2GB, USB
DIGITAL INPUT/OUTPUT
Network	10/100 Ethernet – controller for IP packet analysis
USB (Type A)	Supports keyboard, mouse, USB memory drives
ANALOG INPUTS/OUTPUTS
Headphone Jack	5 mm stereo
Microphone Jack	5 mm mono
USER INTERFACE
Touch Screen	Available
Keyboard	6 menu keys, navigation keypad, quick access keys
Control Rotor	High-resolution optical rotor
TEST INPUTS
Dual MOD8/RJ45	Supports 2/4/6/8 wire lines, shielded twisted pair (version 3.0)
Direct Connection Connectors	Red (Ring), Black (Tip), Green (Earth)
Radio Frequency Input	RF detector antenna connector up to 8 GHz
Expansion Port	For connecting communication and measurement devices
Isolation	All inputs are electrically isolated
RADIO FREQUENCY SYSTEM
Spectrum Analyzer	Dual conversion, superheterodyne receiver
Frequency Range	30 kHz – 85 MHz
Scanning Time	2 seconds
Step	1 kHz
Bandwidth	18 kHz
Sensitivity	-100 dBm
WIDEBAND DETECTOR
Frequency Range	100 kHz – 8 GHz
Frequency Range (line test)	100 kHz – 600 MHz
Sensitivity	-65 dBm
DIGITAL MULTIMETER
Range	Auto-range, response speed 500 msec
AC/DC Voltage	0-250 V max.
AC/DC Current	0-300 mA max.
Resistance	0-42 MOhms
Capacitance	50 pF – 40 µF
BIAS VOLTAGE GENERATOR
Type	Optically isolated, direct digital control
Maximum Output Voltage	±80 V
Output Voltage (Screen)	±65 V DC, ±33 V AC
Modulation	Constant or sine (10-300 Hz)
AUDIO
Bandwidth	20 Hz – 20 kHz
Gain	Up to 80 dB total gain
AGC	Digital automatic gain control
Filter	Analog bandpass: 300 Hz – 3 kHz
POWER SUPPLY
External Power	15 V, 3 A
Universal Power Supply	100-240 V, 50-60 Hz
Built-in Battery	Lithium-ion, 4-6 hours of operation
DIMENSIONS AND WEIGHT
Size	25 x 33.5 x 7 cm
Weight with Battery	3.1 kg
Case Dimensions	14 x 38.5 x 50 cm
Weight of Case with Device	approximately 8.5 kg
Operating Temperatures, °C	0 – +50
HANDHELD SEARCH PROBE
Operating Frequency	225 kHz and 450 kHz
Antenna Type	Balanced loop
Headphone Output	16 Ohms, 105 dB (AGC)
Battery	9 V
Operating Time	30 h without sound; 22 h – headphones; 16 h – minimum volume; 7 h – maximum
Size	44.45 x 3.8 cm folded; 162 x 3.8 cm unfolded
Weight	0.5 kg
