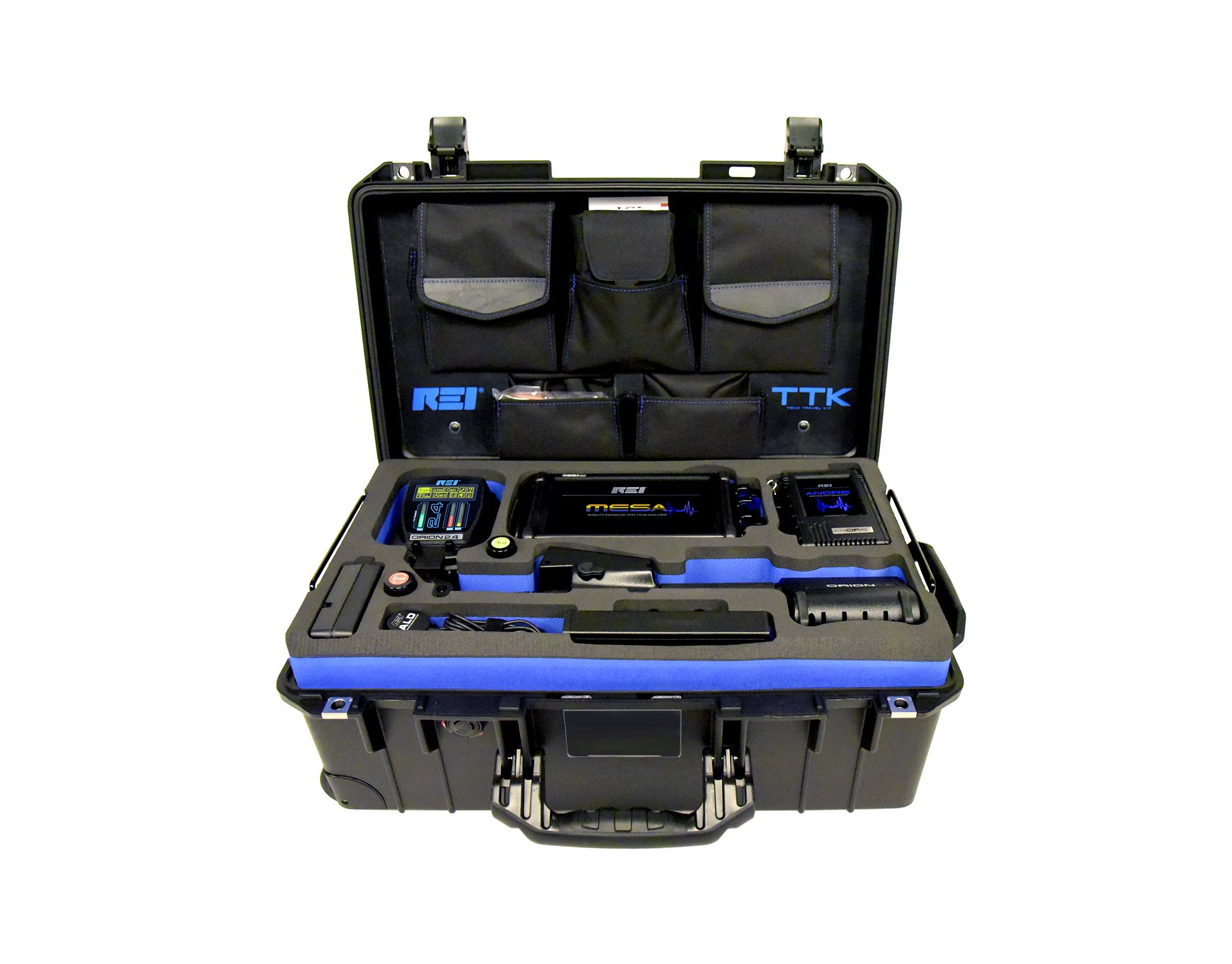

TTK KIT – REI Professional Search Kit

A portable kit of powerful search equipment, convenient for use while traveling. The TTK KIT weighs 11.5 kg and includes the following equipment:

• Portable Spectrum Analyzer MESA 2.0 for analysis of the radio frequency range up to 6 GHz (12 GHz with Downconverter Antenna)
• Wideband Detector ANDRE for detection and localization of radio frequency transmitters up to 6 GHz (12 GHz with Downconverter Antenna)
• Non-Linear Junction Detector ORION 2.4 HX for searching for hidden electronics (active and inactive)
• CMA Countermeasures Amplifier for detection of wired surveillance devices

MESA 2.0:

• Scanning Speed: > 200 GHz/s
• Frequency Range: from 10 kHz to 6 GHz (12 GHz)
• Displayed Average Noise Level (DANL): At RBW 312.5 kHz with preamplifier: -90 dBm, RBW 9.765 with preamplifier: -110 dBm
• Signal Types Detected by the Device: RF, Signals on 110/220V Power Lines, Acoustic Leakage, Signals in IR and visible range, Ultrasound
• Demodulators: AM/FM with Bandwidth: Auto, 200 kHz, 20 kHz, 5kHz
• Alert Type: Visual, Audible, Tactile
• AC Power: 100-240 V, 50-60 Hz, powered by Lithium-ion battery (+ 1 pc. Reserve)
• Operating Time per Battery: ~ 3 hours (typical)
• Charging Time per Battery: ~ 3 hours (typical)
• Operating Modes: RF Spectrum Analysis, “SmartBars ™” Mode, Mobile Communication Band Detection, Wi-Fi & Bluetooth Mode

ANDRE

• Portable wideband electromagnetic field indicator capable of instantly analyzing the radio frequency spectrum in the range from 10 kHz to 6 GHz with optimal detection range.
• Signal Types Detected by the Device: RF, Signals on 110/220V Power Lines, Acoustic Leakage, Signals in IR and visible range, Ultrasound
• Histogram Display: displays signal power of RF levels over a certain time
• 3.5″ Touch Screen, compact size of the device.
• Real-time audio playback
• Additional USB charger included

ORION

• Maximum Transmitter Power Standard Version: 3.3 W, High Gain Version: 6.6 W (Manual and automatic power control. Complies with FCC, CE, and IC standards)
• Manual and automatic control of the emitted signal power
• Transmitter Frequency Range: 2.404-2.472 GHz
• Extended emitted signal bandwidth of 1.25 MHz increases detection capability.
• Digital correlation
• Sensitivity: -140 dBm for both harmonics
• Tactile, audible, and visual alerts
• Power Supply: 100-240 V, 50-60 Hz
• Operating Time: at least 4 hours
• Charging Time: 2.5 hours

Pelican 1535 Air Case Dimensions:

• External Dimensions – 55.8 x 35.5 x 22.8 cm
• Internal Part – 51.8 x 28.4 x 18.3 cm
• Kit Weight – 11.5 kg
• Empty Case Weight – 3.9 kg
• Lock Hole Diameter – 8 mm
• Two wheels for transport
