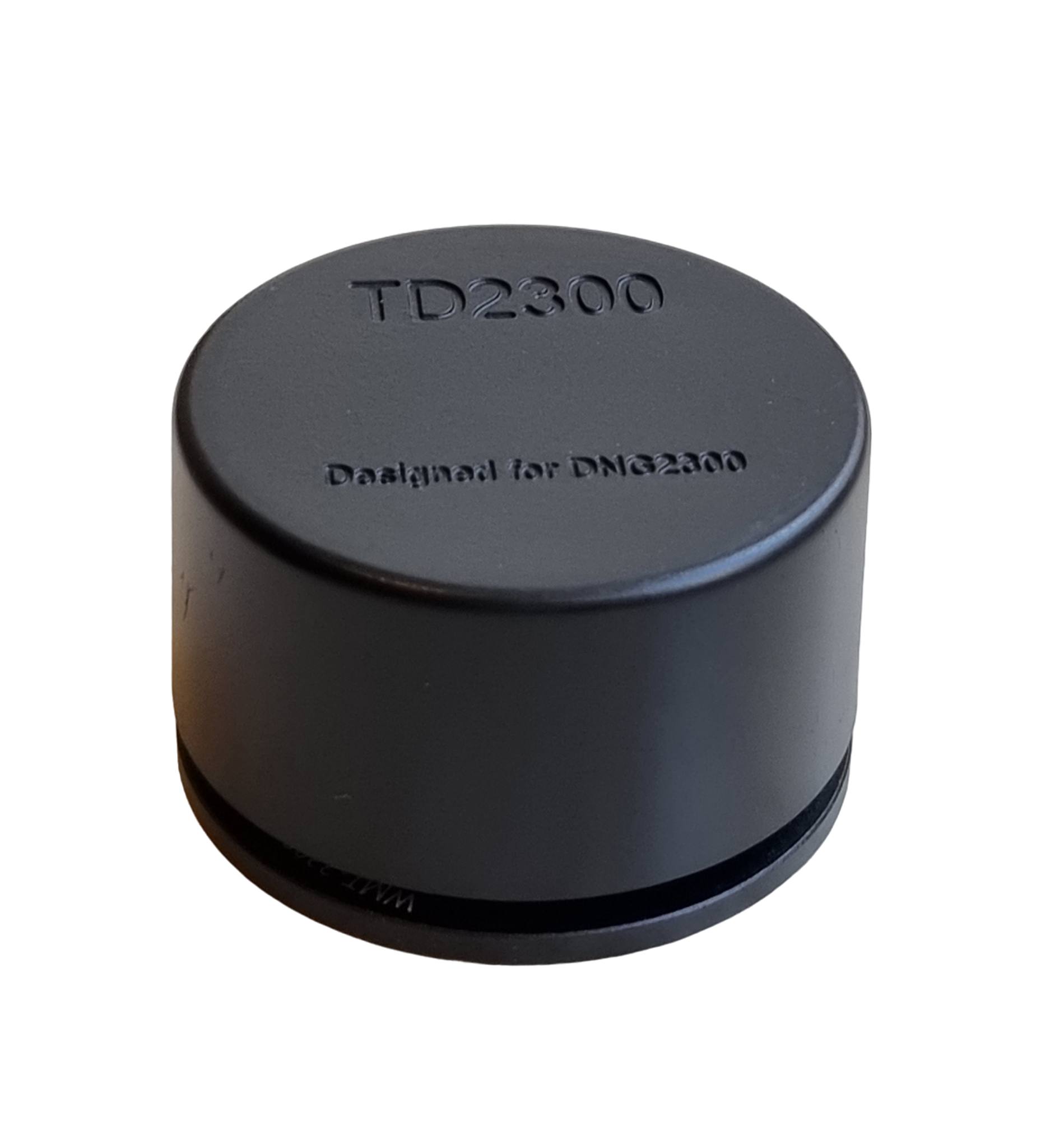

TD2300 – Vibration emitter

The TD2300 Vibro-Acoustic Emitter is part of a counter-surveillance protection system. The emitter sends the generated noise onto surfaces and structures, halting the propagation of sound through them. To ensure a high level of protection, the system consists of a number of emitters connected to a generator and installed on various surfaces and structures within the room.

Features

• Attractive design, fits any interior
• High output power combined with compactness
• Equally well suited for windows, walls, and other structures
• Easily installed on any surface
• The vibro-emitter transmits most of the generated noise onto the desired structure in the form of vibration, while producing less acoustic interference
• Frequency characteristics optimally match the spectrum of human speech.
• Ideally suited for the DNG 2300 white noise generator

How it Works. Quantity and Placement

• Wall – TD2300 vibro-emitters should be installed every 2-3 meters centered between the floor and the ceiling. If it is necessary to place them closer to the floor or ceiling due to interior design requirements, choose a shorter distance between the vibro-emitters.
• Floor and Ceiling – should be installed every 6 square meters
• Windows – one on each window pane
• Doors – one on each door, located next to the central hinge on the door frame
• Water Pipes – on each pipe entering and exiting the premises

Specification

Impedance	4 Ohm
Frequency Range	58 Hz -12 kHz
Maximum Output Power	10W
Weight	252 g
Size	56×27 mm
