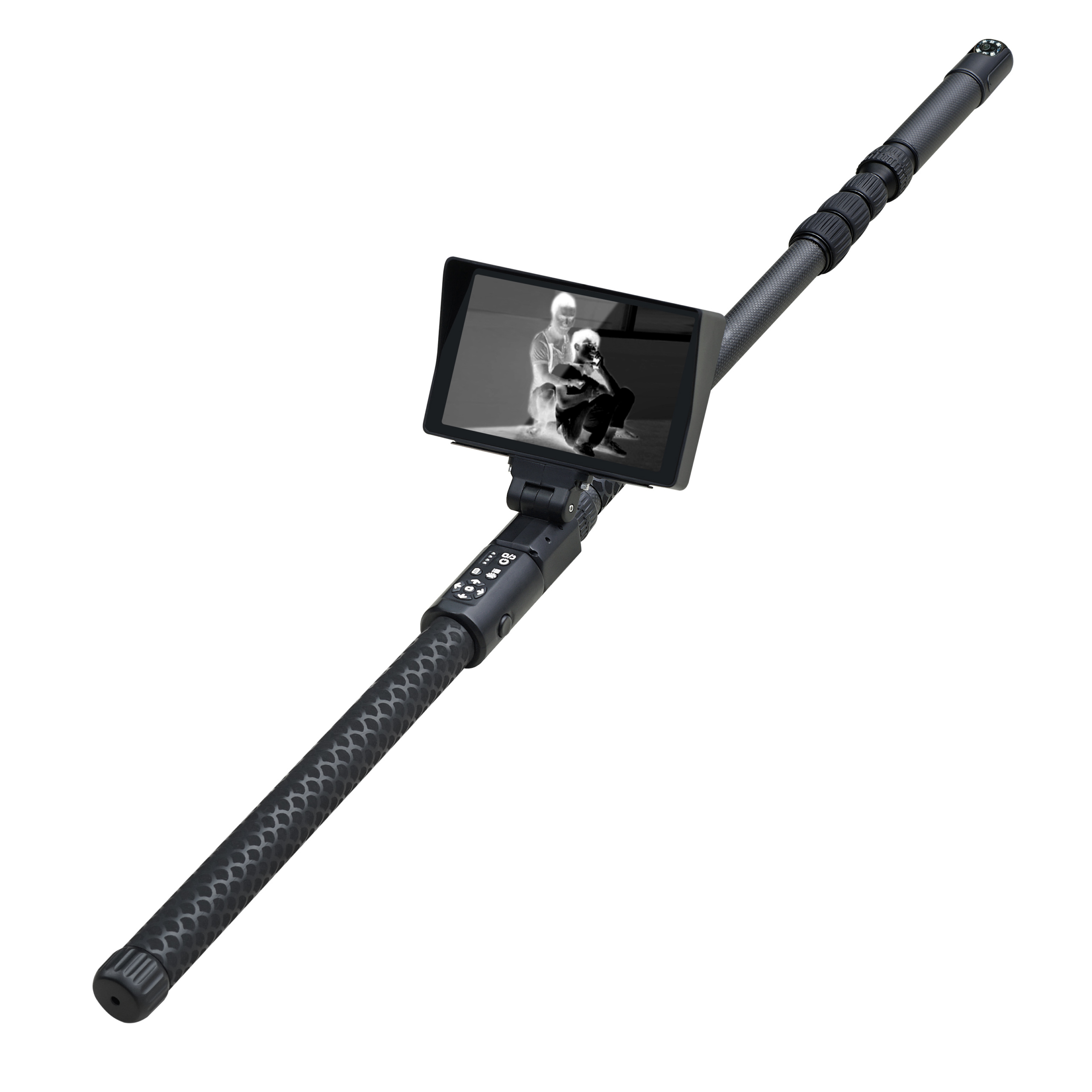

CPT-4200D – Inspection video camera

• Professional system for inspection of remote or hard-to-reach places with a telescopic pole and a rotating camera with illumination
• Telescopic pole length – up to 4.2 m
• Dual camera optics provide regular and thermal imaging simultaneously
• Camera rotation is carried out in two directions: along the axis and in the transverse plane
• Camera rotation control is performed on the keyboard near the display
• Video camera illumination with adjustable level ensures operation in low light conditions
• High-resolution display with a 20 cm diagonal
• Video recording and photo saving with the possibility of subsequent viewing
• Real-time image viewing via WiFi
• Up to 5 hours of continuous operation from the battery
• Convenient location of the battery in the handle and its fast charging

Areas of Use:

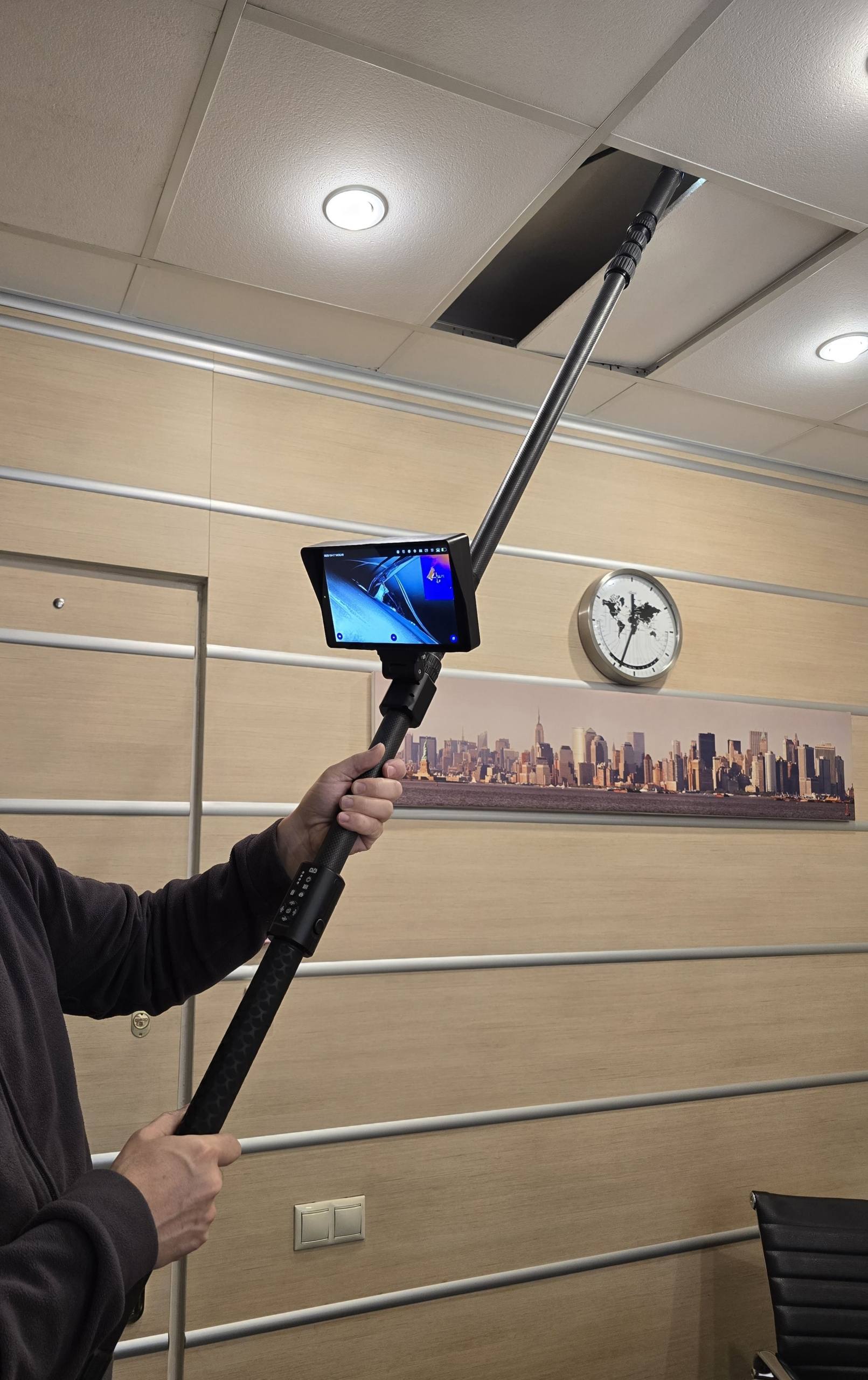

• Inspection of premises and structures during checks for the presence of covert information gathering devices

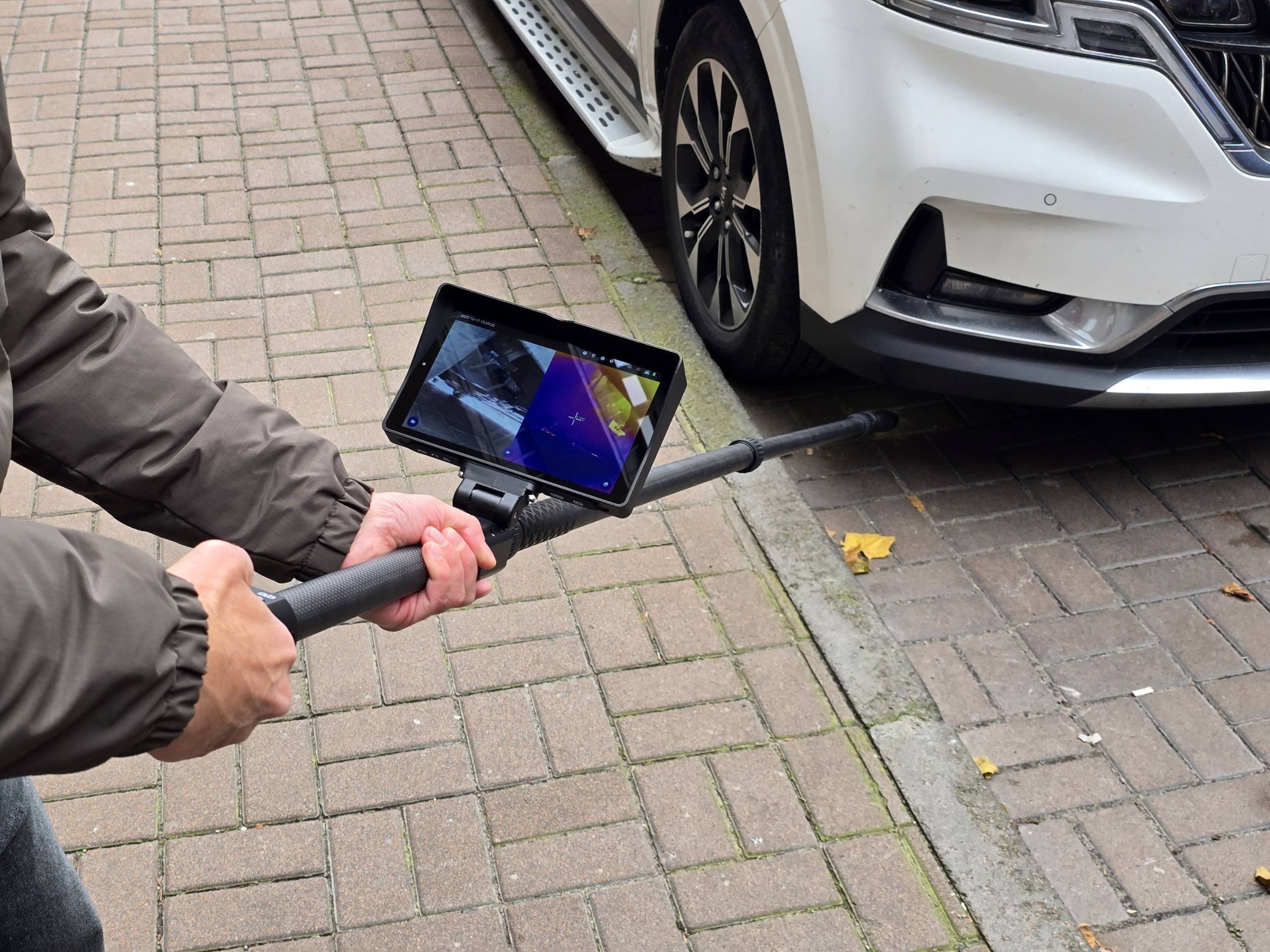

• Transportation security, inspection of vehicles and cargo
• Search and rescue of people

Technical Specifications

Main Module (Handle)
Dimensions	202 x 66 x 545 mm
Screen Size	8″
Screen Resolution	1280 x 800, 60 FPS
Storage Memory Capacity	4 Gb + 64 Gb
Ports	USB, HDMI, TF card slot, Type C charging slot
Rechargeable Battery	Li-Ion 5500 mA*h, 7.4V
Battery Operating Time	5 hours
WiFi	Yes, for image transmission
Display Mode	regular camera only; regular camera + reduced thermal image; regular camera and thermal image 50/50%
Display Adjustment Angle	0…170°
Handle Pole Length	550 – 810 mm
Handle Material	Carbon fiber (carbon) with rubber coating
Charging Station Power	30 W
Charging Port	USB Type C, fast charging
Charging Current	Up to 4A
Charging Time	90 min to 90%
Operating Temperature Range	-20…+50 °C
Storage Temperature Range	-30…+70 °C
Telescopic Pole
Maximum Diameter	38 mm
Material	Carbon fiber (carbon)
Clamp	Collet
Number of Sections	3
Maximum Length	4220 mm
Video Camera Module
Camera Type	regular + thermal imaging
Maximum Diameter	39 mm
Length	235 mm
Camera Rotation	Along the axis – 360° In the transverse plane – 270° (+/- 135°)
Rotation Speed Along the Axis	3 sec / 360°
Rotation Speed in the Transverse Plane	1.5 sec / 270°
Module Weight	165 g
Protection	IP55
Resolution of the Main Video Camera	2592 x 1944 pixels
Field of View (FOV)	110°
Focal Length	70 mm – 5 m (auto-focus)
Illumination	4 LEDs with adjustable brightness
Illumination Adjustment	0 (off), 1…5
