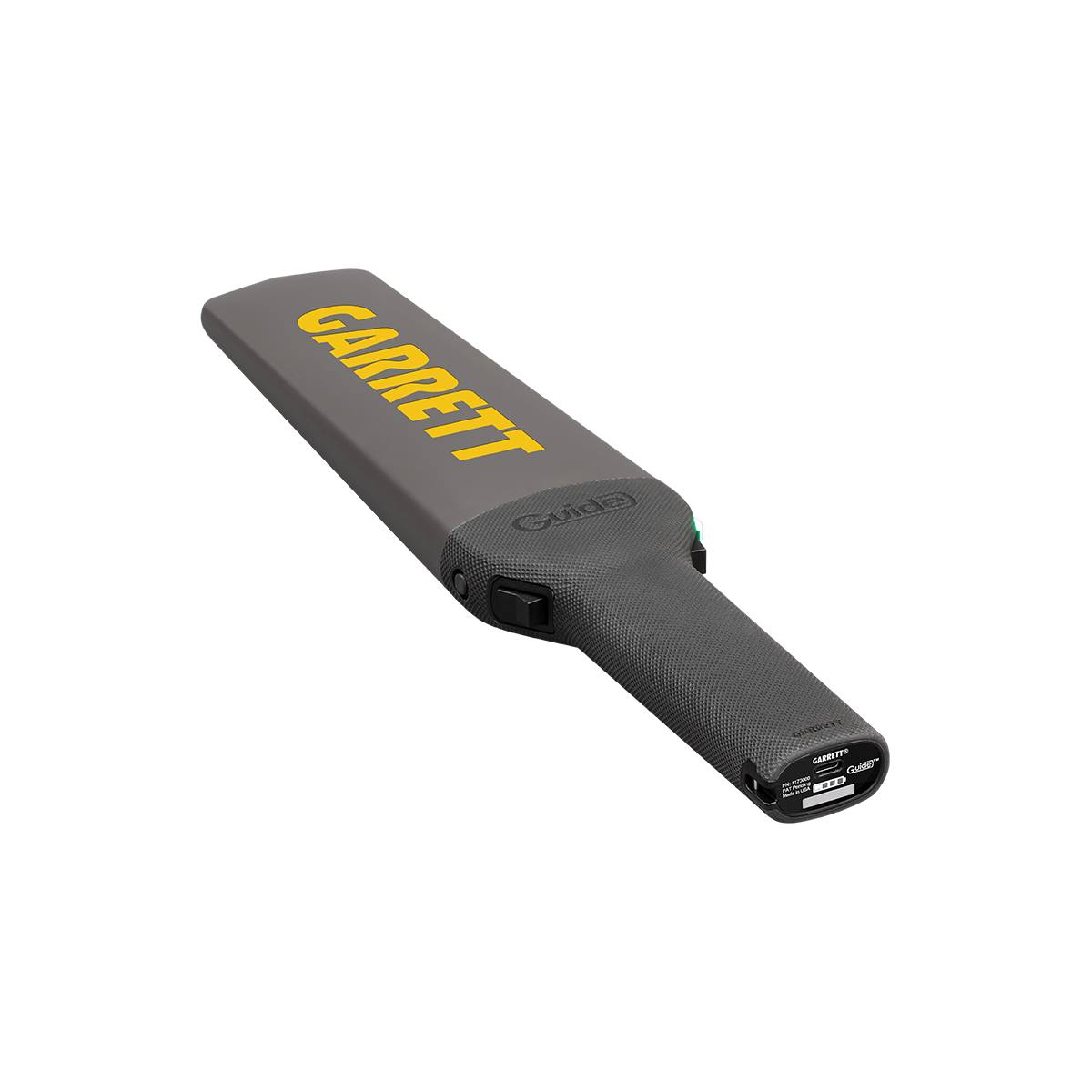

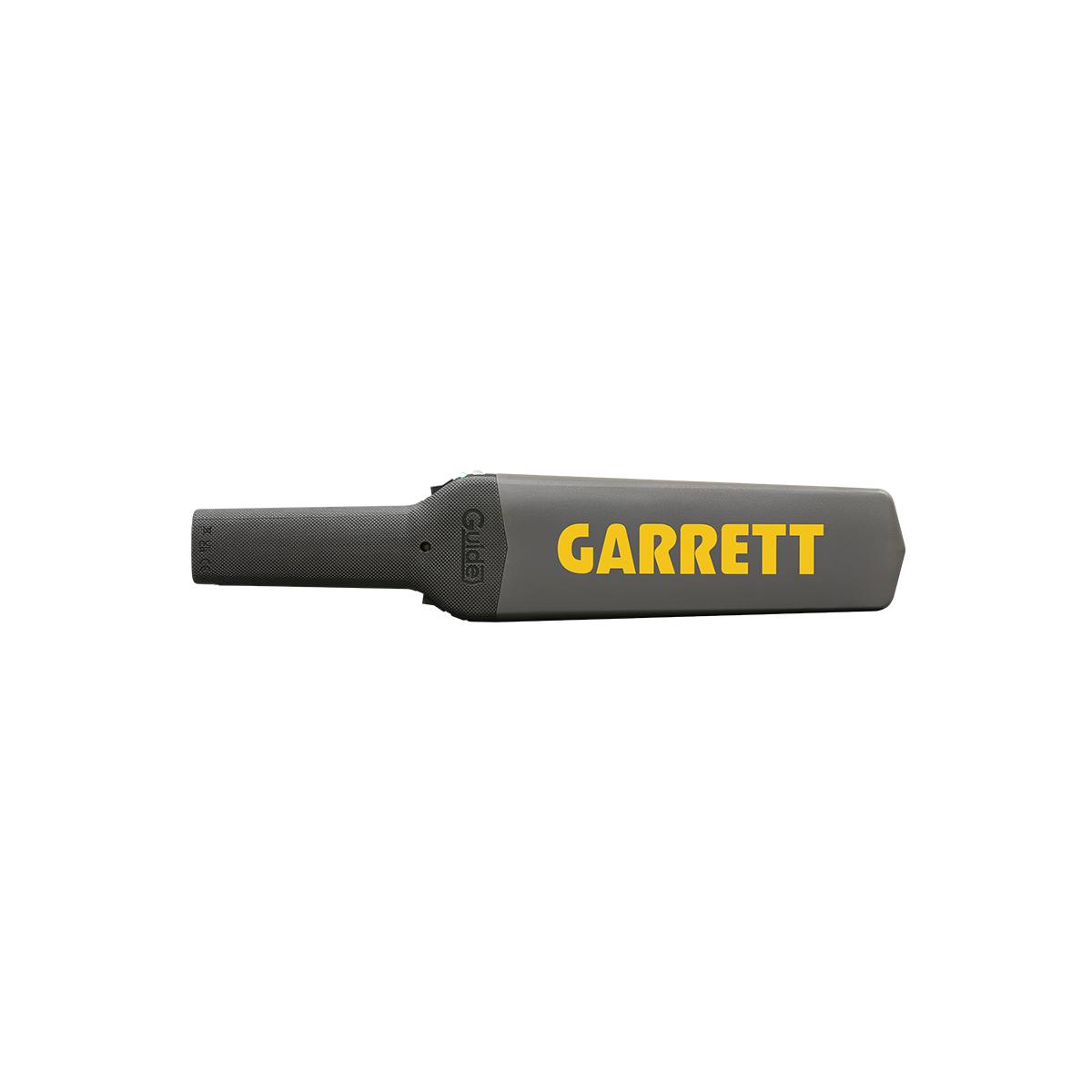

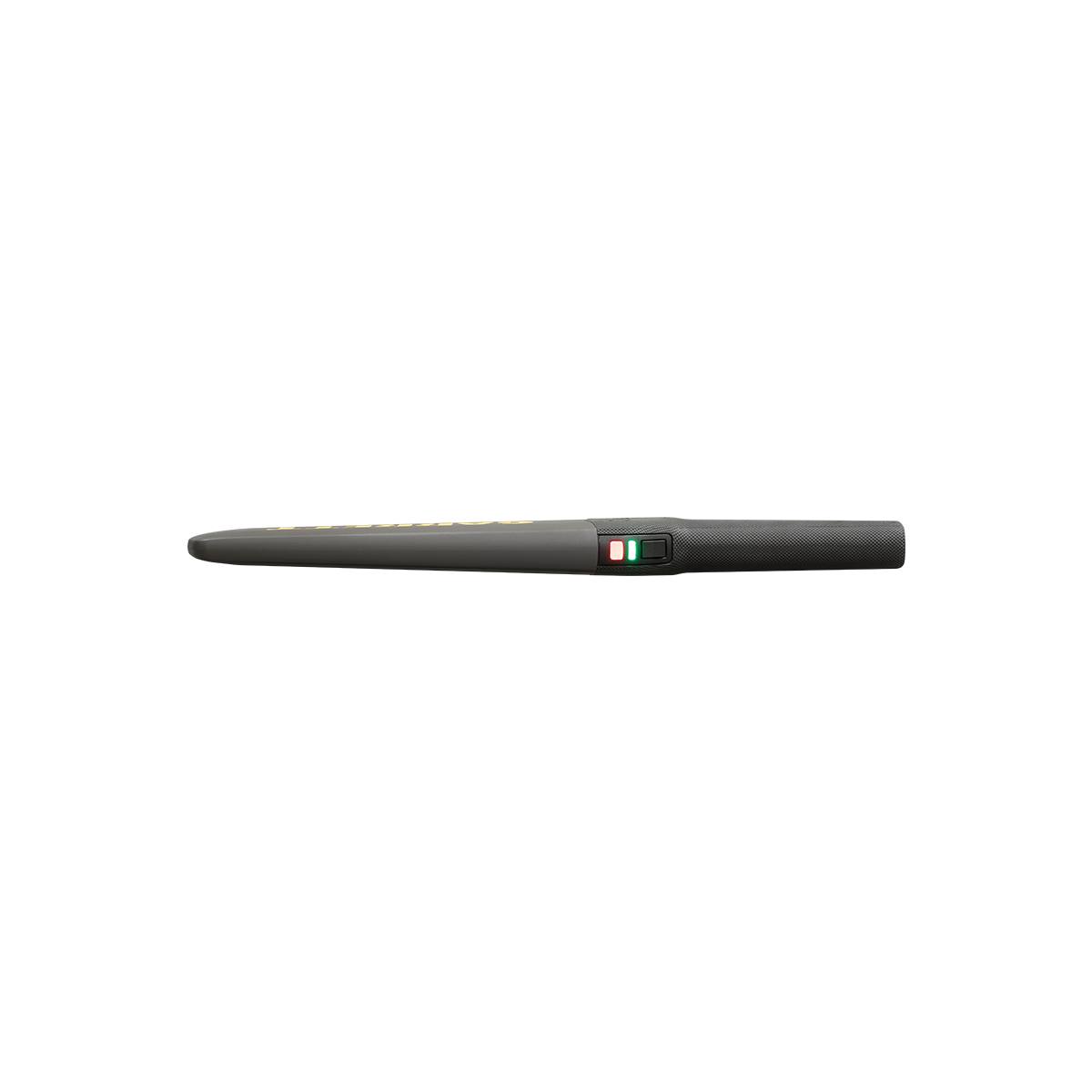

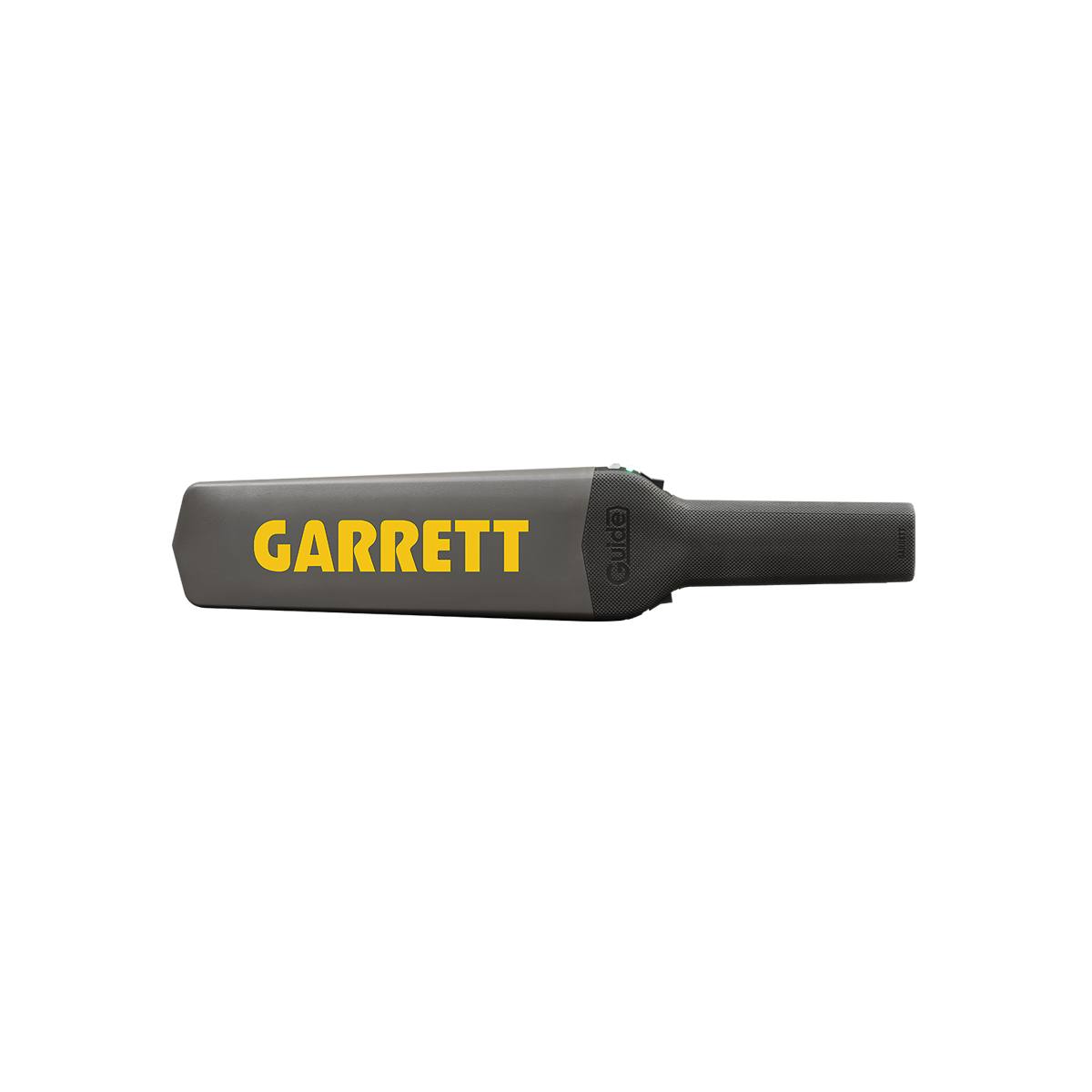

Garrett Guide – Handheld metal detector

Garrett Guide combines everything that made the Super Scanner the global standard and elevates it to a new level.

New Generation of Hand-Held Screening Equipment

How do you improve the world’s most popular hand-held metal detector? For nearly 40 years, the Garrett SuperScanner V has been the world’s most reliable portable security detector, with proven performance, tested durability, and characteristic Garrett simplicity. Now, the Garrett Guide combines everything that made the Super Scanner the global standard and elevates it to a new level. From schools and stadiums to courthouses and casinos, the Guide brings the performance you trust to a new level of sophistication and ease of use.

Compliance with Industry Security Standards

Fully complies with international security and screening standards:

• NIJ – National Institute of Justice (USA)
• ECAC, DGAC, STAC, TSA – Aviation Security

Features

• Detects all types of metals with high accuracy and sensitivity
• Ergonomic design and intuitive control for operator comfort and ease of use
• Has 7 levels of sensitivity adjustment

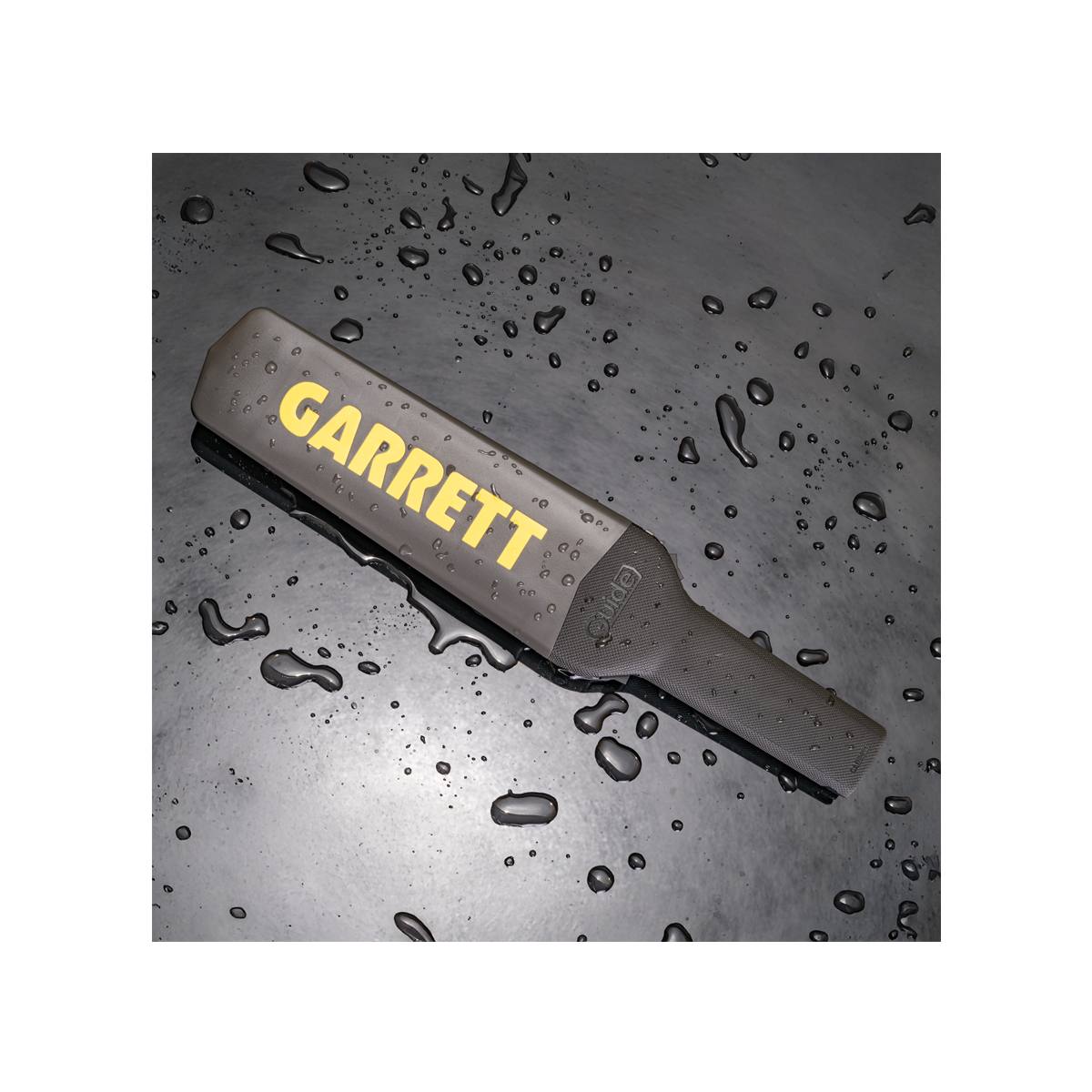

• Durable all-weather construction suitable for harsh operating conditions (IP65 protection rating)
• Visual, audible, or vibrational indication
• Visual indication informs about the device’s ON status, low battery, and alarm (trigger)
• 4 frequency shift options to avoid interference when operating near other metal detectors
• Temporary sensitivity reduction button
• Has a durable, drop-resistant construction that meets the “MIL-STD 810G, drop test” standard
• Comfortable rubberized grip

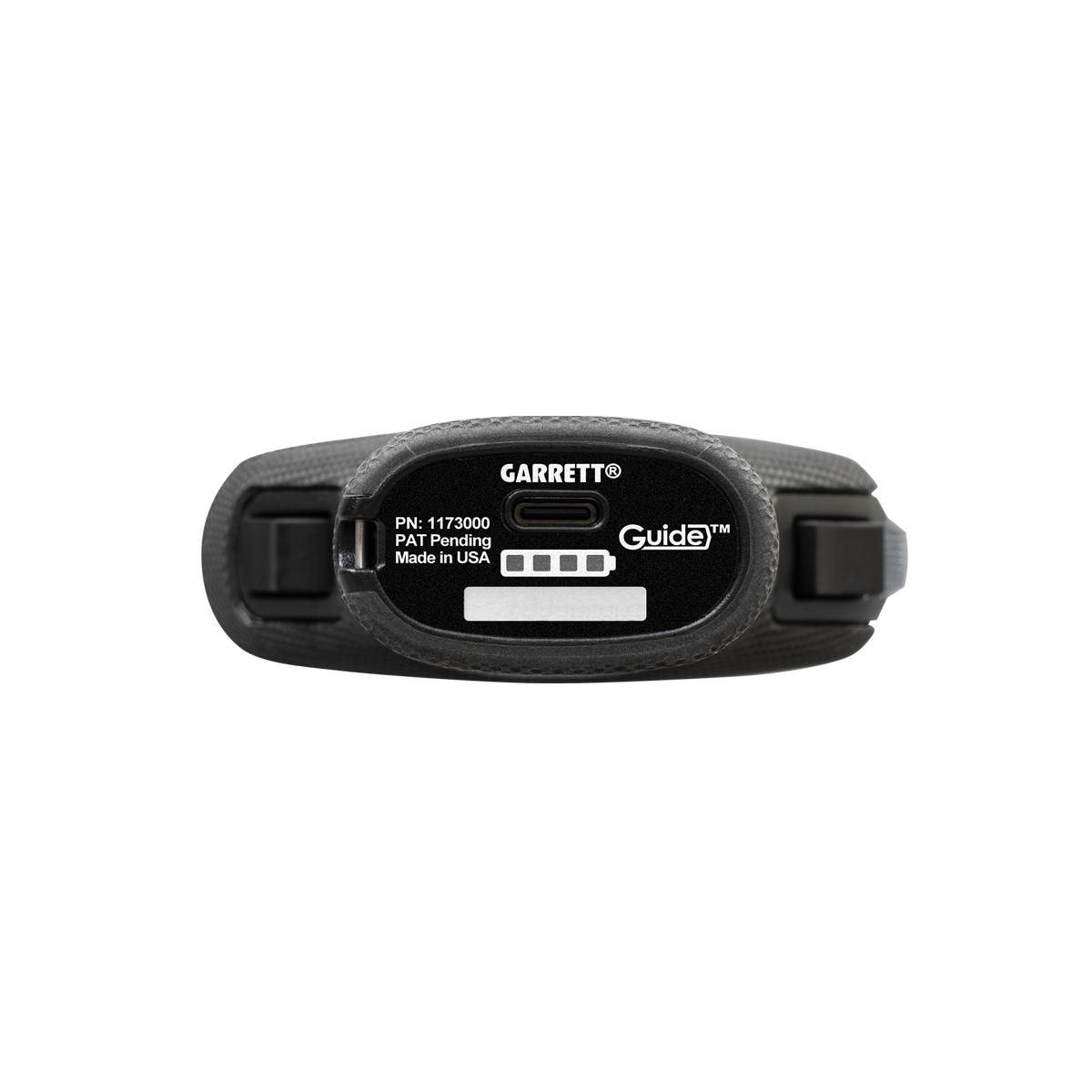

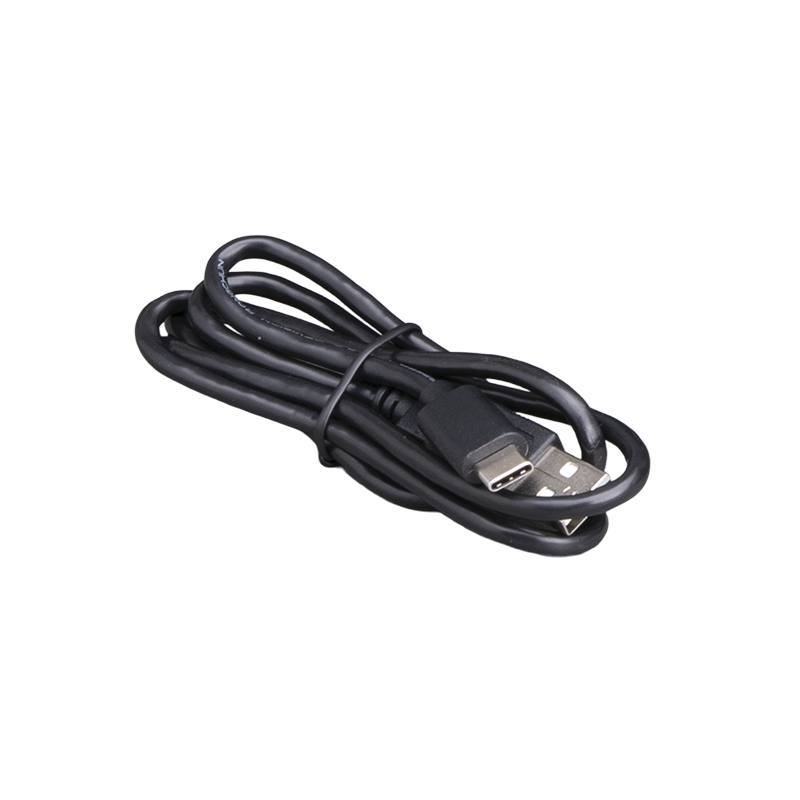

• Built-in long-life rechargeable battery with USB-C charging port

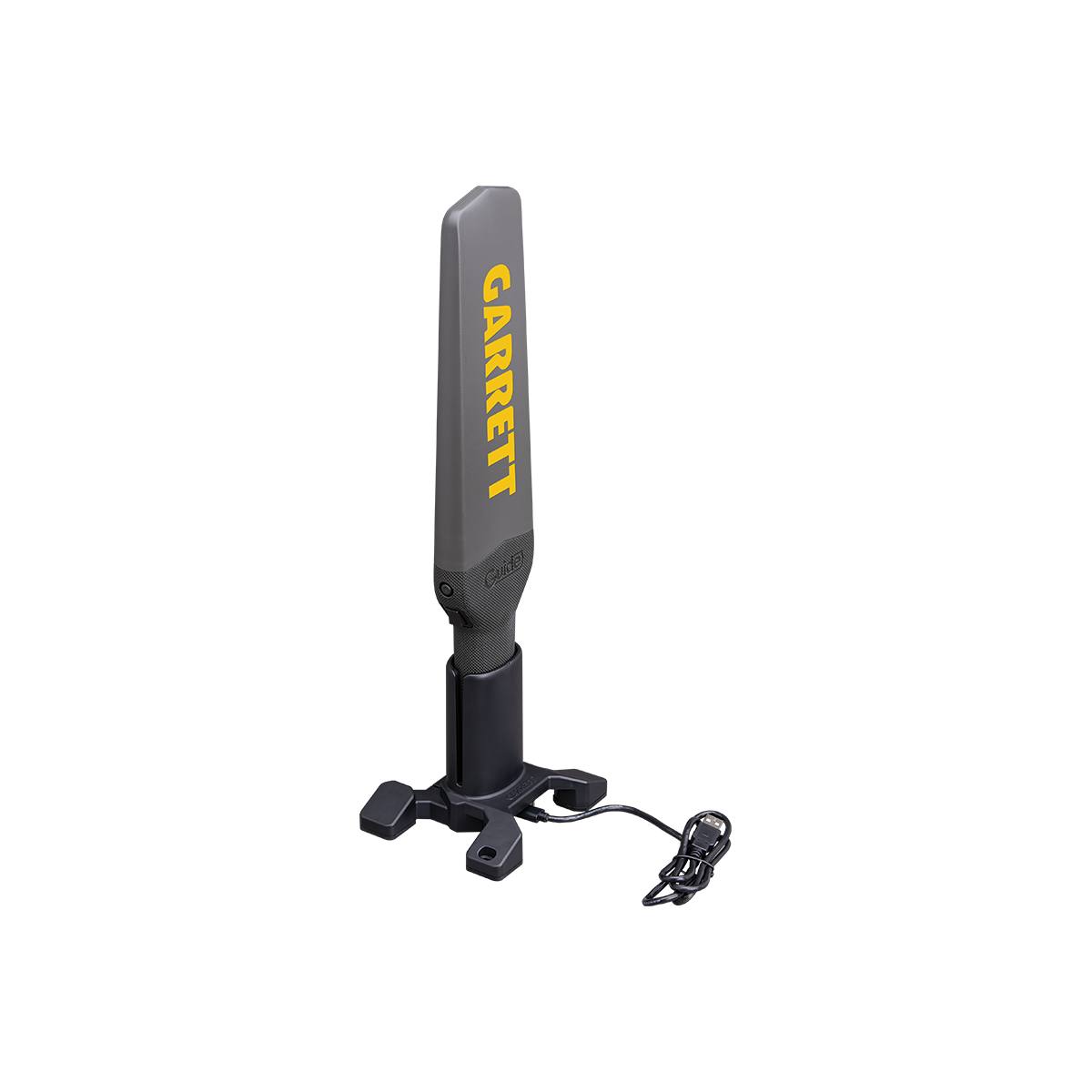

• Charging station for effective and professional management of the operation process and timely charging at checkpoints and mass events (can be supplied separately, see delivery set)

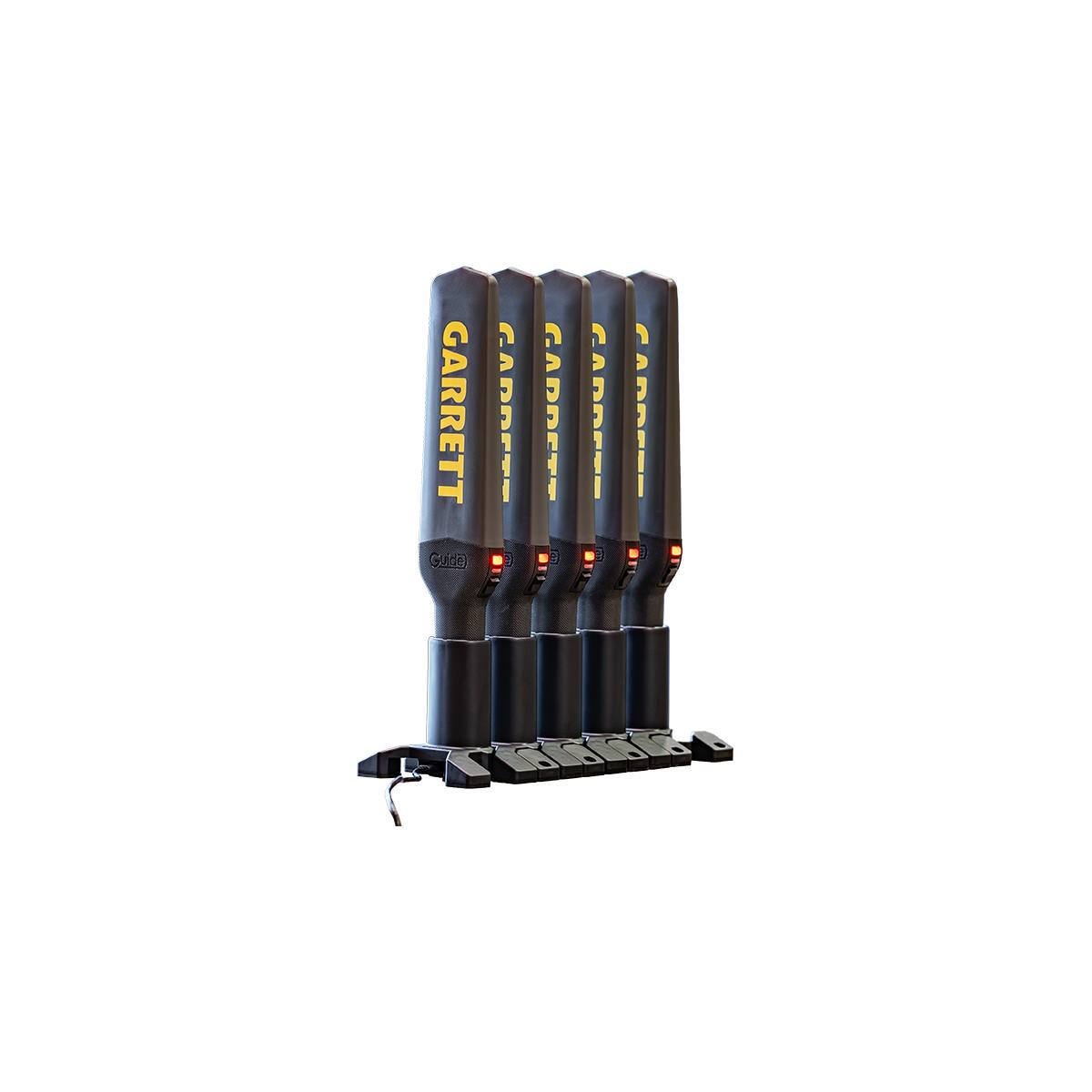

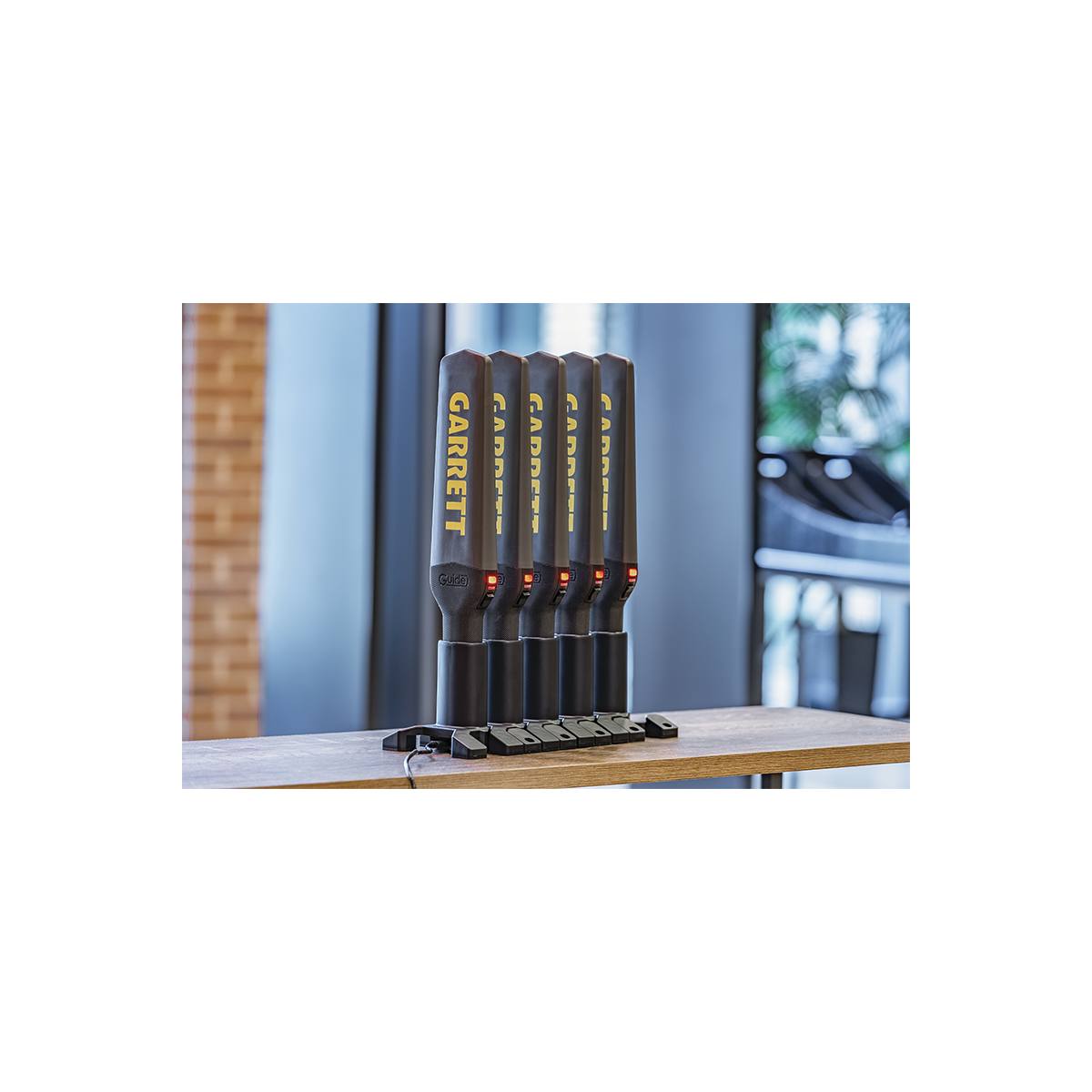

• Charging stations dock together (can be supplied separately, see delivery set)
• Automatic sensitivity tuning

Technical Specifications

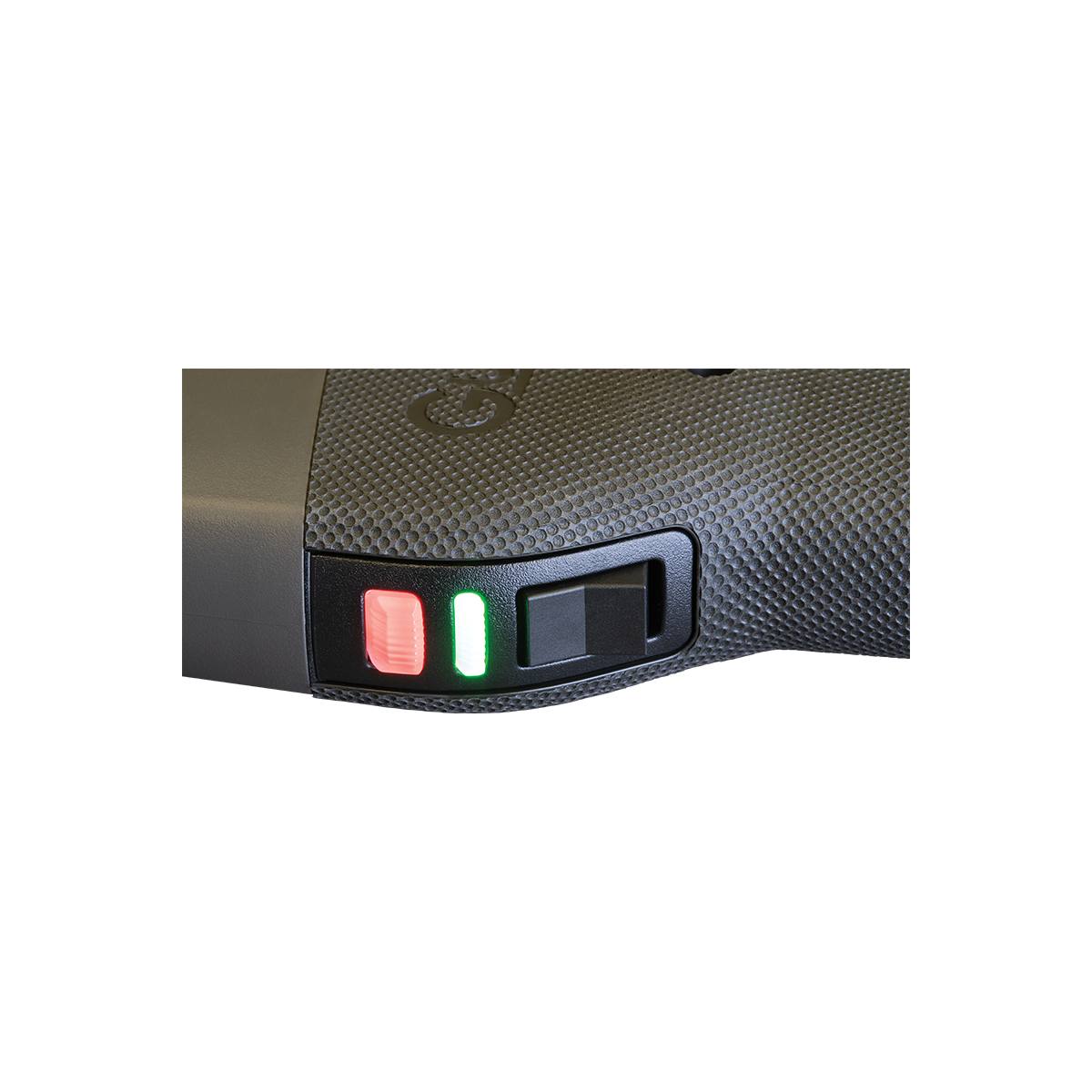

Three-color LED Indication	Green = Power On White = Status/Sensitivity Red = Alarm
Operating Temperature Range	-20 °C … 60 °C
Allowable Humidity	100%
Audio Frequency	2 kHz
Tuning	Automatic
Dimensions	Width 9 cm Thickness 3 cm Length 41 cm
Weight	0.5 kg
Protection	IP65
Battery	Lithium-ion 3.8V 2.5 A*h, built-in
Battery Life	125 hours
