price 171 160 uah

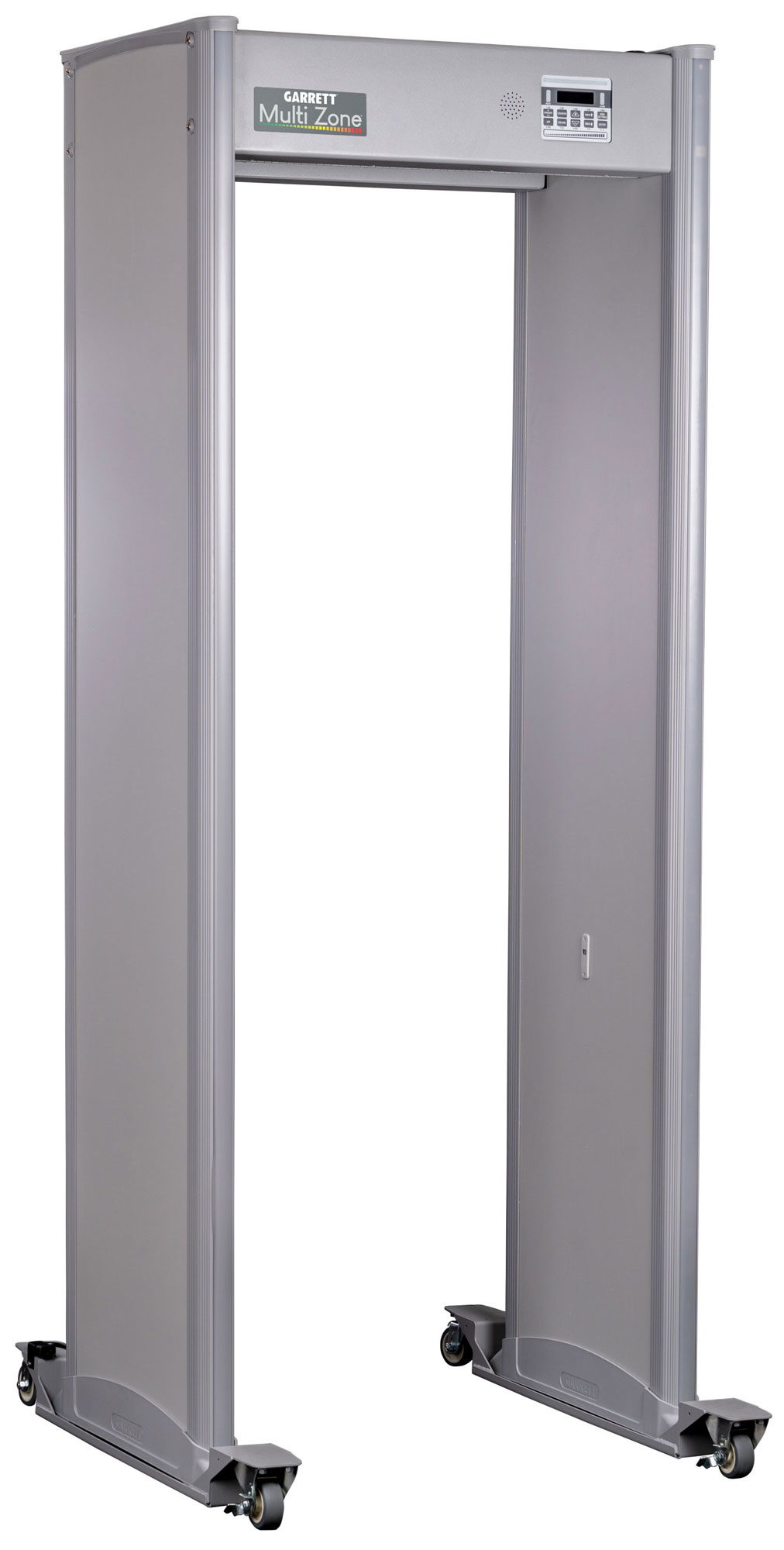

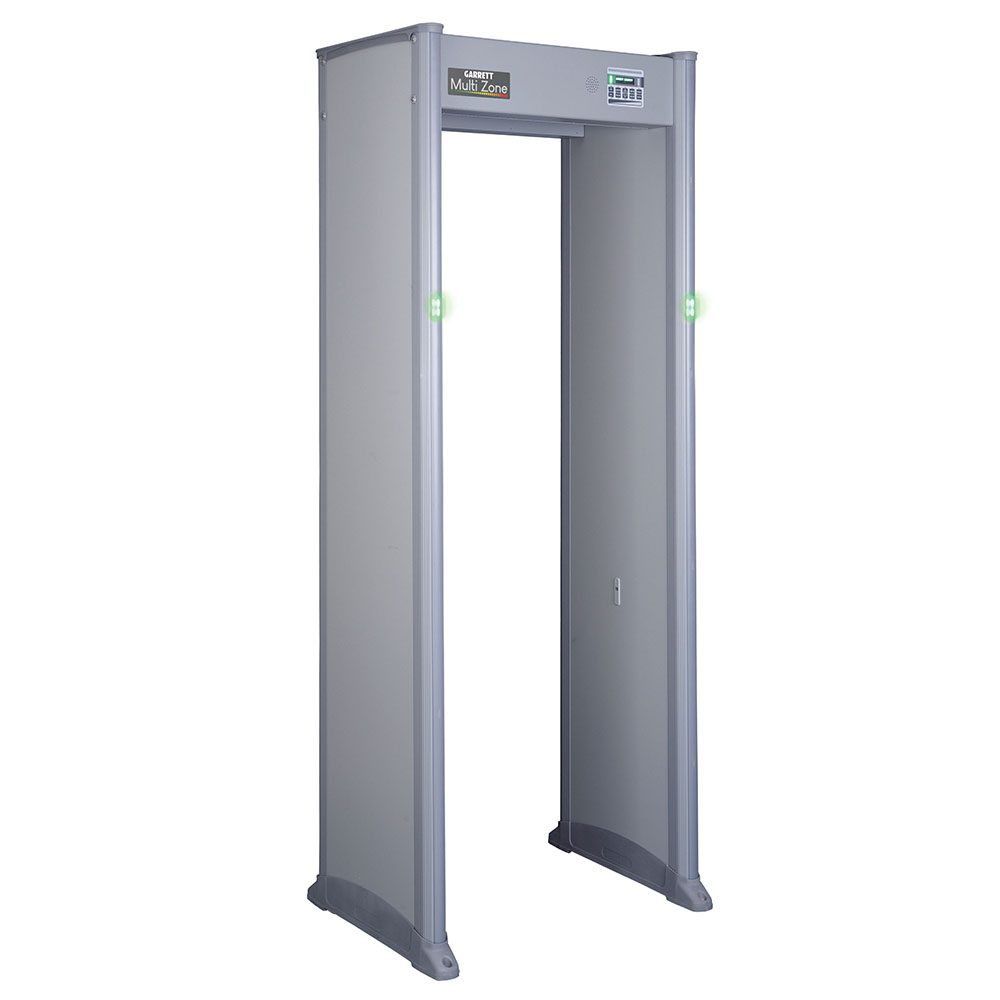

Multi-zone walk-through metal detector for the detection of concealed metallic objects. The Garrett Multi Zone metal detector offers high performance, combined with excellent characteristics, the latest technology, and optimal cost.

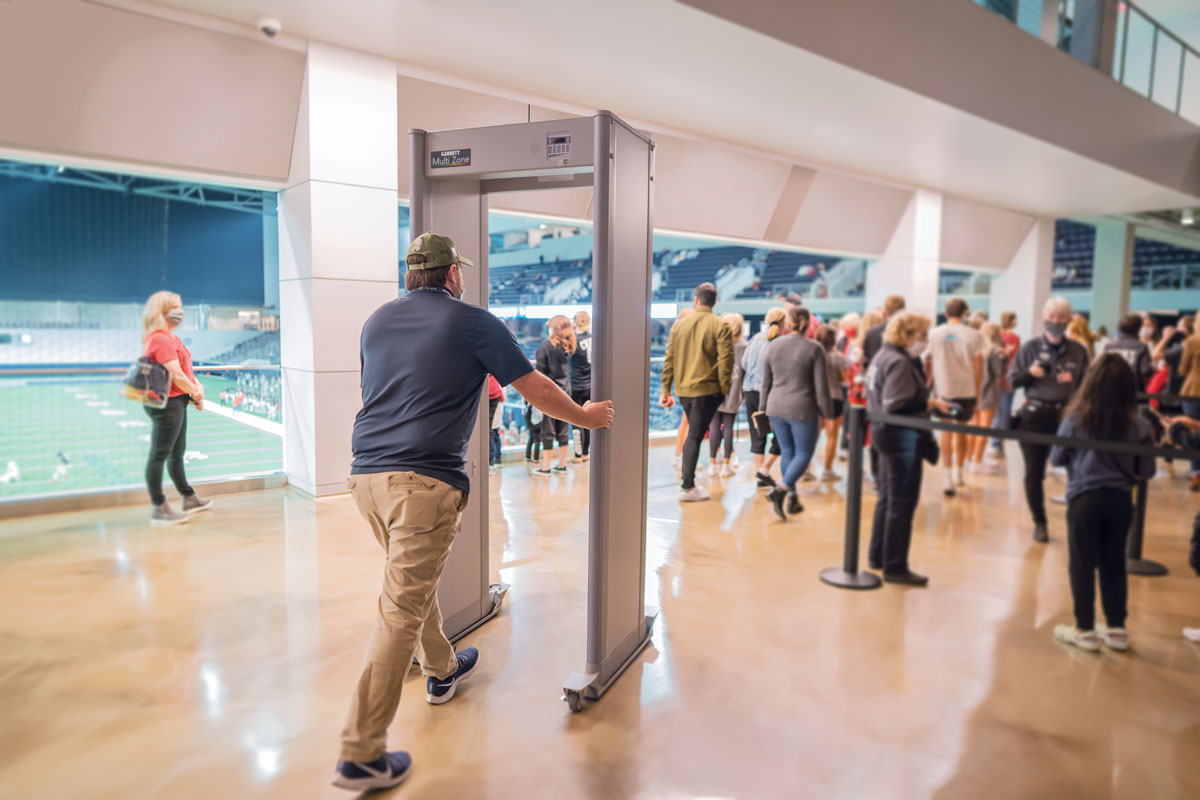

A choice of over 15 specialized programs, developed for various situations, allows the GARRETT Multi Zone to meet security requirements for schools, stadiums, airports, government buildings, prisons, special facilities, places of mass gatherings, combating theft, etc.
Capabilities

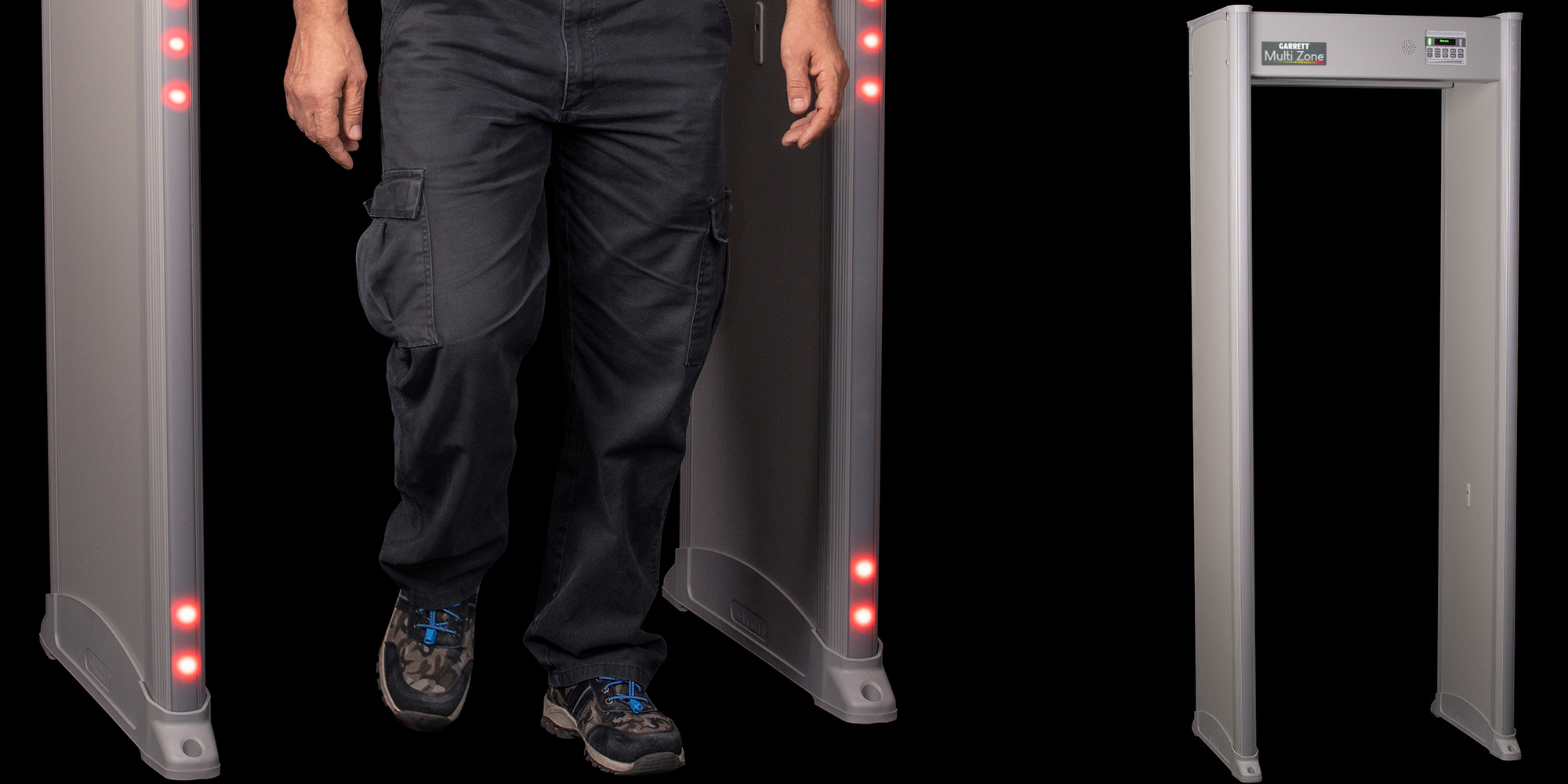

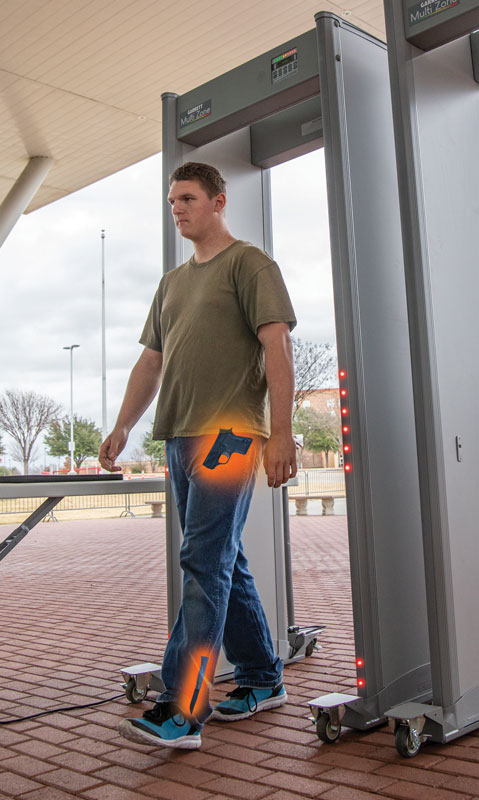

- 20 detection zones – show the location of the metallic object, providing precise indication of the detection area for one or several objects simultaneously
- More than 15 standard programs for various application conditions:
-
- Schools
- Offices
- Special Events
- Courts
- Prisons
- Airports
- Nuclear Facilities
- All Metals
- Anti-Theft 1-6
- Alternative
-
- 200 sensitivity adjustment levels – allow precise tuning of the device to detect dangerous objects and minimize unnecessary alarms
- Individual zone sensitivity adjustment
- Automatic selection of the optimal operating frequency depending on the surrounding electromagnetic environment and for interference cancellation

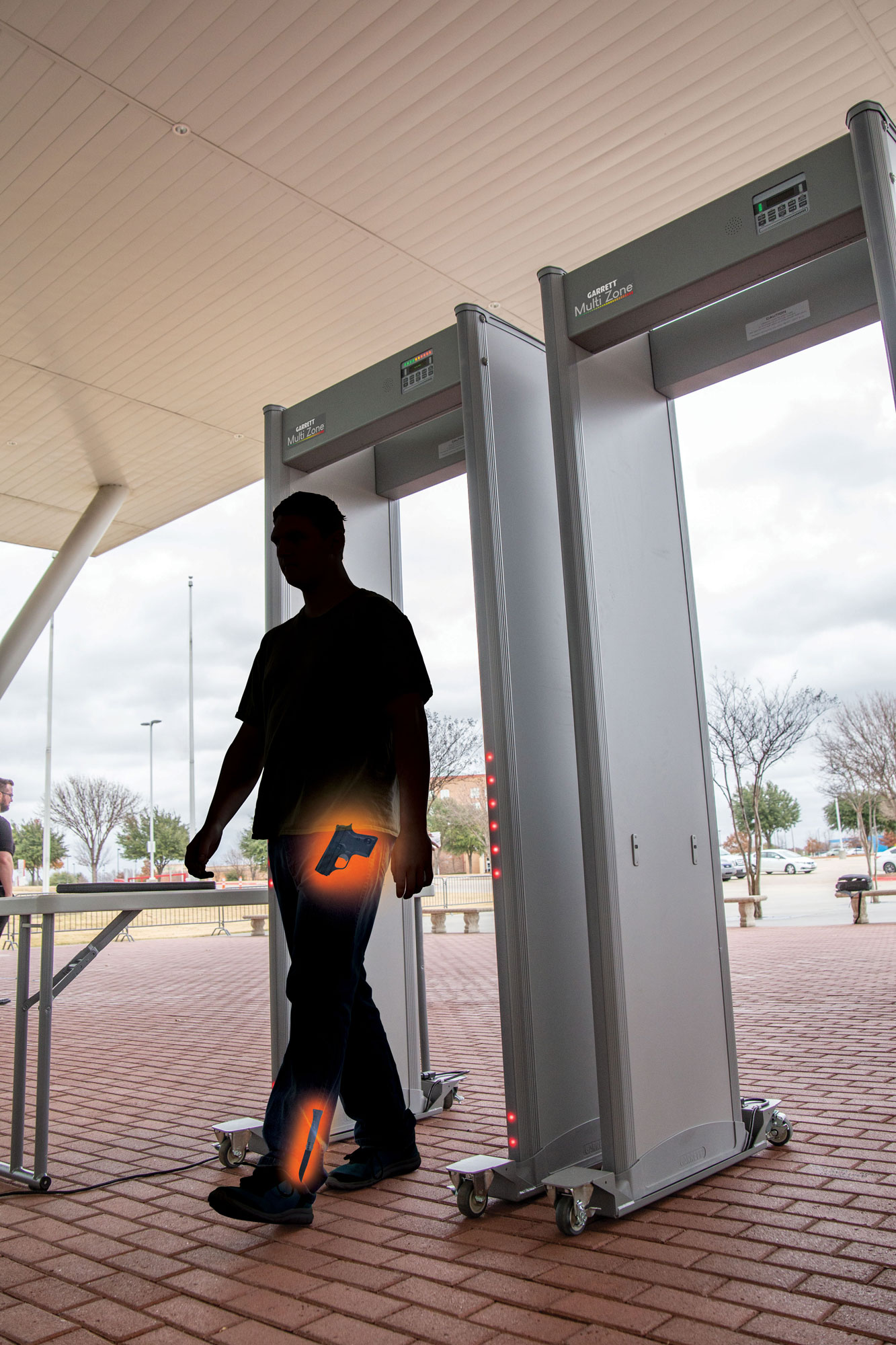

- Metal detector synchronization – advanced circuit design solutions allow multiple metal detectors to be installed next to each other, at a distance of 5 cm
- Digital Signal Processor (DSP) based technology ensures high sensitivity, noise immunity, signal discrimination, increases detection accuracy, and the overall reliability of the metal detector
- Light and sound indication

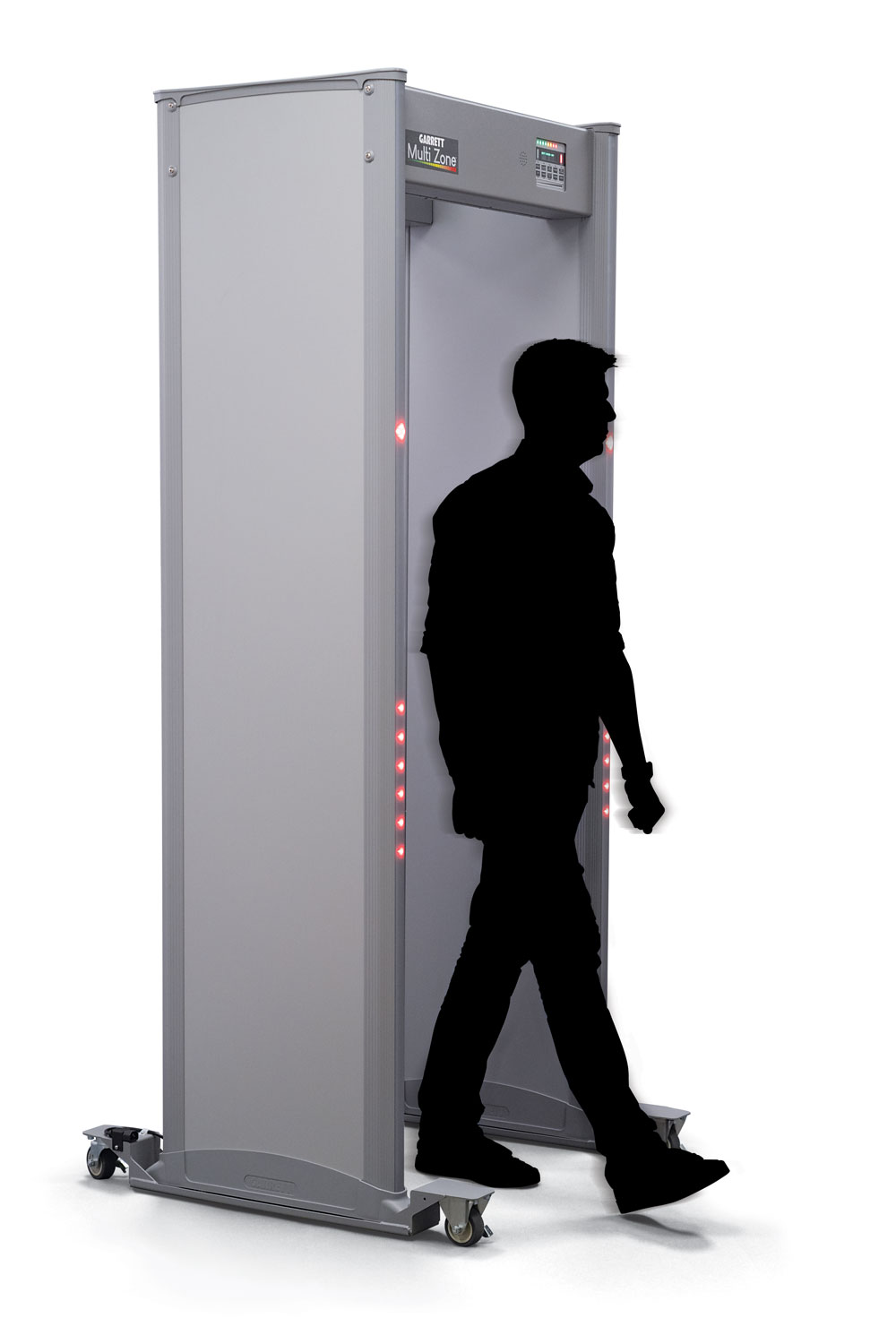

- High-brightness LED passage indicators and detection zone indicators, visible even in bright sunlight

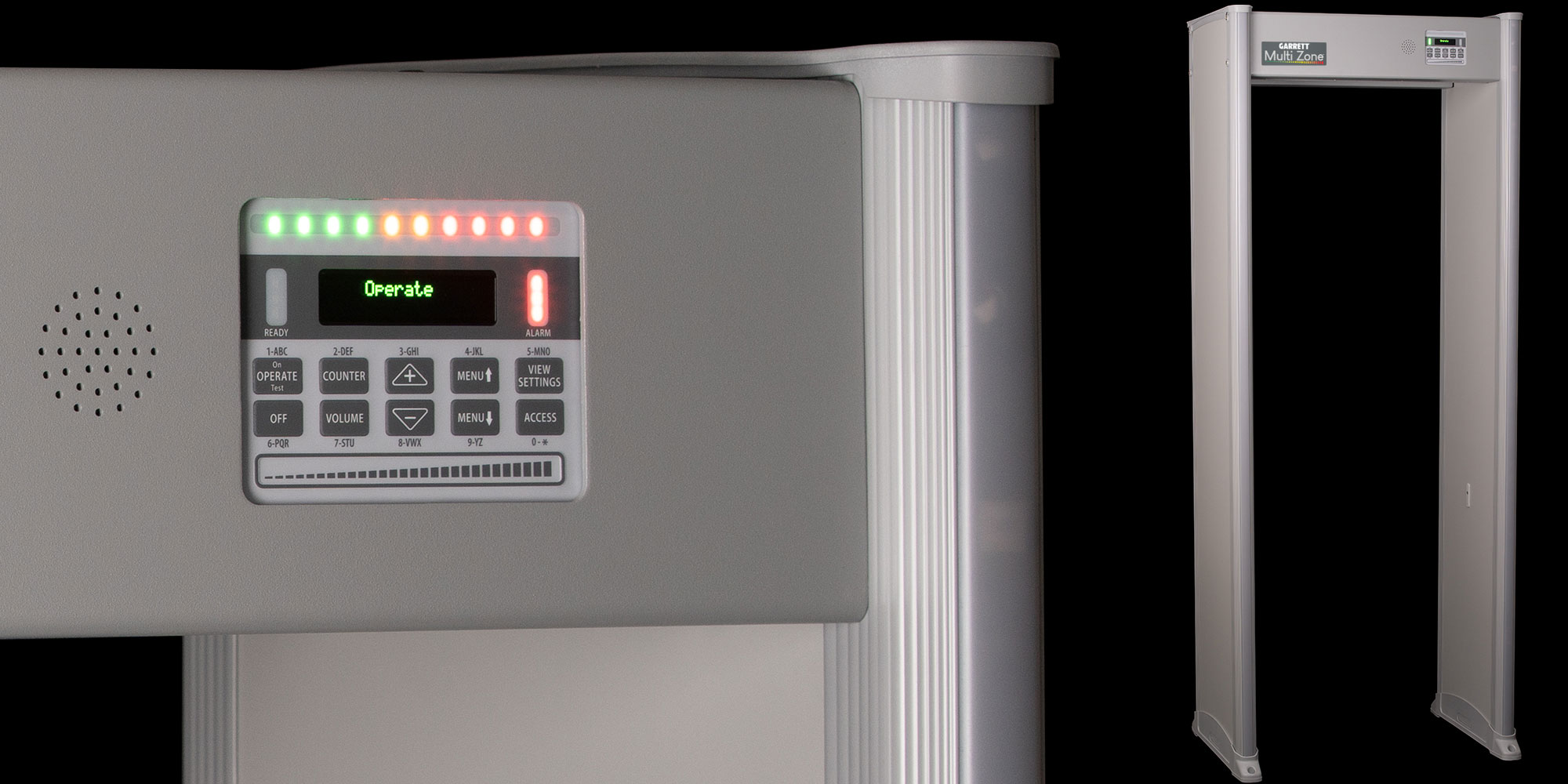

- Intuitive setup menu
- Control keyboard scroll bar (slider) – for quickly setting values and menu parameters
- Selection of control menu language, with more than 10 languages
- Passage counter – four settings for visitor counting: entrance only, exit only, exit subtraction, entrance and exit sum.
- Self-diagnostic mode – automatic, continuous.
- Random alarm function (adjustable from 0 to 100 percent)
- Protection against unauthorized access – three levels of access. Access to metal detector settings is protected by a 5-digit alphanumeric code, which has 60 million combinations. An additional security measure is the presence of a keyboard switch, which is installed inside the key-lockable control unit.
- Panels made of scratch-resistant laminated material. Control unit made of strengthened aluminum.
- Ease of assembly – modular design consisting of four main parts, assembled using eight screws and connecting three internal cables
- Ability to update internal software via SD card
- Protection against external impact of wind, dust, moisture (IP55)
- Wired or wireless connection to the local network (optional) – for control, collection of operational data, analysis of statistics of the metal detector or a group of metal detectors using the CMA computer interface module
- Outputs for controlling external devices (optional) – RS 485 connector for NO/NC contact relay module
- Wide selection of additional options
- Availability of an authorized Garrett service center

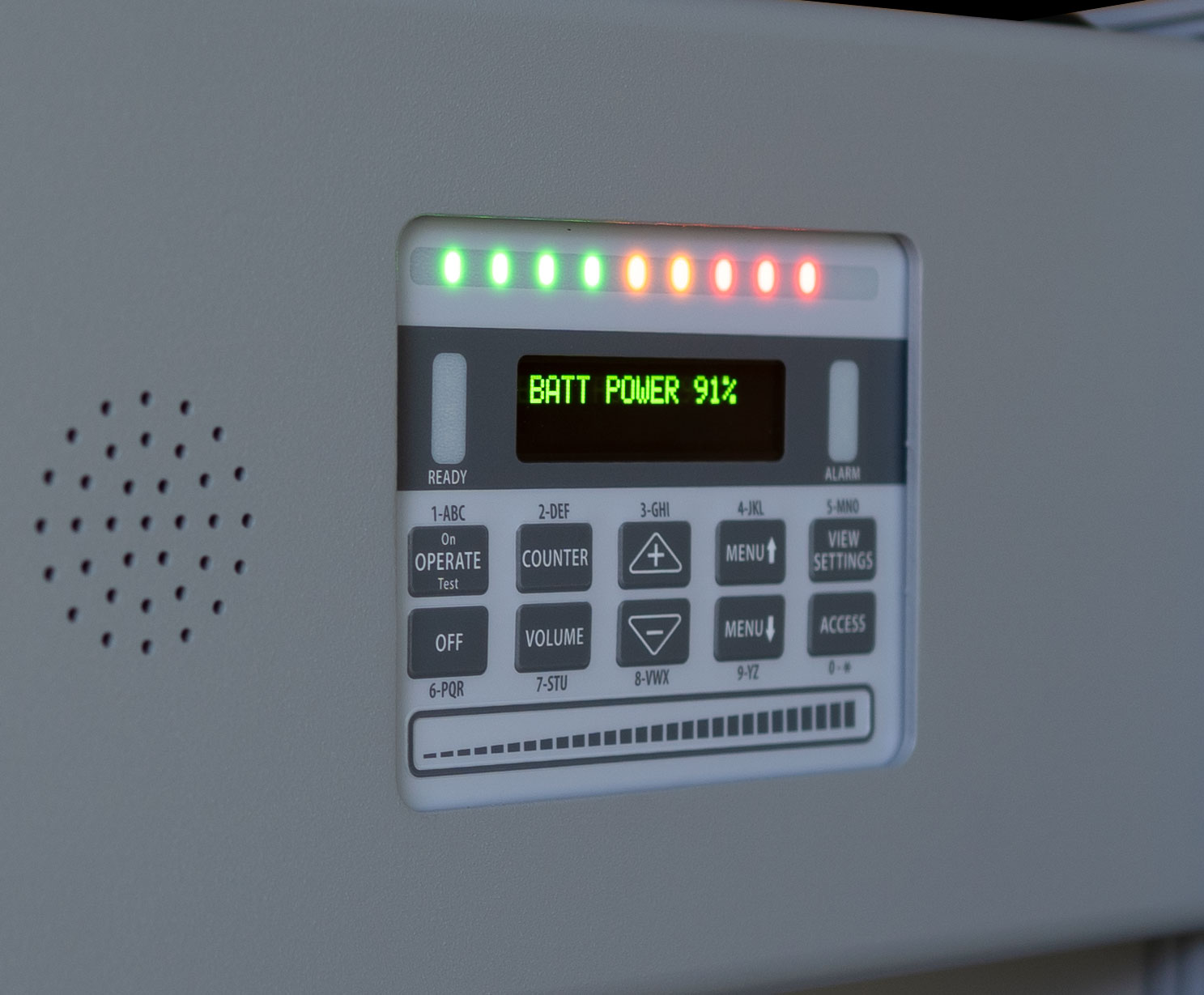

- Built-in battery in case of power loss provides operation for 1 hour
Specification
| Power Supply | ~100-240 V, 50/60 Hz, 40W |
| Operating Temperature Range | from -20º C to +60º C |
| Humidity | up to 95% non-condensing |
| Protection Class | IP55 |
| External Dimensions (width x height x depth) | 0.90 x 2.21 x 0.58 m |
| Passage Dimensions (width x height x depth) | 0.76 x 2.03 x 0.58 m |
| Packaging (width x height x depth) | 0.90 x 2.32 x 0.16 m |
| Weight in Packaging | 68.5 kg |
| Warranty | 24 months |
| Country of Manufacture | USA |
