price 267 300 uah
High-reliability multi-zone archway metal detector. Used to detect any metal objects prohibited for passage. High detection accuracy and modern design allow this model to be used in locations with increased security requirements.
- Allows determining the position of a metal object on a person’s body with vertical accuracy up to 10 cm, minimizing the need for manual inspection.
- Has 32 detection zones, ensuring absolutely uniform sensitivity.
- Adjustable to any mass of metal from a few grams.
- Excludes mutual masking of objects with opposite magnetic properties.
- Features “STOP / GO” light panels on the outer sides of each panel to regulate the flow of people.
Detector Capabilities
- 15 standard programs for various operating conditions (airport, school, court, prison, restricted facility, etc.)
- 200 sensitivity levels for each program.
- Individual sensitivity adjustment for 5 groups of zones in the range of +/-15% and in the range of -63% to +192% for lower zones.
- Indication of detection location on vertical panels.
- Constant display of operating status on the screen.
- Two-level access code for changing settings or operating mode.
- Self-diagnosis test mode.
- Counter for the number of passes on the IR barrier.
- Non-volatile memory for saving settings.
- Low-voltage outputs for external device control.
- Ability to synchronize multiple detectors for simultaneous operation.
- Liquid crystal display and keypad.
- Light and sound indication.
- Throughput 50-60 readings per 1 minute.
Design

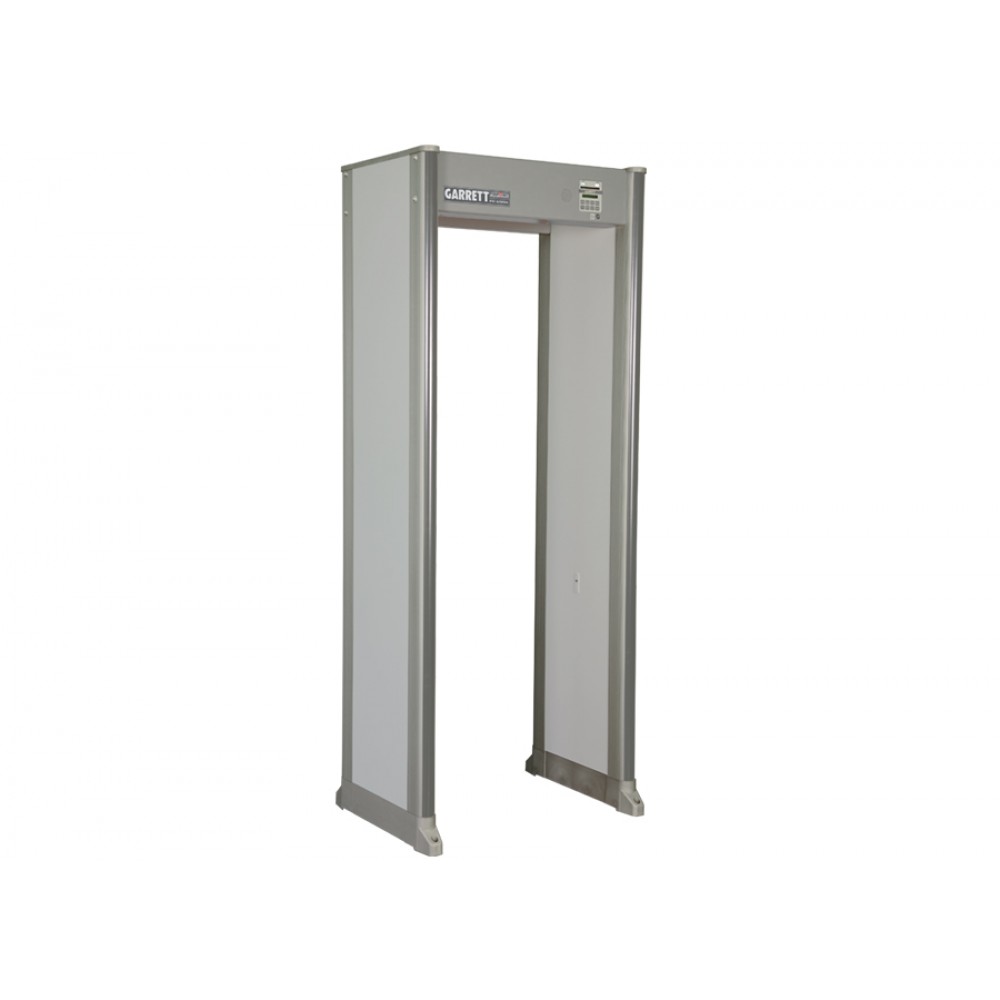

The detector is made in the form of a classic arch, consisting of two vertical panels located 80 cm apart. The control and indication units are located in the upper section of the arch, which helps avoid external influences on cables and the possibility of unwanted interference. Panels are resistant to mechanical damage with impact-resistant end inserts. The control unit and crossbar are made of reinforced aluminum.
Specification
| Power Supply | ~100-240 V, 50/60 Hz, 50W |
| Operating Temperatures | -20 – +70 °C |
| Humidity | up to 95% |
| Recommended Throughput persons/min | 60 |
| Weight | 52 kg |
| External Dimensions | $0.9\times 2.2\times 0.57$ m |
| Internal Dimensions | $0.76\times 2\times 0.57$ m |
