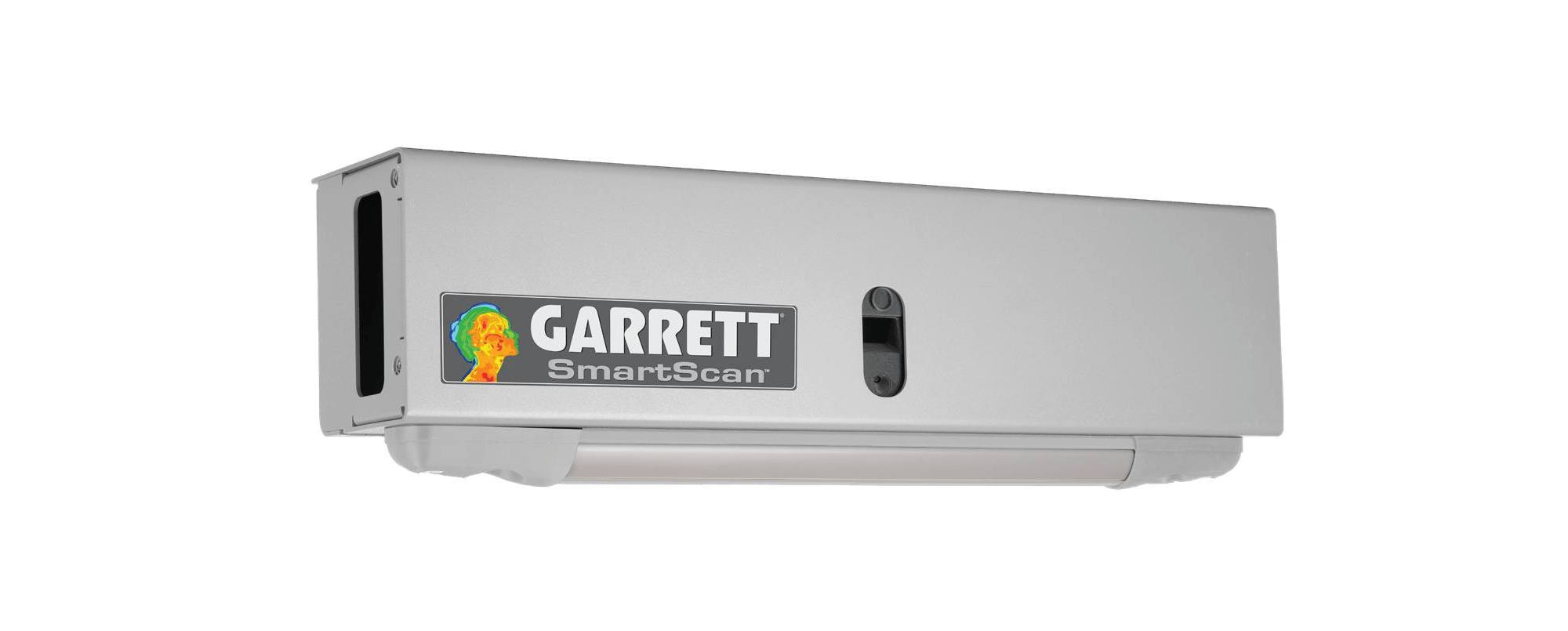

Garrett SmartScan – Thermal screening system

Garrett SmartScan™ technology simplifies temperature screening. The seamless SmartScan insert into Garrett walk-through metal detectors allows for initial temperature measurement simultaneously with normal screening operations.

• Ease of use.
• No hassle.
• No additional screening step is required for temperature measurement.

The SmartScan system will scan temperatures, provide a “Go” or “No Go” signal to the operator at specified intervals, and allow guests to pass through the detector without delay. This solution is offered as an add-on device for new Garrett PD 6500i or MZ 6100 walk-through metal detectors, or it can be easily integrated into already installed Garrett PD or MZ detectors. Simultaneous screening without long queues!

Features

• Quick startup (a single button for power connection and start of operation).
• Fast detection of incoming traffic.
• Does not slow down existing screening processes.
• No technical personnel is required to perform the initial temperature assessment, which reduces staff costs and minimizes the possibility of human error.
• Absence of additional components that require more floor space.
• On-site upgrade for any PD 6500i or MZ 6200 with simple connections.
• The functions of the temperature sensor and the metal detector can be used independently or jointly during simultaneous operation.
• Runs on battery for ease of use and optimal flexibility.
• Intuitive status indicators for startup, calibration, and high-temperature alarm.
• No additional space is required between multiple elements.
• A Constant Temperature Reference (CTR) is not required for operation.
• Visual and audible alarm options.
• Avoids false alarms by intelligently blocking non-surface sources of high temperature that could mistakenly trigger an alarm.
• Garrett’s Quick-Q™ exclusion technology for cell phones can be used jointly with SmartScan to further accelerate the screening process and promote contactless screening. (Compatible exclusively with the PD 6500i frame).

Technical Specifications

Measurement Distance	Maximum 14 feet (4 m) from the measurement point, depending on height
Preset Temperature Range	68°F – 140°F (20°C – 60°C)
Measurement Accuracy	±0,9°F (0,5°C) / ±0,36°F (0,2°C) without/with optional Constant Temperature Reference
Resolution	1920×1080 pixels
Thermal Sensitivity (NETD – Noise Equivalent Temperature Difference)	<0,05°C (50 mK) @30°C
Detector Type	Polysilicon uncooled FPA, 8-14 μM microbolometer
Alarm Function	Audible and/or visual
Recording Storage/Display	Photo storage without time stamp / optional, but not required HDMI connection available
Calibration	Self-calibration, automatically adjusts indicators that are prone to ambient environmental error
Power Source	Fully automatic 100 – 240 V AC, 50 or 60 Hz, without the need for rewiring switching or configuration, IEC connector
Overall Dimensions	Width 30″ (0.76 m) Height 9″ (0.23 m) Depth 7″ (1.8 m)
Approximate Dimensions in Packaging	Width 33″ (0.8 m) Height 12″ (0.3 m) Depth 10″ (0.25 m)
Weight (actual/with packaging)	25 pounds (11.3 kg) / ~28 pounds (12.7 kg)
Temperatures	Operation: 32º F – +80º F (0º C – 26º C) Storage: -4°F – 122°F (-20°C – +50°C)
Battery Pack	14 Amp-hour, Lithium (approximately 8 hrs of standalone operation)
Construction	Heavy-duty aluminum
