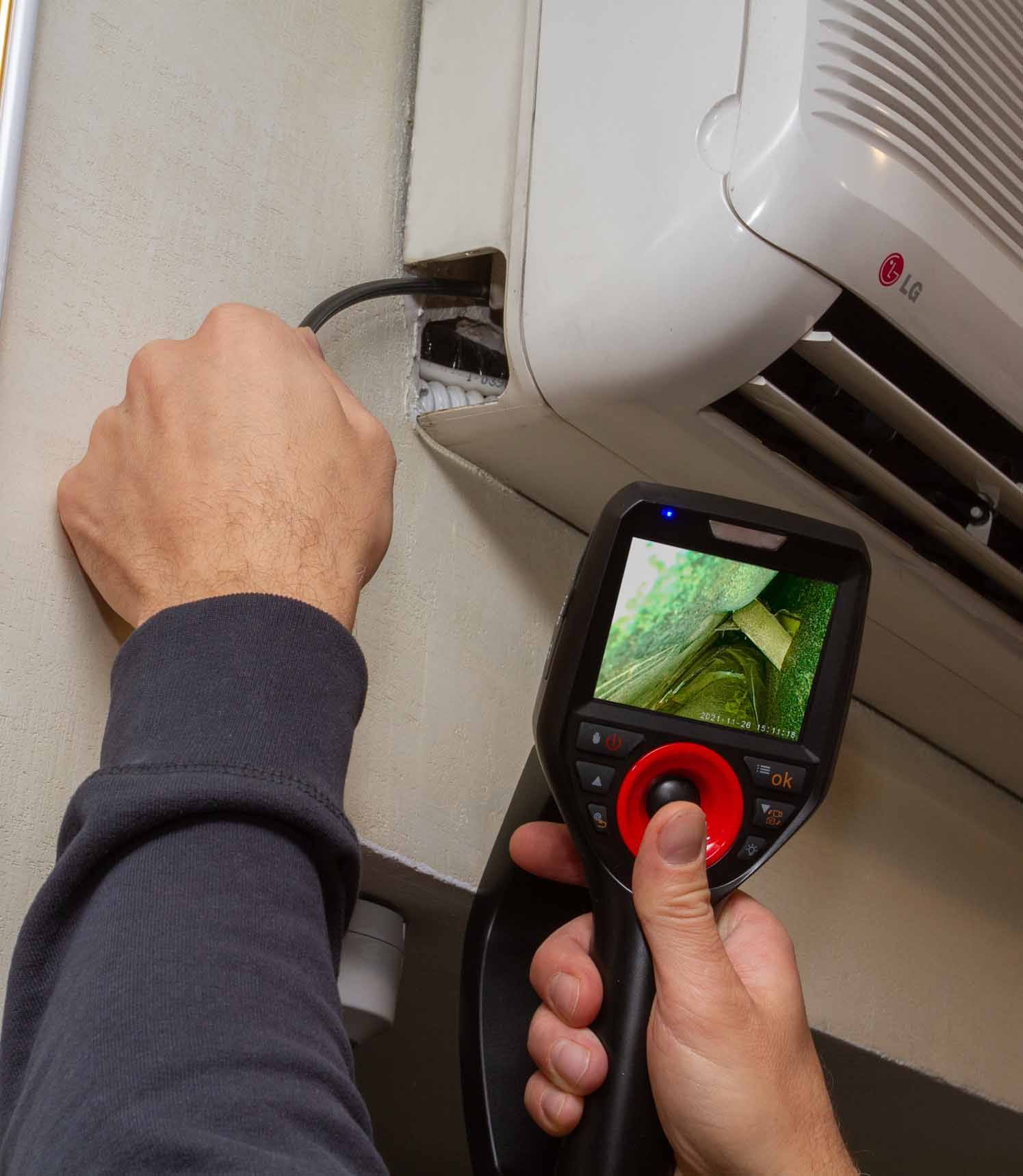

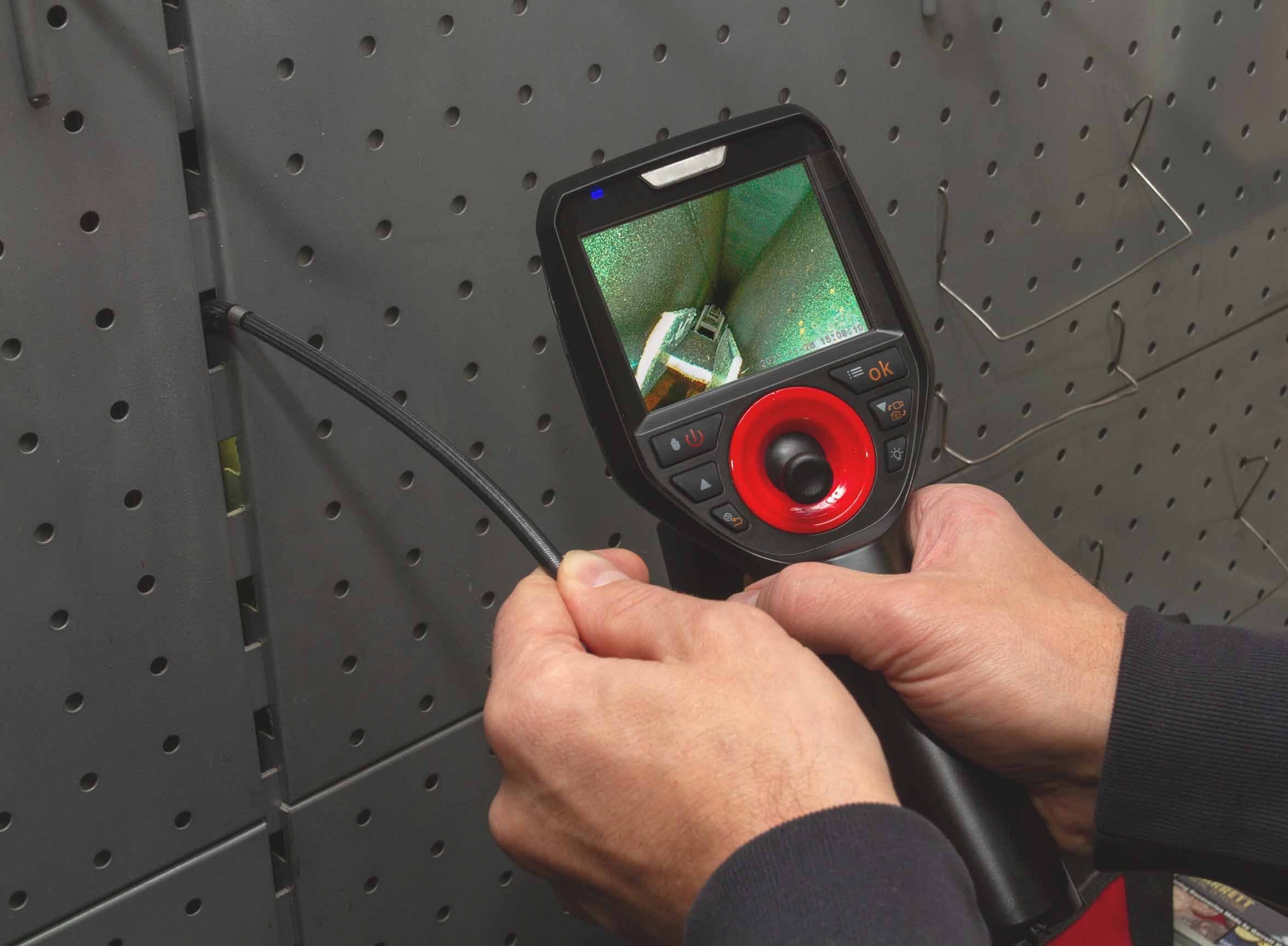

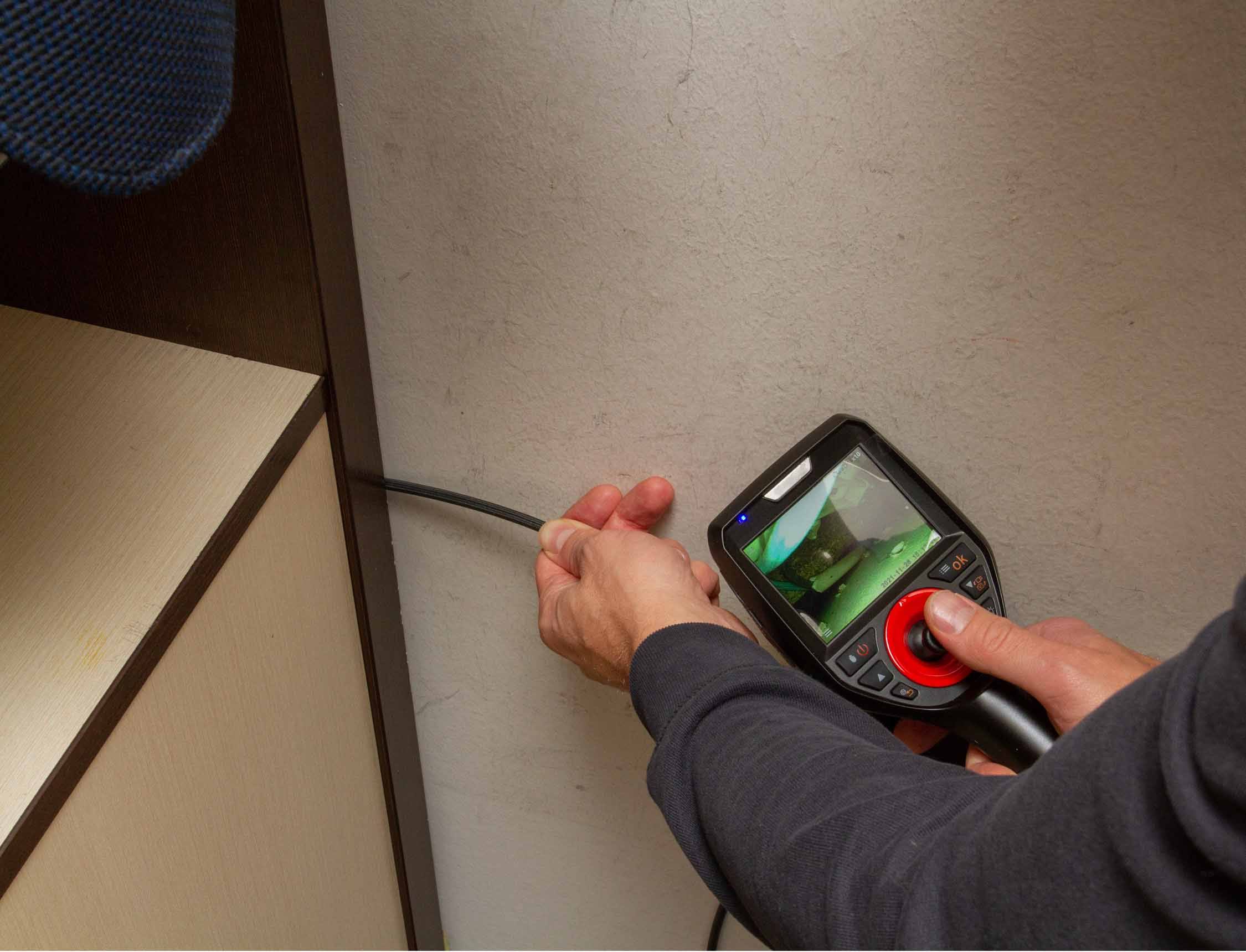

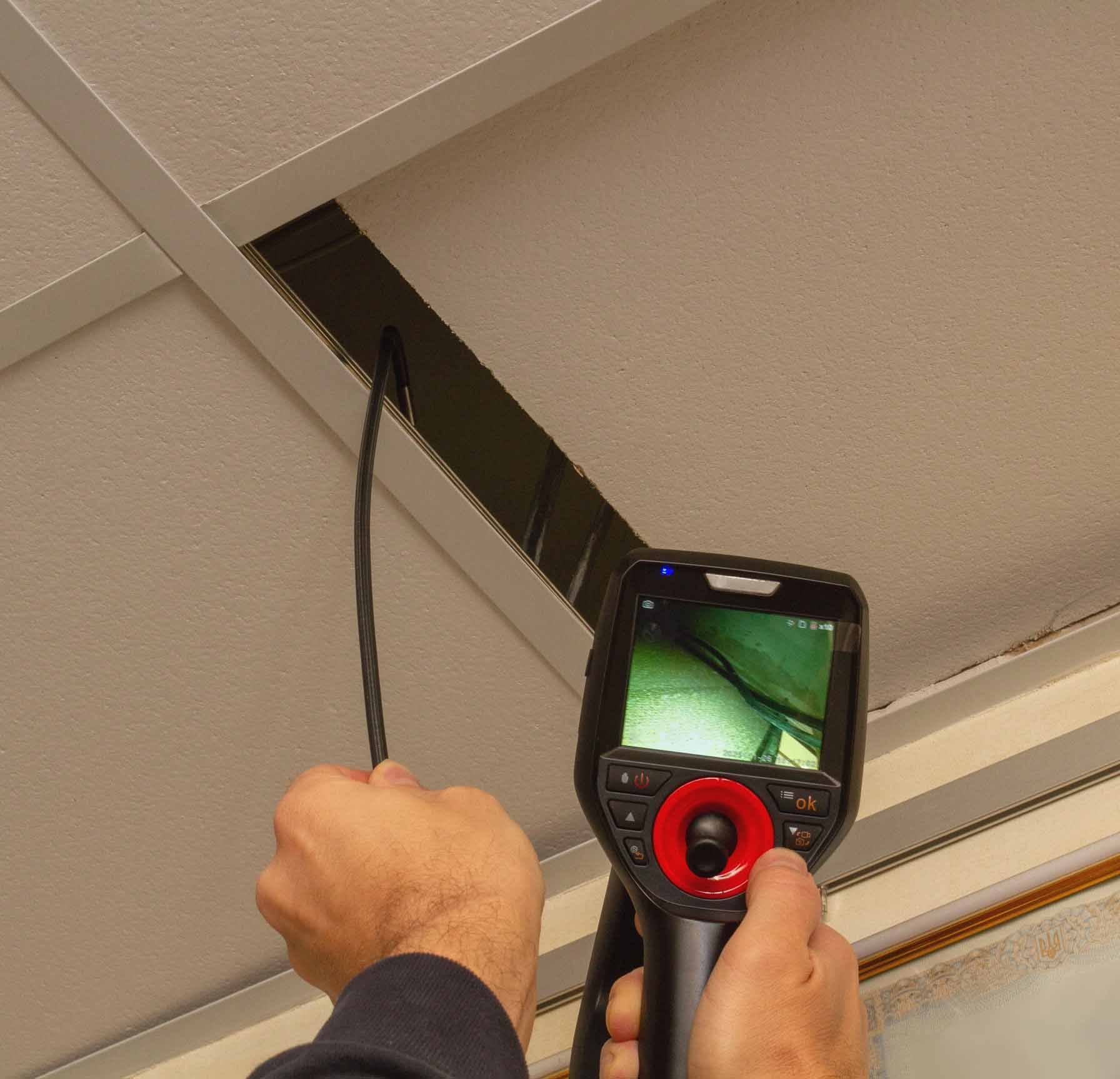

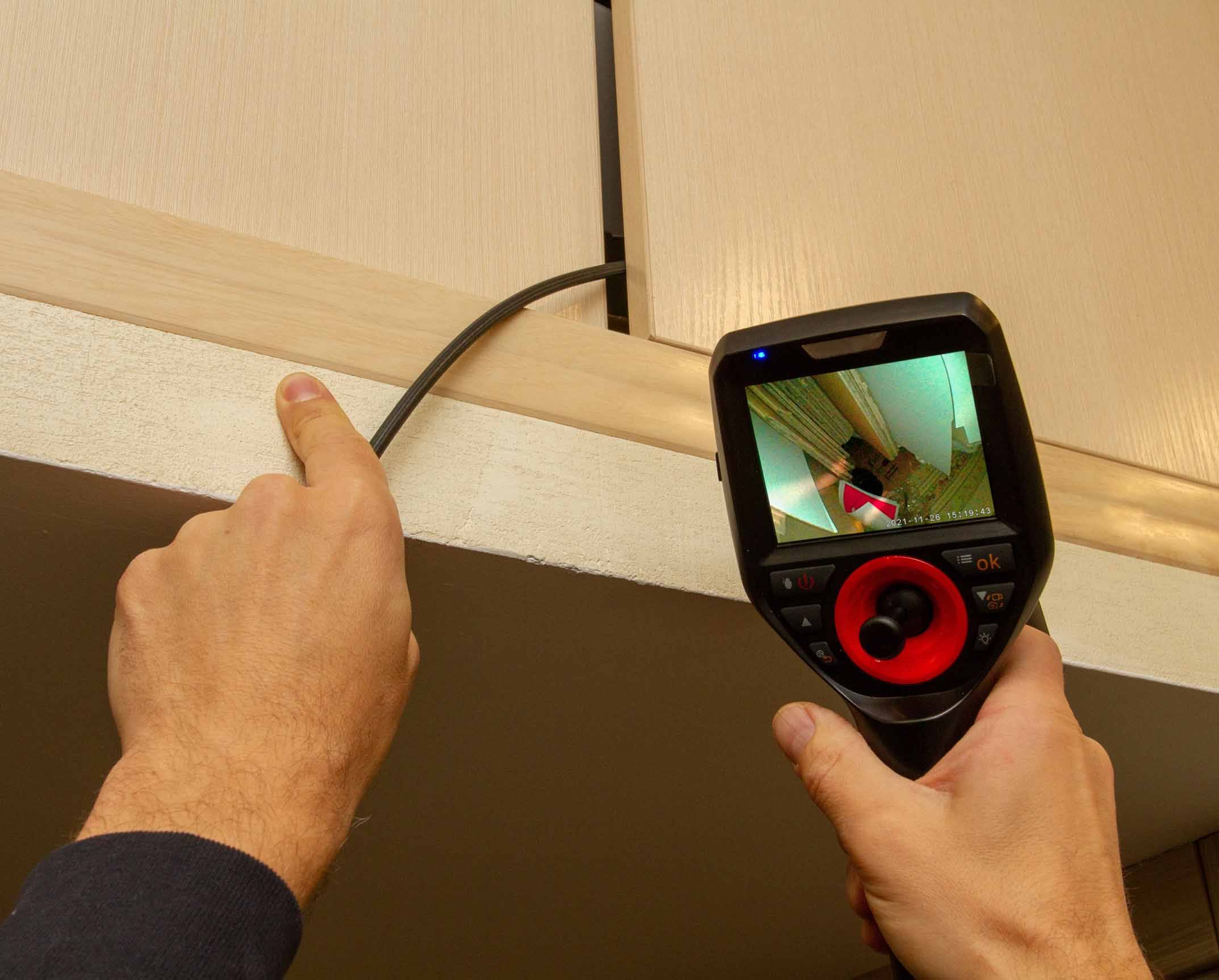

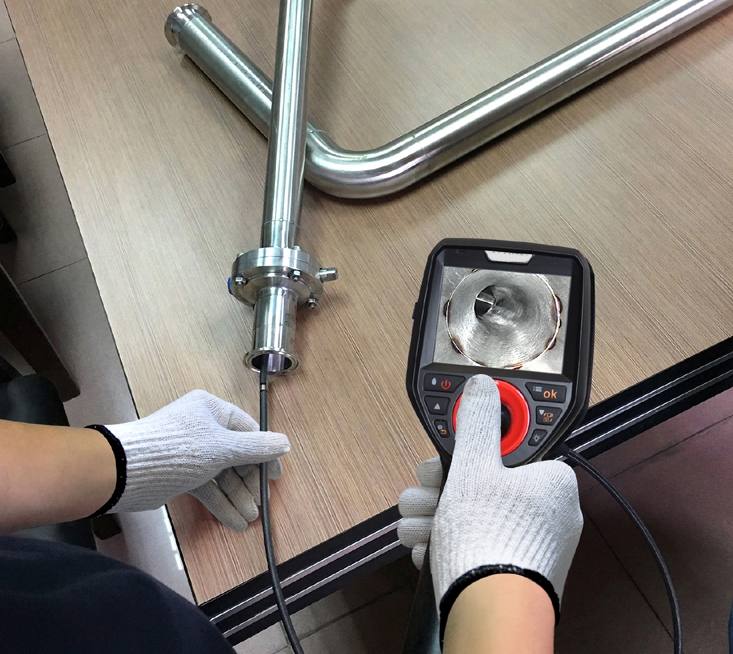

A professional solution for specialists in the field of technical information protection. Allows inspection of hard-to-reach places – ventilation ducts, furniture, niches in structures, radiator niches, space behind suspended ceilings, etc. The steerable camera with circular articulation provides the ability to inspect in all directions, and the LED illumination with 7 brightness levels allows inspection of areas with various lighting conditions. The camera’s depth of field is configured for a wider range of distances, corresponding to the needs of search tasks. The 2 m probe length and 6 mm thickness allow penetration into the smallest gaps and reaching the most remote locations during search operations.

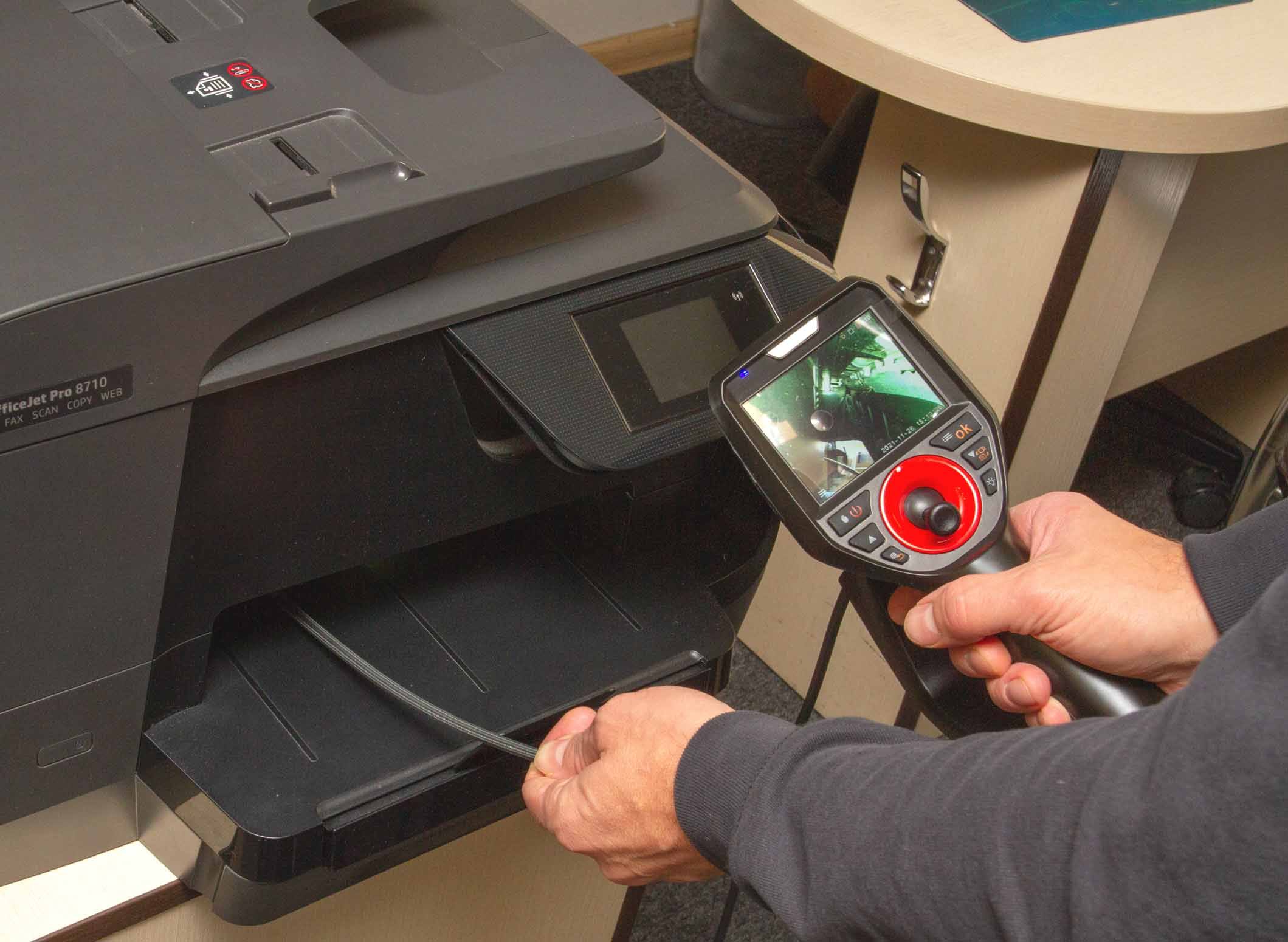

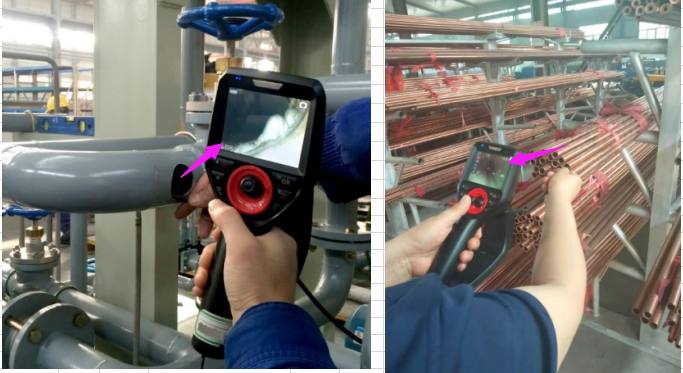

In addition to search operations, it is suitable for many other tasks – in manufacturing, service, repair, construction, etc. It can be a valuable tool in the following areas:
- automotive industry (manufacturing, service)
- aviation (engine maintenance, etc.)
- energy sector (equipment maintenance, turbines, etc.)
- metal processing (manufacturing metal parts, components, etc.)
- piping industry
- maintenance of special transport, tanks, etc.
- maintenance of industrial and domestic heating systems (boilers, furnaces, etc.)
- chemical production, pharmaceutics, etc.
Features
- Professional system for inspecting hard-to-reach places, niches, and voids
- An important component of the kit for searching for clandestine devices

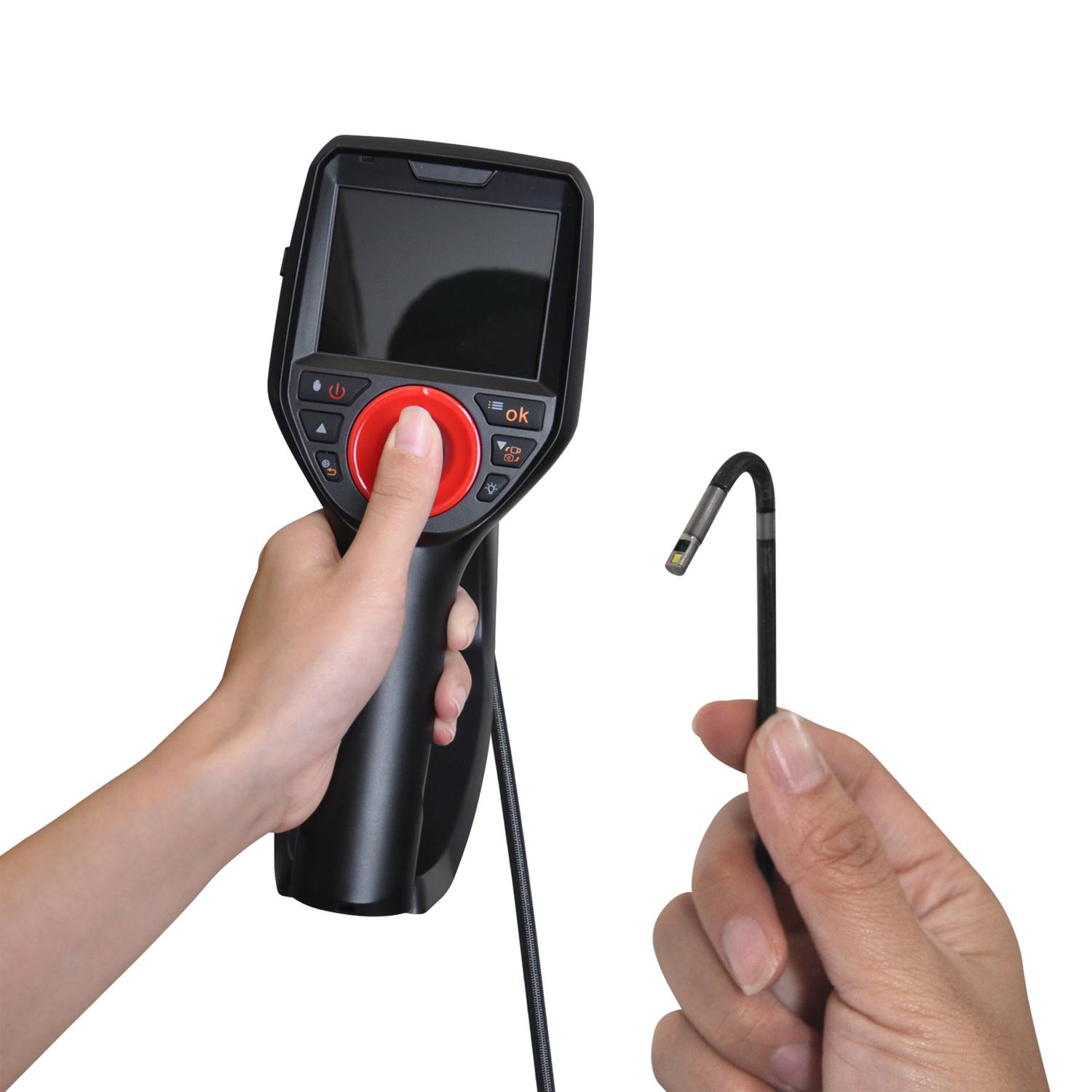

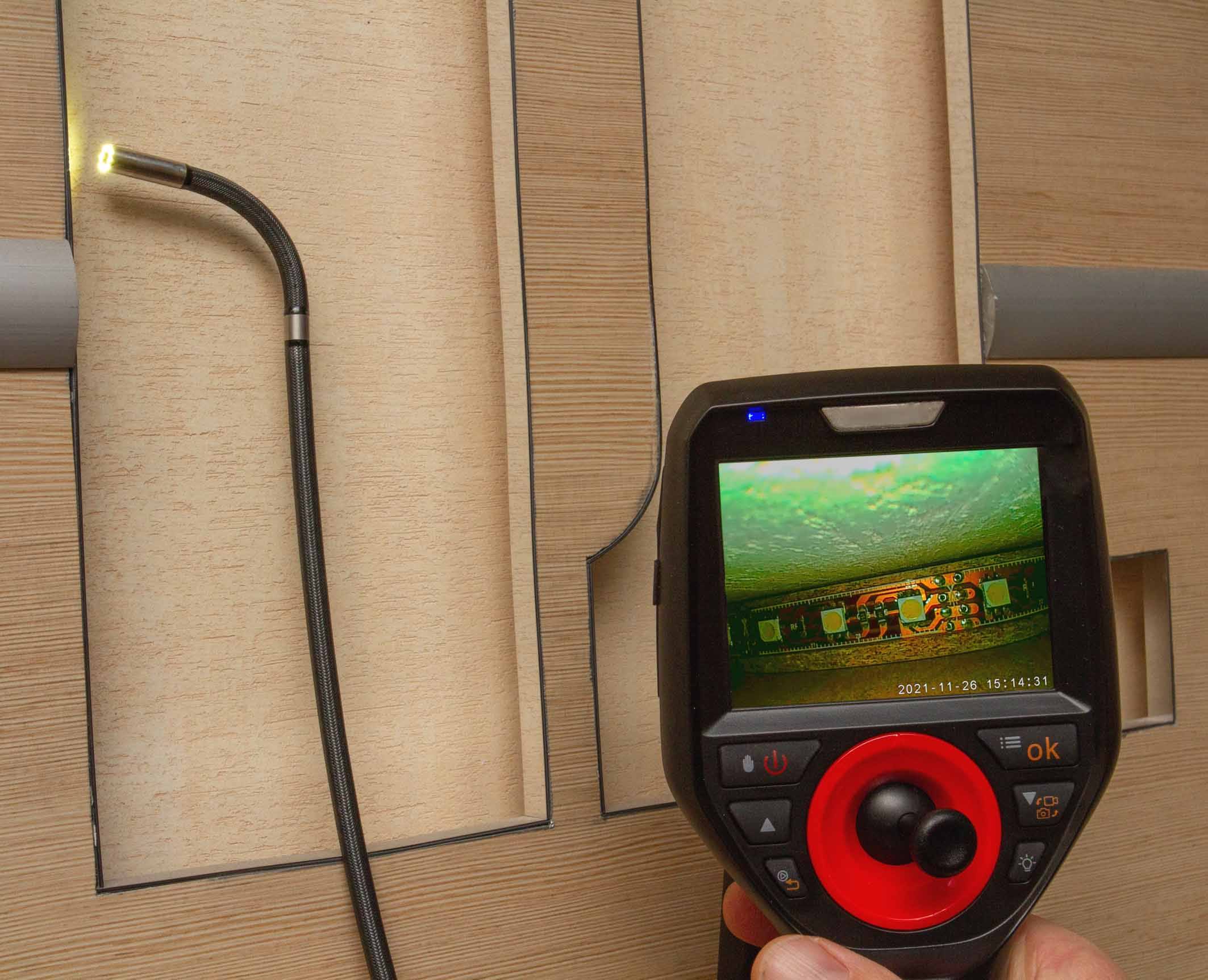

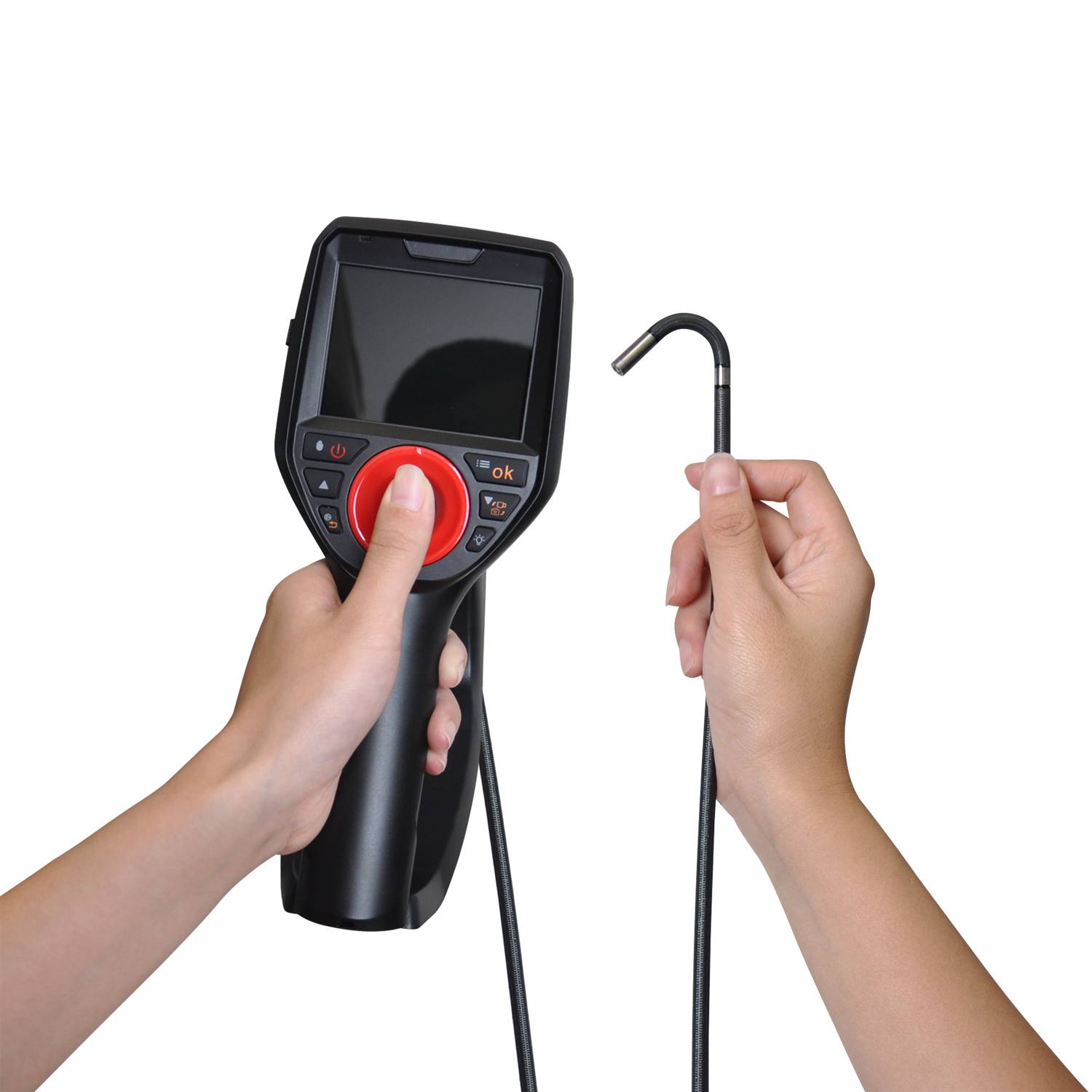

- Steerable camera with a distal end that provides all articulation directions (360 C) and deflection up to 160 C
- High-resolution 720P camera
- Camera depth of field is configured for a large range of distances
- LED illumination with 7 brightness levels
- High-reliability titanium probe, resistant to oil and water

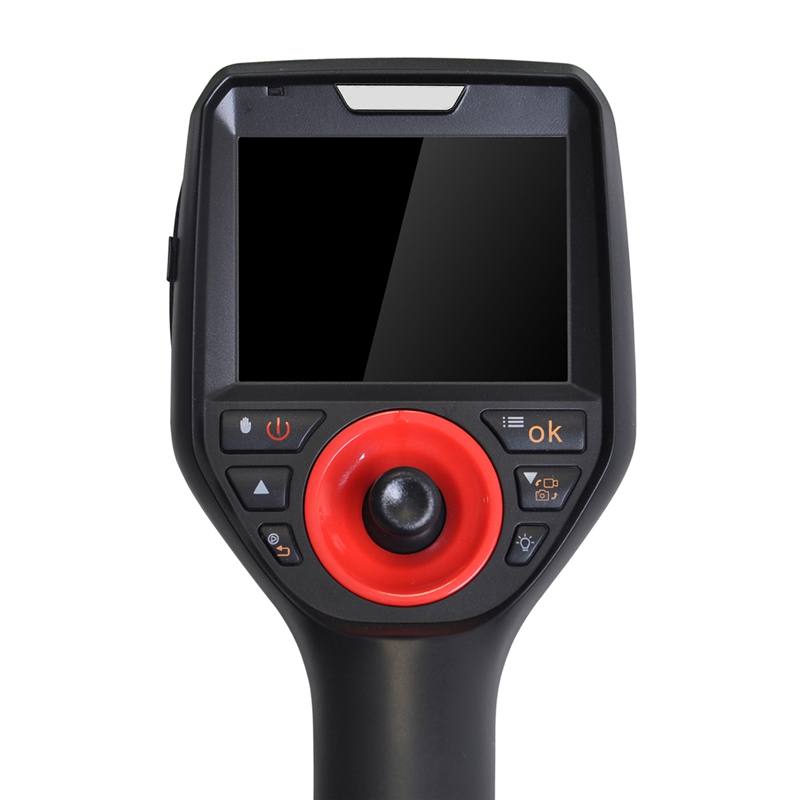

- 3.5″ Display

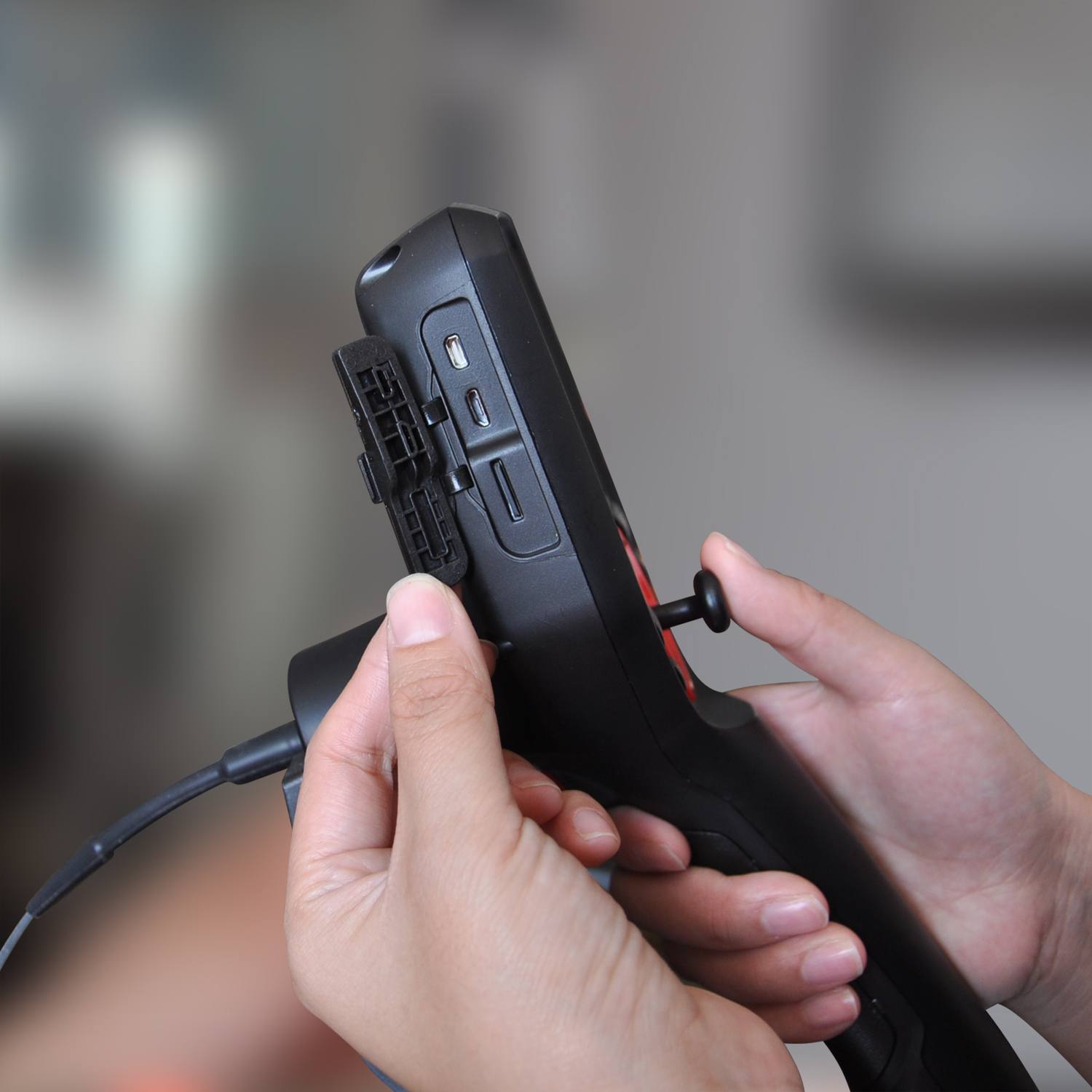

- Photo and video recording function to a flash card
- Video output for viewing the image on an external screen
- Built-in rechargeable battery with a 3-hour resource

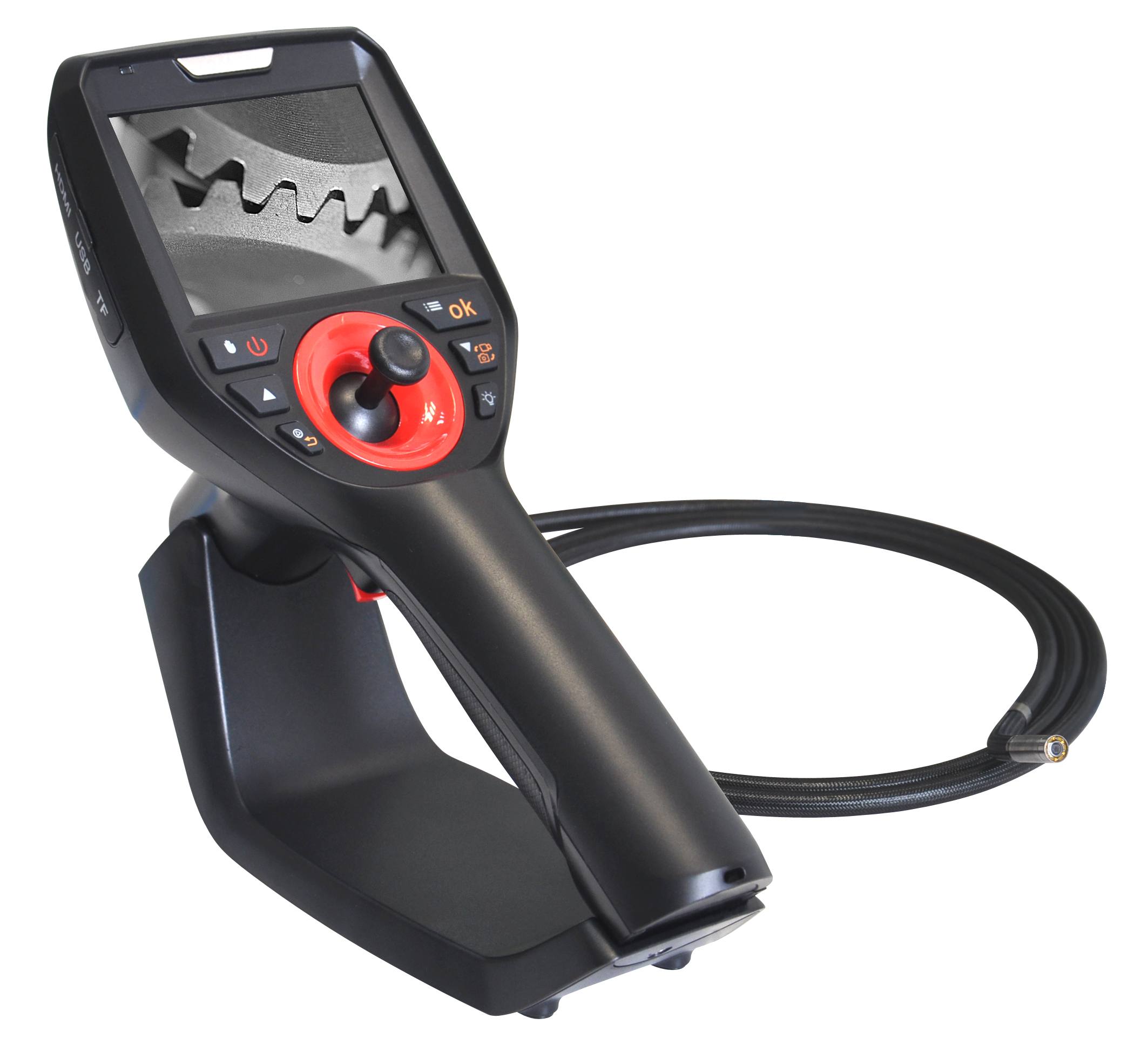

- Convenient magnetic stand-holder. Allows convenient placement of the display unit on a horizontal surface or any metallic surface

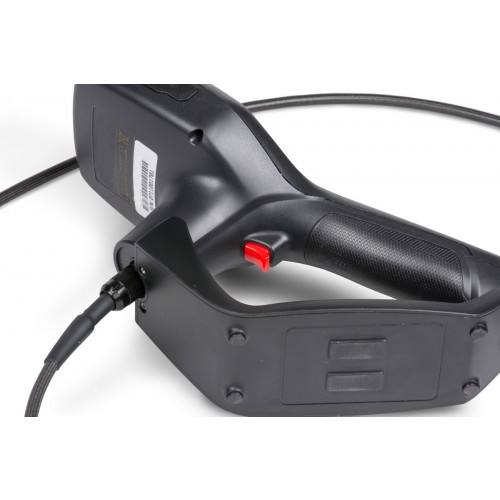

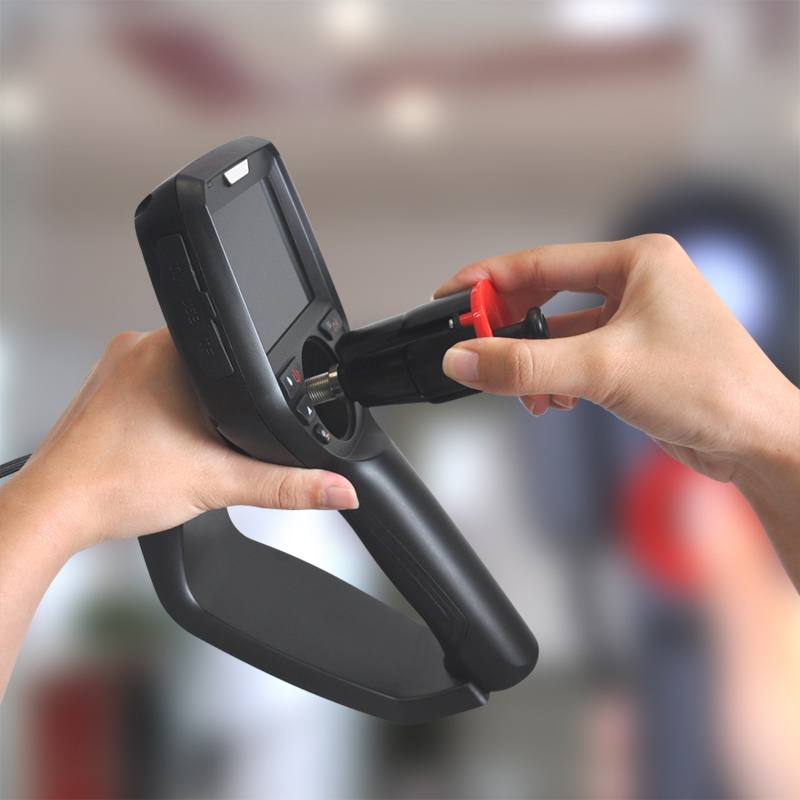

- Quick probe connection system ensures easy maintenance capability
- Transport case included in the set
Technical Specifications
| PROBE | |
|---|---|
| Type | Flexible with articulation |
| Diameter | 6 mm |
| Length | 2 m |
| Protective Sheath Material | Tungsten |
| Articulation | Four-way, 360° |
| Articulation Control Type | Mechanical |
| Articulation Deflection Depth | Up to 160° in each plane |
| Length of the Movable Part (with camera) | 67 mm |
| Camera Length | 19 mm |
| Distance of camera end deflection at 90° turning angle | 50 mm |
| Protection Rating | IP67 |
| CAMERA | |
| Number of Pixels | 1,000,000 |
| Depth of Field |
|
| Field of View (FOV) | 70° |
| Camera Type | Color |
| Illumination Type | LED |
| Illumination Brightness | 20000 Lx |
| Number of Illumination Brightness Levels | 7 |
| DISPLAY | |
| Diagonal | 3.5″ |
| Resolution | 640 x 480 |
| High Brightness (daylight operation) | Yes |
| Brightness Adjustment | 3 levels |
| RECORDING AND PLAYBACK | |
| Media | TF Card |
| Video Recording Resolution | 1280 x 720 or 960 x 720 pixels |
| Photo Resolution | 1280 x 720 or 960 x 720 pixels |
| Video File Format | MP4 |
| Photo File Format | JPEG, BMP |
| Viewing Recordings | Yes |
| POWER SUPPLY | |
| Rechargeable Battery | Built-in lithium battery, 4.2V, 3200 mA*h |
| Battery Life | 3 hours |
| Ability to Operate While Charging | Yes |
| Charging Source | USB |
| SYSTEM | |

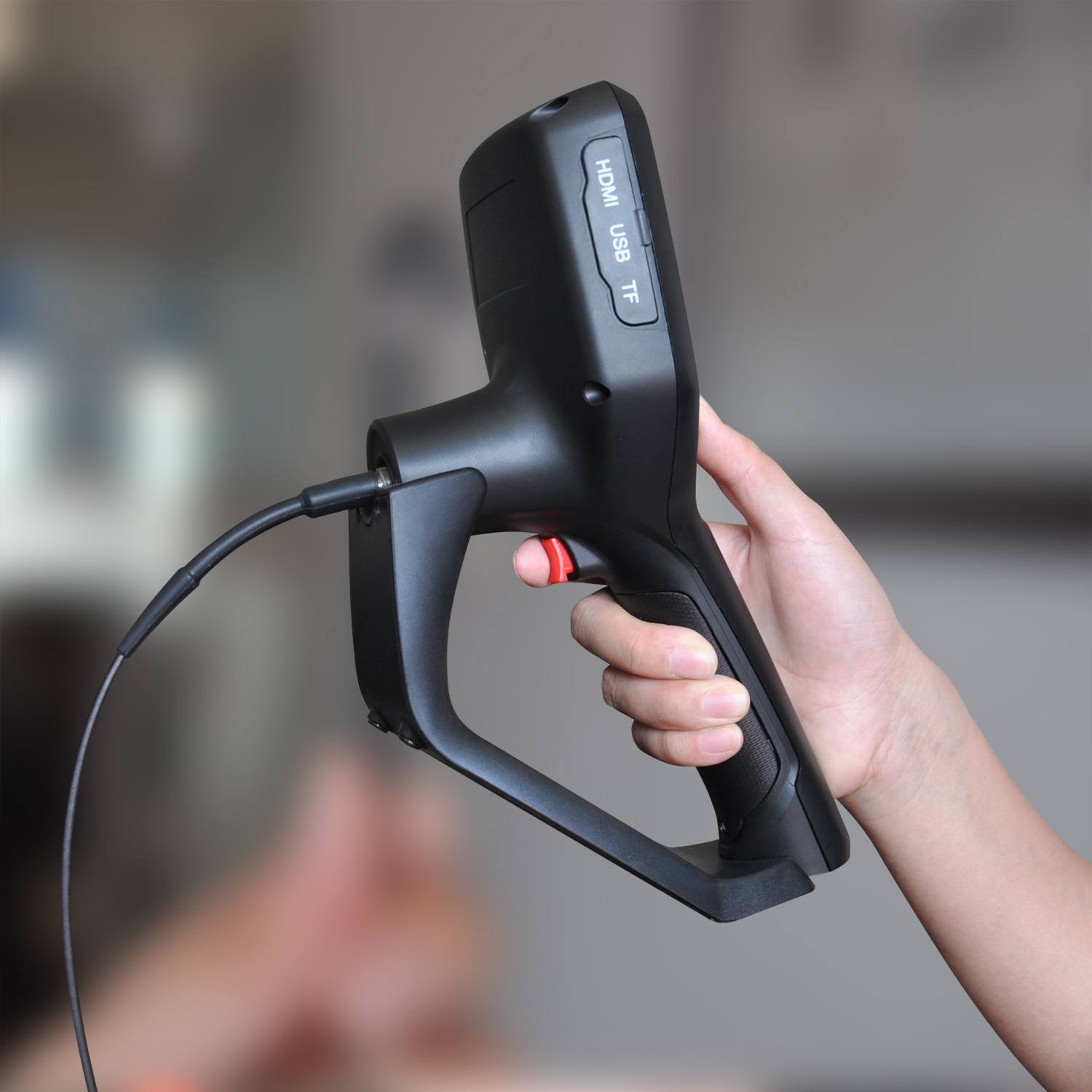

| Video Output | Mini HDMI |
| Charging Connector | MicroUSB |
| Weight of Display Unit (without probe) | 0.51 kg |
| Size of Display Unit (without probe) | 24.5 x 13 x 10 cm |
| Protection Rating of Display Unit | IP55 |
| Operating Temperature Range | -10…+60 C |
| Storage Temperature Range | -20…+60 C |
| Additional Functions |
|
| Dimensions in Packaging | 43 x 35 x 16 cm |
| Weight in Packaging | 3.5 kg |

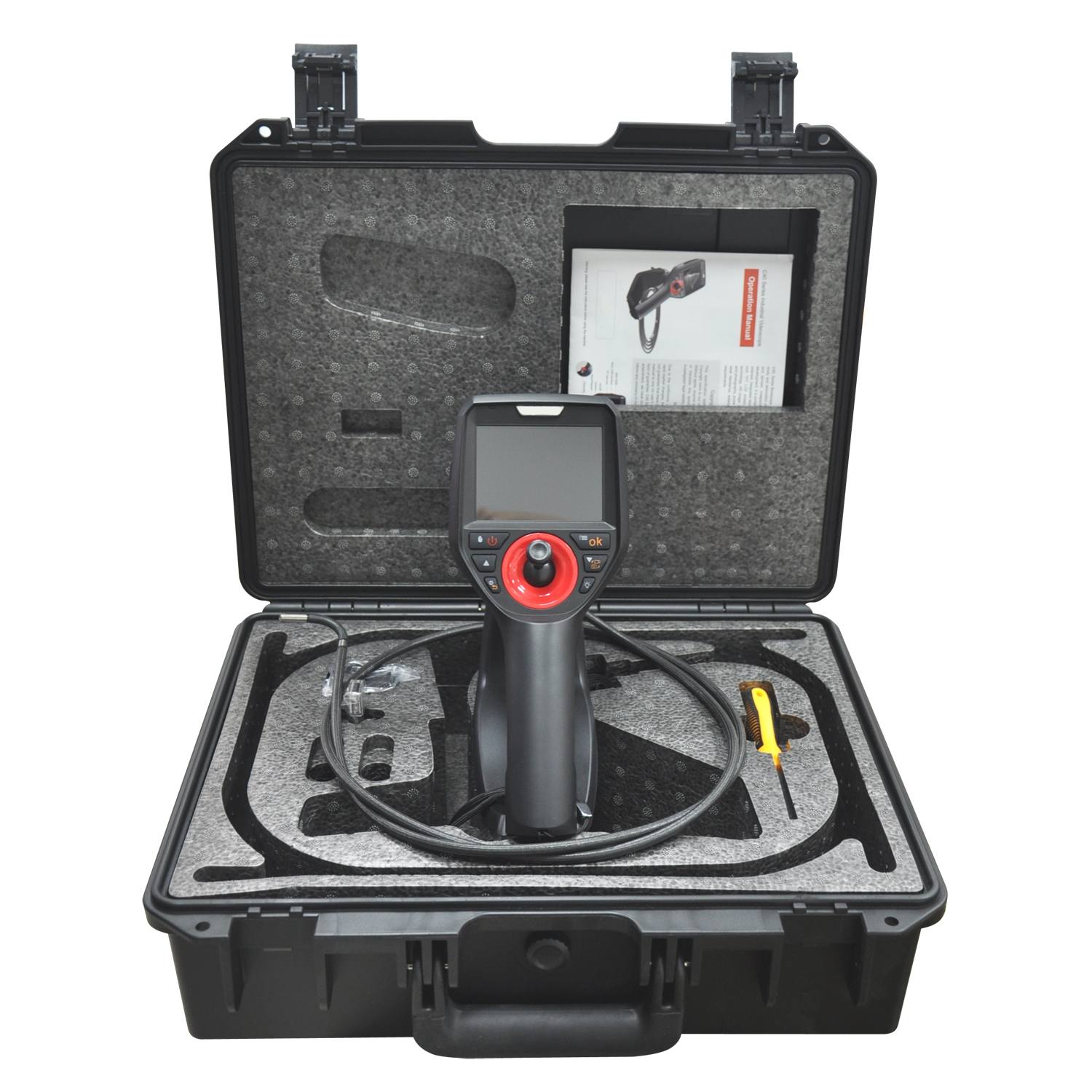

Supplied set
| Transport case |
| Probe with rotating camera, length 2 m, diameter 6 mm |
| Display unit with stand and built-in battery |
| Charger 220V - USB 5V |
| MicroUSB cable |
| HDMI cable |
| TF card 8 GB (in display unit) |
| USB TF card reader |
| Screwdriver |
