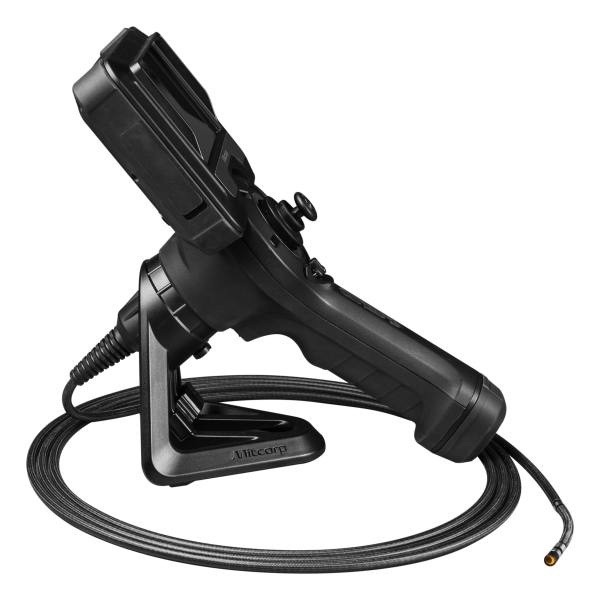

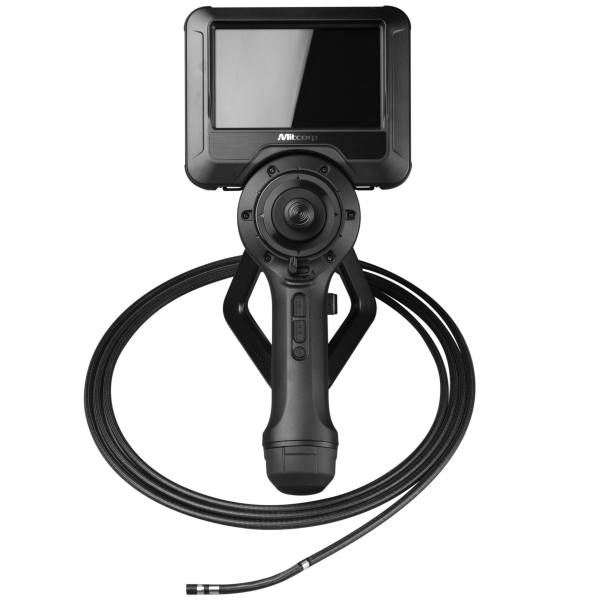

MITC-X750-60D4W – Industrial video endoscope

High mobility. Unrivaled flexibility. Impressive results. This is the new X750

Designed for tasks requiring high mobility, the X750 is striking in its lightness and simultaneous durability, while providing high-resolution images. The professional level is felt at first glance. Bright and high-quality image with high resolution. The joystick controls the camera easily and effortlessly. Heat-resistant, moisture-proof tungsten probe. Dual camera on the probe and an additional camera on the console. Compliance with the MIL-STD-810G standard.

Probe

• Distal end with 4-way articulation and bending angle up to 140°
• Two high-resolution cameras 2560*1440, frontal and side
• The side camera allows for 2560*1440 inspection when the space is very narrow and there is no possibility to turn the probe tip.
• LED illumination at the front and side
• Tungsten braiding resistant to corrosion and scratches
• Protection rating IP67
• Heat resistance up to 100° with automatic warning and shutdown
• Shortened camera ensures a reduced turning radius
• Mechanical fixation of the distal end position
• The side camera has two illumination LEDs
• Console (monitor) with protection rating IP54
• Resistant to falling from a height of 1 m
• Viewing angle of the front and side camera – 95°
• A rigid sleeve is included for holding the probe during inspection in open spaces

Main Unit

• 5″ Touch screen
• Additional camera with 2560 x 1440 pixel resolution on the rear side of the monitor for photo-documentation of the inspection location
• GPS receiver for applying location tags to images
• LED flashlight on the rear side of the monitor

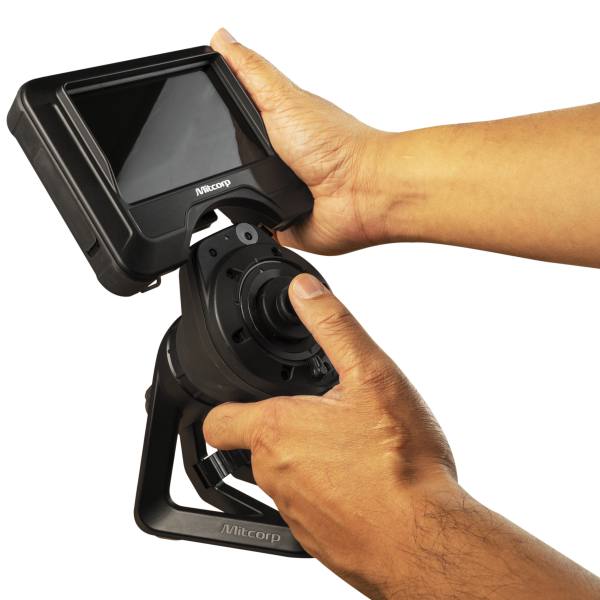

• Detachable screen
• User button on the joystick
• Exposure adjustment with one touch on the image
• Language selection
• Protection against excessive bending of the probe tube
• Fixator-holder for the probe tip on the console
• Stand for placing the console on a horizontal surface
• Console (monitor) with protection rating IP54
• Resistant to falling from a height of 1 m

Versatility

• The device is very light – only 1.2 kg when assembled
• Joystick position fixation
• Holding tubes to maintain the probe in a rigid position
• Ergonomic shoulder strap

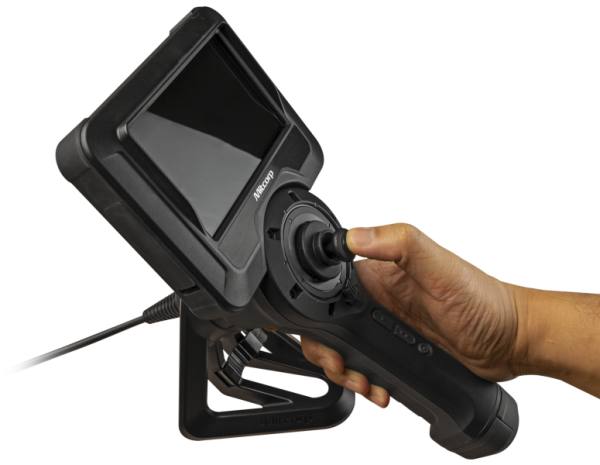

• One-handed operation

Connection

• 3 ways to connect the device: Wi-Fi, USB-C, and HDMI
• “VideoscopeNow” software for iOS/Android/Windows

Power Supply

• Battery life – up to 3 hours
• 2 batteries included in the set
• 2-slot charging station included in the set

Image Processing

• Image storage in separate folders corresponding to work sessions
• Adding annotations to video and photos
• Function for comparing the current image with images in files
• Applying logo, watermarks, and session mark to the image
• Convenient report generation

Certificates

• Electromagnetic Compatibility EN 55032: 2015+AC:2016, EN 55024:2010+A1:2015, EN 301 489-1 V2.1.1:2017, EN 301 489-17 V3.1.1 :2017
• IEC 60529 Edition 2.2:2013 “Degrees of protection provided by enclosures” – IP67
• MIL-STD-810G w/Change 1:2014, Method 511.6

Specification

Main Unit
Dimensions	L=327.5 mm, W=152.8 mm, H=201.3 mm
Weight	1230 g
Moisture Protection	IP54
Screen	5″ IPS, detachable, 800*480 pixels
Data Transfer	“MicroSD” card slot (data recording) USB Type C (data transfer, charging) Mini-HDMI (video output) Wi-Fi
High Temperature Warning	3 levels: 60 °C, 80 °C, and 100 °C
Wi-Fi	802.11 b/g/n
Application	VideoscopeNow
LED Indicators	Green – operation / fully charged Red – low charge / charging in progress
External Illumination (Flashlight)	LED
Camera on the Rear Side of the Monitor	2560*1440 (jpeg recording format)
Satellite Navigation System	GPS, GLONASS dual mode
Joystick
Articulation	In all directions
Function Buttons	Brightness + / – Photo and Video Recording Function Button
Articulation Control	Joystick (distal end) fixation
Power Supply
Battery (2 included)	4900 mA*h Li-Ion battery, 113 grams
Battery Operating Time	Up to 3 hours
Charger	117.5 x 76.8 x 69.7 mm, 165 grams
Charging Time	3 hours per battery
Indication on the Charger	Red – charging in progress Green – fully charged
Probe
Diameter of the Probe Head (Camera)	6.0 mm
Length of the Head (Camera)	21.5 mm
Probe Length	2 m
Direction of View	Frontal Side at 90° angle to the frontal
Illumination	Front and side LEDs
Viewing Angle	95°
Depth of Field	frontal camera 8 mm – ∞ side camera 7 mm – ∞
Articulation Angle	Up to 120-140° in all directions
Operating Temperature Range	In air: -10…+100 °C In liquid: 10…+30 °C
Head Material	Stainless steel
Tube Material	Tungsten braiding
Console Joystick Dimensions	139.4 x 193 x 84.2 mm
Protection Rating	IP67 (30 minutes at 1 meter depth)
Resistance to Liquids	Maintains operability in engine oil, light oil, or 5% saline
Storage Temperature Range	-10 °C … +70 °C
Rigid Sleeve	2 sections of 450 mm (stainless steel)
