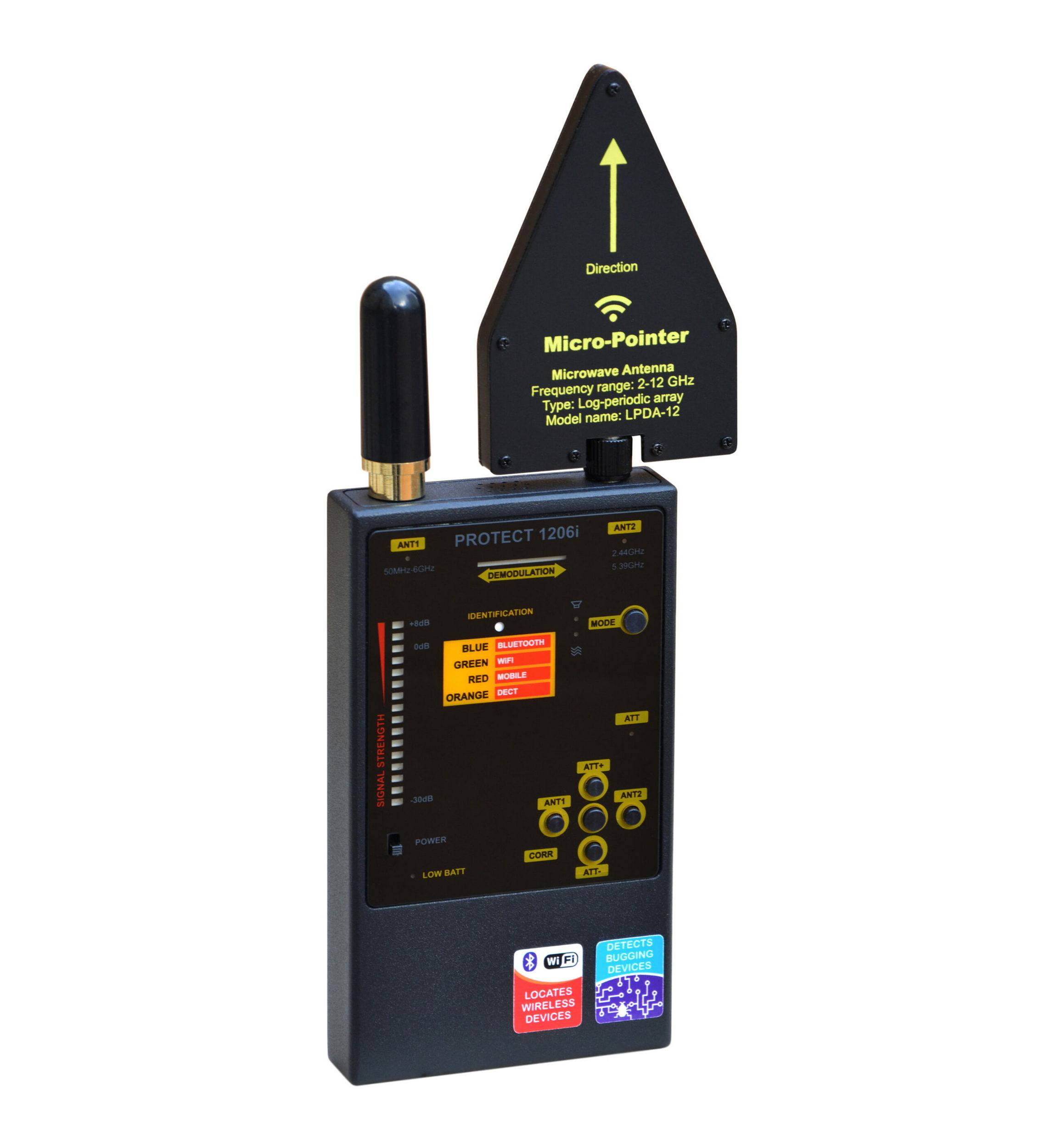

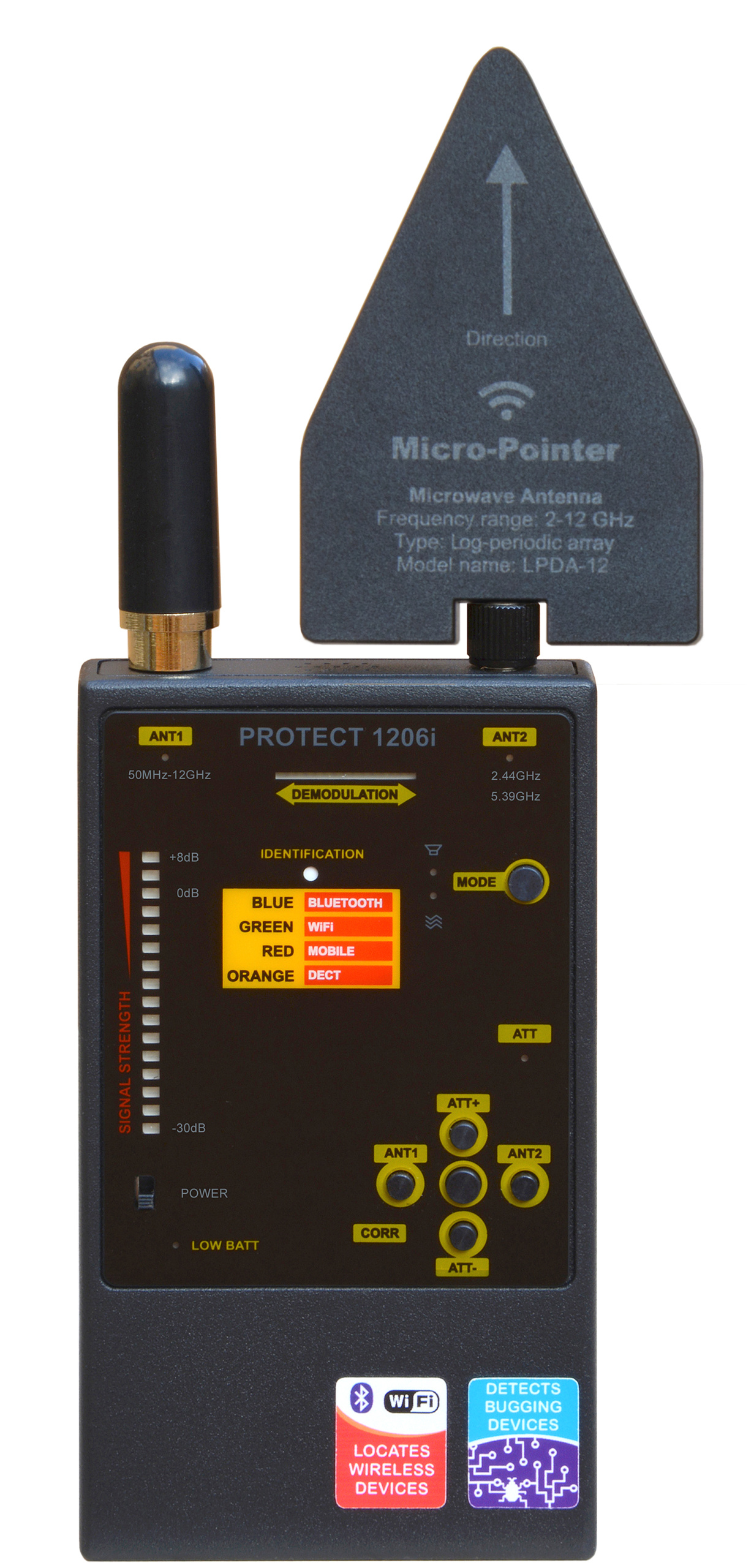

The Protect 1206i is a new class of counter-surveillance devices. Unlike all typical search devices, it is capable of detecting modern “covert” bugs that use protocols such as Bluetooth and Wi-Fi at a long distance. Such bugs, especially of the Bluetooth type, are virtually undetectable by conventional RF detectors due to their very low transmission power and a specific type of modulation. The Protect 1206i uses a separate channel with a pre-selection mechanism for high (2.4/5 GHz) frequencies to detect and localize Bluetooth and Wi-Fi with much higher sensitivity. The device also then processes the demodulated signal to identify the protocol that was detected. In addition, the device can detect all “classic” bugs and analyze them for correlation by transmitting audio pulses, as well as other digital transmissions at a standard distance (GSM, 3G, DECT, etc.).
Features
The device you have chosen is not just an improved version of an old device, but an entirely new detection tool with revolutionary changes.

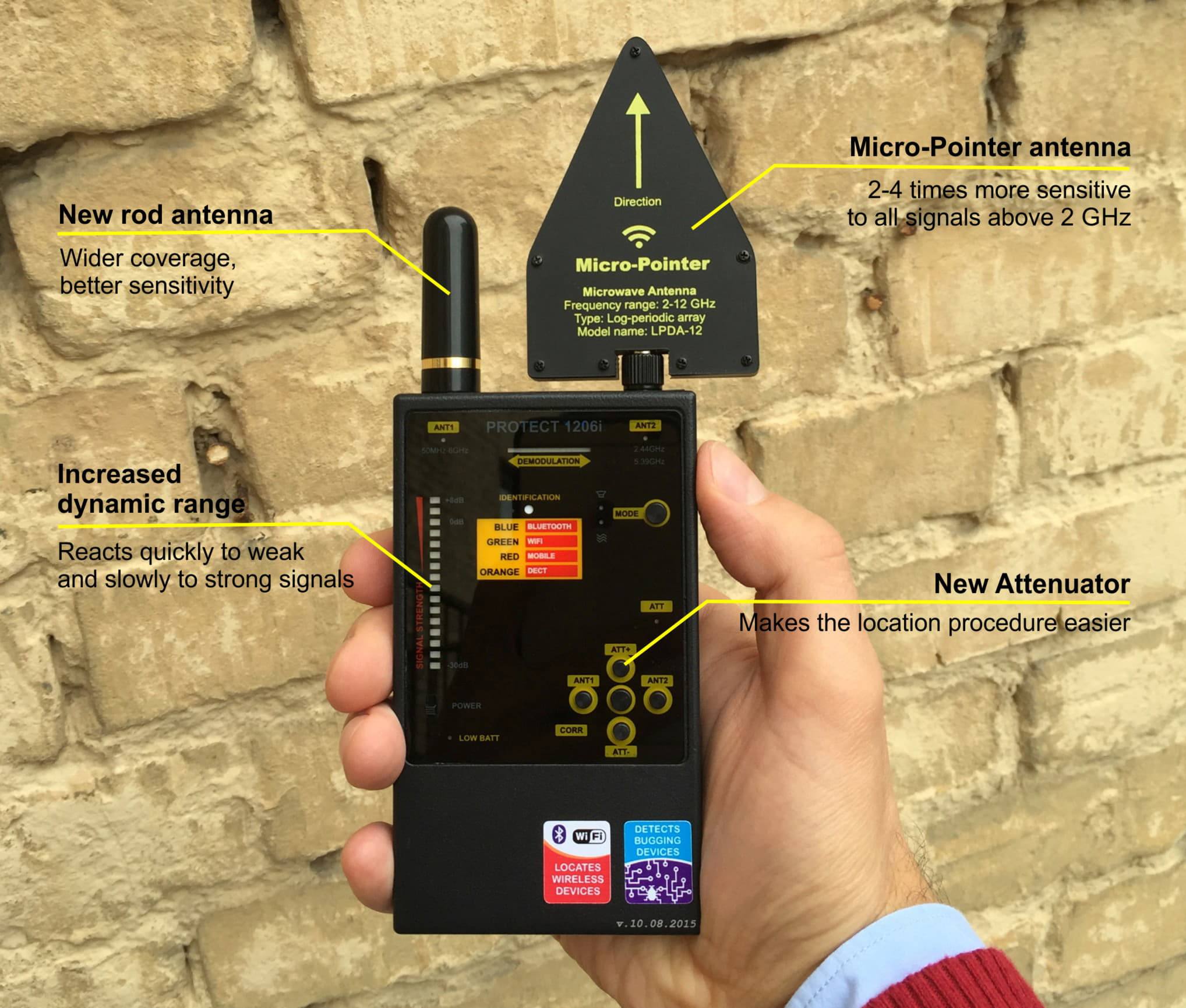

- New Wideband Antenna (for ANT1 socket)
Wider coverage, especially at low frequencies, has increased the detection range of conventional VHF/UHF bugs by 2-3 times, while maintaining perfect sensitivity in higher bands (GSM Wi-Fi, Bluetooth, etc.) - New Micro-Pointer Microwave Antenna (for ANT1 / ANT2 socket)

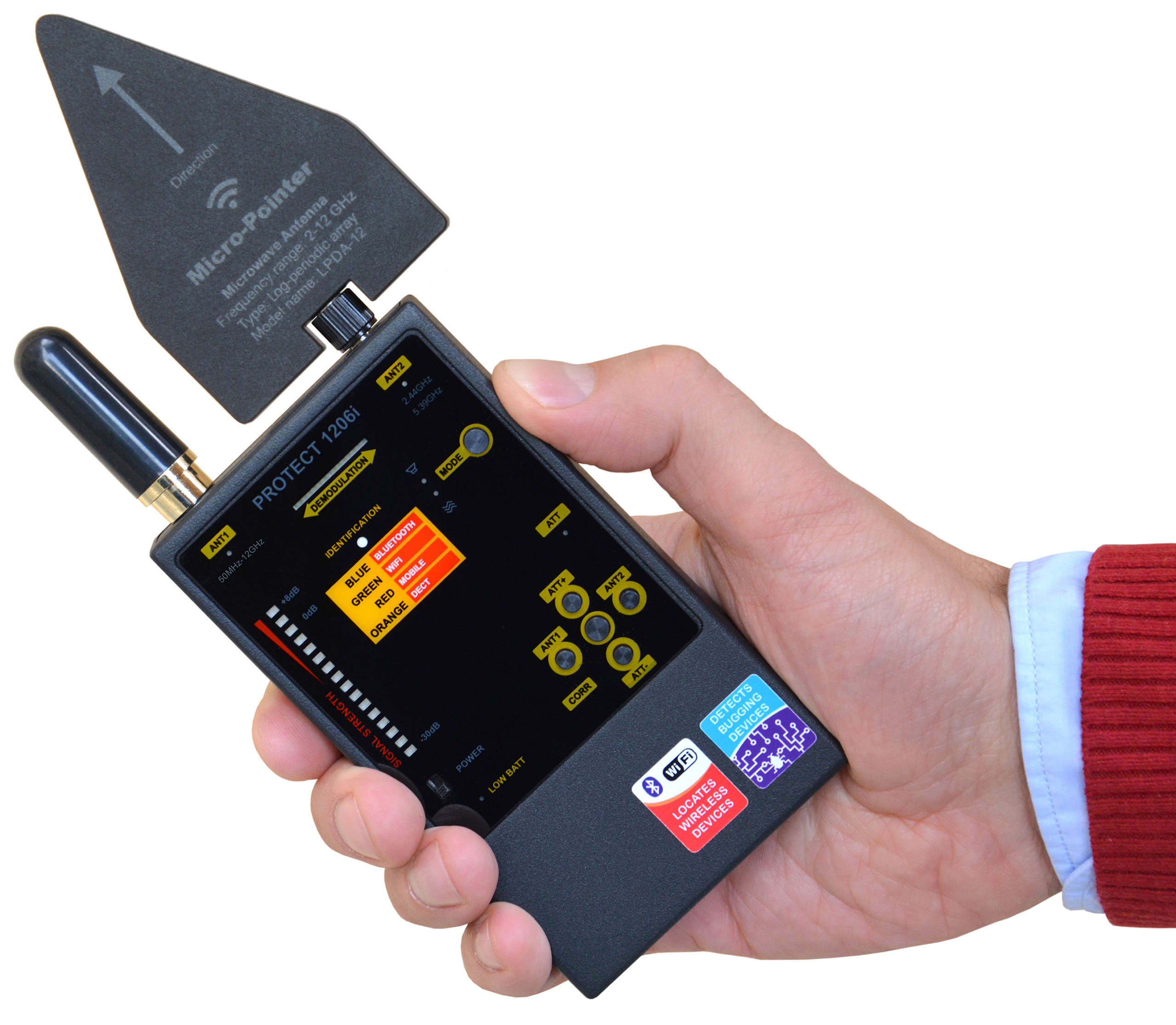

For the first time, an available RF detector offers a microwave log-periodic directional antenna. It provides 2-4 times greater distance to all sources above 2 GHz (Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Bluetooth, Wi-Max, LTE High, etc.). Directionality ensures easy localization of the wireless source. Now you not only know that a Wi-Fi source exists, but can quickly find it. - Increased Dynamic Range
The histogram now rises quickly for weak signals and slowly for strong ones, thereby making it possible to find the source - New Attenuator
A new algorithm further expands the dynamic range, simplifying the localization procedure. Switch on the attenuator near a strong source, and the fully lit histogram will drop and then further increase, making more precise location determination possible.
Other Characteristics
- Extremely high sensitivity to Bluetooth, Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, and wireless video cameras
- Frequency range:
- Main antenna ANT1: 50 – 6000 MHz;
- Auxiliary antenna ANT2: 2.4 – 2.48 GHz, 4.9 – 5.875 GHz;
- Ideal tool for searching for digital and analog transmitters of all types
- 16-segment histogram indicator
- 3 modes: audio, vibration, and mixed
- Correlation function detects FM transmitters by the presence of correlation (a probing sound is used)
- 2 sensitivity levels (attenuator)
- Long battery life
- Durable metal casing
- Microprocessor controlled

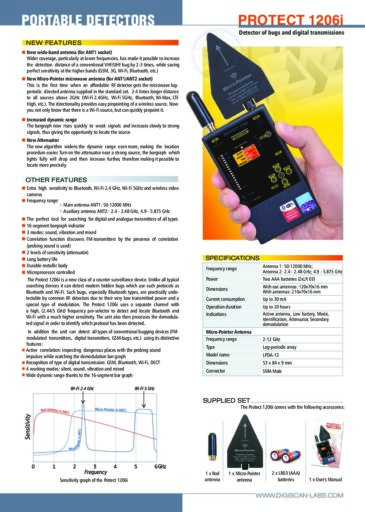

Specification
| Frequency Range |
|
| Power Supply | 2 AAA batteries (2xLR03) |
| Dimensions | Without antennas: 120x70x16 mm With antenna: 210x70x16 mm |
| Current | Up to 30 mA |
| Continuous Operation Time | 20 hours |
| Indicators | Active antenna, low battery, mode, identification, attenuator, secondary demodulation |
Supplied set
| Needle Antenna |
| Micro-Pointer Antenna |
| LR03 (AAA) Battery |

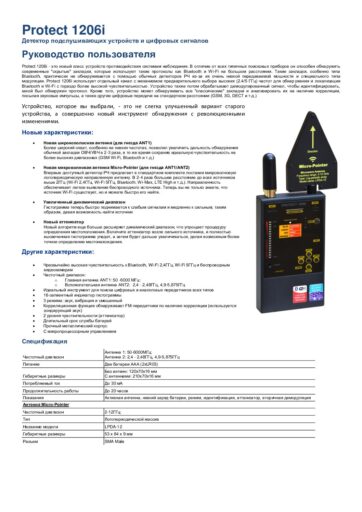

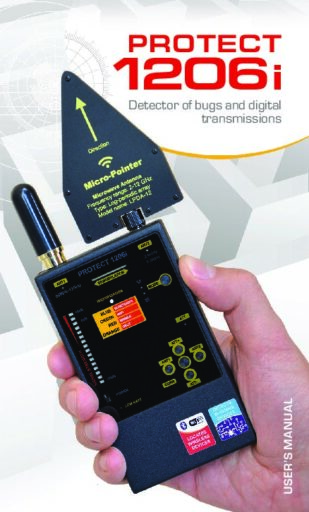

| User Manual |
